Ameer Randolph

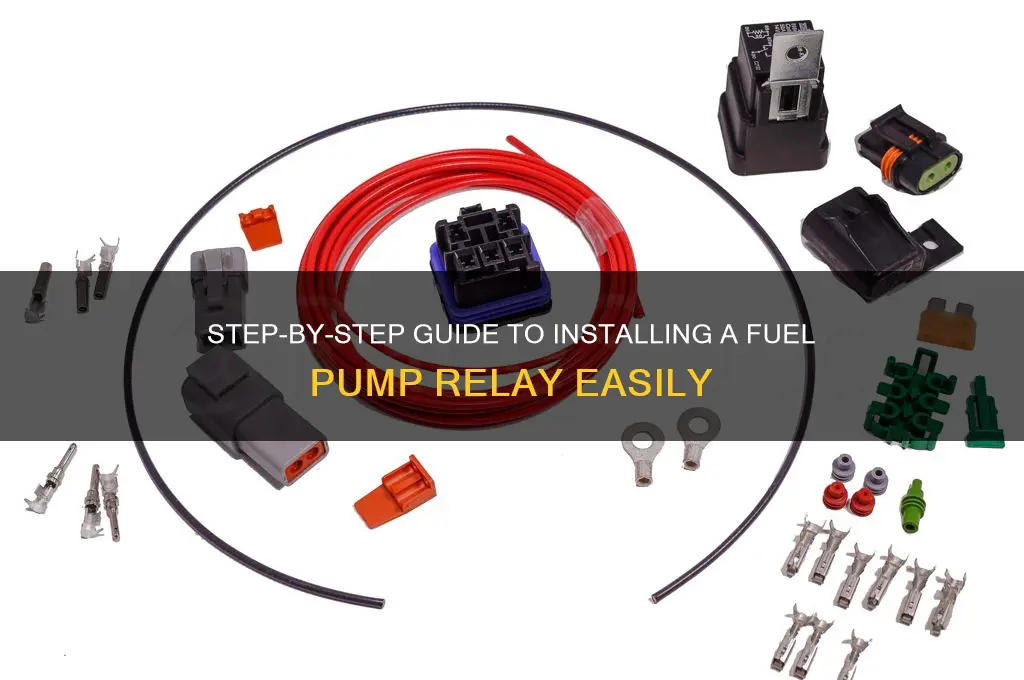

Installing a fuel pump relay is a crucial task for maintaining the proper functioning of a vehicle's fuel system. The fuel pump relay acts as a switch, controlling the power supply to the fuel pump, ensuring it operates only when the engine is running or being started. Over time, a faulty relay can lead to issues such as engine stalling, difficulty starting, or poor performance. To install a new fuel pump relay, begin by locating the existing relay, typically found in the fuse box under the hood or near the fuel pump itself. After disconnecting the battery to prevent electrical mishaps, carefully remove the old relay by pulling it straight out of its socket. Insert the new relay, ensuring it is aligned correctly and seated firmly. Finally, reconnect the battery and test the vehicle to confirm the fuel pump operates smoothly. Always refer to the vehicle’s manual for specific instructions and safety precautions.
| Characteristics | Values |
|---|---|
| Purpose | To install a fuel pump relay for proper fuel system operation. |
| Tools Required | Screwdriver, pliers, multimeter, wire strippers, electrical tape. |
| Parts Needed | Fuel pump relay, wiring harness, connectors, fuses (if applicable). |
| Location of Relay | Typically near the fuse box or under the dashboard. |
| Steps | 1. Disconnect the battery. 2. Locate the relay. 3. Remove the old relay. 4. Install the new relay. 5. Reconnect wiring. 6. Test the system. |
| Safety Precautions | Work in a well-ventilated area, avoid sparks near fuel lines. |
| Compatibility | Ensure the relay matches the vehicle's make, model, and year. |
| Testing | Use a multimeter to check for continuity and proper voltage. |
| Common Issues | Faulty connections, incorrect relay type, blown fuses. |
| Time Required | 30 minutes to 1 hour, depending on experience and vehicle. |
| Difficulty Level | Intermediate (basic electrical knowledge required). |
| Cost | $10 to $50 for the relay, depending on the vehicle. |
| Maintenance Tips | Regularly inspect wiring and connections for corrosion or damage. |
Explore related products
What You'll Learn
- Locate the Relay: Identify the fuel pump relay's position in the fuse box or under the hood
- Prepare Tools: Gather necessary tools like a screwdriver, pliers, and replacement relay
- Remove Old Relay: Disconnect the battery, then carefully pull out the faulty relay
- Install New Relay: Insert the new relay, ensuring proper alignment and secure connection
- Test the System: Reconnect the battery and start the vehicle to verify functionality
Locate the Relay: Identify the fuel pump relay's position in the fuse box or under the hood
The fuel pump relay is a critical component in your vehicle's fuel system, acting as a switch that controls power to the fuel pump. Locating it is the first step in any installation or troubleshooting process. Typically, the relay is housed in the fuse box, which can be found either under the hood or inside the cabin, often near the driver's side footwell. Understanding its position is essential, as it varies across vehicle makes and models. Consult your vehicle’s manual or search online for a diagram specific to your car to pinpoint its exact location.
Analyzing the layout of your fuse box can save you time and frustration. Most fuse boxes have a diagram on the cover or lid, labeling each relay and fuse. Look for labels like "FUEL PUMP," "FP RELAY," or similar abbreviations. If the diagram is missing or unclear, use a multimeter to test each relay slot for continuity while the ignition is on. The slot that shows power when the ignition is active is likely the fuel pump relay. This method requires basic electrical knowledge but ensures accuracy.
Persuasively, locating the fuel pump relay yourself can empower you to handle minor repairs without relying on a mechanic. For instance, if your vehicle is stalling or struggling to start, a faulty relay could be the culprit. By identifying its position, you can test, replace, or clean the relay, potentially saving hundreds in labor costs. Additionally, understanding your vehicle’s components fosters a deeper connection with your car, making maintenance less intimidating.
Comparatively, locating the relay under the hood versus inside the cabin involves different approaches. Under-hood fuse boxes are often larger and more accessible, with relays grouped together in a module. Cabin fuse boxes, on the other hand, are usually smaller and may require removing a panel for access. If your vehicle has multiple fuse boxes, start with the under-hood location, as it’s more common for fuel pump relays. Always disconnect the battery before working under the hood to prevent electrical accidents.
Descriptively, the fuel pump relay is a small, rectangular component with four to five pins, depending on the design. It’s often black or gray and may have a tab for easy removal. When locating it, take note of its orientation and surrounding components to avoid damaging nearby parts. If the relay is under the hood, ensure the engine is cool to prevent burns. For cabin fuse boxes, use a flashlight to illuminate tight spaces. Once identified, mark its position with a label or take a photo for future reference. This attention to detail ensures a smooth installation or replacement process.
Pump Precision: Unveiling the Accuracy of Octane Ratings at Fuel Stations
You may want to see also
Explore related products
Prepare Tools: Gather necessary tools like a screwdriver, pliers, and replacement relay
Before diving into the installation of a fuel pump relay, it’s crucial to assemble the right tools. A screwdriver, preferably a Phillips-head and flat-head set, is indispensable for removing panels and securing connections. Pliers, particularly needle-nose and slip-joint varieties, will aid in gripping wires, manipulating small components, and extracting stubborn parts. The star of the show, however, is the replacement relay itself—ensure it matches your vehicle’s make and model to avoid compatibility issues. Without these essentials, even the simplest steps can become frustrating obstacles.
Consider the screwdriver as your primary workhorse. For most vehicles, a #2 Phillips-head screwdriver is ideal for accessing the relay box, while a flat-head can pry open clips or adjust terminals. Pliers serve a dual purpose: needle-nose pliers excel at reaching tight spaces, such as disconnecting wiring harnesses, while slip-joint pliers provide the leverage needed to remove or install retaining clips. Pro tip: keep a magnetic parts tray nearby to store screws and small components, preventing them from rolling into hard-to-reach areas.
The replacement relay demands careful selection. Verify the part number against your vehicle’s manual or consult a trusted auto parts supplier. Mismatched relays can lead to electrical malfunctions or even damage the fuel pump system. If you’re unsure, cross-reference the old relay’s specifications with the new one. Some relays come with pre-attached wiring, simplifying the installation process, while others require manual connection—know what you’re working with before you begin.
Beyond the basics, a few additional tools can streamline the process. A multimeter is invaluable for testing the relay’s functionality before installation, ensuring it’s not defective. Electrical tape or heat shrink tubing can secure exposed wires, preventing shorts. For vehicles with hard-to-reach relay boxes, an extension tool or flashlight will save time and frustration. While these aren’t mandatory, they elevate your efficiency and confidence in the task.
In summary, gathering the right tools isn’t just about having what’s needed—it’s about anticipating challenges. A screwdriver, pliers, and the correct replacement relay form the foundation, but supplementary items like a multimeter or magnetic tray can transform a cumbersome job into a smooth operation. Preparation is key, and with these tools in hand, you’ll be well-equipped to tackle the fuel pump relay installation with precision and ease.
Does Mercruiser Fuel Pump Include a One-Way Valve?
You may want to see also
Explore related products
Remove Old Relay: Disconnect the battery, then carefully pull out the faulty relay
Safety first. Before you even think about removing the old fuel pump relay, disconnect the battery. This step is non-negotiable. A live electrical system can cause sparks, and with fuel in the vicinity, the risk of fire or explosion is very real. Most vehicles have the battery under the hood, but some models, like certain BMWs or older Hondas, may locate it in the trunk. Use a wrench to loosen the nut on the negative terminal (usually marked with a minus sign) and slide the cable off. Wait at least two minutes to ensure the system is fully de-energized before proceeding.
Once the battery is disconnected, locate the fuel pump relay. It’s typically found in the fuse box under the hood, though some vehicles, like Fords or Chevrolets, may place it inside the cabin near the steering column. Consult your vehicle’s manual or search online for its exact location. The relay itself is a small, rectangular component with several pins. It’s often labeled “FUEL PUMP” or “FP,” but if not, look for a diagram on the fuse box cover or use a multimeter to test for continuity.
Now, carefully pull out the faulty relay. This isn’t a step to rush. Relays are designed to fit snugly, and forcing it could damage the socket. Grip the relay firmly between your thumb and forefinger, or use a pair of needle-nose pliers if it’s particularly stubborn. Pull straight out, avoiding any twisting or sideways pressure. If the relay doesn’t budge, check for locking tabs or clips that may need to be released first. For example, some Toyota relays have a small clip on the side that must be depressed before removal.
Inspect the relay socket after removal. Look for signs of corrosion, melting, or burnt pins, which could indicate a larger electrical issue. If the socket appears damaged, clean it with electrical contact cleaner and a small brush, or replace it entirely. This step ensures the new relay will function properly and prevents future failures. For instance, a corroded socket in a Dodge Ram 1500 could lead to intermittent fuel pump operation, causing stalling or hard starts.
Finally, dispose of the old relay properly. Automotive relays contain materials that shouldn’t be thrown in the regular trash. Many auto parts stores or local waste facilities accept electronic components for recycling. Keeping track of this small detail not only helps the environment but also ensures you’re following local regulations. With the old relay removed and the socket inspected, you’re now ready to install the new one, bringing your fuel system back to reliable operation.
2002 Chevy Venture Van Fuel Pump Count: What You Need to Know
You may want to see also
Explore related products
Install New Relay: Insert the new relay, ensuring proper alignment and secure connection
Installing a new fuel pump relay is a precise task that hinges on proper alignment and secure connection. Misalignment can lead to intermittent power delivery or complete failure, while a loose connection risks overheating or arcing. Begin by identifying the relay’s orientation—most relays have a notched corner or labeled terminal positions to guide placement. Align these markers with the corresponding slots in the relay socket, ensuring the relay seats fully without force. A snug fit confirms correct alignment, while resistance or gaps signal a need to recheck orientation.
The connection’s security is equally critical, as vibrations from the engine can loosen components over time. Once aligned, press the relay firmly into the socket until it clicks or locks into place. Inspect the terminals for corrosion or damage; clean them with electrical contact cleaner if necessary. For added stability, consider using dielectric grease on the terminals to prevent moisture intrusion and improve conductivity. If the relay has mounting screws, tighten them evenly to avoid warping the housing, but avoid over-tightening, which can crack plastic components.
A comparative analysis of relay installation methods reveals that some vehicles require additional steps, such as resetting the ECU or testing the circuit post-installation. For example, in older vehicles, relays often lack locking mechanisms, relying solely on friction for retention. In such cases, securing the relay with zip ties or electrical tape around the socket can prevent dislodgment. Conversely, modern vehicles may integrate relays into fuse boxes, necessitating careful disassembly and reassembly to avoid damaging adjacent components.
Practical tips include testing the relay before installation using a multimeter to verify functionality. Check for continuity between the input and output terminals and ensure the coil resistance matches the manufacturer’s specifications. If the relay fails this test, replace it immediately to avoid diagnosing a non-issue. Additionally, label the relay’s position in the fuse box or take a photo before removal—this aids in reinstallation and prevents confusion with similarly sized relays.
In conclusion, inserting a new fuel pump relay demands attention to detail and adherence to specific steps. Proper alignment ensures consistent electrical flow, while a secure connection safeguards against environmental and mechanical stresses. By combining analytical precision with practical techniques, you can execute this task efficiently, restoring your vehicle’s fuel system reliability. Always consult the vehicle’s manual or a trusted repair guide for model-specific nuances, ensuring a seamless installation.
Understanding the Fuel Pump System in Mercedes-Benz Vehicles
You may want to see also
Explore related products
Test the System: Reconnect the battery and start the vehicle to verify functionality
With the fuel pump relay installed, the moment of truth arrives: does it work? Before declaring victory, a systematic test is crucial. Reconnect the battery, ensuring the terminals are clean and tightly secured. This step is often overlooked, but a poor connection can mimic relay failure, leading to unnecessary troubleshooting. Once the battery is reconnected, turn the ignition to the "on" position but don’t start the engine. Listen carefully for the fuel pump’s priming cycle—a brief humming sound that indicates the pump is pressurizing the fuel system. If this sound is absent, double-check the relay’s wiring and connections.
Starting the vehicle is the ultimate test of the relay’s functionality. Turn the key to start the engine and observe its behavior. A healthy fuel pump relay will allow the engine to start smoothly, with no hesitation or sputtering. If the engine cranks but doesn’t start, or if it starts but stalls immediately, the relay or another component in the fuel system may still be at fault. In such cases, use a multimeter to test the relay’s continuity and voltage output, ensuring it’s delivering the correct power to the fuel pump.
A comparative analysis of the vehicle’s performance before and after the relay installation can provide valuable insights. For instance, if the vehicle previously struggled to start or exhibited rough idling, a successful relay installation should resolve these issues. However, if problems persist, consider other potential culprits, such as a clogged fuel filter or faulty fuel pressure regulator. This step-by-step approach ensures that the relay is not just installed but is also functioning optimally within the broader fuel system.
Finally, a practical tip: after verifying functionality, take the vehicle for a short drive to ensure the fuel pump relay performs under varying conditions. Pay attention to acceleration, deceleration, and idle quality. If everything checks out, you’ve successfully installed and tested the fuel pump relay. If not, revisit the installation process and consult a repair manual or professional mechanic for further guidance. This methodical approach ensures reliability and safety, turning a potentially daunting task into a manageable and rewarding DIY project.
Secure Your Vehicle: Easy Steps to Install a Fuel Pump Kill Switch
You may want to see also
Frequently asked questions
You will typically need a screwdriver, pliers, a socket set, and possibly a multimeter to test electrical connections. Always refer to your vehicle’s manual for specific tools.
The fuel pump relay is usually found in the fuse box under the hood or inside the cabin. Check your vehicle’s manual or consult a diagram to locate it precisely.
Common signs include the engine not starting, stalling, or difficulty starting. You can test the relay using a multimeter or by swapping it with a similar relay in the fuse box to diagnose the issue.
