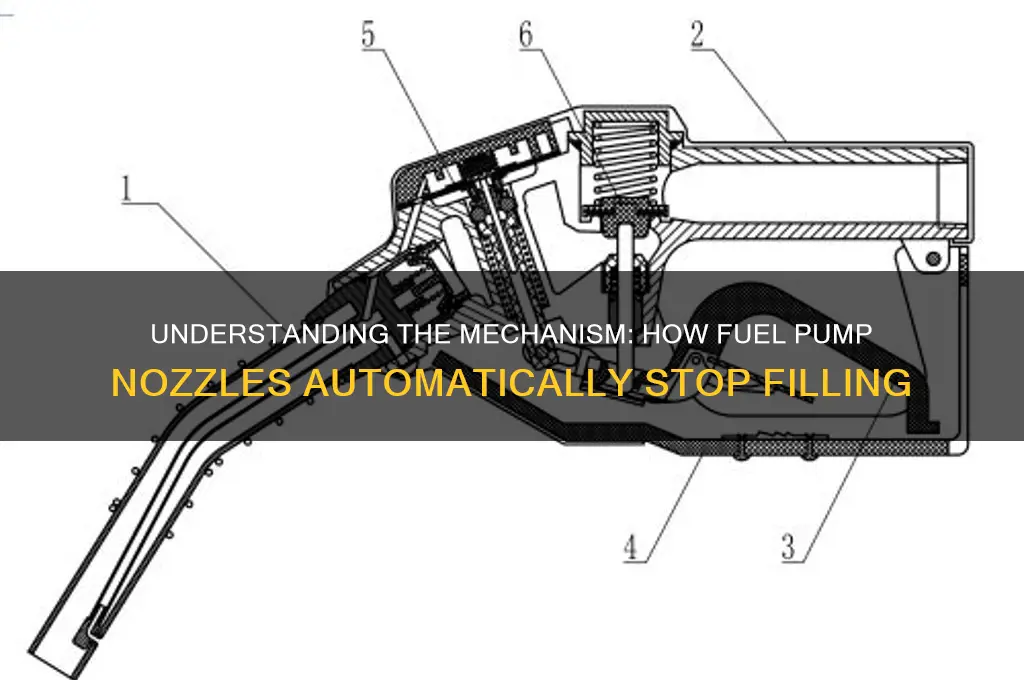

The mechanism by which a fuel pump nozzle stops is a critical component of modern fueling systems, designed to prevent overfilling and ensure safety during the refueling process. When a vehicle's fuel tank reaches its capacity, the nozzle automatically shuts off, a feature known as an automatic stop. This is achieved through a simple yet ingenious system: as the tank fills, the rising fuel level pushes a small venturi tube inside the nozzle, which creates a vacuum. Once the vacuum reaches a certain threshold, it triggers a spring-loaded mechanism that closes the nozzle's valve, halting the flow of fuel. This not only prevents spills and potential hazards but also enhances user convenience by eliminating the need for manual monitoring. Understanding this process highlights the importance of proper maintenance and the use of compatible nozzles to ensure the system functions reliably.
| Characteristics | Values |
|---|---|
| Automatic Shut-Off Mechanism | Activated by venturi effect or pressure-based system when tank is full |
| Vapor Lock Prevention | Designed to minimize air intake and maintain fuel flow consistency |
| Flow Rate Control | Regulates fuel flow to prevent overfilling and spills |
| Material | Typically made of durable plastics or metals resistant to fuel |
| Sealing Mechanism | Includes O-rings or rubber gaskets to prevent leaks during fueling |
| Safety Features | Incorporates anti-spill and anti-static components to reduce hazards |
| Compatibility | Designed to fit standard fuel tank openings and dispense systems |
| Pressure Sensitivity | Stops fuel flow when back pressure from the tank increases |
| User Interface | Often includes a trigger or latch for manual control |
| Environmental Compliance | Meets regulations for emissions and spill prevention |
Explore related products
What You'll Learn
- Mechanical Failure: Worn seals, broken springs, or cracked components can cause the nozzle to stop functioning
- Electrical Issues: Faulty wiring, blown fuses, or sensor malfunctions may halt nozzle operation
- Clogged Filters: Debris or dirt in the filter can block fuel flow, stopping the nozzle
- Vapor Lock: Excessive heat can cause fuel vaporization, preventing proper fuel delivery through the nozzle
- Safety Shutoff: Automatic shutoff mechanisms activate due to overfill, leaks, or pressure irregularities, stopping the nozzle
Mechanical Failure: Worn seals, broken springs, or cracked components can cause the nozzle to stop functioning
Fuel pump nozzles are precision instruments, and their functionality relies on the integrity of numerous small components working in harmony. Over time, the relentless exposure to fuel, pressure, and mechanical stress takes its toll. Seals, often made of rubber or synthetic materials, degrade and lose their elasticity, allowing fuel to leak past them. This not only reduces the nozzle's efficiency but can also lead to dangerous fuel spills. For instance, a worn seal in the nozzle's automatic shut-off mechanism can prevent it from engaging properly, causing fuel to overflow. Regular inspection and replacement of seals, especially in high-use environments, are crucial to prevent such failures.
Springs, another critical component, are susceptible to fatigue and breakage. The spring in a fuel pump nozzle typically controls the flow rate and ensures the nozzle returns to its resting position after use. A broken spring can render the nozzle inoperable, leaving it stuck in an open or closed position. For example, a broken return spring might cause the nozzle to remain engaged, preventing it from being removed from the fuel tank. This not only disrupts the fueling process but can also damage the nozzle and the vehicle's fuel system. Replacing springs as part of routine maintenance can mitigate this risk, especially in nozzles that handle high volumes of fuel daily.
Cracked components, whether due to material fatigue, impact damage, or exposure to extreme temperatures, pose a significant risk. A crack in the nozzle body or internal components can lead to fuel leaks, reduced pressure, or complete failure. For instance, a cracked valve seat can cause fuel to bypass the nozzle's metering system, resulting in an uncontrolled flow. Such failures are particularly dangerous in commercial settings, where large quantities of fuel are dispensed. Inspecting nozzles for cracks using visual checks and pressure tests can help identify issues before they escalate. Additionally, using nozzles made from durable materials, such as hardened plastics or metals, can extend their lifespan.
Addressing mechanical failures requires a proactive approach. Establishing a maintenance schedule that includes regular inspections, part replacements, and pressure testing can significantly reduce downtime and repair costs. For example, replacing seals every 6–12 months, depending on usage, and inspecting springs and components quarterly can prevent unexpected failures. Training staff to recognize early signs of wear, such as fuel drips or unusual resistance during operation, can also help catch issues before they worsen. By prioritizing the health of these small but vital components, fuel pump nozzles can maintain their reliability and safety over time.
Seafoam and Fuel Pumps: Potential Risks and Maintenance Tips
You may want to see also
Explore related products
$92.25 $120.03
$96.95 $103.86
Electrical Issues: Faulty wiring, blown fuses, or sensor malfunctions may halt nozzle operation
Electrical issues are a silent saboteur of fuel pump nozzle operation, often going unnoticed until the moment the nozzle fails to dispense fuel. Faulty wiring, for instance, can disrupt the electrical current necessary to activate the nozzle’s solenoid valve, which controls fuel flow. Over time, wires can corrode, fray, or become loose due to vibration, moisture, or wear and tear. A visual inspection of the wiring harness near the pump and nozzle can reveal exposed wires or damaged insulation, but diagnosing deeper issues may require a multimeter to test for continuity. If wiring is compromised, replacing the affected section or the entire harness is often the most reliable solution.
Blown fuses are another common culprit, acting as a protective measure that can inadvertently halt nozzle operation. Fuel pumps typically have dedicated fuses in the vehicle’s fuse box, rated between 10 and 20 amps depending on the system. If the pump draws excessive current—due to a malfunctioning motor or short circuit—the fuse will blow to prevent damage. To troubleshoot, locate the fuse box (often under the dashboard or in the engine bay), identify the fuel pump fuse using the diagram on the box cover, and inspect it for a broken filament. Replacing a blown fuse with one of the correct amperage is straightforward, but recurring issues warrant further investigation into the root cause.
Sensor malfunctions introduce a layer of complexity, as modern fuel systems rely on precise data to operate. The fuel level sensor, for example, communicates with the pump to prevent overfilling or running dry. If this sensor fails—due to debris, corrosion, or electrical faults—the pump may shut off prematurely or fail to activate. Similarly, a faulty pressure sensor can trigger safety mechanisms that stop fuel flow to prevent leaks or engine damage. Diagnosing sensor issues typically involves scanning for error codes with an OBD-II tool, followed by testing the sensor’s resistance or voltage output against manufacturer specifications. Replacement sensors should be calibrated to ensure accurate readings.
Preventative maintenance is key to avoiding electrical-related nozzle failures. Regularly inspect wiring for signs of damage, especially in older vehicles or those exposed to harsh conditions. Keep fuse boxes clean and dry, and carry spare fuses of the correct rating for emergencies. For sensors, periodic cleaning and testing can extend their lifespan, particularly in regions with high dust or humidity. While electrical issues can be daunting, understanding their common causes and symptoms empowers drivers to address problems swiftly, minimizing downtime and costly repairs.
John Deere L110 Fuel Pump: Does It Exist? Find Out Here
You may want to see also
Explore related products
Clogged Filters: Debris or dirt in the filter can block fuel flow, stopping the nozzle
Fuel filters are the unsung heroes of your vehicle’s fuel system, silently trapping contaminants to protect the engine. But when debris or dirt accumulates, these filters can become clogged, choking off fuel flow and causing the nozzle to stop mid-refuel. This isn’t just an inconvenience—it’s a symptom of a larger issue that, if ignored, can lead to engine damage or failure. Understanding how and why this happens is the first step in preventing it.
Imagine pouring syrup through a fine mesh strainer—the thicker the syrup, the slower it flows. A clogged fuel filter operates on the same principle. As dirt, rust, or other particles build up, the filter’s pores narrow, restricting fuel flow. Modern vehicles require a precise fuel-to-air ratio for combustion, and even a slight reduction in fuel delivery can trigger the nozzle’s automatic shut-off mechanism. This safety feature, designed to prevent overflow, is activated when fuel pressure drops below a threshold, often due to filter obstruction.
Preventing clogs starts with regular maintenance. Most mechanics recommend replacing the fuel filter every 30,000 to 50,000 miles, depending on driving conditions. If you frequently drive on dirt roads or use low-quality fuel, consider more frequent replacements. Additionally, using a fuel additive with cleaning agents can help dissolve minor buildup before it becomes a problem. Always consult your vehicle’s manual for specific recommendations, as some filters are located in hard-to-reach areas and may require professional service.
When a clogged filter is suspected, the symptoms are unmistakable: sputtering during acceleration, difficulty starting the engine, or the fuel nozzle shutting off prematurely. If you notice these signs, address the issue immediately. Ignoring a clogged filter can lead to fuel pump strain, reduced engine performance, and costly repairs. A simple filter replacement, often costing under $100, is far cheaper than fixing a damaged fuel pump or engine.
In essence, a clogged fuel filter is a small problem with big consequences. By staying proactive with maintenance and recognizing early warning signs, you can keep fuel flowing smoothly and avoid the frustration of a stopped nozzle. Treat your fuel filter with care, and it will return the favor by keeping your vehicle running efficiently.
Ford F150 Fuel Pump Lock Mechanism Explained: 2004 Model Guide
You may want to see also
Explore related products
Vapor Lock: Excessive heat can cause fuel vaporization, preventing proper fuel delivery through the nozzle
Excessive heat under the hood can turn your fuel system into a bottleneck, literally. When temperatures soar, fuel in the lines can vaporize, creating a phenomenon known as vapor lock. This gaseous fuel disrupts the liquid flow, starving the engine and causing stalls or rough idling. It’s a common issue in older carbureted vehicles or those with exposed fuel lines, but modern fuel-injected systems aren’t immune, especially in extreme conditions. Understanding this process is the first step in diagnosing and preventing it.
To combat vapor lock, start with insulation. Wrapping fuel lines with heat-resistant material or relocating them away from heat sources like exhaust manifolds can significantly reduce the risk. For carbureted engines, installing a heat shield or using a fuel cooler can help maintain lower fuel temperatures. In fuel-injected systems, ensuring the fuel pump is functioning optimally and the fuel pressure regulator is intact is crucial. Regular maintenance, such as checking for leaks and replacing old hoses, can also prevent heat-related issues.
A comparative look at carbureted vs. fuel-injected systems reveals why vapor lock is less common in modern vehicles. Fuel injection systems operate at higher pressures, reducing the likelihood of vaporization. Additionally, in-tank fuel pumps in newer cars keep the fuel cooler and under pressure, minimizing exposure to engine heat. However, even these systems can fail under extreme conditions, such as prolonged idling in high temperatures or towing heavy loads. Knowing your vehicle’s limitations is key to avoiding trouble.
For immediate relief, practical tips can make a difference. If vapor lock occurs, turn off the engine and let it cool for 15–20 minutes. Adding an octane booster or water injection system can lower fuel temperatures temporarily. In emergencies, pouring cold water over the fuel lines or carburetor can provide a quick fix, though this is not a long-term solution. Always carry a coolant spray or insulated water bottle in hot climates as a preventive measure.
In conclusion, vapor lock is a heat-induced issue that disrupts fuel delivery, but it’s preventable with proactive measures. By insulating fuel lines, maintaining your vehicle, and understanding its vulnerabilities, you can keep your engine running smoothly even in scorching conditions. Whether you drive a classic carbureted car or a modern fuel-injected vehicle, staying informed and prepared is your best defense against this heat-related nuisance.
Step-by-Step Guide to Disconnecting GM Fuel Pump Wiring Harness Safely
You may want to see also
Explore related products
Safety Shutoff: Automatic shutoff mechanisms activate due to overfill, leaks, or pressure irregularities, stopping the nozzle
Modern fuel pump nozzles are engineered with automatic shutoff mechanisms that activate in response to specific safety triggers: overfill, leaks, or pressure irregularities. These systems are designed to prevent fuel spills, reduce fire hazards, and protect both the vehicle and the environment. The shutoff is typically triggered by a vacuum-operated mechanism inside the nozzle, which senses when the fuel tank is full or when abnormal conditions occur. This technology ensures that fueling stops automatically, even if the operator is distracted or unaware of the issue.
Consider the overfill scenario: as the tank reaches capacity, fuel rises and blocks the nozzle’s venturi tube, creating a vacuum that activates the shutoff valve. This process is precise, cutting off fuel flow within milliseconds of the tank being full. For example, most nozzles are calibrated to stop when the fuel level reaches within 1–2 inches of the tank’s top, preventing overflow. This feature is particularly critical for vehicles with smaller tanks or irregular shapes, where manual fueling could lead to spills.
Leaks and pressure irregularities also trigger the safety shutoff. If a leak is detected—such as a disconnected hose or a damaged nozzle—the system immediately halts fuel flow to prevent hazardous situations. Similarly, pressure sensors monitor the fueling process, shutting off the nozzle if pressure drops or spikes unexpectedly. This dual-safety approach ensures that even minor malfunctions are addressed before they escalate into major incidents.
Practical tips for maximizing the effectiveness of these mechanisms include fueling at a steady rate (avoiding rapid filling, which can confuse pressure sensors) and ensuring the nozzle is properly inserted into the vehicle’s tank. Regularly inspect the nozzle and hose for wear or damage, as compromised components can interfere with shutoff functionality. For commercial or high-volume fueling operations, consider nozzles with advanced diagnostics that alert operators to potential issues before they trigger an automatic shutoff.
In comparison to older manual systems, automatic shutoff mechanisms represent a significant advancement in fueling safety. They not only reduce human error but also comply with stringent environmental and safety regulations. For instance, the Environmental Protection Agency (EPA) mandates that all new fuel dispensers include automatic shutoff features to minimize vapor emissions and spill risks. By understanding and respecting these mechanisms, operators can ensure safer, more efficient fueling practices.
Fuel Pump Count in a 2001 Chevy Tahoe Explained
You may want to see also
Frequently asked questions
Most fuel pump nozzles use a vacuum-operated automatic shutoff mechanism. When the fuel reaches the fill level in the tank, it blocks the venturi in the nozzle, creating a vacuum that triggers the shutoff valve, stopping the fuel flow.
Premature stopping can occur due to a clogged venturi or debris in the nozzle, while failure to stop may result from a broken vacuum mechanism or a malfunctioning shutoff valve. Regular maintenance and cleaning can prevent these issues.
Yes, the automatic shutoff is designed to prevent overfilling. However, if the mechanism fails or the tank is filled too quickly, fuel may spill. Always monitor the pump and ensure the nozzle is functioning correctly.
