Determining fuel pump pressure is a critical aspect of maintaining optimal engine performance and efficiency. It involves measuring the pressure at which fuel is delivered from the fuel pump to the engine's fuel injectors, ensuring it meets the manufacturer's specifications. This process typically requires specialized tools such as a fuel pressure gauge, which is connected to the fuel rail or fuel system test port. The pressure is then measured under various conditions, such as idle, cruising, and full throttle, to ensure consistent and adequate fuel delivery. Factors like fuel pump health, fuel filter condition, and system leaks can significantly impact pressure readings, making accurate diagnosis essential for troubleshooting and preventing engine issues. Understanding how to determine fuel pump pressure is vital for both mechanics and vehicle owners to ensure reliable vehicle operation.
| Characteristics | Values |
|---|---|
| Measurement Method | Fuel pressure gauge connected to the fuel rail or fuel line. |
| Pressure Range (Gasoline Engines) | Typically 30–60 psi (pounds per square inch), depending on the engine. |
| Pressure Range (Diesel Engines) | Typically 15,000–30,000 psi (high-pressure common rail systems). |
| Tools Required | Fuel pressure gauge, adapter fittings, and a pressure tester kit. |
| Testing Conditions | Engine running at idle, under load, or at specific RPMs. |
| Factors Affecting Pressure | Fuel pump health, fuel filter condition, fuel line integrity, and regulator settings. |
| Regulator Role | Maintains consistent fuel pressure by bypassing excess fuel back to the tank. |
| Diagnostic Codes | OBD-II codes (e.g., P0087, P0088) may indicate low or high fuel pressure. |
| Common Issues | Clogged fuel filter, faulty fuel pump, or malfunctioning pressure regulator. |
| Safety Precautions | Ensure engine is off and fuel system is depressurized before testing. |
| Frequency of Testing | Typically during routine maintenance or when fuel system issues are suspected. |
Explore related products
What You'll Learn
- Using a Fuel Pressure Gauge: Connect gauge to fuel rail, start engine, and read pressure
- Symptoms of Low Pressure: Engine misfires, stalling, or difficulty starting indicate potential pump issues
- Pressure Regulator Role: Maintains consistent pressure by redirecting excess fuel back to the tank
- Testing with Multimeter: Check pump’s electrical circuit for continuity and proper voltage supply
- Manual Pump Priming: Disconnect fuel line and manually operate pump to assess pressure output

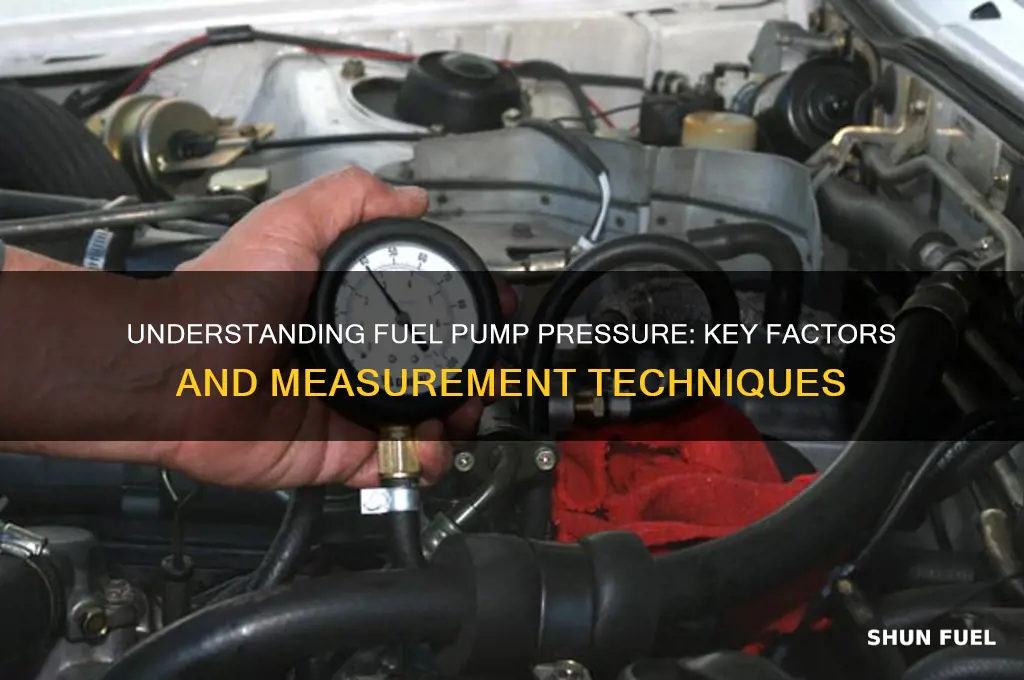

Using a Fuel Pressure Gauge: Connect gauge to fuel rail, start engine, and read pressure
Fuel pressure is a critical parameter in any internal combustion engine, directly influencing performance, efficiency, and reliability. One of the most straightforward methods to determine fuel pump pressure is by using a fuel pressure gauge. This tool provides an accurate, real-time measurement, allowing mechanics and enthusiasts to diagnose issues or verify system functionality. The process is simple yet precise: connect the gauge to the fuel rail, start the engine, and read the pressure. This method is particularly useful when troubleshooting poor engine performance, misfires, or fuel delivery problems.
Steps to Measure Fuel Pressure with a Gauge
Begin by locating the fuel rail, typically found near the engine’s intake manifold. Identify the Schrader valve (similar to a tire valve stem) on the rail, which serves as the access point for the gauge. Ensure the engine is off and the fuel system is depressurized to avoid accidents. Attach the fuel pressure gauge to the Schrader valve using the appropriate adapter, ensuring a secure connection. Start the engine and allow it to reach operating temperature, as fuel pressure varies with engine load and temperature. Observe the gauge reading, comparing it to the manufacturer’s specifications for your vehicle. For example, a typical EFI system may require 30–60 psi, while carbureted engines often operate at 5–7 psi.
Cautions and Practical Tips
Working with fuel systems carries inherent risks, so safety is paramount. Always wear safety goggles and gloves, and ensure the work area is well-ventilated. Avoid open flames or sparks, as fuel is highly flammable. If the gauge reads significantly higher or lower than the specified range, inspect the fuel pump, regulator, and lines for leaks, clogs, or malfunctions. For instance, a clogged fuel filter can cause low pressure, while a faulty regulator may result in excessive pressure. Additionally, some vehicles require specific procedures to depressurize the fuel system, so consult the service manual for your make and model.
Analyzing Results and Troubleshooting
Interpreting fuel pressure readings requires context. Low pressure may indicate a weak fuel pump, clogged filter, or faulty pressure regulator. Conversely, high pressure can damage injectors or cause fuel leaks. For example, if the gauge reads 20 psi on a system requiring 50 psi, the fuel pump may be failing. Conversely, 80 psi on a 45-psi system suggests regulator failure. Always cross-reference readings with the vehicle’s specifications and consider dynamic testing, such as measuring pressure under load or during acceleration, to identify intermittent issues.
Using a fuel pressure gauge is a direct and reliable method to determine fuel pump pressure, offering insights that diagnostic codes or visual inspections cannot. By following proper procedures and interpreting results accurately, you can diagnose fuel system issues efficiently, ensuring optimal engine performance and longevity. Whether you’re a professional mechanic or a DIY enthusiast, mastering this technique is an invaluable skill in automotive maintenance.
