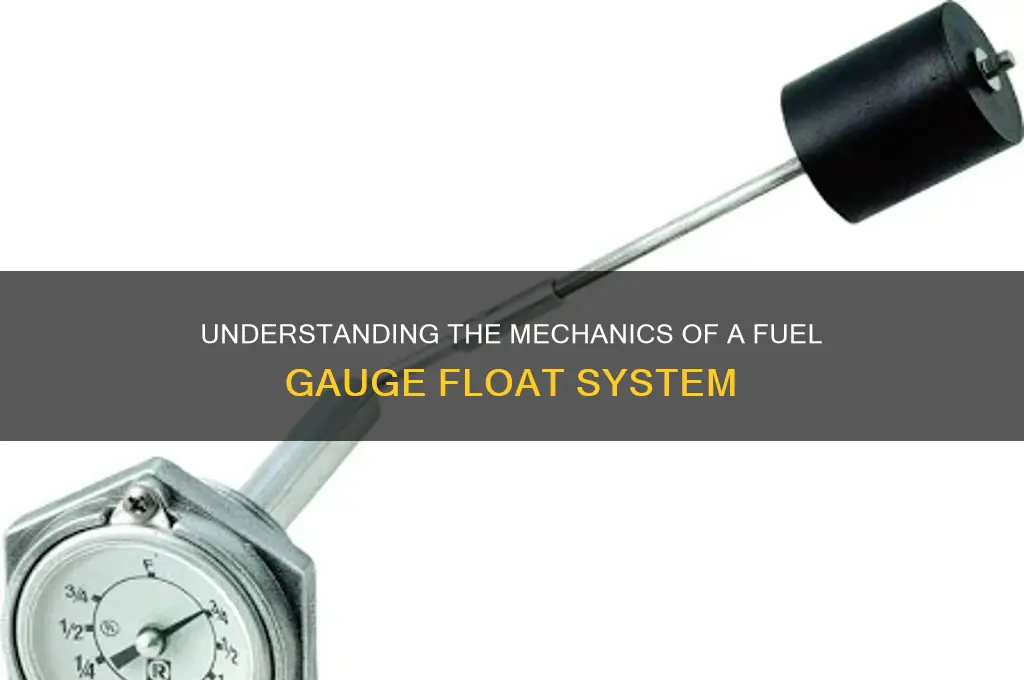

A fuel gauge float is a critical component in a vehicle's fuel system, designed to accurately measure the amount of fuel remaining in the tank. It operates on a simple yet ingenious principle: a buoyant float, typically made of foam or plastic, is connected to a variable resistor or potentiometer via a lever or rod. As the fuel level in the tank changes, the float rises or falls accordingly, adjusting the position of the resistor. This movement alters the electrical resistance in the circuit, which is then interpreted by the fuel gauge on the dashboard, providing the driver with a real-time indication of the fuel level. This mechanism ensures reliable and consistent readings, making it an essential part of modern automotive technology.
| Characteristics | Values |
|---|---|
| Operating Principle | Uses a float connected to a potentiometer to measure fuel level. |
| Float Material | Typically made of foam or hollow plastic (buoyant and fuel-resistant). |
| Potentiometer Function | Variable resistor that changes resistance based on float position. |
| Float Movement | Rises/falls with fuel level, altering the potentiometer's resistance. |
| Resistance Range | Full tank: Low resistance; Empty tank: High resistance. |
| Gauge Display | Needle or digital readout calibrated to resistance values. |
| Accuracy | Affected by fuel sloshing, temperature, and float wear over time. |
| Modern Variations | Some vehicles use ultrasonic or capacitive sensors instead of floats. |
| Power Source | Operates on vehicle's 12V electrical system. |
| Location | Mounted inside the fuel tank. |
| Maintenance | Requires periodic inspection for float or potentiometer failure. |
Explore related products
What You'll Learn
Float Design and Material
The fuel gauge float is a deceptively simple component, yet its design and material selection are critical to accurate fuel level readings. A common design features a hollow, buoyant structure often shaped like a cylinder or sphere, allowing it to rise and fall with the fuel level. This movement is then translated into an electrical signal that powers the fuel gauge on your dashboard.
Key to this functionality is the float's density. It must be less dense than the fuel it displaces, ensuring it floats reliably. Materials like nylon, polyethylene, or even treated cork are popular choices due to their lightweight nature and resistance to fuel degradation.
Imagine a scenario where a float is made from a material too dense. It would sink, rendering the fuel gauge useless. Conversely, a float too buoyant might not accurately reflect the true fuel level, leading to misleading readings. This delicate balance highlights the importance of precise material selection and design.
Engineers must also consider the corrosive nature of fuel. Materials resistant to ethanol blends and other additives are essential to prevent deterioration and ensure long-term reliability.
Beyond material choice, the float's shape plays a role. A streamlined design minimizes drag, allowing for smoother movement within the fuel tank. This reduces wear and tear on the float arm and ensures consistent readings, even during sharp turns or sudden stops.
In essence, the fuel gauge float is a testament to the power of thoughtful design and material science. Its seemingly simple construction belies the careful consideration given to density, buoyancy, corrosion resistance, and shape, all working in harmony to provide drivers with a vital piece of information: how much fuel remains in the tank.
Understanding Biomass Fuel: How Organic Matter Powers Sustainable Energy
You may want to see also
Explore related products
Fuel Level Detection Mechanism
The fuel gauge float is a cornerstone of automotive engineering, a deceptively simple mechanism that has reliably indicated fuel levels for decades. At its core, the system operates on the principle of buoyancy: a float, typically made of a lightweight material like foam or plastic, rises and falls with the fuel level in the tank. This movement is then translated into an electrical signal that powers the fuel gauge on your dashboard. The elegance of this design lies in its ability to provide accurate, real-time data without relying on complex electronics or sensors, making it both durable and cost-effective.
To understand the fuel level detection mechanism, consider the float’s interaction with a variable resistor, often called a potentiometer. As the float moves up or down, it physically adjusts the position of a wiper arm on the resistor. When the tank is full, the wiper arm is at one end of the resistor, creating a high resistance and sending a strong electrical signal to the gauge, indicating a full tank. Conversely, when the tank is empty, the wiper arm is at the opposite end, producing low resistance and signaling an empty tank. This analog system is remarkably precise, with the gauge needle or digital display reflecting the float’s position almost instantaneously.
One critical aspect of this mechanism is calibration. The float and resistor must be precisely matched to the shape and size of the fuel tank to ensure accuracy. For instance, a cylindrical tank requires a float designed to move linearly, while an irregularly shaped tank may need a float with a more complex path. Misalignment or wear over time can lead to inaccurate readings, such as a gauge that sticks or fluctuates wildly. Regular maintenance, including cleaning the float and resistor assembly, can prevent these issues. For DIY enthusiasts, replacing a faulty float typically costs between $20 and $50, depending on the vehicle make and model.
Modern vehicles often integrate this mechanical system with electronic sensors for enhanced reliability. For example, some designs include a reed switch or hall-effect sensor that detects the float’s position magnetically, reducing physical wear. However, the traditional float-based mechanism remains prevalent in many vehicles due to its proven track record. For older cars or those without advanced diagnostics, understanding this system is essential for troubleshooting. A common tip: if your gauge reads inaccurately, check for debris in the tank or a stuck float before assuming the gauge itself is faulty.
In conclusion, the fuel level detection mechanism is a testament to the power of simplicity in engineering. By leveraging buoyancy and basic electrical principles, it provides drivers with critical information about their vehicle’s fuel status. Whether you’re maintaining an older car or simply curious about how your vehicle works, understanding this mechanism empowers you to diagnose issues and appreciate the ingenuity behind everyday technology.
Understanding Fuel Points: How They Work and Maximize Savings
You may want to see also
Explore related products
Sender Unit Functionality
The sender unit is the unsung hero of your fuel gauge system, a critical component that bridges the physical reality of your fuel tank's contents with the digital or analog display on your dashboard. This device, often integrated into the fuel pump module or mounted separately, operates on a simple yet ingenious principle: it translates the fuel level into an electrical signal that the gauge can interpret. At its core, the sender unit consists of a float connected to a variable resistor, which adjusts its resistance based on the float's position. As the fuel level changes, the float moves up or down, altering the resistance and, consequently, the current flowing through the circuit. This variable current is what the fuel gauge reads, converting it into a visual representation of your fuel level.
Understanding the sender unit's functionality requires a closer look at its components. The float, typically made of foam or a hollow material, is designed to sit on the fuel surface, rising and falling with the fuel level. It is connected to a metal arm, which in turn is attached to a wiper or contact point on the variable resistor. This resistor, often a coiled wire or a printed circuit, is grounded at one end and connected to the fuel gauge at the other. As the float moves, the wiper slides along the resistor, changing the resistance in the circuit. For instance, when the tank is full, the float is at its highest point, and the resistance is at its maximum, sending a high current to the gauge, which displays a full tank. Conversely, when the tank is empty, the float drops, minimizing resistance and sending a low current, indicating an empty tank.
One practical tip for diagnosing sender unit issues is to test its resistance directly. With the fuel tank at a known level, disconnect the sender unit and measure the resistance between its terminals using a multimeter. Compare this reading to the manufacturer's specifications for that fuel level. For example, a typical sender unit might show 90 ohms when the tank is full and 10 ohms when it’s empty. Significant deviations from these values could indicate a faulty sender unit, such as a stuck float or a worn resistor. Additionally, if your fuel gauge reads inaccurately, check for loose connections or corrosion at the sender unit’s terminals, as these can disrupt the electrical signal.
Comparing the sender unit to other fuel level measurement technologies highlights its reliability and simplicity. Modern vehicles increasingly use ultrasonic or capacitive sensors, which offer greater precision and fewer moving parts. However, these systems are more complex and expensive, making the sender unit a cost-effective solution for many vehicles. Ultrasonic sensors, for instance, emit sound waves to measure fuel levels but can be affected by fuel sloshing or contamination. Capacitive sensors measure changes in electrical capacitance but require careful calibration. In contrast, the sender unit’s mechanical design, while susceptible to wear over time, remains straightforward to diagnose and replace, making it a preferred choice for many automotive applications.
In conclusion, the sender unit’s functionality is a testament to the elegance of mechanical-electrical integration in automotive systems. By converting physical fuel levels into electrical signals, it ensures drivers have accurate and reliable information at their fingertips. Whether you’re troubleshooting a faulty gauge or simply appreciating the engineering behind your vehicle, understanding the sender unit’s role provides valuable insights into how your car communicates its fuel status. Regular maintenance, such as checking for debris in the fuel tank or ensuring proper grounding, can extend the life of this vital component, keeping your fuel gauge accurate for years to come.
Understanding Synthetic Fuel: How It Works and Powers the Future
You may want to see also
Explore related products
Gauge Calibration Process
Fuel gauge floats rely on precise calibration to accurately reflect fuel levels, a process often overlooked until inaccuracy becomes apparent. Calibration ensures the float's position within the tank corresponds correctly to the gauge's reading, accounting for variables like fuel density and tank shape. Without proper calibration, drivers risk running out of fuel unexpectedly or overfilling the tank, both costly and inconvenient outcomes.
Steps in Calibration: Begin by ensuring the fuel tank is at a known level, ideally empty or full, depending on the manufacturer’s guidelines. Disconnect the gauge sender unit and manually adjust the float arm to align with the corresponding gauge reading. For example, if calibrating at a full tank, position the float arm so the gauge reads 100%. Use a multimeter to verify the resistance matches the expected value for that level, typically 0–90 ohms for a full tank in most vehicles. Repeat this process at intermediate levels, such as quarter, half, and three-quarters full, adjusting the arm and verifying resistance each time.
Cautions During Calibration: Avoid over-tightening the sender unit during reassembly, as this can distort the float arm or damage the tank. Be mindful of fuel vapors; work in a well-ventilated area and avoid open flames or sparks. If the float or arm shows signs of wear, such as cracking or warping, replace them before calibration to ensure accuracy.
Practical Tips for Longevity: Regularly inspect the sender unit for debris or corrosion, which can interfere with readings. For vehicles older than 10 years, consider recalibrating annually, as components degrade over time. Keep a log of calibration settings and fuel levels to track consistency and identify potential issues early.
Understanding Fuel Marking: How It Works and Its Benefits
You may want to see also
Explore related products
Common Failure Causes
Fuel gauge floats, while seemingly simple, are prone to specific failures that can leave drivers guessing about their fuel levels. One common culprit is ethanol-blended fuels, which can degrade the rubber components of the float over time. Ethanol acts as a solvent, causing the rubber to become brittle and crack, leading to inaccurate readings or a completely inoperative gauge. Vehicles older than 10 years are particularly susceptible, as their floats were often designed before ethanol became a standard fuel additive. Regular inspection of the float’s material condition during fuel pump replacements can preempt this issue.
Another frequent failure point is the electrical resistance mechanism within the sending unit. This mechanism, which translates the float’s position into a gauge reading, relies on a thin metal strip that wears out due to constant movement and exposure to fuel vapors. Over time, this strip can develop breaks or become corroded, resulting in erratic gauge behavior—such as a needle that sticks, jumps, or reads empty when the tank is full. A multimeter test of the sending unit’s resistance range (typically 0–90 ohms) can diagnose this issue before it strands you on the road.
Environmental factors also play a significant role in float failures. Moisture and debris in the fuel tank can accelerate corrosion of the float arm or hinge, causing it to stick in one position. This is especially common in regions with high humidity or where fuel quality is inconsistent. Installing a fuel filter with a water separator and periodically cleaning the tank can mitigate this risk, particularly in vehicles used in agricultural or coastal areas.
Lastly, mechanical stress from rough driving conditions or improper installation can damage the float assembly. Off-road enthusiasts or those frequently driving on uneven terrain may experience premature wear, as constant jostling causes the float to rub against the tank walls or bend the arm. Ensuring the sending unit is securely mounted and avoiding aggressive driving when the tank is near empty can extend the float’s lifespan. Regularly checking for physical damage during routine maintenance is a proactive measure every driver should adopt.
Understanding Fuel Savers: How Do They Work and Save Gas?
You may want to see also
Frequently asked questions
A fuel gauge float is a component in a vehicle's fuel tank that measures the fuel level. It consists of a buoyant float connected to a variable resistor (rheostat) or a sender unit. As the fuel level changes, the float rises or falls, adjusting the resistance in the circuit. This change in resistance is sent to the fuel gauge on the dashboard, which displays the fuel level.
The fuel gauge float is part of a sender unit that sends an electrical signal to the fuel gauge. The float's position alters the resistance in the circuit, which corresponds to the fuel level. The fuel gauge interprets this resistance change and displays the appropriate fuel level on the dashboard, typically using a needle or digital readout.
Yes, a fuel gauge float can fail due to wear, debris in the fuel tank, or corrosion. Common symptoms of a faulty float include an inaccurate fuel gauge reading (e.g., showing full or empty when it’s not), a gauge that doesn’t move, or erratic fluctuations in the fuel level display. If these issues occur, the sender unit or float may need to be replaced.
