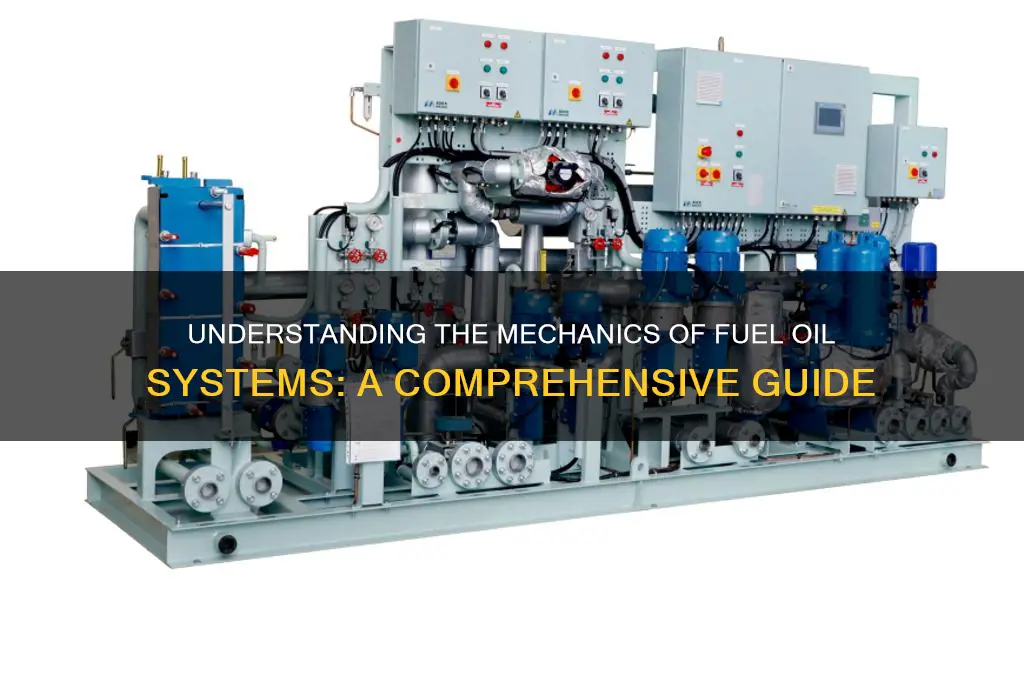

The fuel oil system is a critical component in various industrial and marine applications, serving as the backbone for powering engines and boilers. It operates by storing, treating, and delivering fuel oil to the combustion chamber in a controlled and efficient manner. The process begins with the storage of fuel oil in tanks, where it is treated to remove impurities and water through processes like settling, filtration, and heating. From the storage tanks, the fuel is pumped through a series of filters and heaters to ensure it reaches the correct viscosity and cleanliness for optimal combustion. The system also includes a metering and control mechanism to regulate the flow rate and pressure, ensuring the engine or boiler receives the precise amount of fuel needed for efficient operation. Additionally, safety features such as pressure relief valves and emergency shutdown systems are integrated to prevent accidents and maintain reliability. Understanding how the fuel oil system works is essential for ensuring energy efficiency, reducing emissions, and prolonging the lifespan of the equipment it powers.
| Characteristics | Values |
|---|---|
| Fuel Source | Typically heavy fuel oil (HFO) or marine diesel oil (MDO), stored in double-bottom tanks or dedicated fuel oil tanks. |
| Storage Temperature | Maintained at 130-150°C (266-302°F) to reduce viscosity for easier pumping and atomization. |
| Viscosity Control | Heated using steam or electric heaters to ensure optimal flow and combustion efficiency. |
| Transfer Pumps | Centrifugal or positive displacement pumps transfer fuel from storage tanks to settling tanks or service tanks. |
| Settling Tanks | Allow impurities and water to separate from the fuel oil before it reaches the engine. |
| Strainers/Filters | Remove particulate matter (e.g., sludge, dirt) to prevent clogging and ensure clean fuel supply. |
| Service Tanks | Provide a buffer supply of clean, heated fuel oil to the engine's fuel injection system. |
| Fuel Injection Pumps | High-pressure pumps deliver fuel to the injectors at precise timing and pressure for combustion. |
| Fuel Injectors | Atomize fuel into fine droplets for efficient combustion in the engine cylinders. |
| Combustion | Fuel is ignited in the engine's combustion chamber, producing power to drive the vessel or generator. |
| Purifiers | Used in larger systems to separate water and impurities from the fuel oil through centrifugal force. |
| Monitoring Systems | Sensors and alarms monitor temperature, pressure, and flow rates to ensure safe and efficient operation. |
| Safety Features | Include emergency shutdown systems, overflow protection, and fire safety measures. |
| Emission Control | Modern systems incorporate scrubbers or exhaust gas cleaning systems to reduce sulfur emissions and comply with regulations. |
| Maintenance | Regular cleaning of tanks, filters, and purifiers to prevent contamination and ensure system reliability. |
Explore related products
What You'll Learn
- Fuel Oil Storage: Tanks, capacity, and safety measures for storing fuel oil before use
- Supply and Transfer: Pumps, filters, and pipelines for delivering fuel oil to systems
- Heating and Treatment: Processes to heat and treat fuel oil for optimal combustion
- Combustion Process: How fuel oil is burned in boilers or engines for energy
- Monitoring and Control: Sensors, gauges, and systems to manage fuel oil flow and quality
Fuel Oil Storage: Tanks, capacity, and safety measures for storing fuel oil before use
Fuel oil storage is a critical component of any fuel oil system, ensuring a reliable supply for heating, power generation, or industrial processes. The cornerstone of this storage is the fuel oil tank, which must be carefully selected and maintained to guarantee safety and efficiency. Tanks come in various materials—steel, fiberglass, or polyethylene—each with its own advantages. Steel tanks, for example, are durable and suitable for large capacities but require corrosion protection. Fiberglass and polyethylene tanks, on the other hand, are corrosion-resistant and ideal for smaller installations. The choice depends on factors like capacity needs, environmental conditions, and budget.
Capacity planning is essential to avoid shortages or overstocking. Residential tanks typically range from 275 to 1,000 gallons, while commercial or industrial tanks can exceed 10,000 gallons. Calculating the right size involves estimating daily consumption, accounting for seasonal variations, and ensuring a buffer for emergencies. For instance, a household using 5 gallons of fuel oil daily should opt for a 500-gallon tank to cover a 100-day supply. Overestimating slightly is prudent, as running out of fuel can disrupt operations and incur additional delivery costs.
Safety measures are paramount in fuel oil storage to prevent leaks, fires, and environmental contamination. Tanks should be installed on stable, level ground, with proper ventilation to avoid fumes buildup. Regular inspections for cracks, rust, or leaks are mandatory, especially for older steel tanks. Secondary containment systems, such as dikes or basins, are recommended to catch spills. Additionally, tanks should be equipped with spill buckets, vent alarms, and overfill prevention devices. In cold climates, insulation and heating systems prevent oil from gelling, ensuring consistent flow.
Environmental regulations play a significant role in fuel oil storage, dictating tank placement, material, and maintenance practices. Above-ground tanks are often preferred for ease of inspection and leak detection, while underground tanks require additional safeguards to prevent soil and groundwater contamination. Compliance with local codes, such as those from the EPA or OSHA, is non-negotiable. For instance, tanks within 50 feet of a waterway may require extra containment measures. Ignoring these regulations can result in hefty fines and environmental damage.
Proper maintenance extends the life of fuel oil tanks and minimizes risks. This includes annual cleaning to remove sludge and water, which can corrode the tank and contaminate the fuel. Water testing kits are inexpensive tools to detect moisture buildup. Regularly replacing filters and inspecting fuel lines ensures clean, efficient combustion. For older tanks, consider professional assessments every 5–10 years to evaluate structural integrity. Proactive care not only safeguards the system but also reduces long-term costs, making it a wise investment for any fuel oil user.
Understanding Fuel Rats: How This Elite Rescue Team Operates in Space
You may want to see also
Explore related products
Supply and Transfer: Pumps, filters, and pipelines for delivering fuel oil to systems
Fuel oil systems rely on a precise interplay of pumps, filters, and pipelines to ensure efficient and reliable delivery. Pumps, the heart of the system, generate the necessary pressure to move fuel from storage tanks to combustion units. Centrifugal pumps, commonly used for their simplicity and reliability, are sized based on flow rate requirements, typically ranging from 50 to 500 gallons per minute for industrial applications. Positive displacement pumps, such as gear or screw pumps, are preferred for viscous fuel oils, as they maintain consistent flow even under varying pressure conditions. Proper pump selection ensures minimal energy consumption and prevents system inefficiencies.
Filters are critical to maintaining fuel quality and protecting downstream equipment. Coarse filters, with mesh sizes of 10 to 40 microns, remove large contaminants like rust or debris, while fine filters, down to 5 microns, capture smaller particles that could clog injectors or damage pumps. Self-cleaning filters are increasingly used in high-volume systems to minimize downtime, automatically ejecting collected debris without interrupting flow. Regular maintenance, including filter replacement every 3 to 6 months, is essential to prevent blockages and ensure optimal performance.
Pipelines form the backbone of fuel oil transfer systems, requiring careful design to minimize pressure drop and ensure smooth flow. Pipe diameters are calculated based on flow rate and fuel viscosity, with larger diameters reducing friction losses. Insulated pipelines are used in cold climates to prevent fuel oil from solidifying, maintaining its pumpability at temperatures below 40°F. Regular inspections for corrosion, leaks, or blockages are critical, as even small issues can disrupt supply. For example, a 10% reduction in pipe diameter due to corrosion can increase pressure drop by 50%, straining pumps and reducing efficiency.
The integration of pumps, filters, and pipelines demands a holistic approach to system design. For instance, placing filters downstream of pumps ensures contaminants are removed before they reach sensitive components, while locating pumps close to storage tanks minimizes suction head requirements. In marine applications, duplex filter systems provide redundancy, allowing one filter to be serviced while the other remains operational. Similarly, variable speed drives on pumps enable flow adjustments based on demand, reducing wear and energy costs. By optimizing these components, fuel oil systems achieve reliable, efficient, and cost-effective operation.
Understanding Hybrid Fuel Technology: How It Powers Vehicles Efficiently
You may want to see also
Explore related products
Heating and Treatment: Processes to heat and treat fuel oil for optimal combustion
Fuel oil, a viscous liquid derived from crude oil, requires precise heating and treatment to ensure efficient combustion. At ambient temperatures, its high viscosity hinders atomization, the process of breaking the oil into fine droplets for optimal burning. Heating the fuel oil reduces its viscosity, allowing it to flow freely and atomize effectively. For instance, No. 6 fuel oil, commonly used in industrial applications, has a viscosity at 50°C (122°F) that is significantly higher than No. 2 fuel oil, which is more easily atomized. Heating systems typically maintain fuel oil temperatures between 80°C and 100°C (176°F to 212°F) to achieve the desired viscosity for combustion. This temperature range ensures the oil remains liquid and flows smoothly through the system without overheating, which could lead to coking or degradation.
Beyond heating, treatment processes are essential to address impurities and enhance fuel quality. Water and sediment contamination can clog filters and damage pumps, while microbial growth in storage tanks can degrade the fuel. Biocides, such as those containing quaternary ammonium compounds, are commonly added at dosages of 10–50 parts per million (ppm) to inhibit bacterial and fungal growth. Additionally, demulsifiers are used to separate water from the fuel, ensuring that only clean oil reaches the combustion chamber. For example, a typical treatment protocol might involve adding 20 ppm of biocide and 50 ppm of demulsifier to the fuel oil storage tank, followed by agitation to ensure thorough mixing. Regular testing of fuel samples can help monitor contamination levels and adjust treatment dosages accordingly.
The process of heating and treating fuel oil is not one-size-fits-all; it varies based on the type of fuel oil and the specific combustion system. For instance, marine vessels often use heavy fuel oil (HFO), which requires more intensive heating and treatment compared to lighter distillates. HFO systems frequently incorporate thermal fluid heaters to maintain temperatures up to 130°C (266°F) and advanced filtration systems to remove impurities. In contrast, residential heating systems using No. 2 fuel oil may rely on simpler electric heating elements and basic additives. Understanding these differences is critical for optimizing combustion efficiency and minimizing maintenance issues.
A key takeaway is that proper heating and treatment are not optional but essential for the longevity and efficiency of fuel oil systems. Neglecting these processes can lead to poor combustion, increased emissions, and costly equipment failures. For example, untreated fuel oil can cause nozzle clogging in burners, reducing heating efficiency by up to 20%. By investing in appropriate heating equipment and treatment protocols, operators can ensure consistent fuel quality, reduce downtime, and extend the lifespan of their systems. Practical tips include regularly cleaning storage tanks, monitoring fuel temperature, and scheduling periodic fuel analysis to detect and address issues early.
In conclusion, the heating and treatment of fuel oil are interconnected processes that directly impact combustion performance. By maintaining optimal temperatures and addressing contaminants through targeted treatments, operators can achieve cleaner, more efficient burning. Whether for industrial, marine, or residential applications, a proactive approach to fuel oil management pays dividends in both operational reliability and environmental compliance.
Understanding the Functionality of a Fuel Cap: A Comprehensive Guide
You may want to see also
Explore related products
Combustion Process: How fuel oil is burned in boilers or engines for energy
The combustion of fuel oil is a complex yet fascinating process that powers boilers and engines, converting chemical energy into mechanical work or heat. At its core, this process involves the reaction of fuel oil with oxygen, producing heat, carbon dioxide, water vapor, and other byproducts. Understanding the intricacies of this reaction is crucial for optimizing efficiency and minimizing environmental impact.
Step-by-Step Breakdown of the Combustion Process:
- Fuel Atomization: Before combustion can occur, fuel oil must be atomized into fine droplets. This is achieved using a fuel oil pump that delivers the oil at high pressure to a nozzle, where it is mixed with air or steam. The resulting spray increases the surface area of the fuel, allowing it to mix more effectively with oxygen. For example, in marine engines, fuel oil is often heated to 130–150°F to reduce viscosity, ensuring proper atomization.
- Ignition and Flame Formation: Once atomized, the fuel-air mixture is ignited in the combustion chamber. In boilers, this is typically done using a burner that introduces the mixture at high velocity, ensuring rapid mixing and ignition. The flame formed during this stage is critical for sustained combustion. Proper air-to-fuel ratio (typically 14:1 for fuel oil) is essential to achieve a stable, efficient flame.
- Combustion Reactions: The primary reaction involves the oxidation of hydrocarbons in the fuel oil. For instance, the combustion of a simple hydrocarbon like octane (C₈H₁₈) can be represented as: C₈H₁₈ + 12.5O₂ → 8CO₂ + 9H₂O + heat. Incomplete combustion, often due to insufficient oxygen, can lead to the formation of carbon monoxide (CO) and unburned hydrocarbons, reducing efficiency and increasing emissions.
- Heat Transfer and Utilization: In boilers, the heat released from combustion is transferred to water or steam through the boiler tubes. This process requires careful design to maximize heat transfer efficiency. For engines, the expanding gases from combustion drive pistons or turbines, converting thermal energy into mechanical work. For optimal performance, maintain combustion chamber temperatures between 1400–1600°C to balance efficiency and material durability.
Cautions and Practical Tips:
- Fuel Quality: Contaminants like water or solids in fuel oil can disrupt atomization and combustion. Regularly filter fuel oil to remove impurities, and use additives to stabilize and improve combustion characteristics.
- Air Supply: Ensure adequate and clean air supply to the combustion chamber. Clogged air filters or insufficient ventilation can lead to incomplete combustion and sooting.
- Maintenance: Regularly inspect and clean burners, nozzles, and combustion chambers to prevent buildup of carbon deposits, which can reduce efficiency and increase emissions.
The combustion of fuel oil is a highly efficient process when properly managed. By focusing on atomization, ignition, and heat transfer, operators can maximize energy output while minimizing environmental impact. Practical steps like maintaining fuel quality, ensuring proper air supply, and regular maintenance are key to achieving these goals. Whether in boilers or engines, understanding and optimizing the combustion process is essential for reliable and sustainable energy production.
Tesla Semi Fueling: Powering Electric Trucks for Sustainable Long-Haul Transport
You may want to see also
Explore related products
Monitoring and Control: Sensors, gauges, and systems to manage fuel oil flow and quality
Effective monitoring and control of fuel oil systems hinge on a network of sensors, gauges, and automated systems designed to ensure optimal flow and maintain quality. Flow meters, for instance, are critical components that measure the volume of fuel oil passing through the system. These devices, often ultrasonic or turbine-based, provide real-time data to operators, enabling them to detect anomalies such as blockages or leaks. For example, a sudden drop in flow rate could indicate a clogged filter, prompting immediate maintenance to prevent system failure. Without these sensors, operators would rely on guesswork, risking inefficiencies and costly downtime.
Quality control is equally vital, as contaminated fuel oil can damage engines and compromise performance. Water-in-oil sensors are employed to detect the presence of water, a common contaminant in fuel storage tanks. These sensors use capacitance or microwave technology to measure the dielectric properties of the fuel, triggering alarms when water levels exceed safe thresholds (typically below 1%). Additionally, viscosity sensors monitor the fuel’s thickness, ensuring it remains within the optimal range for combustion. For heavy fuel oils, viscosity must be maintained between 10 and 15 cSt at 50°C to ensure smooth flow and efficient burning.
Automated control systems integrate these sensors to create a seamless monitoring framework. Programmable Logic Controllers (PLCs) act as the brain of the operation, processing sensor data and executing commands to regulate flow and quality. For instance, if a viscosity sensor detects fuel thickening due to low temperatures, the PLC can activate heating elements to restore optimal conditions. Similarly, level gauges in storage tanks feed data to the PLC, which can automatically shut off pumps when fuel levels are critically low or high, preventing overflows or dry runs.
Despite their sophistication, these systems require regular calibration and maintenance to function reliably. Pressure gauges, for example, must be checked annually to ensure accuracy, as drift can lead to false readings and unsafe operating conditions. Operators should also implement predictive maintenance strategies, using sensor data to anticipate wear and tear on components like pumps and valves. For instance, vibration sensors can detect early signs of pump imbalance, allowing for repairs before failure occurs.
In conclusion, the interplay of sensors, gauges, and control systems forms the backbone of modern fuel oil management. By leveraging real-time data and automation, operators can maintain efficiency, prevent contamination, and extend the lifespan of their equipment. However, the effectiveness of these tools depends on vigilant maintenance and a proactive approach to system health. Ignoring this critical aspect risks turning a well-designed system into a liability.
Understanding Anxiety: How Fear's Grip Fuels Persistent Worries and Stress
You may want to see also
Frequently asked questions
A fuel oil system is a network of components designed to store, transfer, and deliver fuel oil to a combustion system, such as a boiler or furnace. Its primary function is to ensure a consistent and controlled supply of fuel oil for efficient and safe operation of heating or power generation equipment.
Fuel oil flows from the storage tank to the burner through a series of components, including a supply pump, strainers to remove impurities, a pressure regulator, and heating elements (if necessary) to maintain the oil’s viscosity. The system is controlled by valves and switches to ensure proper flow and pressure.
Maintaining the correct temperature in a fuel oil system is crucial because fuel oil becomes viscous (thick) at lower temperatures, which can hinder its flow and atomization. Proper heating ensures the oil remains at an optimal viscosity for efficient combustion and prevents system clogs or malfunctions.
Common issues include clogged filters, air locks, pump failures, and fuel contamination. These can be prevented through regular maintenance, such as cleaning or replacing filters, checking for leaks, ensuring proper ventilation, and using high-quality fuel oil. Routine inspections and timely repairs also help avoid system downtime.
