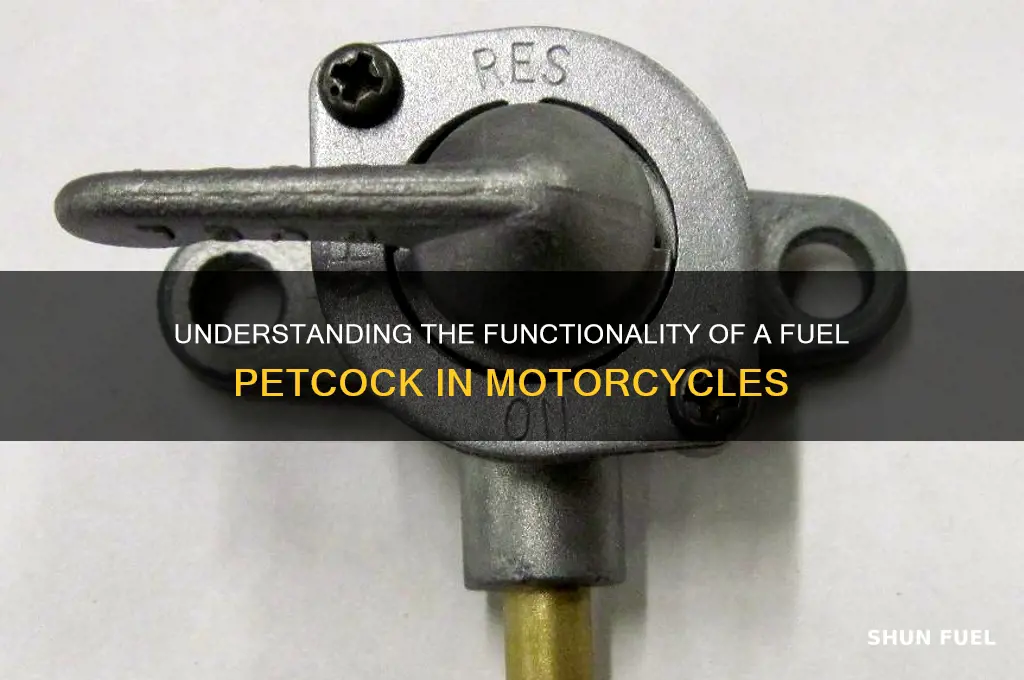

A fuel petcock is a crucial component in many internal combustion engines, particularly in motorcycles and older vehicles, serving as a manual valve to control the flow of fuel from the tank to the carburetor or fuel injection system. Typically located near the bottom of the fuel tank, the petcock allows users to select between different positions such as On, Off, and Reserve, enabling precise management of fuel delivery. When set to On, it permits continuous fuel flow during operation; Off stops the flow entirely, preventing leaks and fuel evaporation when the vehicle is not in use; and Reserve accesses the remaining fuel at the bottom of the tank when the main supply is depleted. Understanding how a fuel petcock works is essential for maintaining optimal engine performance, ensuring safety, and troubleshooting common issues like fuel leaks or engine stalling.
| Characteristics | Values |
|---|---|
| Function | Controls fuel flow from the tank to the carburetor/fuel injection system |
| Types | On/Off, Reserve, Prime, Manual, Automatic |
| Operation | Mechanical valve operated by a lever or knob |
| Location | Typically mounted on the fuel tank or near the carburetor |
| Components | Valve body, lever/knob, inlet/outlet ports, filter (optional) |
| Fuel Flow Modes | ON (full flow), OFF (no flow), RESERVE (limited flow from reserve tank section) |
| Prime Position | Allows fuel to fill the carburetor float bowl (in some models) |
| Vacuum Operation | In some systems, uses engine vacuum to assist fuel flow |
| Material | Typically made of metal (brass, aluminum) or plastic |
| Maintenance | Requires periodic cleaning to prevent clogging |
| Common Issues | Leaks, sticking valves, clogged filters |
| Applications | Motorcycles, small engines, older carbureted vehicles |
| Modern Alternatives | Electric fuel pumps in most modern vehicles |
Explore related products
What You'll Learn
- Petcock Valve Mechanism: Explains how the valve opens/closes to control fuel flow to the engine
- Fuel Tank Connection: Details the petcock’s role in linking the fuel tank to the carburetor
- Reserve Fuel Function: Describes how the reserve setting accesses leftover fuel in the tank
- Off Position Purpose: Explains why the off position prevents fuel leaks and engine flooding
- Petcock Types: Compares manual, vacuum-operated, and electronic petcock systems in fuel delivery
Petcock Valve Mechanism: Explains how the valve opens/closes to control fuel flow to the engine
The petcock valve, a small yet critical component in many fuel systems, operates as a manual shut-off valve to control the flow of fuel from the tank to the engine. Its mechanism is deceptively simple yet highly effective, relying on a rotating spindle or lever that aligns internal passages to either allow or block fuel flow. When the lever is turned to the "on" position, a channel opens, permitting gravity or suction from the engine to draw fuel through the valve. Conversely, the "off" position seals the passage, preventing fuel from escaping the tank. This design ensures that fuel is only delivered when needed, reducing the risk of leaks and improving safety, especially during storage or maintenance.
To understand the petcock valve’s operation, consider its internal structure. Most petcocks consist of a valve body, a spindle, and a sealing mechanism, often a rubber or metal washer. When the lever is rotated, the spindle moves, aligning or misaligning ports within the valve body. For instance, in a three-position petcock (on, off, reserve), turning the lever to "on" connects the fuel tank directly to the outlet, while "reserve" opens a lower port to access the remaining fuel. The "off" position blocks all ports, creating a tight seal. This precise control is essential for managing fuel delivery, particularly in motorcycles, small engines, or vintage vehicles where electronic systems are absent.
One practical tip for maintaining a petcock valve is to regularly inspect it for wear or debris. Over time, sediment or corrosion can accumulate, causing the valve to stick or leak. To clean it, disassemble the valve carefully, soak the components in a carburetor cleaner, and replace any damaged seals or washers. Additionally, ensure the lever is securely tightened but not over-torqued, as excessive force can strip the threads. For vehicles with vacuum-operated petcocks, verify that the diaphragm is intact and the vacuum line is connected properly, as leaks here can disrupt fuel flow.
Comparing the petcock valve to modern electric fuel pumps highlights its simplicity and reliability. While electric systems offer automated control and higher pressure delivery, petcocks excel in their mechanical robustness and ease of manual operation. This makes them ideal for applications where simplicity and user control are prioritized, such as in classic cars or off-road motorcycles. However, their reliance on gravity or suction limits their use in high-performance engines, where consistent fuel pressure is critical. Understanding this trade-off helps users choose the right system for their needs.
In conclusion, the petcock valve’s mechanism is a masterclass in functional design, balancing simplicity with precision to control fuel flow effectively. By mastering its operation and maintenance, users can ensure reliable performance and extend the life of their fuel system. Whether you’re restoring a vintage vehicle or troubleshooting a small engine, understanding how the petcock opens and closes is key to keeping your machine running smoothly.
Understanding Fuel Octane: How It Works and Why It Matters
You may want to see also
Explore related products
Fuel Tank Connection: Details the petcock’s role in linking the fuel tank to the carburetor
The petcock is a critical yet often overlooked component in the fuel system of many motorcycles and older vehicles, serving as the vital link between the fuel tank and the carburetor. Its primary function is to control the flow of fuel, ensuring that the carburetor receives a steady and controlled supply. Without the petcock, fuel delivery would be inconsistent, leading to poor engine performance or even failure. This small valve is typically located at the bottom of the fuel tank and operates via a simple lever or knob, allowing the rider or driver to select between "On," "Off," and sometimes "Reserve" positions. Understanding its role is essential for anyone maintaining or troubleshooting a carbureted fuel system.
Consider the petcock as the gatekeeper of your fuel system. When set to the "On" position, it opens a passage that allows gravity to pull fuel from the tank into the carburetor. This process relies on a precise balance of pressure and flow, ensuring that the carburetor receives just enough fuel to mix with air for combustion. In the "Off" position, the petcock seals the fuel line, preventing leaks and reducing the risk of fire when the vehicle is not in use. The "Reserve" setting, if available, taps into the last bit of fuel at the bottom of the tank, providing a temporary solution when the main supply runs low. This simple mechanism highlights the petcock’s dual role: enabling fuel flow when needed and ensuring safety when it’s not.
One practical tip for maintaining a petcock is to regularly inspect it for signs of wear or corrosion, especially in older vehicles. Over time, sediment and debris from the fuel tank can clog the petcock’s internal passages, restricting fuel flow. To prevent this, use a fuel filter in the tank and clean the petcock periodically. If you notice a fuel leak or difficulty switching positions, it may be time to replace the petcock. Replacement kits are widely available and typically include new seals and gaskets to ensure a tight fit. Always turn off the petcock when storing your vehicle for extended periods to avoid fuel evaporation and potential hazards.
Comparing the petcock to modern fuel systems underscores its simplicity and reliability. In fuel-injected engines, electric pumps and electronic controls manage fuel delivery, eliminating the need for a manual valve. However, the petcock’s mechanical design offers a distinct advantage: it requires no external power source and is less prone to electronic failures. For enthusiasts of classic motorcycles or vintage cars, mastering the petcock’s operation is a key skill. It not only ensures optimal performance but also preserves the authenticity of the vehicle’s original design.
In conclusion, the petcock’s role in linking the fuel tank to the carburetor is both fundamental and nuanced. It bridges the gap between fuel storage and engine demand, operating on principles of gravity and manual control. By understanding its function and maintaining it properly, you can ensure a reliable fuel supply and extend the life of your carbureted vehicle. Whether you’re a seasoned mechanic or a DIY enthusiast, appreciating the petcock’s simplicity and importance is a valuable addition to your automotive knowledge.
Understanding Ethanol Fuel: How It Powers Vehicles and Reduces Emissions
You may want to see also
Explore related products
Reserve Fuel Function: Describes how the reserve setting accesses leftover fuel in the tank
The reserve fuel function is a critical feature in many motorcycles and older vehicles, ensuring you’re not stranded when the main fuel supply runs low. When the petcock is set to "Reserve," it bypasses the primary fuel pickup tube, which sits higher in the tank, and instead accesses fuel from the lower portion. This design allows you to use nearly all the fuel in the tank before refueling becomes necessary. Typically, the reserve setting provides enough fuel for 20 to 40 miles, depending on the vehicle’s fuel efficiency and tank size. This feature is particularly useful for riders who misjudge their fuel range or encounter unexpected detours.
To activate the reserve setting, locate the petcock—usually near the bottom of the fuel tank—and rotate it to the "Reserve" position. This action shifts the internal valve, allowing the fuel line to draw from the lower part of the tank. It’s essential to switch to reserve only when the engine sputters or stalls due to low fuel, as running on reserve unnecessarily can lead to sediment or debris from the tank’s bottom being drawn into the carburetor or fuel system. Always reset the petcock to the "On" or "Main" position after refueling to avoid over-reliance on the reserve function.
Comparatively, modern vehicles with electronic fuel injection systems often lack a manual petcock and reserve setting, relying instead on a fuel pump and sensors to manage fuel delivery. However, for motorcycles and classic cars, the reserve function remains a practical, user-controlled solution. Its simplicity and reliability make it a preferred feature for long-distance riders and enthusiasts who value mechanical control over automated systems. Understanding how this function works can save you from being stranded and extend the usable range of your vehicle’s fuel tank.
For practical use, always keep track of your fuel level and plan to switch to reserve before the engine stalls completely. If you’re unsure how much fuel remains on reserve, consult your vehicle’s manual for specific mileage estimates. Additionally, periodically clean the petcock and fuel lines to prevent clogs, especially if your vehicle sits unused for extended periods. By mastering the reserve fuel function, you gain greater control over your vehicle’s fuel management, ensuring you’re prepared for any journey, long or short.
Understanding the Mechanics of Fuel Oil Systems: A Comprehensive Guide
You may want to see also
Explore related products
Off Position Purpose: Explains why the off position prevents fuel leaks and engine flooding
The off position on a fuel petcock serves a critical safety and maintenance function by completely sealing the fuel line, preventing fuel from flowing into the carburetor or fuel injection system. This simple yet effective mechanism is essential for motorcycles, small engines, and other equipment where fuel systems are more exposed and prone to leaks. When the petcock is turned to the off position, a valve inside the unit closes, creating a physical barrier that stops fuel from advancing beyond the tank. This immediate cessation of fuel flow eliminates the risk of leaks, which can occur due to vibrations, loose connections, or damaged hoses, especially during storage or transportation.
Consider the scenario of storing a motorcycle over winter. Leaving the petcock in the "on" position allows fuel to stagnate in the carburetor, leading to varnish buildup and potential clogs. By turning it off, you ensure no fuel reaches the engine, preserving its internal components and preventing the carburetor from becoming gummed up. This small action can save hours of carburetor cleaning or costly repairs when it’s time to restart the machine. Similarly, during transportation, the off position mitigates the risk of fuel spilling due to accidental tipping or jostling, protecting both the vehicle and the environment.
From a technical standpoint, the off position also prevents engine flooding, a common issue caused by excess fuel entering the combustion chamber. When an engine is already saturated with fuel—often from repeated failed start attempts—turning the petcock off stops additional fuel delivery, allowing the excess to evaporate or be cleared. This is particularly useful in older carbureted engines, where flooding is more prevalent. For example, if a lawnmower refuses to start after multiple pulls, switching the petcock to off and waiting a few minutes before retrying can often resolve the issue without further intervention.
A practical tip for users is to always engage the off position when the engine is not in use, especially during extended periods of inactivity. For motorcycles, this should be part of the pre-storage routine, along with draining the carburetor bowl if possible. For small engines like generators or lawn equipment, turning the petcock off after each use minimizes the risk of leaks and ensures the fuel system remains in optimal condition. While modern fuel systems are more advanced, the off position remains a universally applicable safeguard, bridging the gap between older and newer technologies.
In summary, the off position on a fuel petcock is not just a convenience but a vital tool for preventing fuel leaks and engine flooding. Its design simplicity belies its importance in maintaining the integrity of fuel systems across various applications. By understanding and utilizing this feature, users can extend the life of their equipment, enhance safety, and avoid common mechanical issues. Whether for storage, transportation, or troubleshooting, the off position is a small but powerful ally in fuel system management.
Exercise Boosts Brain Power: Unlocking Cognitive Benefits Through Physical Activity
You may want to see also
Explore related products
Petcock Types: Compares manual, vacuum-operated, and electronic petcock systems in fuel delivery
Fuel petcocks are the unsung heroes of carbureted engines, controlling the flow of fuel from the tank to the carburetor. Among the various types—manual, vacuum-operated, and electronic—each has distinct mechanisms and applications. Manual petcocks, the simplest of the trio, rely on a physical valve turned by hand to allow or restrict fuel flow. Typically found on older motorcycles and small engines, they offer direct control but require rider intervention to prevent fuel from flooding the carburetor when the engine is off. For instance, a rider might turn the petcock to the "On" position before starting the bike and to "Off" or "Reserve" when parking to conserve fuel or prevent leaks.
Vacuum-operated petcocks, in contrast, automate fuel delivery using engine vacuum. A diaphragm inside the petcock responds to vacuum pressure, opening the valve when the engine runs and closing it when idle. This system, common in vintage motorcycles like the Honda CB series, reduces the risk of overflow and simplifies operation. However, it’s less reliable in high-vibration environments or when vacuum lines degrade. Maintenance is critical; inspect vacuum hoses annually and replace them every 5–7 years to ensure consistent performance.
Electronic petcocks represent the pinnacle of modern fuel management, using sensors and solenoids to regulate flow based on engine demand. Found in newer vehicles and high-performance motorcycles, these systems integrate with the ECU to optimize fuel delivery, reduce emissions, and enhance safety. For example, the petcock may shut off automatically during a crash or when the ignition is turned off. While more complex and costly, electronic petcocks offer precision and peace of mind, especially in fuel-injected systems where exact metering is essential.
Comparing the three, manual petcocks excel in simplicity and cost-effectiveness but demand vigilance. Vacuum-operated systems balance automation with mechanical reliability, though they’re prone to failure under stress. Electronic petcocks provide unmatched accuracy and safety but require advanced diagnostics for troubleshooting. When choosing, consider your vehicle’s age, usage, and maintenance tolerance. For daily riders, electronic systems are ideal; for vintage restorations, vacuum-operated or manual petcocks preserve authenticity while ensuring functionality. Always consult your vehicle’s manual for compatibility and installation guidelines.
Unlocking Solar Fuel: How Sunlight Powers Clean Energy Solutions
You may want to see also
Frequently asked questions
A fuel petcock is a valve typically found on motorcycles and small engines that controls the flow of fuel from the tank to the carburetor or fuel injection system. It allows the user to turn the fuel supply on, off, or to a reserve setting, ensuring proper fuel management and preventing leaks when the engine is not in use.
A fuel petcock works by using a rotary or lever mechanism to open, close, or redirect the fuel passage within the valve. When turned to the "On" position, it allows fuel to flow from the tank to the engine. In the "Off" position, it blocks the fuel flow, while the "Reserve" setting accesses the remaining fuel at the bottom of the tank.
There are two main types of fuel petcocks: vacuum-operated and manual. Manual petcocks are controlled directly by the user via a lever or knob. Vacuum-operated petcocks use engine vacuum to open and close the fuel flow automatically, often found on older motorcycles.
A faulty fuel petcock may cause symptoms like fuel leaks, difficulty starting the engine, or the engine stalling due to inconsistent fuel flow. You can test it by checking for leaks when the petcock is off or by verifying if fuel flows properly when turned on. If issues persist, the petcock may need cleaning, repair, or replacement.
