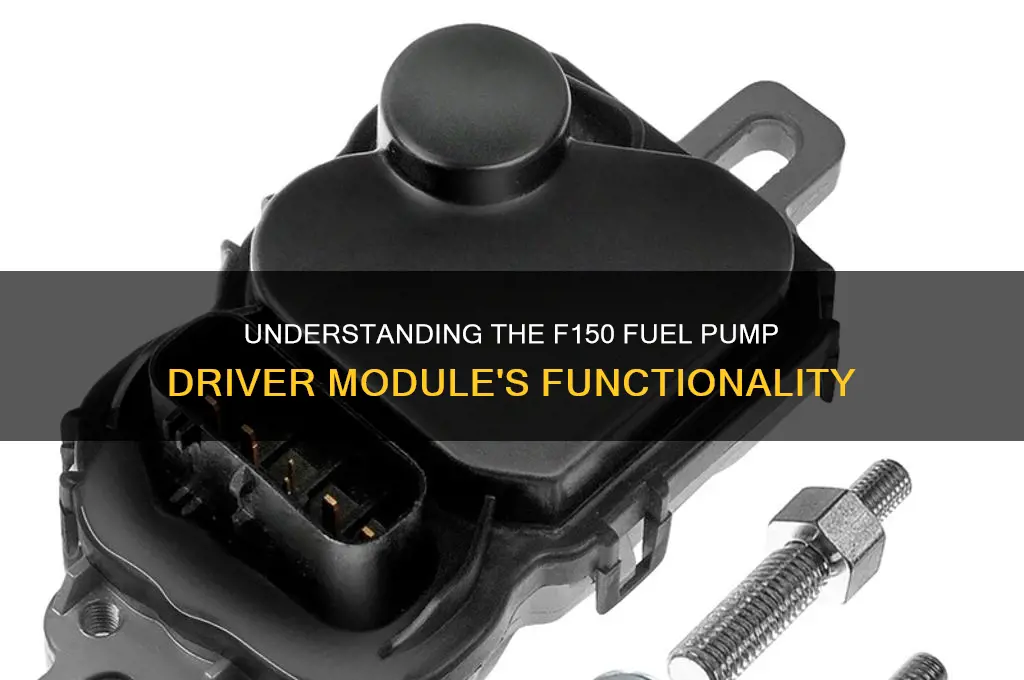

The F150's fuel pump driver module (FPDM) is a critical component in the vehicle's fuel delivery system, responsible for controlling the operation of the fuel pump. It functions as an intermediary between the vehicle's computer (PCM) and the fuel pump, receiving signals from the PCM to activate the pump and regulate fuel pressure. The FPDM typically integrates a solid-state relay or transistor to switch the high-current flow to the fuel pump, ensuring efficient and reliable operation. Additionally, it often incorporates diagnostic capabilities to monitor the pump's performance and detect faults, such as open or short circuits, which can trigger error codes and illuminate the check engine light. By managing the fuel pump's activation and monitoring its health, the FPDM plays a vital role in maintaining optimal engine performance and fuel efficiency in the F150.
| Characteristics | Values |
|---|---|
| Function | Controls the operation of the fuel pump to maintain optimal fuel pressure. |
| Location | Typically mounted near the fuel tank or under the rear seat. |
| Power Supply | Operates on 12V DC from the vehicle's electrical system. |
| Control Method | Uses PWM (Pulse Width Modulation) signals to regulate fuel pump speed. |
| Communication | Communicates with the Engine Control Module (ECM) via CAN bus. |
| Diagnostics | Monitors fuel pump performance and reports faults via OBD-II codes. |
| Protection Features | Includes overcurrent and thermal protection to prevent damage. |
| Compatibility | Designed specifically for Ford F-150 models (year-specific variations). |
| Replacement Cost | Typically ranges from $150 to $300 (parts only, excluding labor). |
| Common Failure Symptoms | Hard starting, stalling, or no-start conditions due to fuel delivery issues. |
| Maintenance | No routine maintenance required; replacement recommended upon failure. |
| Environmental Considerations | Designed to operate in varying temperatures and conditions. |
| Integration with Fuel System | Works in tandem with the fuel pump, fuel pressure sensor, and ECM. |
| Upgrade Potential | Limited; aftermarket modules may offer enhanced performance or durability. |
Explore related products
What You'll Learn
Power Supply and Input Voltage
The F150's fuel pump driver module (FPDM) relies on a precise power supply and input voltage to function optimally. Typically, the FPDM operates on a 12-volt system, which aligns with the standard electrical architecture of most modern vehicles. This voltage is supplied directly from the vehicle's battery, ensuring a consistent and reliable power source. However, the module is designed to handle minor fluctuations, usually within the range of 9 to 16 volts, to accommodate variations during engine start-up or high electrical demand scenarios. Understanding this voltage range is crucial for diagnosing issues, as deviations outside this window can indicate a faulty alternator, weak battery, or wiring problems.
One critical aspect of the power supply is the module's ability to regulate voltage to the fuel pump. The FPDM acts as an intermediary, receiving power from the battery and delivering a controlled voltage to the fuel pump. This regulation ensures the pump operates efficiently without drawing excessive current, which could lead to overheating or premature failure. For instance, during high-load conditions, such as towing or rapid acceleration, the FPDM adjusts the voltage to maintain consistent fuel pressure, demonstrating its role as both a power distributor and a protective device.
When troubleshooting power supply issues, start by verifying the input voltage at the FPDM. Use a multimeter to measure the voltage at the module's power input terminal, ensuring it falls within the 9 to 16-volt range. If the voltage is low, inspect the battery and alternator for faults. Conversely, if the voltage exceeds 16 volts, check for wiring shorts or a malfunctioning voltage regulator. A practical tip is to clean the battery terminals and inspect the wiring harness for corrosion or damage, as these issues can disrupt the power supply and mimic FPDM failure.
Comparatively, the FPDM's power supply system is more robust than older mechanical fuel pump setups, which relied directly on the vehicle's ignition switch. The modern design reduces the risk of electrical overload and provides better control over fuel delivery. However, this sophistication also means that diagnosing issues requires a systematic approach. For example, if the fuel pump fails to activate, the problem could stem from a lack of power to the FPDM, a faulty module, or a malfunctioning pump itself. By isolating the power supply as the first step, technicians can narrow down potential causes more efficiently.
In conclusion, the power supply and input voltage are foundational to the FPDM's operation, ensuring the fuel pump receives the correct electrical signal for optimal performance. By understanding the voltage requirements, regulation mechanisms, and diagnostic steps, vehicle owners and technicians can address issues effectively. Regular maintenance, such as checking battery health and inspecting wiring, can prevent power supply disruptions and extend the lifespan of the FPDM and fuel pump system.
Testing the 1992 Ford F250 460 CI Fuel Pump Relay: A Step-by-Step Guide
You may want to see also
Explore related products
Fuel Pump Control Signals
The fuel pump driver module (FPDM) in the Ford F-150 is a critical component that ensures the fuel pump operates efficiently and reliably. At its core, the FPDM manages fuel pump control signals, which dictate when and how the fuel pump activates to deliver fuel to the engine. These signals are not random; they are precisely timed and modulated to meet the engine’s demands under various conditions, such as idle, acceleration, or heavy load. Understanding these control signals is key to diagnosing issues and optimizing performance.
One of the primary functions of the fuel pump control signals is to regulate the duty cycle of the fuel pump. The duty cycle refers to the percentage of time the fuel pump is actively running within a given period. For example, a 50% duty cycle means the pump is on for half the time and off for the other half. The FPDM adjusts this duty cycle based on inputs from the engine control module (ECM), such as throttle position, engine speed, and fuel pressure sensor readings. During high-demand situations, like towing or rapid acceleration, the duty cycle increases to ensure sufficient fuel delivery. Conversely, at idle or low load, the duty cycle decreases to conserve energy and reduce wear on the pump.
Another critical aspect of fuel pump control signals is their role in fail-safe mechanisms. The FPDM continuously monitors the fuel pump’s operation for anomalies, such as excessive current draw or erratic behavior. If a fault is detected, the module can reduce the duty cycle or shut off the pump entirely to prevent damage. For instance, if the fuel pump draws too much current, indicating a potential short circuit, the FPDM may limit the pump’s operation to a lower duty cycle or trigger a diagnostic trouble code (DTC) for further investigation. This protective feature underscores the importance of precise control signals in maintaining system integrity.
Practical troubleshooting of fuel pump control signals often involves using a multimeter or scan tool to verify the FPDM’s output. Technicians look for a consistent PWM (Pulse-Width Modulation) signal, which is the method used to control the fuel pump’s duty cycle. A missing or erratic PWM signal can indicate a faulty FPDM, damaged wiring, or a failing fuel pump. For DIY enthusiasts, checking the FPDM’s ground and power connections is a good starting point, as poor grounding can disrupt control signals. Additionally, ensuring the fuel pump relay is functioning correctly is essential, as it directly affects the FPDM’s ability to send control signals.
In conclusion, fuel pump control signals are the backbone of the FPDM’s operation in the Ford F-150. They ensure the fuel pump delivers the right amount of fuel at the right time while safeguarding the system from potential failures. By understanding how these signals work and how to diagnose issues, vehicle owners and technicians can maintain optimal fuel system performance and address problems before they escalate. Whether you’re troubleshooting a no-start condition or optimizing fuel efficiency, mastering fuel pump control signals is a valuable skill.
Upgrading Your Vehicle: A Step-by-Step Guide to Installing an Aftermarket Fuel Pump Electronic
You may want to see also
Explore related products
Sensor Integration and Feedback
The F150's fuel pump driver module (FPDM) relies heavily on sensor integration and feedback to ensure precise fuel delivery under varying driving conditions. At its core, the module uses input from the fuel level sensor, located in the tank, to gauge the amount of fuel available. This sensor operates on a float mechanism, sending variable resistance signals to the FPDM, which interprets these signals to determine the fuel level displayed on the dashboard. Without accurate feedback from this sensor, the module could misjudge fuel availability, leading to potential drivability issues or inaccurate range estimates.
Another critical sensor in this system is the fuel pressure sensor, which monitors the pressure within the fuel lines. The FPDM uses this data to adjust the fuel pump’s operation, ensuring optimal pressure for engine performance. For instance, during high-load conditions like towing or acceleration, the sensor signals the FPDM to increase pump speed, maintaining consistent fuel delivery. Conversely, during idle or low-demand situations, the module reduces pump activity to conserve energy and minimize wear. This dynamic feedback loop is essential for balancing efficiency and power.
Temperature sensors also play a vital role in the FPDM’s operation, particularly in cold-start scenarios. The fuel temperature sensor detects the fuel’s thermal state, allowing the module to modulate pump activity to prevent vapor lock or poor atomization. For example, in sub-zero temperatures, the FPDM may run the pump longer during startup to ensure fuel reaches the engine in a combustible state. This integration of temperature feedback ensures reliable performance across diverse climates and driving conditions.
One practical tip for maintaining sensor accuracy is to regularly inspect the wiring harness connected to these sensors. Corrosion, loose connections, or damaged wires can disrupt signal transmission, leading to erratic FPDM behavior. Using a multimeter to test sensor resistance values (e.g., 0–90 ohms for a typical fuel level sensor) can help diagnose issues before they escalate. Additionally, keeping the fuel tank above the ¼ mark reduces strain on the fuel pump and minimizes the risk of sediment buildup, which can interfere with sensor readings.
In summary, sensor integration and feedback are the backbone of the F150’s FPDM, enabling it to adapt to real-time demands with precision. By understanding the role of fuel level, pressure, and temperature sensors, drivers can better appreciate the module’s complexity and take proactive steps to ensure its longevity. Regular maintenance and awareness of sensor-related symptoms—such as fluctuating fuel gauges or erratic engine behavior—can prevent costly repairs and keep the vehicle running smoothly.
Understanding the PSI Rating of a 1994 Ford F150 Fuel Pump
You may want to see also
Explore related products
Fault Detection and Diagnostics
The F150's fuel pump driver module (FPDM) is a critical component that ensures the fuel pump operates efficiently, delivering the right amount of fuel to the engine under varying conditions. Fault detection and diagnostics in this module are essential for maintaining vehicle performance and preventing costly breakdowns. By continuously monitoring the fuel pump’s electrical signals, voltage, and current, the FPDM identifies anomalies that could indicate a malfunction. For instance, if the module detects a current draw significantly higher than the baseline 5-7 amps during normal operation, it may signal a failing fuel pump or a clogged fuel filter. This real-time monitoring allows the system to trigger diagnostic trouble codes (DTCs) before a complete failure occurs, enabling timely intervention.
One of the key diagnostic tools in the FPDM is its ability to perform self-tests during the vehicle’s ignition cycle. These tests include checking the fuel pump’s resistance, which should typically fall between 10 and 20 ohms for optimal performance. If the resistance is outside this range, the module logs a fault and may illuminate the check engine light. Additionally, the FPDM monitors the fuel pressure sensor to ensure it aligns with expected values, usually around 40-60 PSI at idle. Discrepancies here could indicate a leak in the fuel system or a malfunctioning sensor, prompting further investigation. These self-tests are crucial for early fault detection, reducing the risk of engine stalling or poor fuel efficiency.
When diagnosing FPDM-related issues, technicians rely on scan tools to retrieve DTCs stored in the module’s memory. Common codes like P0230 (Fuel Pump Primary Circuit Malfunction) or P0232 (Fuel Pump Secondary Circuit Low) provide specific insights into the problem. For example, a P0230 code often points to a faulty fuel pump relay or a broken wire in the circuit, while P0232 suggests a low voltage supply to the fuel pump. To resolve these issues, technicians follow a systematic approach: first, verify the codes with a multimeter to check voltage and continuity; second, inspect the wiring harness for damage or corrosion; and finally, replace the faulty component if necessary. This methodical process ensures accurate diagnosis and repair, minimizing downtime.
Preventive maintenance plays a vital role in fault detection and diagnostics for the FPDM. Regularly checking the fuel filter and ensuring clean fuel is supplied to the pump can prevent premature wear and tear. It’s also advisable to inspect the module’s connections every 30,000 miles, as loose or corroded terminals can lead to intermittent faults. For older F150 models, upgrading to a more robust FPDM with enhanced diagnostic capabilities can provide better fault detection and longevity. By staying proactive and addressing minor issues early, vehicle owners can avoid major fuel system failures and maintain optimal engine performance.
Electric Auto Fuel Pump: Determining the Right Amp Requirements
You may want to see also
Explore related products
Communication with Engine Control Module
The F150's fuel pump driver module (FPDM) relies heavily on precise communication with the Engine Control Module (ECM) to ensure optimal fuel delivery. This communication is a two-way street, with the ECM sending commands and the FPDM providing feedback, creating a dynamic system that adapts to the engine's needs in real time.
Understanding the Dialogue:
The ECM acts as the brain, constantly monitoring engine parameters like RPM, load, and temperature. Based on this data, it calculates the required fuel pressure and flow rate. It then transmits this information to the FPDM via a dedicated communication protocol, typically Controller Area Network (CAN) bus.
Deciphering the Signals:
The FPDM receives these signals and translates them into specific actions. It controls the fuel pump's speed and duty cycle, adjusting the fuel pressure accordingly. For instance, during acceleration, the ECM demands higher fuel pressure, prompting the FPDM to increase the pump's speed. Conversely, at idle, the ECM signals for lower pressure, leading the FPDM to reduce pump activity.
Feedback Loop for Precision:
Communication isn't one-sided. The FPDM sends feedback to the ECM, reporting actual fuel pressure and pump status. This closed-loop system allows the ECM to make real-time adjustments, compensating for any deviations from the desired pressure. For example, if the FPDM detects a drop in pressure due to a clogged filter, it informs the ECM, which may then adjust injection timing or trigger a warning light.
Ensuring Reliability:
This constant communication is crucial for the F150's performance and efficiency. A breakdown in communication can lead to fuel delivery issues, affecting engine power, fuel economy, and even causing stalling. Regular maintenance, including checking for loose connections and ensuring the integrity of the CAN bus, is essential to maintain this vital link between the ECM and FPDM.
Signs Your Fuel Pump is Failing: What to Watch For
You may want to see also
Frequently asked questions
The F150 fuel pump driver module (FPDM) is an electronic component that controls the operation of the fuel pump in Ford F150 trucks. It regulates the fuel pump's speed and ensures proper fuel delivery to the engine, optimizing performance and efficiency.
The FPDM works by receiving signals from the vehicle's powertrain control module (PCM) and adjusting the fuel pump's voltage and speed accordingly. It monitors fuel demand based on engine load, speed, and other factors, ensuring the correct amount of fuel is delivered to the engine.
Common signs of a failing FPDM include difficulty starting the engine, stalling, reduced fuel efficiency, or a "check engine" light. In severe cases, the fuel pump may fail to operate, causing the engine to shut down completely. Diagnosis often requires a scan tool to check for error codes related to the module.
