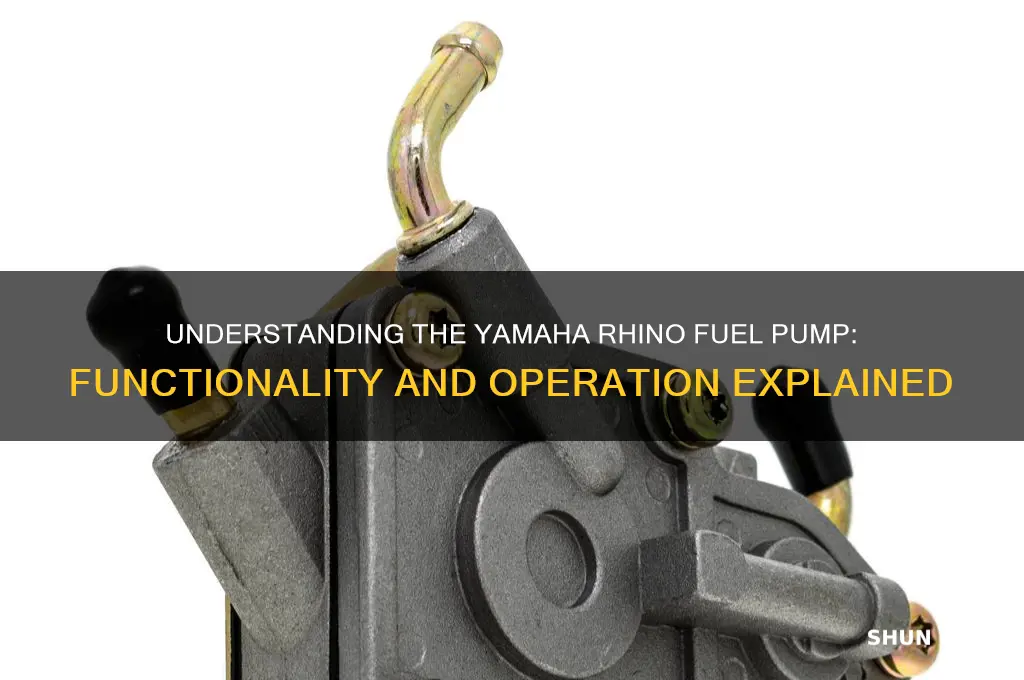

The Yamaha Rhino's fuel pump is a crucial component of its fuel system, responsible for delivering fuel from the tank to the engine efficiently. It operates using an electric motor that drives a diaphragm or turbine, creating suction to draw fuel through the lines. The pump is typically located near the fuel tank and is controlled by the vehicle's ECU (Engine Control Unit), which ensures the correct amount of fuel is supplied based on engine demand. This system is designed to maintain consistent fuel pressure, optimizing performance and preventing issues like stalling or poor acceleration. Understanding how the Yamaha Rhino's fuel pump works is essential for troubleshooting and maintaining the vehicle's reliability.
| Characteristics | Values |
|---|---|
| Type of Fuel Pump | In-tank electric fuel pump (turbine or gerotor style) |
| Power Source | 12V DC from the vehicle's electrical system |
| Fuel Delivery | Delivers fuel from the tank to the engine under pressure |
| Pressure Regulation | Maintains consistent fuel pressure (typically 30-60 PSI) via a regulator |
| Flow Rate | Varies by model, typically 30-50 liters per hour |
| Activation | Activated by the ignition switch or engine control unit (ECU) |
| Check Valve | Includes a check valve to prevent fuel backflow and maintain pressure |
| Strainer | Equipped with an in-tank strainer to filter debris from the fuel |
| Compatibility | Designed specifically for Yamaha Rhino models (e.g., 660, 700) |
| Material | Typically constructed from durable materials like aluminum or plastic |
| Failure Symptoms | Hard starting, stalling, loss of power, or no fuel delivery |
| Maintenance | Requires periodic inspection and replacement of the strainer or pump |
| Location | Mounted inside the fuel tank |
| Noise Level | Operates quietly, with minimal noise during operation |
| Temperature Resistance | Designed to operate in a wide range of temperatures |
| Replacement Interval | Typically lasts 50,000-100,000 miles, depending on usage and maintenance |
Explore related products
What You'll Learn
Fuel Pump Location and Access
The Yamaha Rhino's fuel pump is strategically located within the fuel tank, a design choice that ensures consistent fuel delivery while minimizing external damage risks. This internal placement, though protective, necessitates a methodical approach for access. To reach the fuel pump, start by relieving the fuel system pressure—a critical safety step to prevent accidental fuel spray. Next, remove the rear cargo bed to expose the fuel tank's top surface. This process requires a socket set and basic hand tools, making it accessible for most DIY enthusiasts.
Accessing the fuel pump involves more than just physical removal; it’s a diagnostic opportunity. Once the tank is exposed, inspect the wiring harness and fuel lines for signs of wear or corrosion. These components are often the culprits behind pump malfunctions, such as erratic fuel delivery or complete failure. For instance, a frayed wire near the pump’s connector can cause intermittent power loss, mimicking pump failure. Addressing these issues before replacing the pump can save time and money, ensuring the root cause is resolved.
Comparatively, the Rhino’s fuel pump access is less cumbersome than some ATVs, which may require removing the entire skid plate or exhaust system. However, it’s more involved than vehicles with external pumps, which can often be swapped out without tank removal. This trade-off highlights Yamaha’s prioritization of durability over convenience. For those tackling this task, consider using a fuel line quick-disconnect tool to avoid damaging the lines during disassembly.
A persuasive argument for regular inspection of the fuel pump’s location is its role in preventing costly repairs. Sediment buildup in the tank, common in off-road vehicles, can clog the pump’s inlet filter, leading to premature failure. By periodically checking the tank’s interior during pump access, you can flush out debris and extend the pump’s lifespan. This proactive approach aligns with Yamaha’s recommendation for routine maintenance, particularly for Rhinos used in dusty or muddy conditions.
Instructively, reassembling the fuel system after pump access requires precision. Ensure the fuel tank gasket is properly seated to prevent leaks, and torque the tank bolts to the manufacturer’s specifications—typically 10-12 Nm. Failure to do so can result in fuel seepage or tank misalignment. Finally, test the system by cycling the ignition without starting the engine to check for leaks. This step-by-step process ensures the Rhino’s fuel pump operates reliably, maintaining performance in demanding terrains.
Electric Fuel Pump Wiring: A Comprehensive Guide for DIY Enthusiasts
You may want to see also
Explore related products
Pump Operation and Mechanism
The Yamaha Rhino's fuel pump is an electric, in-tank module designed to deliver fuel from the tank to the engine under consistent pressure. Unlike mechanical pumps, it operates independently of the engine’s motion, relying on an electric motor to drive a turbine or gerotor mechanism. This setup ensures reliable fuel delivery across varying speeds and inclines, critical for the Rhino’s off-road performance. The pump’s location inside the fuel tank helps maintain a cool operating temperature and prevents fuel line vapor lock, a common issue in high-heat environments.
At the heart of the pump’s mechanism is a check valve system that maintains pressure in the fuel lines even when the engine is off. This residual pressure reduces startup lag and ensures immediate fuel availability when the ignition is engaged. The pump’s electric motor is controlled by a relay and ECU, which activate the pump during ignition and deactivate it when the engine is turned off. The motor spins at a fixed RPM, typically around 3,000–4,000, to generate a consistent flow rate of approximately 50–70 liters per hour, sufficient for the Rhino’s engine demands.
One critical aspect of the pump’s operation is its ability to handle ethanol-blended fuels, which are increasingly common. The pump’s components, including the seals and impeller, are constructed from ethanol-resistant materials to prevent degradation. However, regular maintenance, such as replacing the fuel filter every 10,000 miles or annually, is essential to prevent contaminants from damaging the pump. Clogged filters or debris in the tank can cause the pump to overwork, leading to premature failure.
A common issue with the Yamaha Rhino’s fuel pump is electrical failure due to corrosion or loose connections. The pump’s wiring harness is exposed to moisture and dirt, making it susceptible to shorts or disconnections. To troubleshoot, start by checking the pump’s relay and fuse; a blown fuse or faulty relay is often the culprit. If the pump fails to prime during ignition, listen for the characteristic hum of the motor near the fuel tank—its absence indicates an electrical issue. Always disconnect the battery before inspecting electrical components to prevent accidental shorting.
For optimal performance, consider upgrading to an aftermarket fuel pump with higher flow capacity if you’ve modified the Rhino’s engine for increased power. Stock pumps are rated for OEM specifications, and upgrades can ensure adequate fuel delivery under higher loads. Additionally, installing an inline fuel pressure gauge allows you to monitor pump performance in real time, helping diagnose issues before they escalate. Understanding the pump’s operation and mechanism not only aids in troubleshooting but also extends the life of this critical component in the Yamaha Rhino’s fuel system.
Understanding the Fuel Pump System in a 1991 GMC Sonoma
You may want to see also
Explore related products
Electrical Connections and Wiring
The Yamaha Rhino's fuel pump relies on a precise electrical system to deliver fuel efficiently. At its core, the fuel pump is powered by a dedicated circuit that originates from the vehicle's battery. This circuit typically includes a fuse, relay, and wiring harness designed to handle the pump's amperage requirements, usually around 5 to 10 amps depending on the model. Proper wiring ensures the pump receives consistent power, especially during high-demand situations like acceleration or climbing.
When diagnosing electrical issues, start by checking the fuse box for a blown fuse, a common culprit for pump failure. If the fuse is intact, inspect the relay for proper engagement. A faulty relay can prevent the pump from activating, even with a functioning fuse. Use a multimeter to test for continuity in the wiring harness, ensuring no breaks or shorts exist. Corroded connections or loose terminals can disrupt power flow, so clean and secure these points as needed.
Upgrading the wiring harness can enhance reliability, particularly in off-road conditions where vibrations and moisture pose risks. Aftermarket harnesses often feature thicker gauge wires and weatherproof connectors, reducing the likelihood of electrical failures. When installing upgrades, follow the manufacturer’s torque specifications for terminal connections to avoid damage. Additionally, routing wires away from heat sources and moving parts minimizes wear and tear.
For those seeking to optimize performance, consider adding an inline fuel pump filter to protect the pump from debris. This not only extends the pump’s lifespan but also ensures consistent fuel delivery. Pairing this with a voltage stabilizer can safeguard the pump from power surges, especially in vehicles with modified electrical systems. Always consult the Yamaha Rhino’s service manual for specific wiring diagrams and compatibility guidelines.
In summary, the electrical connections and wiring of the Yamaha Rhino’s fuel pump are critical to its operation. Regular maintenance, careful diagnostics, and strategic upgrades can prevent downtime and improve overall performance. By understanding the intricacies of this system, owners can ensure their Rhino remains reliable in any terrain.
Step-by-Step Guide to Disassembling a Volvo Penta Fuel Pump
You may want to see also
Explore related products
Fuel Flow and Pressure Regulation
The Yamaha Rhino's fuel pump is a critical component in ensuring optimal engine performance, and its functionality hinges on precise fuel flow and pressure regulation. At the heart of this system is the pump's ability to maintain a consistent fuel supply to the engine, regardless of the vehicle's orientation or the demands placed on it. This is achieved through a combination of mechanical and electronic components working in tandem. The pump draws fuel from the tank, pressurizes it, and delivers it to the engine at a rate proportional to the engine's needs, which are dictated by factors such as throttle position, load, and speed.
Consider the fuel pressure regulator, a key player in this process. Its primary function is to maintain a steady fuel pressure within the fuel rail, typically between 40 and 60 psi for the Yamaha Rhino. This regulator acts as a gatekeeper, allowing excess fuel to return to the tank when pressure exceeds the desired threshold. Without this regulation, the engine could receive too much fuel, leading to inefficiencies, poor performance, or even damage. For instance, if the pressure were to drop below 40 psi, the engine might experience a lean condition, causing misfires or rough idling. Conversely, pressure above 60 psi could result in a rich fuel mixture, reducing power and increasing fuel consumption.
To ensure proper fuel flow, the pump's design incorporates a check valve, which prevents fuel from flowing back into the tank when the pump is off. This valve is crucial for maintaining residual pressure in the system, enabling quicker starts and reducing the strain on the pump during initial ignition. Additionally, the pump’s flow rate is calibrated to match the engine’s maximum fuel demand, typically around 50–70 liters per hour for the Rhino’s engine size. This ensures that even under full throttle, the engine receives sufficient fuel without overwhelming the system.
A practical tip for maintaining optimal fuel flow and pressure is to regularly inspect the fuel filter and lines for clogs or leaks. Contaminants in the fuel can restrict flow, causing the pump to work harder and potentially fail prematurely. Similarly, a leaking fuel line can lead to pressure drops, affecting engine performance. Replacing the fuel filter every 10,000 miles or as recommended by Yamaha can prevent such issues. For those operating in dusty or muddy conditions, installing a pre-filter can further protect the system.
In conclusion, the Yamaha Rhino’s fuel pump relies on a delicate balance of fuel flow and pressure regulation to deliver consistent performance. Understanding the roles of the pressure regulator, check valve, and fuel filter empowers owners to maintain their vehicles effectively. By adhering to recommended maintenance practices and being vigilant about potential issues, riders can ensure their Rhino operates at peak efficiency, whether navigating trails or tackling tough terrain.
Fixing Your Fuel Pump: A Step-by-Step DIY Repair Guide
You may want to see also
Explore related products
Troubleshooting Common Pump Issues
The Yamaha Rhino's fuel pump is a critical component, ensuring a steady supply of fuel to the engine. However, like any mechanical part, it can encounter issues that affect performance. One common problem is a weak or non-existent fuel flow, often caused by a clogged fuel filter or a malfunctioning pump. To troubleshoot, start by checking the fuel filter for debris or sediment buildup. If the filter is clogged, replace it with a new one, ensuring the fuel lines are securely connected. This simple step can restore proper fuel flow and prevent further pump strain.
A less obvious issue is electrical malfunction, which can cause the pump to fail intermittently or completely. Begin by inspecting the wiring harness for loose connections, corrosion, or damage. Use a multimeter to test the pump’s electrical circuit for continuity and voltage. If the pump isn’t receiving power, trace the wiring back to the fuse box and relay. Replace any blown fuses or faulty relays, and ensure the ground connection is clean and secure. For persistent electrical issues, consult a wiring diagram specific to your Yamaha Rhino model to pinpoint the problem.
Another frequent culprit is a failing fuel pump relay, which controls the pump’s operation. Symptoms include the engine cranking but not starting or stalling after running for a short period. To diagnose, swap the fuel pump relay with another relay of the same type in the fuse box (e.g., the horn relay). If the issue resolves, replace the fuel pump relay. Alternatively, use a test light to check for power at the pump connector when the ignition is on. No power indicates a relay or wiring issue, while power suggests the pump itself may be faulty.
For mechanical pump failures, listen for unusual noises, such as whining or grinding, which signal internal damage. If the pump is inaccessible without removing the fuel tank, consider testing it externally. Disconnect the fuel lines and run the pump into a container to check for proper flow and pressure. Most Yamaha Rhino fuel pumps operate between 30 and 60 PSI; use a fuel pressure gauge to verify. If the pump fails this test, replacement is typically the best course of action, as internal components like the impeller or diaphragm are not serviceable.
Lastly, don’t overlook fuel quality as a potential issue. Contaminated or old fuel can clog the pump’s internal components or cause it to work harder than necessary. If troubleshooting reveals no mechanical or electrical faults, drain the fuel tank and replace the fuel with fresh, clean gasoline. Add a fuel stabilizer to prevent future contamination. Regular maintenance, such as annual fuel filter replacement and periodic pump inspections, can prevent many common issues and extend the life of your Yamaha Rhino’s fuel system.
Understanding the Fuel Pump System in a 90 Cummins Diesel Engine
You may want to see also
Frequently asked questions
The Yamaha Rhino fuel pump is an electric pump that draws fuel from the tank and delivers it to the engine under pressure. It operates via an electric motor that drives a diaphragm or turbine, ensuring consistent fuel flow.
The fuel pump is powered by the vehicle’s electrical system, typically drawing power from the battery through a relay or fuse when the ignition is turned on.
The fuel pump is usually located inside the fuel tank, submerged in fuel to prevent overheating and ensure a steady supply of fuel to the engine.
Signs of a failing fuel pump include difficulty starting the engine, sputtering or stalling during acceleration, reduced fuel efficiency, or unusual noises coming from the fuel tank area.
Yes, you can replace the fuel pump yourself if you have basic mechanical skills. However, it requires draining the fuel tank, removing the tank, and accessing the pump assembly, so following a repair manual or seeking professional help is recommended.
