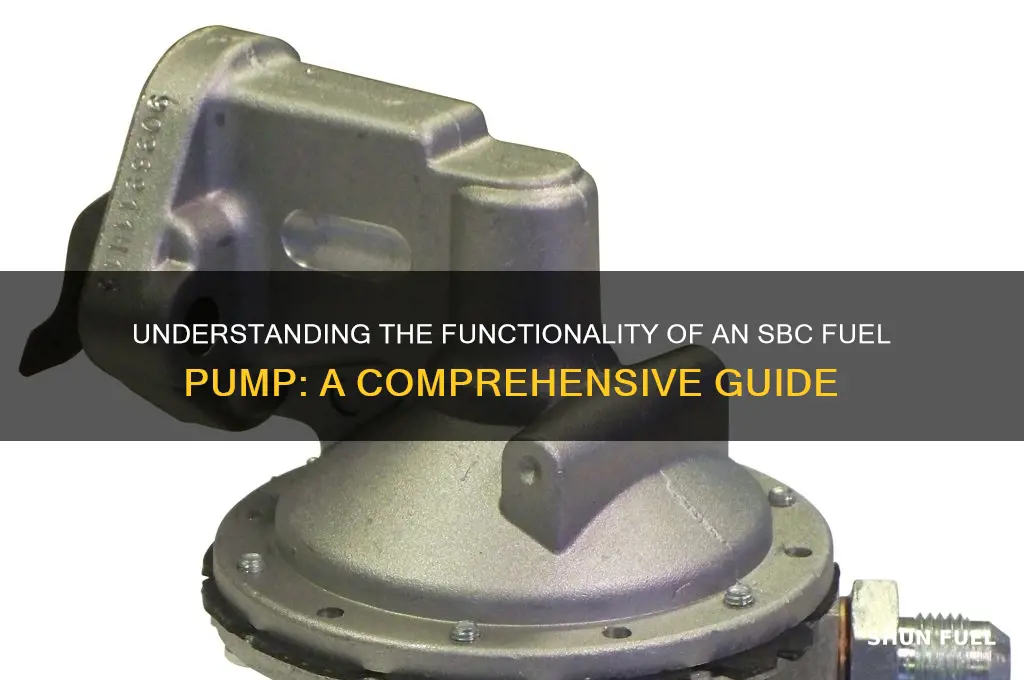

A SBC (Small Block Chevy) fuel pump is a crucial component in the fuel delivery system of a vehicle, responsible for drawing fuel from the tank and delivering it to the carburetor or fuel injection system. Typically driven by the engine's camshaft through an eccentric lobe, the fuel pump operates via a diaphragm mechanism: as the lobe rotates, it pushes a lever connected to the diaphragm, creating a vacuum that draws fuel into the pump. When the diaphragm returns to its original position, it forces the fuel out of the pump and into the engine. This process ensures a consistent and reliable fuel supply, maintaining optimal engine performance. Understanding how a SBC fuel pump works is essential for diagnosing issues, performing maintenance, and ensuring efficient fuel delivery in classic and performance vehicles.
| Characteristics | Values |
|---|---|
| Type | Mechanical, diaphragm-operated |
| Location | Mounted on the engine block, typically on the driver's side |
| Operation | Driven by a camshaft lobe, reciprocating motion |
| Fuel Flow Direction | Pulls fuel from the tank, pushes it through the fuel line to the carburetor |
| Pressure Regulation | No internal regulator, relies on carburetor float bowl for pressure control |
| Fuel Compatibility | Gasoline (leaded or unleaded) |
| Flow Rate | Typically 30-50 gallons per hour (GPH), depending on engine demand |
| Maintenance | Requires periodic inspection and replacement of diaphragm and valves |
| Common Issues | Diaphragm failure, valve leaks, reduced fuel pressure |
| Upgrades | Electric fuel pumps can be retrofitted for higher pressure and flow |
| Applications | Small Block Chevrolet (SBC) engines, commonly used in classic cars and hot rods |
| Noise Level | Moderate, audible ticking sound from the pump operation |
| Efficiency | Less efficient than electric pumps, but reliable for carbureted systems |
| Installation | Requires proper alignment with the camshaft lobe and secure mounting |
| Lifespan | Typically 50,000-100,000 miles, depending on usage and maintenance |
Explore related products
What You'll Learn
- Electric Motor Operation: Drives the pump, creating pressure to deliver fuel from tank to engine
- In-Tank vs. External: In-tank pumps are submerged; external pumps are mounted outside the fuel tank
- Pressure Regulation: Maintains consistent fuel pressure using a regulator to prevent engine damage
- Check Valve Function: Ensures fuel doesn’t return to the tank, maintaining system pressure when off
- Fuel Pump Relay: Controls power to the pump, activated by the ignition system
Electric Motor Operation: Drives the pump, creating pressure to deliver fuel from tank to engine
The electric motor is the unsung hero of the SBC fuel pump system, a compact yet powerful component that transforms electrical energy into mechanical motion. This motor operates on a simple principle: when current flows through its windings, it generates a magnetic field that interacts with permanent magnets, causing the rotor to spin. This rotational force is the lifeblood of the fuel pump, driving the impeller or diaphragm mechanism to create the necessary pressure for fuel delivery. Understanding this process is crucial, as it highlights the motor’s role as the primary driver of fuel system efficiency. Without it, the fuel would remain stagnant in the tank, rendering the engine powerless.
Consider the motor’s operational parameters for optimal performance. Most SBC fuel pump motors run on 12 volts, drawing between 5 to 10 amps depending on the load. This power consumption is directly tied to the motor’s speed and torque, which in turn affects fuel flow rate. For instance, a motor spinning at 6,000 RPM can deliver up to 40 gallons per hour (GPH), sufficient for most small block Chevy engines under normal driving conditions. However, high-performance applications may require motors capable of 8,000 RPM or more, pushing fuel delivery to 60 GPH or higher. Always match the motor’s specifications to the engine’s demands to avoid underperformance or excessive wear.
One practical tip for maintaining electric motor efficiency is to ensure proper grounding and wiring. A weak ground connection can lead to voltage drop, reducing motor speed and fuel pressure. Use 12-gauge wire for power and ground connections, and inspect terminals regularly for corrosion or looseness. Additionally, installing a relay to isolate the motor from the ignition switch can prevent voltage fluctuations and extend motor life. For those upgrading to high-performance pumps, consider adding a fuse or circuit breaker to protect against overcurrent, especially during prolonged high-load conditions.
Comparing electric motors to mechanical alternatives underscores their advantages. Unlike mechanical pumps driven by the camshaft, electric motors offer consistent performance regardless of engine speed. This independence ensures stable fuel pressure at idle, cruising, and high RPMs, enhancing drivability and reliability. Moreover, electric motors are quieter and generate less heat, reducing the risk of fuel vapor lock. While mechanical pumps may suffice for stock applications, electric motors are the go-to choice for modified or high-performance SBC engines, where precision and adaptability are paramount.
In troubleshooting, focus on the motor if you experience symptoms like hard starting, stalling, or erratic fuel pressure. Start by testing the motor’s resistance using a multimeter; a reading outside the manufacturer’s specifications (typically 1-3 ohms) indicates a faulty motor. Next, check for power and ground at the motor terminals with the key on. If voltage is present but the motor doesn’t spin, the motor itself is likely defective. For intermittent issues, inspect the wiring harness for chafing or damage, as vibrations can cause wires to fray over time. Replacing the motor is straightforward in most SBC fuel pumps, requiring only basic tools and a few minutes of labor. Always verify compatibility with your specific pump model to ensure a seamless fit and function.
Hyundai Santa Fe Fuel Pump Count: What You Need to Know
You may want to see also
Explore related products
In-Tank vs. External: In-tank pumps are submerged; external pumps are mounted outside the fuel tank
In-tank fuel pumps are submerged directly in the fuel, a design that offers distinct advantages and challenges. By being immersed, these pumps benefit from the fuel’s cooling properties, reducing the risk of overheating during operation. This setup also ensures a consistent fuel supply, as the pump is always in direct contact with the liquid. However, this design requires the pump to be compatible with the fuel’s chemical composition to prevent corrosion or degradation over time. For example, ethanol-blended fuels can accelerate wear on certain materials, necessitating pumps with ethanol-resistant components. Maintenance is another consideration; replacing an in-tank pump often involves dropping the fuel tank, a labor-intensive process that can deter DIY enthusiasts.
External fuel pumps, mounted outside the fuel tank, operate in a vastly different environment. Positioned along the fuel line, these pumps rely on a suction mechanism to draw fuel from the tank. This design simplifies installation and maintenance, as the pump is easily accessible without the need to remove the tank. However, external pumps are more susceptible to heat and vibration, which can shorten their lifespan. Additionally, they may struggle with fuel delivery in low-pressure systems or when the fuel level is low, as the distance between the tank and pump increases the risk of air entering the line. For high-performance applications, such as in small block Chevy (SBC) engines, external pumps are often paired with a pre-pump or booster pump to ensure adequate fuel supply under demanding conditions.
The choice between in-tank and external pumps hinges on the specific demands of the vehicle and its intended use. In-tank pumps are ideal for modern vehicles with integrated fuel systems, where efficiency and reliability are paramount. External pumps, on the other hand, are favored in custom builds or older vehicles where accessibility and ease of modification are key. For instance, an SBC engine in a classic car might benefit from an external pump’s simplicity, especially if the fuel tank is not designed to accommodate an in-tank unit. However, for high-horsepower applications, an in-tank pump’s ability to maintain consistent fuel pressure under load can be a decisive factor.
When upgrading a fuel system, consider the fuel type, engine requirements, and maintenance preferences. Ethanol-blended fuels, for example, may necessitate an in-tank pump with specialized materials to prevent degradation. Conversely, an external pump might be more cost-effective for a temporary or experimental setup. Always ensure the pump’s flow rate matches the engine’s demands; an SBC engine producing 400+ horsepower, for instance, requires a pump capable of delivering at least 100 gallons per hour (GPH) at the necessary pressure. Proper installation is critical—external pumps should be mounted as close to the tank as possible to minimize suction issues, while in-tank pumps must be securely sealed to prevent leaks.
Ultimately, the in-tank vs. external debate is not one-size-fits-all. In-tank pumps excel in integrated systems, offering cooling benefits and consistent performance but at the cost of accessibility. External pumps provide flexibility and ease of maintenance, though they may require additional components to ensure reliability. For SBC engines, the decision should align with the vehicle’s fuel system design, performance goals, and the owner’s technical expertise. Whether submerged or mounted externally, the fuel pump’s role is critical—choose wisely to ensure your engine runs smoothly under all conditions.
Diagnosing a Failing Fuel Pump in Your 2004 Honda Accord
You may want to see also
Explore related products
Pressure Regulation: Maintains consistent fuel pressure using a regulator to prevent engine damage
Fuel pressure regulation is a critical aspect of any fuel system, and the SBC (Small Block Chevy) fuel pump is no exception. The pressure regulator acts as a gatekeeper, ensuring that the fuel pressure remains within a safe and optimal range, typically between 5.5 and 7 psi for most carbureted SBC engines. This narrow window is essential because excessive pressure can lead to fuel vaporization, lean mixtures, and potential engine damage, while insufficient pressure results in rich mixtures, reduced power, and increased fuel consumption.
Consider the regulator as a precision tool, akin to a thermostat in your home. Just as a thermostat maintains a consistent temperature, the fuel pressure regulator adjusts the fuel flow to keep the pressure steady. When the engine demands more fuel, such as during acceleration, the regulator opens slightly to allow additional fuel to pass through. Conversely, during idle or deceleration, it restricts the flow to maintain the correct pressure. This dynamic adjustment is crucial for the engine’s performance and longevity, especially in high-performance SBC applications where fuel demands fluctuate rapidly.
One practical tip for maintaining optimal pressure regulation is to regularly inspect the regulator’s diaphragm and vacuum hose for leaks or damage. A faulty diaphragm can cause erratic fuel pressure, leading to poor engine performance or even stalling. Additionally, ensure the vacuum hose is connected securely and free from cracks, as a vacuum leak can disrupt the regulator’s ability to modulate pressure accurately. For carbureted SBC engines, using a fuel pressure gauge to verify the pressure at idle and under load can help diagnose issues early.
Comparatively, modern fuel-injected systems often integrate the pressure regulator into the fuel pump module, simplifying maintenance. However, in SBC carbureted setups, the regulator is typically a standalone component mounted on the fuel pump or near the carburetor. This design allows for easier access and replacement but requires more vigilant maintenance. Upgrading to an adjustable regulator can provide finer control over fuel pressure, beneficial for engines with significant modifications like high-performance camshafts or larger carburetors.
In conclusion, pressure regulation is not just a feature but a necessity in SBC fuel pump systems. By maintaining consistent fuel pressure, the regulator safeguards the engine from damage while optimizing performance. Regular inspection, proper maintenance, and understanding the regulator’s role ensure that your SBC engine runs smoothly and efficiently, whether on the street or the track. Treat the pressure regulator as the unsung hero of your fuel system—it’s the difference between a reliable engine and a potential disaster.
Westinghouse 2200 Generator: Fuel Pump Features and Functionality Explained
You may want to see also
Explore related products
Check Valve Function: Ensures fuel doesn’t return to the tank, maintaining system pressure when off
Fuel systems in vehicles are designed to deliver a consistent supply of fuel to the engine, and the check valve plays a critical role in this process. Located within the fuel pump assembly, the check valve is a one-way valve that permits fuel to flow from the tank to the engine but prevents it from flowing back into the tank. This simple yet ingenious mechanism ensures that the fuel system maintains pressure even when the engine is turned off, reducing the time required for the system to pressurize when the engine is restarted.
Consider the scenario where a vehicle is parked on a steep incline, and the fuel tank is located at a lower point than the engine. Without a check valve, gravity would cause the fuel to flow back into the tank, depressurizing the system and potentially leading to hard starting or rough idling. The check valve's function is particularly crucial in high-performance engines, such as those found in small block Chevys (SBCs), where maintaining consistent fuel pressure is essential for optimal performance. In these applications, the check valve is typically integrated into the fuel pump's outlet, ensuring that fuel flows only in the desired direction.
To understand the check valve's operation, imagine a ball and spring mechanism inside the valve body. When the fuel pump is running, the pressure from the pump pushes the ball off its seat, allowing fuel to flow through the valve. When the pump stops, the spring forces the ball back onto its seat, sealing the valve and preventing fuel from flowing backward. This design is both simple and effective, requiring minimal maintenance and providing reliable operation over the life of the vehicle. However, it's essential to ensure that the check valve is functioning correctly, as a faulty valve can lead to fuel pressure issues and poor engine performance.
In practice, diagnosing a faulty check valve often involves monitoring fuel pressure with a gauge. If the pressure drops rapidly when the engine is turned off, it may indicate a failing check valve. Replacement of the check valve or the entire fuel pump assembly may be necessary to restore proper function. When installing a new check valve or fuel pump, it's crucial to follow the manufacturer's guidelines, including torque specifications for mounting bolts and proper orientation of the valve within the fuel system. This attention to detail ensures that the check valve operates as intended, maintaining fuel system pressure and supporting the overall performance of the SBC engine.
A comparative analysis of fuel systems with and without check valves highlights the importance of this component. In systems without check valves, such as those found in some older vehicles, the fuel pump must work harder to pressurize the system each time the engine is started, leading to increased wear and reduced efficiency. In contrast, systems with check valves maintain residual pressure, reducing the workload on the fuel pump and improving overall system reliability. By ensuring that fuel does not return to the tank, the check valve plays a vital role in maintaining the efficiency and performance of the SBC fuel system, making it an indispensable component in modern fuel delivery systems.
Choosing the Right Fuel Pump: A Comprehensive Guide for Vehicle Owners
You may want to see also
Explore related products
Fuel Pump Relay: Controls power to the pump, activated by the ignition system
The fuel pump relay is a critical component in the fuel delivery system of a vehicle, acting as the gatekeeper for power to the fuel pump. Without it, the pump would either run continuously, draining the battery, or not run at all, leaving the engine starved for fuel. This small but mighty device is activated by the ignition system, ensuring that the fuel pump operates only when the engine is running or being started. Understanding its function is key to diagnosing and resolving fuel delivery issues.
Consider the relay as a switch that responds to the ignition system’s commands. When you turn the key in the ignition, the system sends a signal to the relay, which then closes the circuit, allowing power to flow to the fuel pump. This process is instantaneous and seamless, ensuring that fuel is delivered to the engine precisely when needed. For example, in a small block Chevy (SBC) setup, the relay is typically located in the engine bay fuse box or under the dashboard, making it accessible for inspection or replacement. Always consult your vehicle’s manual for the exact location, as placement can vary.
One practical tip for troubleshooting a fuel pump relay is to listen for the pump’s priming cycle when you turn the ignition key to the "on" position but before starting the engine. If you hear a brief humming sound (usually lasting 2-3 seconds), the relay is likely functioning correctly. If not, the relay may be faulty, or there could be an issue with the ignition signal. A multimeter can be used to test the relay’s terminals for continuity and voltage, ensuring it’s receiving and transmitting power as intended. Replace the relay if it fails this test, as a malfunctioning unit can lead to erratic fuel delivery or a no-start condition.
Comparing the fuel pump relay to other electrical components, its role is akin to a traffic cop directing power flow. While fuses protect circuits from overcurrent, and switches manually control power, the relay automates the process based on system demands. This automation is particularly important in fuel systems, where precise timing is critical for engine performance. For instance, in high-performance SBC applications, a failing relay can cause lean conditions under load, leading to detonation or engine damage. Upgrading to a heavy-duty relay with a higher amperage rating can be a preventive measure for vehicles with upgraded fuel pumps or injectors.
In conclusion, the fuel pump relay is a vital yet often overlooked component in the fuel delivery system. Its role in controlling power to the pump, activated by the ignition system, ensures efficient and safe engine operation. Regular inspection, understanding its function, and knowing how to troubleshoot it can save time and prevent roadside breakdowns. Whether you’re maintaining a stock SBC or building a high-performance setup, the relay’s reliability is non-negotiable. Treat it with the same care as other critical components, and your fuel system will perform flawlessly.
Does the Camaro ZL1 Feature Twin Fuel Pumps? Explained
You may want to see also
Frequently asked questions
An SBC fuel pump, specifically designed for Small Block Chevrolet engines, is a mechanical fuel pump typically driven by the camshaft. Unlike electric fuel pumps, it relies on engine motion to create suction and deliver fuel from the tank to the carburetor. Its design is optimized for carbureted systems and is known for simplicity and reliability.
The SBC fuel pump operates by using a diaphragm mechanism. As the camshaft lobe rotates, it actuates a lever connected to the diaphragm, creating a vacuum that draws fuel into the pump. When the diaphragm returns, it pushes the fuel out under pressure, delivering it to the carburetor for combustion.
While an SBC fuel pump is primarily designed for carbureted engines, it can be used in fuel-injected setups with modifications. However, fuel-injected systems typically require higher and more consistent fuel pressure, which is better achieved with an electric fuel pump. Using an SBC pump in such applications may require additional regulators or upgrades.
