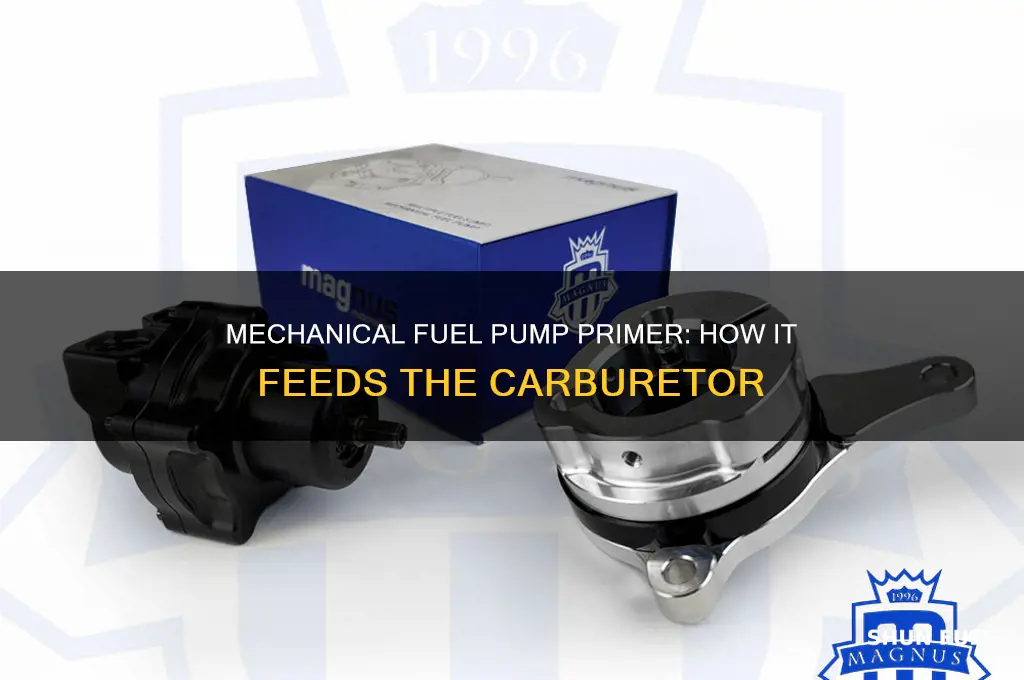

A mechanical fuel pump primes the carburetor by creating a vacuum that draws fuel from the fuel tank into the carburetor, ensuring the engine receives the necessary fuel-air mixture for starting and operation. When the engine is cranked, the pump’s diaphragm or plunger mechanism begins to move, generating suction that pulls fuel through the fuel lines. This process fills the carburetor’s float bowl with fuel, overcoming any air pockets or dry conditions in the system. The pump’s one-way valves prevent fuel from flowing backward, maintaining pressure and ensuring a consistent supply. Once primed, the carburetor can effectively mix fuel with air, enabling the engine to start and run smoothly. This mechanical priming action is essential in older carbureted engines, where fuel injection systems are absent.
| Characteristics | Values |
|---|---|
| Pump Type | Mechanical fuel pump (typically diaphragm or plunger type) |
| Priming Mechanism | Relies on a vacuum created by the engine's intake stroke or a manual priming bulb |
| Vacuum Source | Engine intake manifold (via a vacuum hose connected to the pump) |
| Fuel Flow Direction | One-way flow from fuel tank to carburetor, prevented from returning by check valves |
| Check Valves | Ensures fuel flows only towards the carburetor, maintaining pressure and preventing backflow |
| Priming Process | 1. Engine starts, creating vacuum in intake manifold. 2. Vacuum pulls diaphragm/plunger, drawing fuel from tank. 3. Fuel passes through check valves into carburetor float bowl. 4. Float valve closes when bowl is full, maintaining fuel level. |
| Manual Priming (if applicable) | Squeezing a priming bulb forces fuel through the system, bypassing the need for engine vacuum |
| Fuel Pressure | Low pressure (typically 3-7 psi) sufficient for carbureted engines |
| Dependency on Engine Operation | Requires engine running or manual intervention for priming |
| Common Issues | Leaking check valves, clogged fuel lines, or faulty diaphragm can prevent proper priming |
| Maintenance | Regular inspection of hoses, valves, and pump for leaks or wear |
Explore related products
What You'll Learn
- Fuel Pump Operation: Explains how the mechanical pump creates suction to draw fuel from the tank
- Check Valve Function: Details the role of the check valve in maintaining fuel pressure during priming
- Primer Bulb Use: Describes how a primer bulb assists in manually priming the carburetor
- Fuel Line Routing: Highlights the importance of proper fuel line placement for efficient priming
- Carburetor Bowl Fill: Explains how the pump fills the carburetor bowl to ensure proper fuel delivery
Fuel Pump Operation: Explains how the mechanical pump creates suction to draw fuel from the tank
Mechanical fuel pumps are the unsung heroes of carbureted engines, ensuring a steady supply of fuel for combustion. At the heart of their operation lies a simple yet ingenious mechanism: the creation of suction to draw fuel from the tank. This process begins with the pump’s diaphragm, which flexes in response to engine motion, typically driven by a camshaft or eccentric lobe. As the diaphragm moves outward, it expands the pump chamber, creating a low-pressure zone. This vacuum effect pulls fuel through the inlet valve, overcoming the resistance of the fuel lines and the distance from the tank. The key to this suction lies in the precise sealing of the diaphragm and valves, ensuring no air leaks disrupt the pressure differential. Without this airtight system, the pump would fail to draw fuel effectively, leaving the carburetor starved.
Consider the analogy of a syringe: pulling the plunger creates a vacuum, drawing liquid into the chamber. Similarly, the mechanical fuel pump’s diaphragm acts as the plunger, and the fuel lines act as the syringe barrel. However, unlike a syringe, the pump operates continuously, cycling with the engine’s rhythm. The inlet valve opens only during the expansion phase, allowing fuel to enter, while the outlet valve opens during compression, pushing fuel toward the carburetor. This one-way flow is critical to maintaining pressure and preventing backflow. For optimal performance, ensure the fuel lines are free of debris and the pump’s diaphragm is not cracked or worn, as even minor damage can compromise suction.
The efficiency of a mechanical fuel pump depends on its synchronization with the engine’s speed. At higher RPMs, the diaphragm cycles faster, increasing fuel flow to meet the engine’s demands. Conversely, at idle, the pump operates at a slower pace, delivering just enough fuel to keep the engine running smoothly. This dynamic adjustment is why mechanical pumps are often preferred in carbureted systems—they inherently match fuel delivery to engine load without the need for electronic sensors or controllers. However, this reliance on mechanical timing means the pump’s performance can degrade over time, particularly if the driving mechanism (e.g., the camshaft lobe) wears down. Regular inspection and maintenance, such as checking for play in the pump’s rocker arm or replacing worn diaphragms, are essential to ensure consistent suction and fuel delivery.
One practical tip for troubleshooting a mechanical fuel pump is to listen for its operation. A healthy pump emits a faint ticking sound in rhythm with the engine, indicating proper diaphragm movement. If the sound is absent or irregular, it may signal a seized diaphragm or broken linkage. Another diagnostic method is to check fuel pressure at the carburetor inlet; a weak or fluctuating reading suggests insufficient suction. For DIY enthusiasts, priming the pump manually by filling the fuel bowl can help diagnose whether the issue lies in the pump or the fuel lines. Always use a fuel-compatible lubricant when replacing diaphragms to prevent deterioration from gasoline exposure.
In comparison to electric fuel pumps, mechanical pumps offer a simpler, more direct approach to fuel delivery. They rely solely on engine motion, eliminating the need for wiring or relays. However, this simplicity comes with limitations, such as reduced pressure capabilities and vulnerability to mechanical wear. For carbureted engines, these trade-offs are often acceptable, as the fuel demands are lower than those of modern fuel-injected systems. Ultimately, understanding how a mechanical pump creates suction highlights its role as a reliable, self-contained unit that bridges the gap between the fuel tank and the carburetor, ensuring the engine remains fed and functional.
