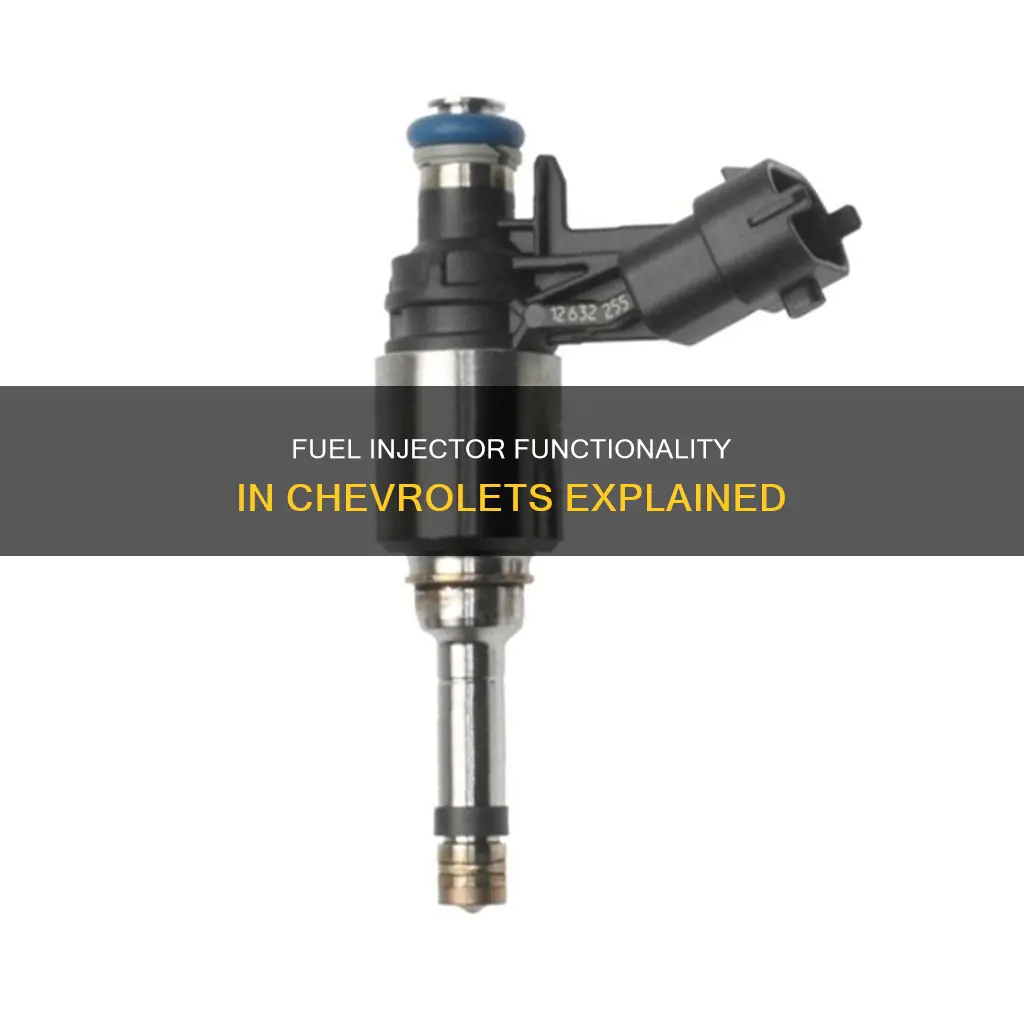

Fuel injectors are a critical component of modern vehicles, delivering fuel to the engine for combustion. In a Chevrolet, as in other vehicles, the fuel injector is a finely controlled spray nozzle that atomises fuel, creating a fine mist that burns easily. The injector is located in the combustion chamber or inlet manifold and is supplied with pressurised fuel by the fuel pump. An electrical solenoid within the injector receives a signal from the engine control unit, triggering the valve to open for a controlled duration, allowing fuel to flow into the engine. This process, known as pulse width, determines the amount of fuel supplied to the engine. Chevrolet vehicles, particularly trucks, have utilised various fuel injection systems, including the Spider Injection system, which features a central box with multiple injectors, and the Vortec intake system.
| Characteristics | Values |
|---|---|
| How does a fuel injector work | Fuel is delivered to the injector from the fuel tank by a pump, often at high pressure. |
| An electrical solenoid within the fuel injector receives a signal from the engine control unit (ECU) that causes it to quickly open a valve for a precisely controlled amount of time. | |
| The fuel flows through the valve and into the intake manifold, intake port, or directly into the engine cylinder. | |
| The amount of fuel supplied to the engine is determined by the amount of time the fuel injector stays open. This is called the pulse width, and it is controlled by the ECU. | |
| The fuel injector is located in the combustion chamber, inlet manifold, or throttle body. | |
| Fuel injectors can get dirty or clogged, causing them to deliver insufficient fuel and/or spray the fuel in an incorrect pattern. | |
| Types of fuel injection | Throttle body injection (TBI), port or multi-port fuel injection (MFI), and direct injection. |
| Single-point injection (also called throttle-body injection). | |
| Multi-port fuel injection (also known as port, multi-point, or sequential fuel injection). | |
| Gasoline direct injection (GDI). | |
| Common-rail injection system. | |
| Fuel injectors in Chevrolet vehicles | Some Chevrolet vehicles use a Spider Injection system, which has a big central box inside the intake manifold with each fuel injector coming from that. |
| Some Chevrolet vehicles use pintle injectors, which are prone to clogging. |
Explore related products
What You'll Learn
Fuel injector systems
At a fundamental level, a fuel injector is an electronically controlled valve. It receives pressurised fuel from the fuel pump and, when energised, opens to allow the fuel to squirt out through a tiny nozzle. This nozzle is designed to atomize the fuel, creating a fine mist that can be easily burned. The amount of fuel delivered to the engine is controlled by the length of time the injector remains open, known as the pulse width, which is managed by the Engine Control Unit (ECU).
There are three basic types of fuel injection systems: throttle body injection (TBI), port or multi-port fuel injection (MFI), and direct injection. TBI, also known as single-point injection, utilises one injector in the throttle body, similar to a carburettor. It was a cost-effective solution for automakers to reduce emissions and improve driveability. MFI, on the other hand, has one injector per cylinder, providing more accurate fuel metering and quicker response.
Direct injection, the most common system in modern engines, involves injecting fuel directly into the main combustion chamber of each cylinder. This can be achieved through various mechanisms, including a conventional helix-controlled injection pump, unit injectors, or a common-rail injection system. In the latter, fuel is supplied to a common header (accumulator) and then sent through tubing to the injectors. The accumulator maintains pressure and returns excess fuel to the tank.
Fuel injectors can last the lifetime of a vehicle, but they may need replacement as part of preventive maintenance. Seals or O-rings in the injectors can degrade, leading to fuel leaks and fire hazards. Additionally, fuel injectors can become clogged or contaminated, resulting in insufficient fuel delivery or incorrect spray patterns, causing rough engine performance.
When to Use STP Fuel Injector Cleaner?
You may want to see also
Explore related products
How fuel gets into the cylinder
Fuel injectors are a critical component of a fuel-injection system. They are responsible for delivering fuel to the engine cylinder, where it can combust and power the vehicle. In modern vehicles, fuel is delivered to the injector from the fuel tank by a pump, which often operates at high pressure. This fuel is then supplied to the engine at a rate determined by the amount of time the fuel injector stays open, a duration controlled by the engine control unit (ECU).
There are three basic types of fuel injection used in cars: throttle body injection (TBI), port or multi-port fuel injection (MFI), and direct injection. TBI systems generally have just one or two injectors, while MFI systems have one injector per cylinder. Direct injection, meanwhile, is used in all modern diesel engines and involves injecting fuel directly into the main combustion chamber of each cylinder.
In a typical electronic fuel injector, an electrical solenoid or electromagnet within the injector receives a signal from the ECU, causing it to open a valve for a precisely controlled amount of time. The fuel then flows through the valve and into the intake manifold, intake port, or directly into the engine cylinder. The nozzle of the injector is designed to atomize the fuel, creating a fine mist that can easily burn.
Some Chevrolet vehicles, such as the 98 c1500 W/T 4.3L V6, feature a Spider Injection system. This system consists of a big central box inside the intake manifold, with each fuel injector branching out from it. While these injectors are prone to clogging, later models from 2000 onwards feature upgraded Multec II injectors, which offer improved reliability and performance.
Rebuilding Fuel Injectors: Step-by-Step Guide for Mechanics
You may want to see also
Explore related products
Types of fuel injection
The term "fuel injection" encompasses various systems with fundamentally different functional principles. The only thing all fuel injection systems have in common is the absence of carburetion.
Single-Point Injection
The earliest and simplest type of fuel injection, single-point injection, replaces the carburetor with one or two fuel-injector nozzles in the throttle body, which is the throat of the engine's air intake manifold. This system is more precise than a carburetor and does not require significant changes to the engine. However, it is considered outdated and unreliable, as the break of a single nozzle can cause the entire system to fail. Single-point injection was used extensively on American-made passenger cars and light trucks during 1980–1995 and in some European cars in the early to mid-1990s.
Multi-Point Injection
Also known as port injection, multi-point fuel injection devotes a separate injector nozzle to each cylinder, right outside its intake port. This system is more precise than single-point injection.
Sequential Fuel Injection
Also called sequential port fuel injection (SPFI) or timed injection, sequential fuel injection is a type of multi-port injection. While basic multi-port injection systems spray fuel simultaneously or in groups, sequential fuel injection triggers each injector nozzle independently, improving fuel economy and emissions. Sequential injection is the most common and effective system currently in use, although it is more expensive and complicated to set up in petrol cars.
Direct Injection
In direct injection, the fuel goes directly to the cylinders past the valves, allowing more control over the engine and better precision in measuring out the fuel. Direct injection can be used in low-emissions lean-burn engines.
Indirect Injection
In indirect injection, the fuel is injected into a pre-chamber, where it begins to combust, before being injected into the main combustion chamber. This system is commonly used in diesel engines.
Common-Rail Injection
Common-rail injection is a variety of direct injection. In a common-rail system, fuel from the fuel tank is supplied to a common header (called the accumulator) and then sent through tubing to the injectors, which inject it into the combustion chambers. The accumulator has a high-pressure relief valve to maintain pressure and return excess fuel to the fuel tank. Common-rail systems include air-guided injection and spray-guided injection.
Testing Fuel Injectors: A Step-by-Step Guide to Bench Testing
You may want to see also
Explore related products
Fuel injector problems
Fuel injectors are a critical component of modern engines, delivering fuel for combustion. However, they can encounter various problems that impact engine performance and, if left unchecked, can lead to costly repairs. Here are some common issues with fuel injectors:
Clogged or Dirty Injectors
Fuel injectors can become clogged or dirty over time, affecting their performance. This can be caused by contaminants in the fuel, such as hydrocarbons, additives, engine gunk, and carbon. Clogged injectors may result in insufficient fuel delivery, incorrect fuel spray patterns, rough idling, and reduced engine performance. In some cases, a clogged injector may need to be removed and professionally cleaned to resolve the issue.
Seal or O-Ring Failure
The seals or O-rings in fuel injectors can fail, leading to fuel leaks. This creates a fire hazard, and the smell of fuel in the engine compartment is often a warning sign. Leaking fuel can also lead to wasted fuel and reduced fuel economy.
Solenoid or Valve Mechanism Failure
The solenoid or valve mechanism inside a fuel injector may fail or stick, impacting its ability to deliver fuel properly. This can result in symptoms similar to those of a dirty injector but are typically more severe.
Wear and Tear
Fuel injectors are subject to wear and tear over time, especially in diesel engines due to harsh operating conditions. This can lead to reduced performance, such as long cranking or a no-start condition, rough idling, and engine misfires.
ECU Malfunction
The ECU (Engine Control Unit) plays a crucial role in controlling the fuel injectors. If the ECU malfunctions, it may not provide the correct signals to the injectors, resulting in improper fuel delivery and combustion issues. A "Check Engine" light, along with misfires or stalling, could indicate an ECU problem.
Cost of Replacement
Replacing fuel injectors can be complex and costly, especially in newer GDI (Gasoline Direct Injection) systems. The cost of replacement can range from a few hundred dollars to four-figure sums, depending on the system and the number of injectors involved.
Diagnosing Faulty Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Replacing a fuel injector
Fuel injectors are an essential component of modern engines, delivering fuel for combustion. Over time, they can become clogged or damaged, leading to reduced engine performance and potential safety hazards. Replacing a fuel injector on a Chevrolet, or any other vehicle, is a detailed process with multiple steps. Here is a comprehensive guide on replacing a fuel injector:
Step 1: Identify the Need for Replacement
Before initiating the replacement, it is crucial to identify if the fuel injector requires changing. Common signs of a faulty fuel injector include a strong fuel smell in the engine compartment, rough idling or running, and the illumination of the "check engine" light. Additionally, as fuel injectors accumulate mileage, they develop deposits that can cause imbalances in performance. Therefore, it is recommended to consider replacement after 80,000 miles or at the first sign of trouble.
Step 2: Access the Fuel Injector
Before beginning the replacement, ensure you have the necessary tools and safety equipment. Then, locate the fuel injector, which is typically mounted in the intake manifold or combustion chamber. Remove any components that restrict access to the fuel injector, such as the upper plenum, cables, hoses, or wiring. This step may vary depending on the specific Chevrolet model and the location of the fuel injector.
Step 3: Remove the Old Fuel Injector
Once you have clear access to the fuel injector, proceed to disconnect the electrical connectors and carefully remove the fuel injector from the fuel rail. Pay close attention to not let any debris fall into the exposed openings. Additionally, relieve the pressure within the fuel rail by briefly running the engine with the fuel pump fuse removed.
Step 4: Install the New Fuel Injector
Take the new fuel injector and, if applicable, apply engine oil to the O-ring seal. Insert the new injector into the fuel rail, ensuring that the O-ring is properly seated to prevent fuel leaks. Secure the fuel injector in place, following the reverse steps of removal. Reattach any cables, hoses, or wiring that were previously disconnected.
Step 5: Test the Vehicle
After installing the new fuel injector, it is crucial to test the vehicle to ensure proper functioning. Start the engine and carefully inspect for any fuel leaks at the injector rails. If no leaks are detected, take the vehicle for a road test to ensure optimal performance.
Cost Considerations:
Fuel Injector Service: How Often is Necessary?
You may want to see also
Frequently asked questions
A fuel injector is a spray nozzle that performs the final stage in the delivery of fuel into the engine. It is supplied with pressurised fuel by the fuel pump in your car, and it is capable of opening and closing many times per second.
Fuel is delivered to the injector from the fuel tank by a pump, often operating at high pressure. An electrical solenoid within the fuel injector receives a signal from the engine control unit that causes it to quickly open a valve for a precisely controlled amount of time. The fuel flows through the valve and into the intake manifold, intake port, or directly into the engine cylinder.
A 98 Chevy has a Spider Injection system, which is a big central box inside the intake manifold with each fuel injector coming from that.
It depends on the type of fuel injection system. Replacing injectors in older TBI systems (which generally have one or two injectors) is relatively simple, and most MFI systems shouldn't be too complex. However, replacing injectors in the latest GDI systems could be complex and costly. You can expect to spend anywhere from a few hundred dollars to four figures.
