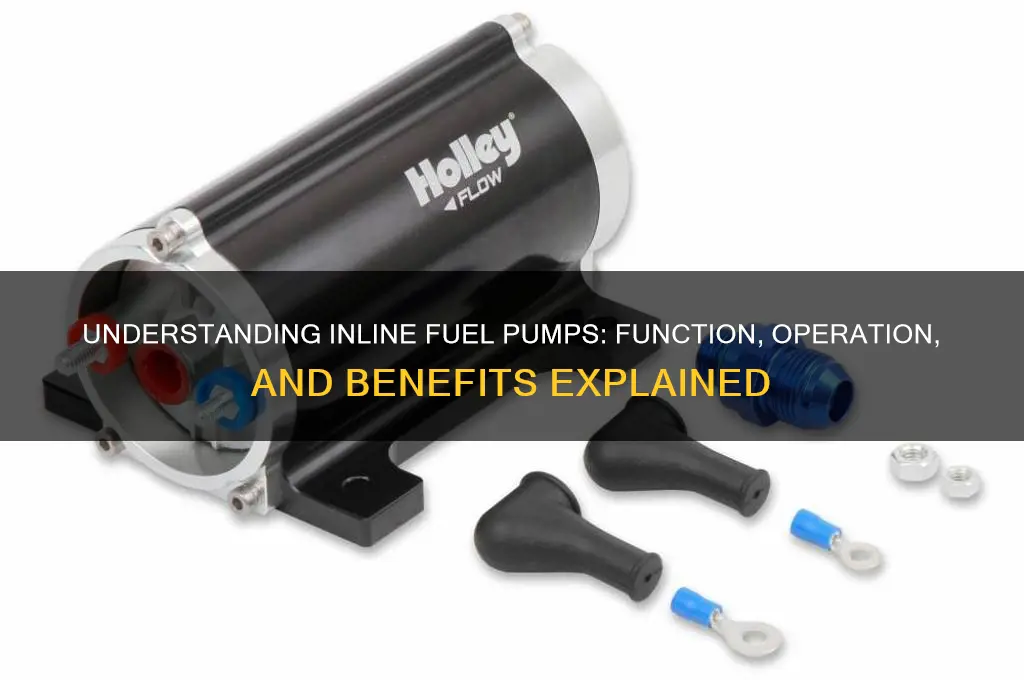

An inline fuel pump is a critical component in modern fuel injection systems, designed to deliver fuel from the tank to the engine at the required pressure and flow rate. Unlike mechanical pumps, which are often driven by the camshaft, inline fuel pumps are typically electric and mounted within the fuel line, either inside the tank or externally along the fuel supply route. When the ignition is turned on, the pump’s electric motor activates, drawing fuel from the tank through a filter and pressurizing it before sending it to the fuel rail and injectors. This ensures a consistent and precise fuel supply, which is essential for efficient combustion and engine performance. Inline fuel pumps are known for their reliability, compact design, and ability to operate independently of engine speed, making them a popular choice in both gasoline and diesel vehicles.
| Characteristics | Values |
|---|---|
| Type | Inline fuel pumps are typically electric, turbine, or roller cell pumps. |
| Location | Installed within the fuel line between the fuel tank and the engine. |
| Function | Delivers fuel from the tank to the engine at the required pressure and flow rate. |
| Operation | Electric motor drives a turbine or roller mechanism to create suction and pressure, pushing fuel through the line. |
| Pressure Regulation | Often includes a pressure regulator to maintain consistent fuel pressure. |
| Check Valve | Contains a check valve to prevent fuel backflow and maintain pressure when the pump is off. |
| Power Source | Powered by the vehicle’s electrical system (12V or 24V). |
| Flow Rate | Varies by design, typically 20-100 liters per hour (LPH), depending on engine requirements. |
| Pressure Output | Usually 30-80 PSI (pounds per square inch), depending on the engine’s fuel injection system. |
| Material | Constructed from durable materials like aluminum, stainless steel, or high-grade plastics to resist corrosion and fuel degradation. |
| Noise Level | Generally quiet due to electric operation, with minimal mechanical noise. |
| Maintenance | Requires periodic inspection and replacement if faulty to ensure reliable fuel delivery. |
| Compatibility | Designed for specific fuel types (gasoline, diesel) and engine systems (carbureted, fuel-injected). |
| Installation | Easy to install due to its compact, inline design, often requiring basic tools. |
| Advantages | Compact, reliable, and efficient; suitable for high-performance and aftermarket applications. |
| Disadvantages | Can be susceptible to fuel contamination or electrical issues if not properly maintained. |
Explore related products
$22.99
What You'll Learn
- Pump Mechanism: Explains the internal workings of the pump, such as the rotor and vanes
- Fuel Flow Process: Describes how fuel is drawn, pressurized, and delivered to the engine
- Electrical Operation: Details the role of the electric motor in powering the pump
- Pressure Regulation: Covers how the pump maintains consistent fuel pressure for optimal engine performance
- Installation Location: Discusses the advantages of mounting the pump inside the fuel tank
Pump Mechanism: Explains the internal workings of the pump, such as the rotor and vanes
At the heart of an inline fuel pump lies a precision-engineered mechanism designed to generate consistent fuel pressure. Central to this mechanism is the rotor, a rotating component that drives the pumping action. Typically made from durable materials like steel or high-strength polymers, the rotor spins at high speeds, creating a vacuum that draws fuel into the pump. Surrounding the rotor are vanes, flexible or fixed blades that extend outward to create sealed chambers within the pump housing. As the rotor turns, these vanes expand and contract, trapping fuel and forcing it through the pump’s outlet. This interplay between rotor and vanes ensures a steady, reliable flow of fuel, even under varying engine demands.
Consider the operation cycle of the rotor and vanes to understand their efficiency. As the rotor spins, the vanes slide along the inner wall of the pump housing, dividing the internal cavity into discrete chambers. In the intake phase, one chamber expands, creating a low-pressure zone that draws fuel into the pump. As the rotor continues to turn, the vanes compress the fuel in the adjacent chamber, pushing it toward the outlet. This cyclical process repeats thousands of times per minute, delivering a consistent fuel supply to the engine. The design’s simplicity and reliability make it a cornerstone of modern fuel systems, particularly in high-performance applications where precision is critical.
A key advantage of the rotor-and-vane design is its self-compensating nature. As the vanes wear over time, they gradually adjust to maintain a tight seal against the pump housing, ensuring minimal fuel leakage and consistent performance. This adaptability extends the pump’s lifespan, reducing the need for frequent replacements. However, proper maintenance is essential to maximize longevity. Regularly replacing fuel filters and using high-quality fuel can prevent contaminants from damaging the rotor and vanes. For DIY enthusiasts, inspecting the pump for unusual noise or reduced fuel pressure can signal the need for service before a failure occurs.
Comparing the rotor-and-vane mechanism to other pump designs highlights its unique strengths. Unlike gear pumps, which rely on meshing gears to move fuel, the rotor and vanes operate with less friction and noise, making them ideal for quiet, efficient systems. Similarly, while diaphragm pumps use a flexible membrane to generate pressure, the rotor-and-vane design offers higher flow rates and better resistance to fuel pulsations. This makes inline fuel pumps with rotor and vanes particularly suited for applications requiring smooth, uninterrupted fuel delivery, such as turbocharged engines or vehicles with high fuel demands.
In practice, understanding the pump mechanism can guide troubleshooting and optimization. For instance, if fuel pressure drops, check for worn vanes or a damaged rotor, as these components directly impact pumping efficiency. Upgrading to a pump with a higher-quality rotor or reinforced vanes can improve performance in modified engines. For those installing an inline fuel pump, ensure the pump is mounted securely and oriented correctly to prevent air pockets or fuel starvation. By grasping the intricacies of the rotor and vanes, enthusiasts and mechanics alike can maintain a fuel system that operates at peak efficiency, ensuring optimal engine performance and reliability.
How BMW Fuel Pump Control Modules Fail: Causes and Fixes
You may want to see also
Explore related products
Fuel Flow Process: Describes how fuel is drawn, pressurized, and delivered to the engine
The fuel flow process begins with the drawing phase, where fuel is pulled from the tank by the inline pump. This is achieved through a vacuum created by the pump’s intake mechanism, often driven by an electric motor or mechanical linkage. In modern vehicles, the pump is typically located inside the fuel tank or along the fuel line, ensuring a consistent supply of fuel to the engine. The efficiency of this phase relies on the pump’s ability to overcome resistance from fuel lines and filters, making proper maintenance of these components critical. For example, a clogged fuel filter can reduce flow rate, starving the engine of fuel and leading to poor performance.
Once drawn, the fuel enters the pressurization phase, where the inline pump increases its pressure to meet the engine’s demands. This is done through a series of internal components, such as a rotor or impeller, which compress the fuel against a calibrated pressure regulator. The regulator ensures the fuel pressure remains within a specific range—typically 30 to 60 psi for gasoline engines—to prevent damage to injectors or carburetors. Over-pressurization can lead to leaks or component failure, while under-pressurization results in insufficient fuel atomization, reducing combustion efficiency. Regularly checking the pressure regulator’s calibration is a practical tip to maintain optimal performance.
The final stage is the delivery phase, where pressurized fuel is transported to the engine via the fuel line. This process must account for factors like engine load, speed, and temperature, which influence fuel demand. In fuel-injected systems, the pump delivers fuel to a rail, where injectors spray it into the combustion chamber at precise intervals. In carbureted systems, the fuel is mixed with air before entering the engine. A common issue here is fuel line degradation, which can cause leaks or blockages. Inspecting fuel lines for cracks or wear, especially in older vehicles, is essential to prevent sudden fuel delivery failures.
Comparing inline fuel pumps to other types, such as mechanical or in-tank pumps, highlights their versatility and reliability. Inline pumps are often easier to access and replace, making them a preferred choice for aftermarket upgrades or repairs. However, their external placement can expose them to environmental hazards like heat or debris, requiring protective measures like shielding or strategic mounting. For instance, mounting the pump in a cooler area of the engine bay can extend its lifespan and improve performance, particularly in high-performance applications.
In conclusion, the fuel flow process—drawing, pressurizing, and delivering fuel—is a delicate balance of mechanics and precision. Each phase relies on the proper functioning of the inline pump and associated components to ensure the engine receives the right amount of fuel at the right time. By understanding this process and implementing practical maintenance tips, such as regular filter changes and pressure checks, vehicle owners can optimize fuel efficiency and engine performance while minimizing the risk of costly repairs.
Bypassing Fuel Pump Relay in 2002 Chevy: Step-by-Step Guide
You may want to see also
Explore related products
Electrical Operation: Details the role of the electric motor in powering the pump
The electric motor is the unsung hero of an inline fuel pump, converting electrical energy into mechanical motion to drive the pumping mechanism. When the ignition is turned on, the pump’s control module sends a signal to the motor, which begins spinning at a precise RPM (revolutions per minute), typically between 3,000 and 6,000, depending on the vehicle’s fuel demand. This rotational force is transferred to the pump’s impeller or turbine, creating suction that draws fuel from the tank and pressurizes it for delivery to the engine. Without this motor, the pump would be inert, unable to overcome the resistance of fuel lines or the engine’s requirements.
Consider the motor’s design: it’s compact yet powerful, often brushless to minimize wear and maximize efficiency. Brushless DC (BLDC) motors, for instance, use electronic commutation to control the flow of current, ensuring smoother operation and longer lifespan compared to brushed motors. The motor’s efficiency is critical, as it directly impacts fuel delivery consistency and overall vehicle performance. For example, a motor operating at 85% efficiency in a high-performance vehicle ensures that fuel is delivered at the correct pressure (typically 40–60 PSI for modern fuel-injected engines) without overheating or drawing excessive current from the electrical system.
One practical tip for maintaining the motor’s performance is to monitor the pump’s operating voltage. Most inline fuel pumps require a steady 12V supply, but voltage drops below 10V can cause the motor to stall or operate inefficiently. Installing a voltage regulator or ensuring the vehicle’s charging system is in good condition can prevent such issues. Additionally, regular inspection of the motor’s wiring harness for corrosion or damage is essential, as poor electrical connections can lead to intermittent pump operation or failure.
Comparatively, the electric motor in an inline fuel pump differs from those in older mechanical pumps, which relied on engine motion for power. Electric motors offer greater control and reliability, allowing the pump to operate independently of engine speed. This is particularly advantageous in modern fuel-injected systems, where precise fuel delivery is critical for combustion efficiency and emissions control. For instance, during cold starts, the motor may run at a higher RPM to prime the fuel system, ensuring immediate engine response.
In conclusion, the electric motor is the linchpin of an inline fuel pump’s operation, blending power, precision, and efficiency to meet the engine’s fuel demands. Understanding its role and maintaining its integrity ensures consistent vehicle performance and longevity. Whether you’re troubleshooting a fuel delivery issue or upgrading your system, focusing on the motor’s health is key to keeping your engine running smoothly.
Auxiliary Fuel Pump Installation Guide for Your Chevy Silverado
You may want to see also
Explore related products
Pressure Regulation: Covers how the pump maintains consistent fuel pressure for optimal engine performance
Maintaining consistent fuel pressure is critical for engine performance, and inline fuel pumps achieve this through a combination of mechanical precision and electronic control. At the heart of this process is the pump’s ability to deliver fuel at a specific pressure, typically measured in pounds per square inch (PSI), which varies by engine requirements—common ranges are 30–60 PSI for modern gasoline engines. The pump’s internal components, such as the diaphragm or turbine, work in tandem with a pressure regulator to ensure fuel flow matches the engine’s demand, preventing both under- and over-pressurization. Without this regulation, fuel delivery would be erratic, leading to poor combustion, reduced power, or even engine damage.
Consider the role of the pressure regulator, a small but vital component often integrated into the pump assembly. It acts as a gatekeeper, monitoring fuel pressure via a feedback loop and adjusting the pump’s output accordingly. When pressure exceeds the target, the regulator bypasses excess fuel back to the tank, maintaining stability. This dynamic adjustment is particularly crucial during acceleration or deceleration, where fuel demand fluctuates rapidly. For instance, a sudden throttle input increases fuel demand, prompting the pump to raise pressure instantly, while idle conditions require a lower, steady pressure to avoid wastage.
A practical example illustrates this mechanism: in a turbocharged engine, fuel pressure must rise proportionally with boost pressure to maintain the correct air-fuel ratio. Here, the inline pump’s pressure regulator communicates with the engine control unit (ECU), which adjusts the pump’s speed or valve position in real time. This integration ensures that even under extreme conditions, such as high-altitude driving or heavy loads, the pump delivers fuel at the precise pressure needed for optimal performance. Failure to adapt would result in lean or rich mixtures, compromising efficiency and emissions.
To troubleshoot pressure regulation issues, start by checking the pump’s output with a fuel pressure gauge. A reading outside the manufacturer’s specifications—say, 45 PSI when 55 PSI is required—indicates a potential regulator malfunction. Clogged fuel filters or worn pump components can also disrupt pressure consistency, so regular maintenance is essential. For DIY enthusiasts, replacing a faulty regulator typically involves disconnecting the fuel lines, removing the old unit, and installing a new one, ensuring all connections are secure to prevent leaks. Always consult the vehicle’s manual for specific torque values and safety precautions.
In conclusion, pressure regulation in inline fuel pumps is a sophisticated interplay of mechanical and electronic systems designed to meet the engine’s ever-changing demands. By understanding how the pump and regulator work together, drivers and mechanics can diagnose issues effectively and ensure the engine operates at peak efficiency. Whether you’re tuning a high-performance vehicle or maintaining a daily driver, prioritizing fuel pressure consistency is key to longevity and performance.
Loud Fuel Pump Lifespan: How Long Before Replacement is Necessary?
You may want to see also
Explore related products
Installation Location: Discusses the advantages of mounting the pump inside the fuel tank
Mounting a fuel pump inside the tank offers a strategic advantage: it eliminates the need for priming during startup. In-tank pumps are submerged in fuel, ensuring a constant supply of liquid to the engine. This design prevents air pockets from forming in the fuel lines, a common issue with external inline pumps that can lead to hard starting or stalling. By maintaining a consistent fuel pressure from the moment the ignition is turned on, in-tank pumps enhance reliability, especially in vehicles with high-performance engines or those operating in extreme conditions.
From a maintenance perspective, in-tank fuel pumps are often more durable and require less frequent attention. The fuel acts as a coolant, reducing the pump’s operating temperature and extending its lifespan. Additionally, the pump’s location inside the tank shields it from external elements like dirt, moisture, and physical damage, which can compromise the performance of inline pumps mounted elsewhere in the fuel system. This protective environment minimizes the risk of contamination and mechanical failure, reducing long-term maintenance costs.
Safety is another critical benefit of in-tank fuel pump installation. By keeping the pump submerged, the fuel remains under pressure within the tank, reducing the risk of vapor lock—a condition where fuel vaporizes in the lines, causing engine performance issues. This is particularly advantageous in hot climates or during high-load operations. Furthermore, the reduced exposure of fuel lines to heat sources outside the tank lowers the likelihood of fuel leaks or fires, making in-tank pumps a safer choice for modern vehicles.
Finally, in-tank fuel pumps contribute to a quieter and more efficient fuel delivery system. The pump’s operation is muffled by the fuel and the tank itself, reducing noise levels in the cabin. This design also allows for a more compact fuel system layout, freeing up space in the engine bay for other components. For vehicle manufacturers and enthusiasts alike, this combination of efficiency, safety, and performance makes in-tank fuel pumps the preferred choice for contemporary automotive designs.
Understanding the Ohm Resistance of an Enclave Fuel Pump
You may want to see also
Frequently asked questions
An inline fuel pump is a type of fuel pump installed within the fuel line between the fuel tank and the engine. It is typically located outside the fuel tank, often near the engine bay or along the chassis.
An inline fuel pump works by using an electric motor to create suction, drawing fuel from the tank and pressurizing it before sending it to the engine. It ensures a consistent fuel supply at the required pressure for efficient combustion.
The main components include an electric motor, a pumping mechanism (such as a turbine or diaphragm), an inlet and outlet for fuel flow, and a pressure regulator to maintain optimal fuel pressure.
Inline fuel pumps are easy to install, maintain, and replace since they are located outside the fuel tank. They also provide better cooling and are less prone to overheating compared to in-tank pumps.
Signs of a failing inline fuel pump include engine sputtering, difficulty starting the vehicle, loss of power, unusual noises from the pump, or a complete failure to deliver fuel to the engine. Testing fuel pressure or checking for electrical issues can confirm the problem.
