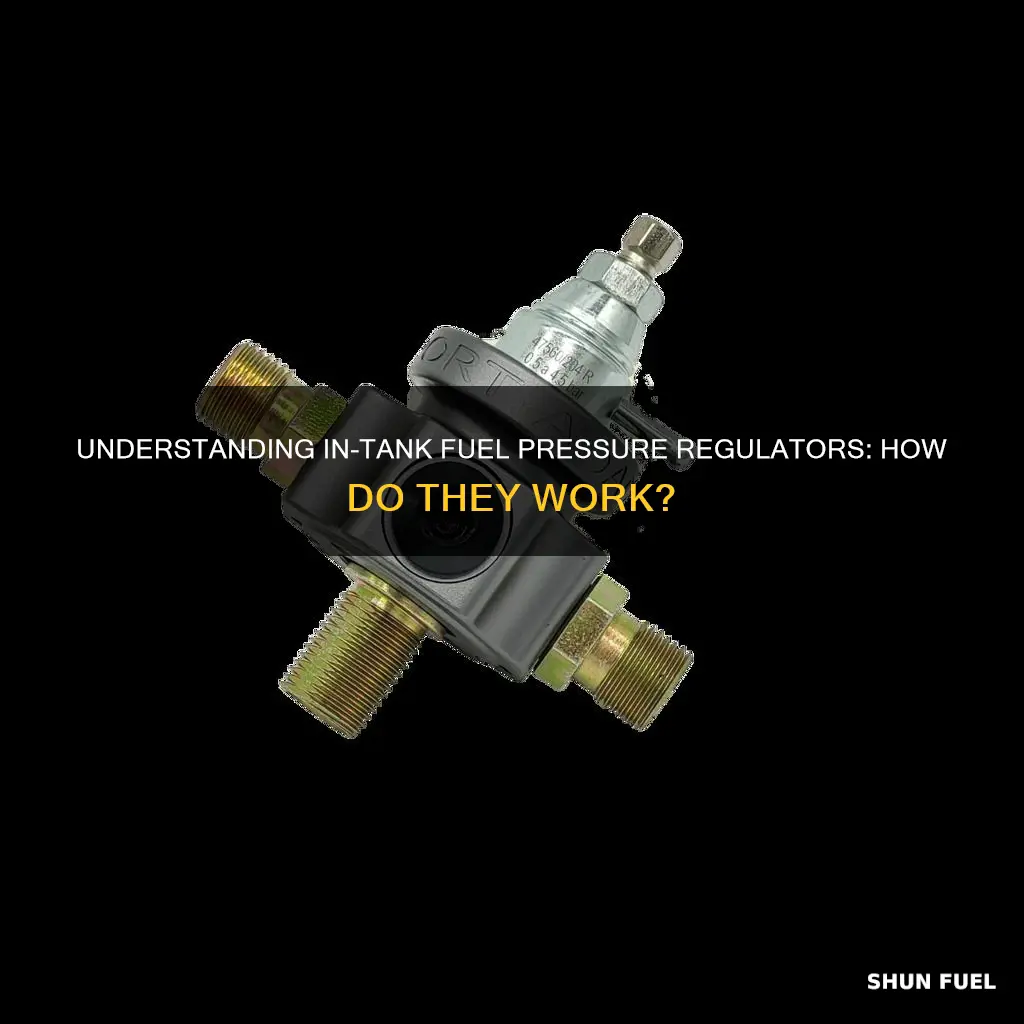

A fuel pressure regulator is an essential part of an auto's fuel system. It maintains a consistent fuel pressure across the fuel injector by regulating how much fuel is returned to the fuel tank. This ensures that the engine receives a constant amount of fuel by controlling fuel pressure and flow, which is necessary for optimal engine performance. The regulator also ensures that the fuel pressure does not drop below what the engine's fuel injectors need to burn fuel efficiently. When pressure surpasses the spring tension, the diaphragm opens the valve to let extra fuel return to the tank. This mechanism is especially important during idle or low load when fuel demand is lower, as the regulator reduces the pressure by allowing more fuel to return to the tank.
| Characteristics | Values |
|---|---|
| Purpose | Controls the pressure of fuel supplied to the fuel injectors on an engine |
| Function | Maintains a consistent fuel pressure across the fuel injector by regulating how much fuel is returned to the fuel tank |
| Fuel flow | A larger fuel pressure regulator can handle more flow and a higher pressure |
| Fuel pressure | Needs to be consistent across the fuel injector, not just at the tip |
| Fuel pump | Electric fuel pumps are designed to flow a constant amount of fuel regardless of engine rpm and/or boost pressure |
| Fuel injectors | Performance fuel injectors require the use of an aftermarket fuel pressure regulator to allow pressure adjustments while maintaining a stable base pressure |
| Fuel tank | Fuel is pumped from the fuel tank to the fuel rail by the fuel pump |
| Fuel rail | The fuel rail has priority in fuel flow |
| Fuel outlet | The valve in the FPR controls the amount of fuel that is bled from the fuel rail by opening an outlet port |
| Fuel return | Unused fuel is sent back to the fuel tank |
| Fuel demand | During idling or low load, the fuel demand is lower, so the regulator reduces the pressure by allowing more fuel to return to the tank |
| Fuel efficiency | Both high and low fuel pressure can reduce fuel efficiency and even shorten the life of the engine |
Explore related products
What You'll Learn
How fuel is pumped from the tank to the fuel rail
Fuel is pumped from the tank to the fuel rail by the fuel pump. The fuel pressure regulator (FPR) is usually mounted after the fuel rail, ensuring that the fuel rail has priority in fuel flow. The FPR controls the amount of fuel that is bled from the fuel rail by opening an outlet port, allowing fuel to flow back into the fuel tank.
The fuel pressure regulator is an essential part of the auto's fuel system, maintaining a consistent fuel pressure across the fuel injector by regulating how much fuel is returned to the fuel tank. This ensures that the fuel pressure does not drop below what the engine's fuel injectors need to burn fuel efficiently.
The regulator modifies the pressure in response to the engine's requirements. When the engine is operating at a high speed, more fuel is needed, and the regulator increases pressure to meet the higher fuel demand. Conversely, when the engine is operating at a low speed or idle, the controller reduces the pressure by allowing more fuel to return to the tank.
The fuel pressure regulator ensures that the fuel injector receives a constant amount of fuel by controlling fuel pressure and flow. This constancy is necessary for the best engine performance and economy, maintaining the proper air and fuel combination.
Restoring Your Rusted Fuel Tank: DIY Guide
You may want to see also
Explore related products
The role of the valve in the FPR
A fuel pressure regulator (FPR) is a device that controls the pressure of fuel supplied to the fuel injectors in an engine. The valve in the FPR plays a crucial role in maintaining the correct fuel pressure and ensuring that the injectors receive the appropriate amount of fuel.
The valve in the FPR controls the amount of fuel that is bled from the fuel rail by opening an outlet port. This outlet port allows the fuel to flow back into the fuel tank. The valve ensures that excess fuel is returned to the tank, preventing it from building up in the fuel rail and maintaining the necessary pressure differential between the inlet and outlet of the injector. This pressure differential is essential for the injector to spray fuel into the combustion chamber.
As engine demand increases, the pressure acting on the diaphragm also increases. During low fuel demand, most of the pumped fuel exits the regulator valve or bypass, with the regulator bypass sending unused fuel back to the fuel tank. When the engine requires more fuel, less fuel is sent through the regulator bypass. The valve, therefore, plays a critical role in adjusting the fuel flow according to the engine's needs.
In some cases, a vacuum hose is attached to the mechanical regulator. This setup allows the vacuum and pressure acting on the regulator diaphragm and the mechanical spring to work together to change the fuel pressure. This results in a 1:1 ratio of manifold pressure vs. fuel pressure change, ensuring that the injector pressure delta remains constant throughout the engine's operational range.
Overall, the valve in the FPR is responsible for regulating the fuel pressure and flow, ensuring that the injectors receive the correct amount of fuel and maintaining the necessary pressure differential for optimal engine performance.
Finding Fuel Tank Capacity for 2003 Dodge Dakota
You may want to see also
Explore related products
The FPR's impact on the pressure delta at the injector outlet
A fuel pressure regulator (FPR) is a device that controls the pressure of fuel supplied to the fuel injectors in an engine. It maintains a constant pressure across the outlet of the fuel injector. This ensures that the fuel injectors receive the right amount of fuel.
All injectors require a pressure difference between the inlet and the outlet for the injector to spray fuel into the combustion chamber. This is known as the base pressure. The base pressure can be adjusted on all Turbosmart FPRs using an adjustment screw to match the injectors and the fuel pump system in use. This adjustment screw compresses a spring, which applies force to the valve. When the pressure in the bottom chamber of the FPR becomes strong enough to overcome the spring force, it lifts the valve off its seat, allowing fuel to flow through the outlet port and regulating the fuel pressure in the fuel rail.
The pressure delta at the injector outlet is the difference in pressure between the inlet and outlet of the injector. This pressure delta is essential for the proper functioning of the injector. If the pressure delta is too low, the injector may not be able to spray fuel into the combustion chamber effectively. On the other hand, if the pressure delta is too high, it may cause damage to the injector or the fuel system.
The FPR plays a crucial role in maintaining the optimal pressure delta at the injector outlet. It does this by bleeding off excess fuel back into the fuel tank. This ensures that the pressure in the fuel rail is maintained at the desired level. Additionally, the FPR can be adjusted to increase or decrease the base pressure, allowing for compatibility with different types of fuel injectors and fuel pump systems.
In summary, the FPR's impact on the pressure delta at the injector outlet is significant. By regulating the fuel pressure and providing adjustability, the FPR ensures that the pressure delta is maintained within an optimal range, promoting efficient fuel injection and protecting the fuel system from potential damage.
Making a Fuel Tank Float: The Ultimate Guide
You may want to see also
Explore related products
The FPR's ability to adapt fuel supply to demand
A fuel pressure regulator (FPR) is a device that controls the pressure of fuel supplied to the fuel injectors in an engine. It maintains a constant pressure across the outlet of the fuel injector, allowing for a more useful range on very large injectors.
The FPR adapts fuel supply to demand by bleeding off a portion of the fuel flow to the injectors from the fuel pump. The FPR is usually mounted after the fuel rail, ensuring the fuel rail has priority in fuel flow. The valve in the FPR controls the amount of fuel bled from the fuel rail by opening an outlet port, allowing excess fuel to return to the fuel tank. This outlet port is controlled by an adjustment screw that pushes down on a spring, which applies force onto the valve.
Converting Kegs: DIY Beer Keg Fuel Tanks
You may want to see also
Explore related products
How the FPR maintains a steady fuel supply
A fuel pressure regulator (FPR) is an essential part of an auto's fuel system. It maintains a steady fuel supply by regulating the pressure of the fuel supplied to the fuel injectors. This regulation ensures the fuel pressure does not drop below what the engine's fuel injectors need to burn fuel efficiently.
The FPR is usually mounted after the fuel rail, which ensures that the fuel rail has priority in fuel flow. The FPR controls the amount of fuel that is bled from the fuel rail by opening an outlet port, allowing fuel to flow back into the fuel tank. This process maintains the desired fuel pressure, ensuring the fuel injectors receive a constant amount of fuel.
The FPR also works in reverse. When the engine is idling in a vacuum, the base fuel pressure is reduced to maintain the pressure across the injector, as the vacuum in the inlet manifold is sucking the fuel out. This results in the same injector flow rate but with less fuel pressure.
The FPR is designed to accommodate temperature variations, ensuring stable pressure across different operating conditions. It controls the fuel pressure and flow, maintaining the proper air and fuel combination for optimal engine performance and economy.
Additionally, the FPR can handle dramatic changes in fuel demand. During idling or low load, when fuel demand is lower, the regulator reduces the pressure by allowing more fuel to return to the tank. Conversely, during high load or acceleration, the regulator increases pressure to meet the higher fuel demand.
Tundra Gage Compatibility: Larger Fuel Tank Recognition
You may want to see also
Frequently asked questions
A fuel pressure regulator (FPR) is a device that controls the pressure of fuel supplied to the fuel injectors on an engine.
A fuel pressure regulator works by bleeding off a portion of the fuel flow to the injectors from the fuel pump to control the fuel pressure. The regulator consists of a diaphragm that controls the bypass valve, which can open and close to adjust for a steady fuel delivery.
The fuel pressure regulator ensures a steady fuel supply, even during dramatic changes in fuel demand. Without it, the fuel rail will not be able to build up enough pressure to support the injectors, and the fuel will flow straight through without reaching the injectors.
The ideal ratio is a 1:1 ratio of manifold pressure vs. fuel pressure change. This allows the injector pressure delta to remain the same throughout the operational range of the engine.
Electric fuel pumps are designed to flow a constant amount of fuel regardless of engine rpm and/or boost pressure. Mechanical fuel pumps, on the other hand, are driven directly by the engine, so fuel flow increases as the engine RPM increases. High-flow FPRs are critical for high horsepower cars with mechanical fuel pumps. Aftermarket fuel pressure regulators may be required for performance fuel injectors or high-flow fuel pumps to allow pressure adjustments while maintaining a stable base pressure.
