The Vanagon fuel tank is a complex system that has undergone several design changes over the years. The tank's breathing mechanism is influenced by various factors, including its shape, the presence or absence of a pre-filter, and the functionality of the venting hoses and valves. The tank's breathing is also closely tied to the vehicle's fuel pump, with factors such as fuel delivery systems, fuel pressure regulators, and fuel injectors playing a role in ensuring the tank breathes effectively. Understanding the intricacies of the Vanagon fuel tank's breathing mechanism is essential for optimal performance and requires a deep dive into the vehicle's technical specifications.
| Characteristics | Values |
|---|---|
| Fuel tank design | Some Vanagon fuel tanks are flat with a saddle down the middle, while others have an expansion/vapour separator tank above the main tank. |
| Fuel capacity | 2WD models can hold up to 13.5 gallons, while Syncro (4WD) models can hold up to 16 gallons, with the gauge reading above full. |
| Fuel gauge accuracy | The gauges are “indication only” and may not be accurate. The "half tank" reading, for example, may not represent half of the remaining fuel. |
| Fuel pump | The electric fuel pump is controlled by the fuel injection system's electronic control unit (ECU). It moves about 10 times more fuel than the engine uses on average. |
| Fuel filter | Vanagons from 1980 to 1984 had a small square pre-filter with a 7mm inlet and a 12mm outlet. In 1985, VW eliminated the pre-filter and introduced a larger post-filter, which lasts at least 30,000 miles. |
| Venting system | The 2WD Vanagon venting system differs from most cars due to the flat shape of the fuel tank. Venting hoses should be intact and well-sealed to prevent fuel leaks during expansion. |
| Evap canister | A potential issue is a clogged filter, which can cause a pressure difference and a loud clunking noise when the van comes to a stop. |
Explore related products
What You'll Learn
The 2WD Vanagon's venting system

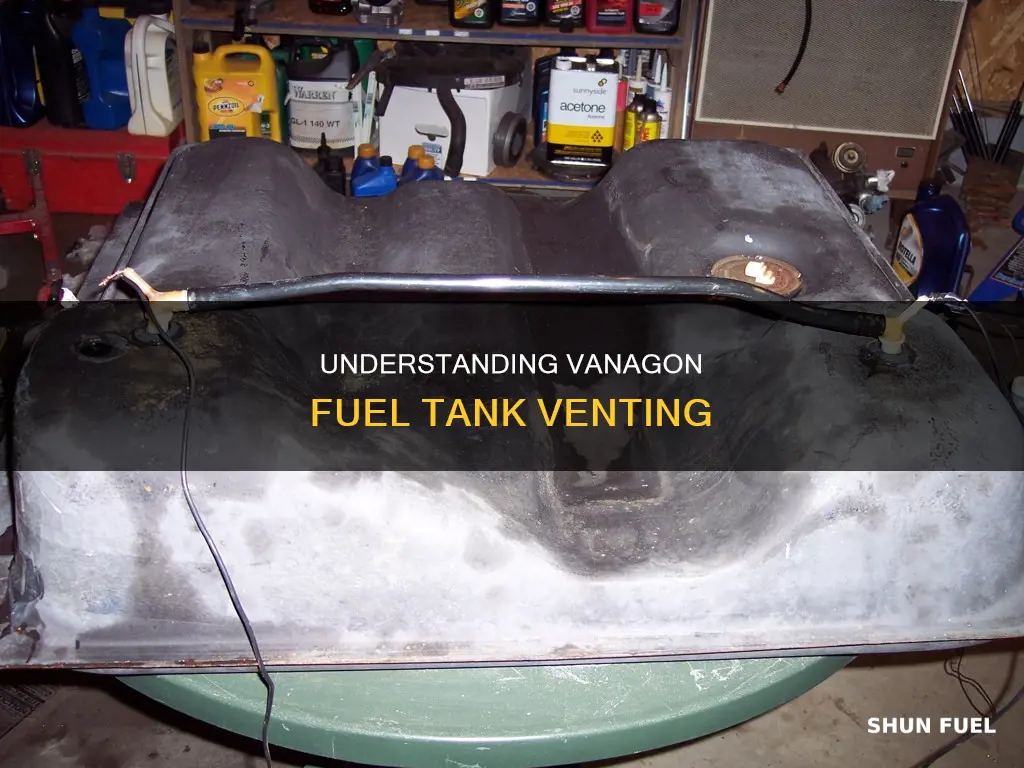

The 2WD Vanagon tank venting system differs from most cars due to the unusual shape of the fuel tank, which is flat with an inverted saddle shape in the middle. The venting system is critical because liquid gasoline expands a lot when warmed, and there must be room for it to expand without leaking out of the system. The 2WD Vanagon has expansion/vapour separator tanks above the main tank. The venting hoses should be intact and well-sealed, or the expanded fuel will find leaks that are now below the liquid level. The venting lines to the canister are fitted to gravity valves in the top of the expansion tanks. The gravity valves are normally open to breathe freely both ways, but if the vehicle is overturned, they contain a ball that will fall and block the outlet to prevent fuel from running out.
The ventilation system in Vanagons has always been somewhat confusing. Fresh ambient air ventilation is controlled by the four slide levers and rotary fan knob on the dashboard, right next to the radio. These levers have nothing to do with air conditioning if your Vanagon is so equipped. A/C will be addressed later in this article. Fresh ambient air enters the vehicle through the front radiator grille between the headlights. Behind the radiator grill is a smaller grill (about 2" x 24") for fresh air intake, attached to a duct welded to the body. Fresh air flows through this duct to an air distribution box, which is about 1' x 1' x 2' in size, and is buried in the dashboard, dead center about a foot below the windshield. This air distribution box has several cable-controlled flaps on it, and it houses an electric "squirrel cage" fan which is controlled by the rotary fan knob to the right of the slide levers.
Factory-installed air conditioning in Vanagons is a completely separate system from the fresh air system. All air-conditioned air is recirculated air. That is, all the air that is cooled is air that is scooped up from inside the vehicle, cooled, and recirculated back inside the vehicle. It does not work like most other vehicles where one can choose OUTSIDE or INSIDE air to be cooled. There were two different factory-installed AC systems for non-pop-top Vanagons, and two for pop-tops. Vanagon non-pop-top factory A/C: 1980-1984: On early non-pop-top Vanagons up to about 1984, the air conditioning ducting was a plastic monstrosity that came up the driver’s side of the vehicle just behind the driver’s front door, and up over to the passenger side.
There was another A/C system available for the Vanagon that was installed at the dealer. This was an in-dash system. This system placed the evaporator in the dashboard behind the glove box. The outer dashboard vents, instead of being plumbed to the fresh air distribution box, were plumbed to the A/C evaporator. In addition to these vents, two more vents were added either where the radio usually goes, or right next to the radio. If the radio hole was used, the radio was relocated in a plastic enclosure down on the floor in front of the gearshift lever face-up. This system had an overall lower output, but the cold air it did produce was pumped straight at you, so it actually cooled your hot body instantly, as opposed to having to wait for the rear-only A/C to cool the entire interior. These systems are very rare.
A potential problem with the Vanagon evap canister is a clogged filter. The 1989 and later vans have the “clean” side of the can hooked up to a short piece of hose that is shoved into a grommet in the frame. Since this is in the right rear wheel area, there will be dust getting in there. Eventually, the filter inside the can will clog up. Then the top of the fuel tank can be pulled down by the pressure difference when the engine is running and the throttle is above idle. When the van comes to a stop, the vacuum from the engine is shut off and the top of the tank pops back to its normal shape with a loud CLUNK. The cure is to replace the canister and run a hose into the engine compartment (cleaner air) and attach a small filter to the end of the hose. If you are handy, you can add a fitting or piece of metal tube to the air filter box, just like the earlier Vanagons.
