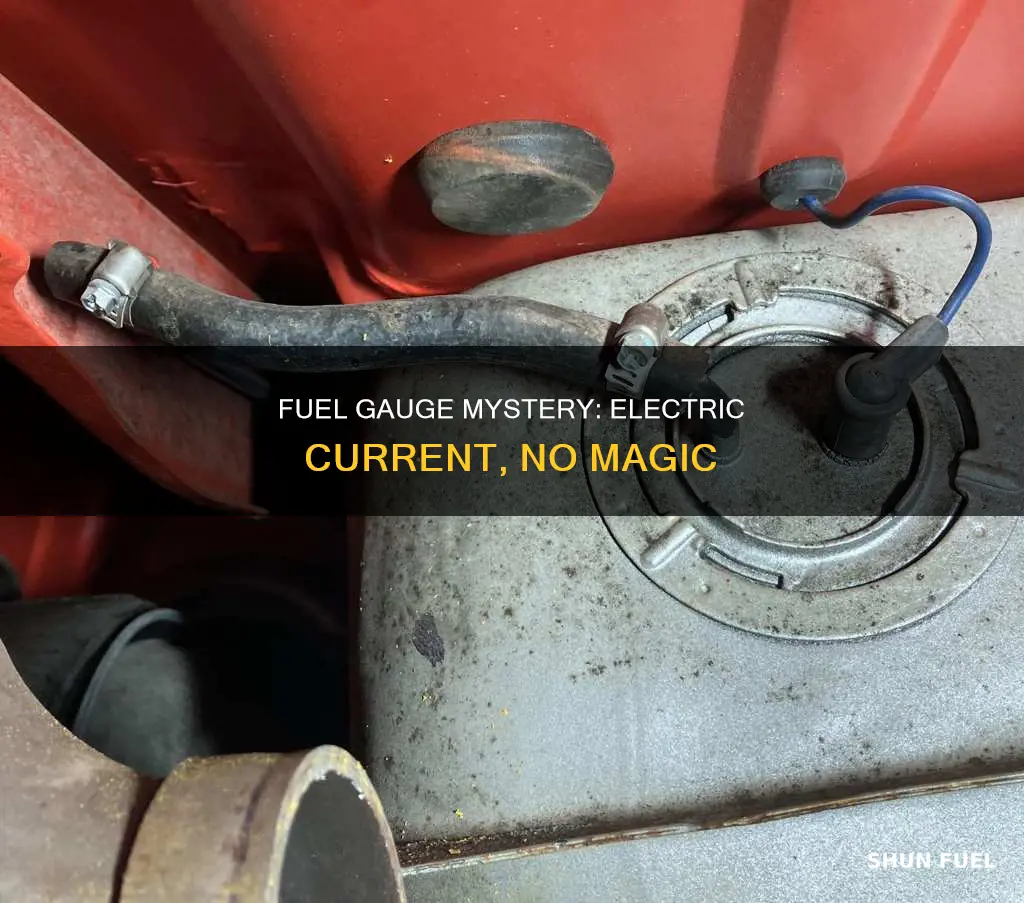

The fuel gauge in your car is an instrument that indicates the amount of fuel in the tank. It consists of two parts: the sender and the gauge. The sender measures the level of fuel in the tank, while the gauge displays this level to the driver. The sender is located in the fuel tank and consists of a float, usually made of foam, connected to a thin metal rod. The end of the rod is mounted to a variable resistor, which resists the flow of electricity. As the tank empties, the float drops and the resistance increases. This information is conveyed to the gauge, which is usually mounted on the dashboard, and displays the amount of electric current flowing through the sender. An electronic fuel gauge displays this information using numbers or a bar graph, while an analog gauge moves a needle up and down across a dial.
| Characteristics | Values |
|---|---|
| Types of fuel gauge | Analog, electronic, or magnetic |
| How does an analog fuel gauge work? | An indicator needle represents the fuel level. A heated bimetal strip moves the needle once the current flows through it. The bimetal strip can control the needle because of a small voltage regulator inside the instrument panel. |
| How does a magnetic fuel gauge work? | Small electromagnetic coils connected to a sending unit display information on fuel level. |
| How does an electronic fuel gauge work? | An electronic control unit operates the gauges and sends information to the powertrain control module (PCM) for engine data. |
| How does a fuel gauge work in general? | The sending unit is located in the fuel tank of the car. It consists of a float, usually made of foam, connected to a thin, metal rod. The end of the rod is mounted to a variable resistor. As the tank empties, the float drops and slides a moving contact along the resistor, increasing its resistance. |
| What is the purpose of a fuel gauge? | To indicate the amount of fuel in a fuel tank. |
| What are the common problems with a fuel gauge? | Poor ground connection, wiring issues between the gauge and fuel sending unit, and defective voltage supply to the gauge. |
| What happens when the fuel gauge malfunctions? | A damaged fuel level gauge won’t affect your engine. Your car will run the same way without it. However, driving with a broken fuel gauge means you have no information about how much fuel is left in your tank. |
Explore related products
What You'll Learn
Fuel gauge types
Fuel gauges in cars can be either analog, electronic, or magnetic. Here are the details of each type:
Analog Fuel Gauges
Analog fuel gauges use an indicator needle to represent the fuel level. A heated bimetal strip moves the needle once an electric current flows through it. The strip can control the needle due to a small voltage regulator inside the instrument panel. The fuel tank sending unit provides a ground circuit for the fuel gauge and controls the amount of current flowing through it. As the fuel level changes, so does the resistance of the fuel tank sending unit. As the sending unit delivers more ground to the heating wire in this type of gauge, the bi-metal strip changes shape and moves the needle.
Electronic Fuel Gauges
Some newer cars have electronic fuel gauges with a microprocessor that reads the variable resistor in the tank and communicates that reading to another microprocessor in the dashboard. This system can compensate for the shape of the tank by comparing the float position to a calibration curve, allowing for more accurate readings, especially in cars with unusually-shaped gas tanks. This system can also trigger a fuel light that signals when fuel is getting low.
Magnetic Fuel Gauges
Magnetic fuel gauges use small electromagnetic coils connected to a sending unit to display information on fuel levels. The same mechanism is used to display other data, such as water temperature and oil pressure. Magnetic fuel gauges are more accurate than resistance-type gauges.
Other Fuel Gauge Types
Other types of fuel gauges include those used for large fuel tanks, such as underground storage tanks, which may use a pressure sensor connected to a mercury manometer. Some large aircraft use a different design, employing low-voltage tubular capacitor probes where the fuel becomes the dielectric. At different fuel levels, different values of capacitance are measured, and the level of fuel can be determined.
Fuel Filter Presence in 2001 Lincoln Town Cars
You may want to see also
Explore related products
How fuel level is measured
The operation of a fuel gauge depends on its type, which can be analog, electronic, or magnetic. The fuel level is measured by a sending unit, which is located in the fuel tank of the car. This unit consists of a float, usually made of foam, connected to a thin metal rod. The end of the rod is mounted to a variable resistor. As the float drops when the tank empties, the metal rod slides a moving contact along the resistor, increasing its resistance. The more resistance there is, the less current will flow.
The sending unit provides a ground circuit for the fuel gauge and controls the amount of current that flows through it. As the sending unit delivers more ground to the heating wire in this type of gauge, the bi-metal strip will change shape and move the needle. The indicator unit, usually mounted on the dashboard, measures and displays the amount of electric current flowing through the sending unit. When the tank level is high and maximum current is flowing, the needle points to "F", indicating a full tank.
In some newer cars, a microprocessor reads the variable resistor in the tank and communicates that reading to another microprocessor in the dashboard. This system can compensate for the shape of the tank by comparing the float position to a calibration curve. This curve correlates the position of the float with the volume of fuel left in the tank, allowing the gauge to read more accurately, especially in cars with complicated gas tank shapes.
Magnetic fuel level gauges use small electromagnetic coils that are connected to a sending unit to display information on fuel level. The needle should point to "E" if the sensor wire is unplugged and grounded and to "F" if the sensor is unplugged or away from the ground.
Fuel Cell Cars: Green Revolution or Greenwashing?
You may want to see also
Explore related products
How the level is displayed
The display of the fuel level in a car is an important feature that helps the driver plan their route and refuelling stops. The fuel gauge consists of two main parts: the sender or sending unit, and the gauge or indicator unit. The sending unit is located inside the fuel tank and consists of a float, a metal rod, and a variable resistor. The float is usually made of foam and floats on top of the fuel in the tank. The metal rod is connected to the float and pivots in relation to the fuel level, causing the wiper inside the variable resistor to move. The wiper slides along a strip of resistive material, and the position of the wiper determines the strength of the electric current from the resistor.
The variable resistor is an important component as it resists the flow of electricity. The more resistance there is, the less current will flow. As the fuel level in the tank changes, the resistance of the sending unit also changes. This change in resistance is communicated to the gauge, which then displays the fuel level to the driver. The gauge is usually mounted on the dashboard and measures the amount of electric current flowing through the sending unit. When the tank level is high and the maximum current is flowing, the needle points to "F" or "Full". As the tank empties, the float drops, and the resistance increases, causing the needle to move towards "E" or "Empty".
In newer cars, a microprocessor reads the variable resistor in the tank and communicates that reading to another microprocessor in the dashboard. This allows for more accurate readings, especially in cars with irregularly shaped fuel tanks. The microprocessor can also provide damping to the needle movement, compensating for fuel sloshing during turns or when going up a hill. Additionally, the microprocessor can trigger a low fuel light, signalling to the driver that it's time to refuel.
The operation of a fuel gauge can vary depending on its type, which can be analog, electronic, or magnetic. In an analog setup, an indicator needle typically represents the fuel level. A heated bimetal strip moves the needle once the current flows through it, and the resistance of the fuel tank sending unit controls the current flow. In a magnetic fuel gauge, small electromagnetic coils connected to the sending unit display the fuel level information. This type of gauge is more accurate than resistance-type gauges and is used to display other data such as water temperature and oil pressure.
Smart Driving: Save Fuel, Money, and the Planet
You may want to see also
Explore related products
Why a fuel gauge may malfunction
A fuel gauge is an instrument used to indicate the amount of fuel in a fuel tank. It consists of two main parts: the sender, which measures the level of fuel in the tank, and the gauge, which displays that level to the driver. The most common causes of faulty gas gauges include sending unit failure, a blown fuse, circuit problems, and instrument cluster failure.
A fuel gauge that is stuck on empty may be caused by the float separating from the arm, which causes the rest of the components in the fuel sending unit to stop completely. In some cases, a faulty resistor can also cause the gauge to read empty by restricting the signal completely. Corroded wires, especially in the case of a fuel sending unit located on the fuel pump, can stop voltage from reaching the fuel gauge.
A fuel gauge that is stuck on full may be caused by a faulty fuel gauge resistor sending the full voltage to the fuel gauge at all times. The fuel sending unit is constantly in motion when a vehicle regularly uses fuel, which causes constant movement of the wiper in the variable resistor. Over time, this can wear down the resistive material strip, creating an open circuit.
A fluctuating fuel gauge may be due to a mechanical failure. The fuel sending unit float arm may ‘stick’ at certain levels, and fall back into place either naturally or with vehicle movement. Once the float arm falls back into place, the fuel gauge becomes accurate again. This event can often be replicated, giving more evidence of mechanical failure.
Circuit issues can also lead to problems with your gas gauge. These issues could stem from a lack of source voltage or an interrupted ground. If the circuit delivering information between the sending unit (fuel level sensor) and the gas gauge is interrupted, the gauge may provide inaccurate readings. One common cause of circuit problems is poor-quality wire insulation.
How Much Reserve Fuel Does Your Car Hold?
You may want to see also
Explore related products
How to fix a broken fuel gauge
A broken fuel gauge can be a major inconvenience, leaving you guessing how much fuel is left in your tank. While fixing a broken fuel gauge may seem daunting, you can troubleshoot the problem yourself and avoid an expensive repair. Here's a step-by-step guide to help you fix a broken fuel gauge:
Step 1: Check the Fuse
Start by turning the ignition on and off a few times while observing the needle on the fuel gauge. If the needle doesn't move, it likely indicates a blown fuse that needs replacement. Refer to your car owner's manual to locate the fuse box, which is usually found on the driver's side dash or in the engine compartment.
Step 2: Test the Grounding Wire
The next step is to test the grounding wire on the sending unit of the fuel tank. This unit is typically connected to your car's fuel tank. Attach the negative jumper cable to the vehicle's frame and the positive jumper cable to the sending unit's grounding terminal. If the fuel gauge works with the jumper cables connected, it confirms that you need to replace the grounding wire.
Step 3: Diagnose the Issue
Disconnect the wiring connected to the sending unit of the fuel gauge and observe the reading. If the gauge shows empty, the issue lies with the fuel gauge itself, and it needs to be replaced. On the other hand, if it shows a full reading, the sending unit is faulty and requires replacement.
Step 4: Check Wiring Connections
Ensure that all wiring connections to the back of the fuel gauge are secure. To access the instrument cluster, you may need to remove the dashboard. Be cautious when handling electrical components, and refer to your car's manual for specific instructions.
Additional Troubleshooting Tips:
- Reset the Gauge: If your vehicle has an indicator needle, you may need to reset the fuel gauge if the needle doesn't move after refuelling.
- Clean the Fuel Pump: In some cases, cleaning the fuel pump and the line that the bobbing head touches with a Q-tip and rubbing alcohol may improve the accuracy of the gauge.
- Resolder or Replace the Cluster: If you have a Nissan 300ZX or a similar model, the issue could be related to the cluster, which may need to be resoldered or replaced.
- Check the Float: If your car has a fuel tank under the rear passenger seat, check the float for cracks or damage, as this could affect the accuracy of the fuel gauge.
Remember, it's important to be cautious when working on your vehicle and always refer to your car's manual for specific instructions and safety precautions. If you're unsure about any steps, it's best to consult a professional mechanic.
Electric Cars: Fuel Efficiency and the Future of Driving
You may want to see also
Frequently asked questions
The operation of a fuel gauge depends on its type, which can be analog, electronic, or magnetic.
A fuel gauge has two main parts: the sender, which measures the level of fuel in the tank, and the gauge, which displays that level to the driver. The sending unit is located in the fuel tank of the car and consists of a float, usually made of foam, connected to a thin metal rod. The end of the rod is mounted to a variable resistor. As the float drops, it slides a moving contact along the resistor, increasing its resistance. The indicator unit, usually mounted on the dashboard, measures and displays the amount of electric current flowing through the sending unit.
"E" stands for "empty," and "F" stands for "full."
The most common problem that causes the fuel gauge to read incorrectly is a bad fuel sending unit. Other issues include poor ground connection, wiring issues between the gauge and fuel sending unit, and defective voltage supply to the gauge.
You can test the electrical wiring underneath the hood of your car. You can also check the health of the fuse for your fuel gauge and replace it if it's blown.
