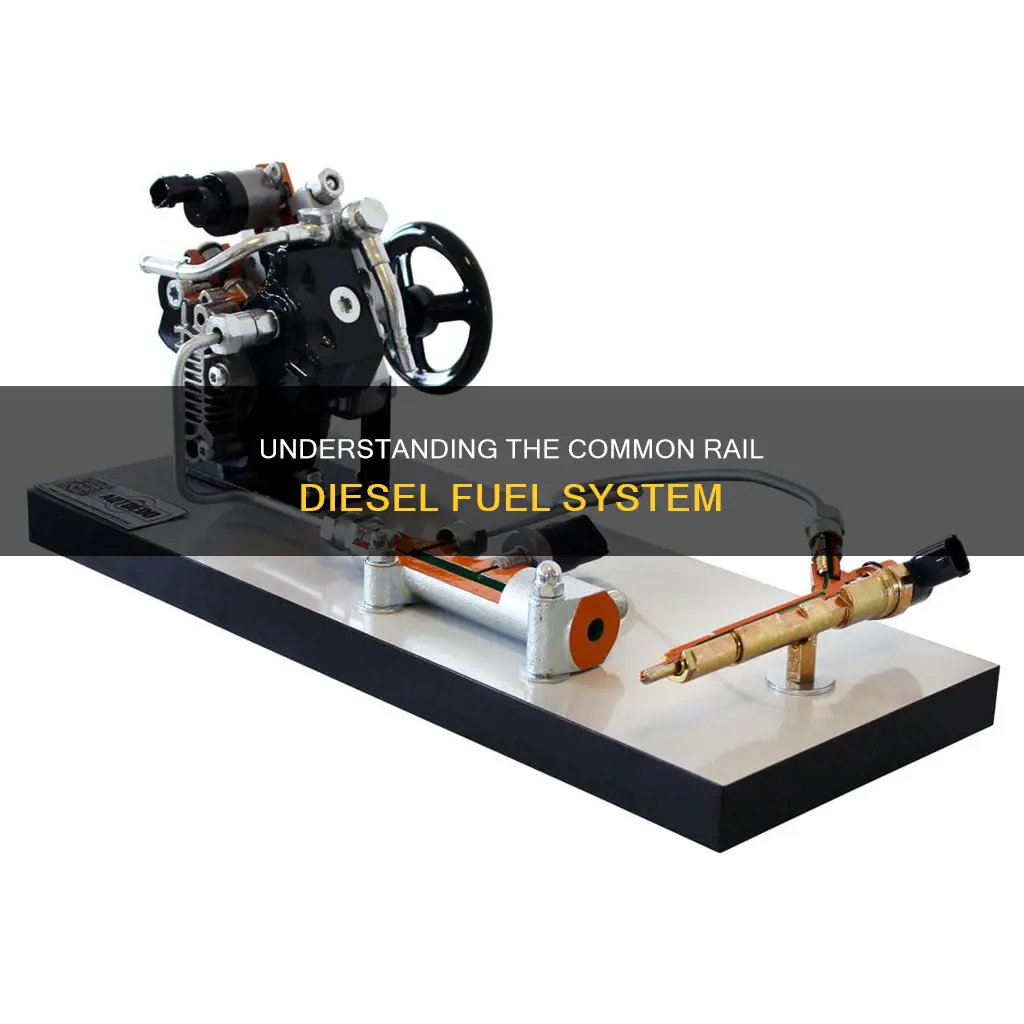

Common rail diesel fuel systems are used to increase engine power, reduce emissions, and make diesel engines run more smoothly and efficiently. The system is composed of an injection pump, the rail, injectors, and sensors that detect the operating conditions of the engine for a centralized electronic unit (ECU) that manages all the components. The high-pressure pump pressurizes the fuel and transfers it to the rail, a common conduit that serves as a pressure accumulator and reservoir. The pressure is regulated by an electronically controlled valve, so that the rail maintains the correct pressure required by the ECU. The fuel then reaches the injectors, filling two spaces, one above and one below the nozzle needle. The two forces balance each other out and the needle is kept closed thanks to a spring.
| Characteristics | Values |
|---|---|
| Purpose | To increase engine power, reduce emissions, and make diesel engines run smoother. |
| Injection System | Direct fuel injection system |
| Fuel Pressure | Independent of engine speed and load conditions. |
| Injection Quantity | Controlled by the engine control unit (ECU). |
| Injection Timing | Controlled by the engine control unit (ECU). |
| Injection Rate | Square injection rate due to the remote storage of fuel pressure energy. |
| Injection Pressure | Higher pressure enables better fuel atomisation and improved combustion. |
| Injectors | Injectors can inject multiple times during one combustion event, improving spray penetration and mixing. |
| Noise | Lower engine noise compared to conventional diesel systems. |
| Emissions | Reduced emissions due to improved combustion and multiple injections. |
| Fuel Consumption | Lower fuel consumption due to improved combustion and higher injection pressure. |
| Flexibility | Ability to adapt to all modern vehicles and meet stringent emission control standards. |
Explore related products
Injector control
The injectors in a common rail diesel system are electronically controlled, allowing for precise management of fuel injection timing and quantity. This electronic control is facilitated by the Engine Control Module (ECM) or Engine Control Unit (ECU), which receives feedback from various sensors within the system. By taking into account multiple sensor inputs, the ECM/ECU adjusts the pressure and fuel injection accordingly. This level of control ensures that the injectors deliver the right amount of fuel at the right time, optimizing engine performance.
The injectors in a common rail system are typically solenoid or piezoelectric valves. These valves enable fine electronic control over the fuel injection process. Solenoid valves are actuated by electrical currents, while piezoelectric valves use a piezoelectric crystal that expands or contracts in response to an electric field. This expansion or contraction controls the opening and closing of the valve, determining the timing and quantity of fuel injected.
The high pressure in common rail systems, often exceeding 2,000 bar (29,000 psi), plays a crucial role in injector control. This high pressure allows for better fuel atomisation, where diesel fuel is injected as a large number of small droplets. This increases the surface area-to-volume ratio, improving vaporization and facilitating more efficient combustion. The high pressure also ensures that fuel is always available to the engine, even at low engine speeds or revs.
The injectors work in tandem with the high-pressure pump to regulate fuel injection. The pump increases the pressure of the diesel fuel, and this pressurized fuel is then transferred to the injectors. The injectors fill two spaces, one above and one below the nozzle needle. These two forces balance each other out, keeping the needle closed with the help of a spring. When the injectors are electrically activated, a hydraulic valve opens mechanically or hydraulically, allowing fuel to be sprayed into the cylinders at the desired pressure.
The ECM/ECU plays a pivotal role in coordinating the injectors and other components. It ensures that the injection pressure and rate remain consistent across multiple injection events. Additionally, the ECM/ECU can inject a small amount of diesel just before the main injection ("pilot" injection) to reduce engine noise and vibration, optimizing injection timing and quantity. This level of control contributes to the overall smoothness and efficiency of the engine.
Fuel Gauge Installation Guide for Diesel Engines
You may want to see also
Explore related products
High-pressure pump
The high-pressure pump is a critical component of a common rail diesel fuel system. This pump increases the pressure of the diesel fuel to over 2,000 bar (29,000 psi or 200 MPa), which is significantly higher than the pressure generated by a common car tyre, which is typically around 2.5 to 3.5 bar. This high-pressure pump is driven by the engine and can be controlled either mechanically or electronically.
The purpose of the high-pressure pump is to maintain the target pressure required by the Engine Control Unit (ECU). The ECU manages all the components of the fuel system, including the injectors, which are controlled by the ECU and work in parallel with the high-pressure pump. The high-pressure pump ensures that high-pressure fuel is always available to the engine, even at low revs, which contributes to the system's flexibility and efficiency.
The high-pressure pump receives fuel from the electric feed pump, which is not present in all systems. The pressure generated by the high-pressure pump is controlled by the high-pressure control valve, which is electronically controlled by the Engine Control Module (ECM). This valve ensures that the correct pressure is maintained in the rail, which acts as a pressure accumulator and reservoir.
The high-pressure pump plays a crucial role in the common rail diesel fuel system's ability to deliver power and fuel consumption benefits. The high pressure enables better fuel atomisation, with the diesel being atomised into smaller droplets. This results in improved combustion, greater economy, lower emissions, and quieter running of the engine. The high-pressure pump's ability to maintain the target pressure ensures the efficient operation of the fuel system and contributes to the overall performance and reliability of the engine.
Removing Sugar from Diesel: A Step-by-Step Guide
You may want to see also
Explore related products
Fuel pressure
The high-pressure pump pressurises the fuel and transfers it to the rail, which acts as a pressure accumulator and reservoir. The pressure in the rail is then maintained at the correct level by an electronically controlled valve, which is regulated by the ECU (Engine Control Unit). The ECU manages all the components of the system, including the injectors, and controls the timing and amount of fuel injected.
The ability to control fuel pressure independently of engine speed and load conditions is a significant advantage of common rail systems. This flexibility allows for better control over fuel injection quantity and timing, and enables improved spray penetration and mixing, even at low engine speeds and loads. This, in turn, allows engines to produce higher torque at low engine speeds.
The high pressure also aids in atomising the diesel fuel into small droplets, which improves combustion and leads to greater economy, lower emissions, and quieter running. The pressure energy is stored remotely, and the injectors are electrically actuated, which means that the injection pressure at the start and end of injection is very close to the pressure in the accumulator (rail). This results in a square injection rate, and if the system is properly sized, the injection pressure and rate will be the same for each injection event.
The high pressure and precise control of the common rail system also allow for multiple injections per stroke, with some systems performing up to five injections. This helps to further reduce noise and emissions and improve overall engine performance.
Get a Refund on Federal Diesel Fuel: A Step-by-Step Guide
You may want to see also
Explore related products
Emission control
Common rail diesel fuel systems are designed to reduce emissions and make diesel engines run smoother. The system provides flexibility in controlling fuel injection quantity and timing, and enables better spray penetration and mixing even at low engine speeds and loads. This is achieved through the use of solenoid or piezoelectric valves, which allow for fine electronic control over the fuel injection time and quantity. The higher pressure provided by common rail technology also improves fuel atomisation, further reducing emissions.
The common rail system's ability to maintain system pressure at low engine speeds is another factor in reducing emissions. This is achieved by constantly feeding fuel to a high-pressure reservoir (the rail), ensuring that the required pressure is available even at low engine speeds. The pressure generation is not linked to the engine speed, allowing for more precise control of injection timing and rate.
The common rail system also differs from other injection systems in that it is not limited by injection pressure being proportional to engine speed. In common rail systems, the fuel pressure in the rail is electronically controlled, allowing for optimisation of emissions and performance while ensuring engine durability. The injection pressure at the start and end of injection is very near the pressure in the accumulator (rail), resulting in a square injection rate.
The common rail system's ability to perform multiple injections per stroke further contributes to emission control. By performing multiple close injections, the system increases efficiency and reduces emissions. Additionally, the system can inject a small amount of diesel just before the main injection event ("pilot" injection), reducing explosiveness and vibration while optimising injection timing and quantity.
The use of common rail diesel fuel systems is a response to stricter government regulations on carbon emissions. The system's flexibility in controlling fuel injection, ability to maintain pressure at low engine speeds, and precise control of injection timing and rate all contribute to its effectiveness in reducing emissions from diesel engines.
Preserving Diesel: The Ultimate Guide to Longevity
You may want to see also
Explore related products
Engine power
Common rail diesel fuel systems are designed to increase engine power and reduce fuel consumption. The system is composed of an injection pump, the rail, injectors, and sensors that detect the operating conditions of the engine for a centralized electronic unit (ECU) that manages all the components.
The high-pressure pump pressurizes the fuel and transfers it to the rail, which acts as a pressure accumulator and reservoir. The pressure is regulated by an electronically controlled valve, ensuring the rail maintains the correct pressure required by the ECU. The fuel then fills two spaces in the injectors, one above and one below the nozzle needle. The two forces balance each other, and the needle is kept closed by a spring.
The high-pressure nature of the system (over 2,000 bar or 29,000 psi) allows for better fuel atomization, which improves combustion. This results in greater fuel efficiency, lower emissions, and quieter engine operation. The system provides flexibility in controlling fuel injection quantity and timing, enabling better spray penetration and mixing, even at low engine speeds and loads. This characteristic allows engines to produce higher torque at low engine speeds, contributing to increased engine power.
The injectors in the common rail system are electronically controlled, allowing for precise fuel injection timing and quantity. The ECU receives feedback from various sensors and adjusts the pressure and fuel injection accordingly. This electronic control enables multiple injections per stroke, with some systems performing up to five injections. The ability to have multiple injections reduces engine noise and improves power output.
The common rail system's ability to maintain high fuel pressure even at low engine speeds ensures that engine power is consistently available. This is a significant improvement over older systems, where injection pressure was directly tied to engine speed, limiting the maximum injection pressure at lower speeds.
Get Rid of Palmetto Diesel Fuel: Effective Strategies
You may want to see also
Frequently asked questions
A common rail diesel fuel system is a direct fuel injection system used in diesel engines. It is composed of an injection pump, the rail, injectors, and sensors that detect the operating conditions of the engine.
The injection pump pressurizes the fuel and transfers it to the rail, which acts as a pressure accumulator and reservoir. The pressure is regulated by an electronically controlled valve. The fuel then reaches the injectors, filling two spaces, one above and one below the nozzle needle. The fuel injectors are typically controlled by the engine control unit (ECU), which manages all the components. When the fuel injectors are electrically activated, a hydraulic valve opens mechanically or hydraulically, and fuel is sprayed into the cylinders at the desired pressure.
Common rail diesel fuel systems increase engine power, reduce emissions, and make diesel engines run smoother and more quietly. They also offer fuel pressure independent of engine speed and load conditions, allowing for better control over fuel injection quantity and timing.
