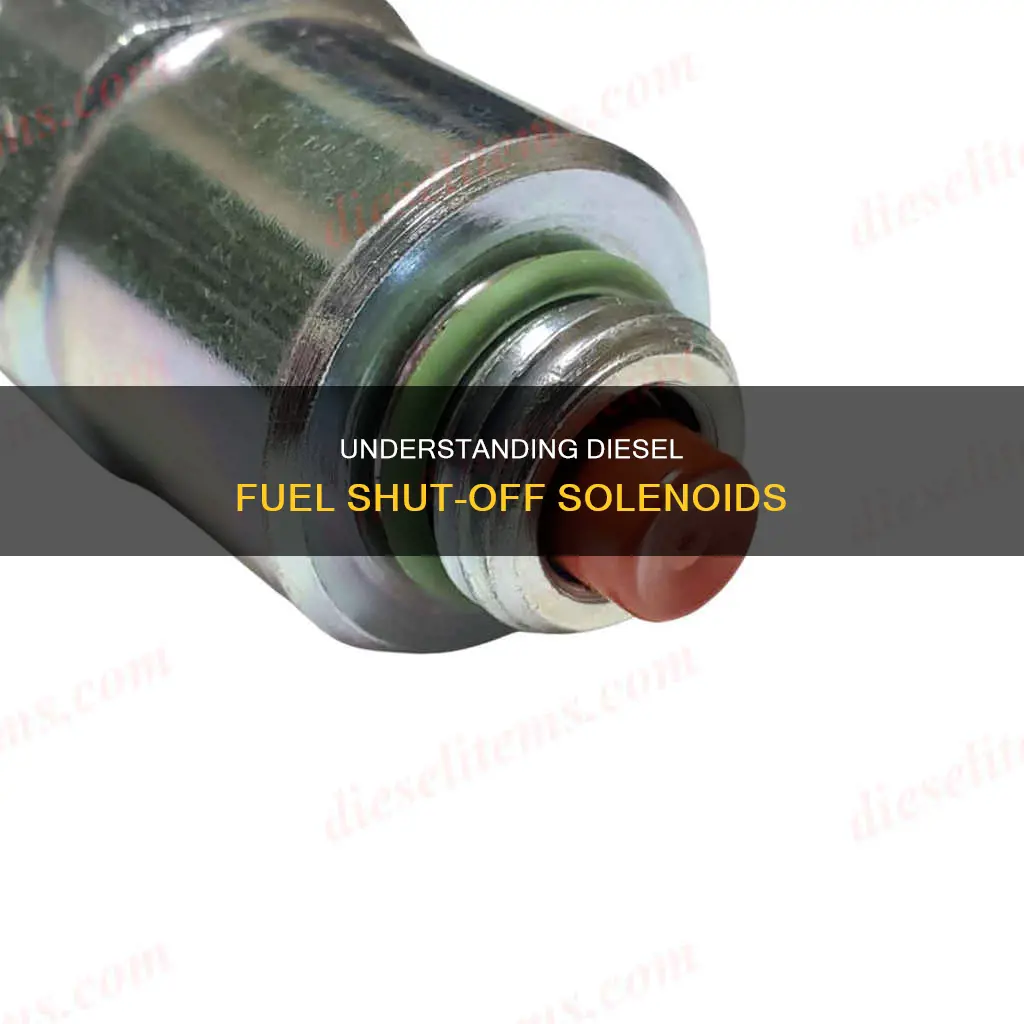

A diesel fuel shut-off solenoid is a critical component in the fuel system of a diesel engine, ensuring the normal operation of the fuel supply to the engine. It is a remote fluid flow device that can be activated manually or as part of an automatic engine management system. When the solenoid is energised, an electromagnetic field is generated, causing the movement of the solenoid's plunger and allowing fuel to pass through the valve. Conversely, when the solenoid is deactivated, the valve spring pulls the poppet valve back onto its seat, effectively shutting off the fuel flow to the engine. This mechanism is essential for the proper functioning of the engine and plays a vital role in preventing fuel-related hazards.
| Characteristics | Values |
|---|---|
| Function | Remotely or automatically shuts off the fuel supply to an engine or burner |
| Composition | Two separate devices: a fuel shutoff mechanism and a solenoid assembly |
| Mechanism | When energized, an electromagnetic field is generated, causing the movement of the solenoid's plunger, retracting the spring-loaded poppet from its seat and allowing fuel to pass through the valve |
| Deactivation | When deactivated, the valve spring pulls the poppet valve back onto its seat, shutting off the fuel flow |
| Activation | Can be manually controlled or managed by an automatic system |
| Hazard Response | Immediately closes when a hazardous condition is detected, cutting off the fuel supply |
| Troubleshooting | Check power connection, control signal, electromagnet and spool, and regularly clean and maintain the solenoid |
| Rest Position | Newer models have an extended rest position, blocking fuel flow until activated |
Explore related products
What You'll Learn
The diesel fuel shut-off solenoid's role in engine management systems
The diesel fuel shut-off solenoid is an integral part of an engine's management system. It is a critical component that ensures the normal operation of the fuel system and plays a vital role in preventing fuel-related hazards. The solenoid is a valve that controls the flow of fuel to the engine, and it can be activated either manually or as part of an automatic engine management system.
When the solenoid is energised, an electromagnetic field is generated around it, attracting the solenoid plunger and pulling it toward the coil. This movement lifts the valve seat, allowing fuel to flow through the valve and reach the engine. This process is essential for the proper functioning of the engine, especially during the system's start-up procedure.
On the other hand, when the solenoid is deactivated or de-energised, the valve spring pulls the poppet valve back onto its seat, effectively shutting off the fuel flow. This mechanism ensures that the engine is not flooded with fuel when it is not in operation. Additionally, in hazardous situations, the solenoid can immediately close, cutting off the fuel supply and preventing the escalation of any potential danger.
The diesel fuel shut-off solenoid is typically made up of a valve body and a complete solenoid assembly attached to a valve stem. It is a reliable component, but it may malfunction due to oil, dirt, or foreign objects causing clogging. Regular cleaning and maintenance, especially of the valve core and valve body, can help prevent failures. Troubleshooting steps include checking the power connection, control signal, and core components such as the electromagnet and spool for proper functioning.
