The fuel injection pump is the heart of a diesel engine. It maintains a rhythm or timing that keeps the engine running smoothly and controls the amount of fuel needed to gain the desired power. The pump works mechanically, meaning it is driven by the crankshaft engine. When the crankshaft rotates, the mini pump sends diesel fuel from the tank into the injection pump through the inlet feed. From the inlet feed, the fuel directly fills the fuel barrel and is ready to be pressed. The camshaft pump is then used to drive the plunger in order to press the fuel. The plunger and injector blend into one unit whose job is to deliver the fuel spray to the combustion chamber.
Explore related products
What You'll Learn
The role of the injection pump
The injection pump is the device that pumps fuel into the cylinders of a diesel engine. It is considered the heart of the diesel engine. The pump is driven by the crankshaft engine and supplies fuel automatically to the diesel injection system.
The injection pump plays a critical role in the diesel engine's fuel injection system, which also includes a fuel line and a nozzle (injector). The pump ensures precise fuel delivery, maintaining a rhythm or timing that keeps the engine running smoothly. It also controls the amount of fuel needed to achieve the desired power. In doing so, the injection pump takes on the role of both the throttle and the ignition system found in gasoline engines.
The pump's timing is crucial. It injects fuel slightly before the top dead centre of the cylinder's compression stroke. This precise timing ensures that the fuel is injected into an extremely high-pressure environment, with pressures reaching up to 620 bar (8992 psi) in some systems.
The injection pump's role in creating high pressure is facilitated by its internal components. It incorporates a camshaft that drives a plunger, pressing the fuel and creating the necessary pressure. The pump's ability to vary timing and control the quantity of fuel delivered is a key factor in maintaining engine performance and efficiency.
Additionally, the injection pump includes a governor, a safety feature that cuts off the fuel supply if the crankshaft rpm endangers the engine. This is essential because diesel engines lack a throttle valve to control air intake, and their heavy moving parts do not tolerate overspeeding well.
Effective Strategies for Washing Diesel-Soaked Clothes
You may want to see also
Explore related products
How the injection pump works
The injection pump is the device that pumps fuel into the cylinders of a diesel engine. It is driven by the crankshaft engine, with the crankshaft connected to the camshaft. When the crankshaft rotates, the mini pump transfers diesel fuel from the tank into the injection pump through the inlet feed. The fuel directly fills the fuel barrel and is ready to be pressed.
The pump camshaft is connected to the engine crankshaft, so when the engine cranks, the pump camshaft rotates. This rotation moves the plunger, which presses upwards, forcing the fuel in the fuel barrel to enter the injector at high pressure. When the cam has finished pressing the plunger, the plunger returns to the bottom position, reopening the fuel barrel chamber so that the fuel from the inlet feed fills the fuel barrel directly. The plunger and injector can also be combined into a single unit, delivering the fuel spray to the combustion chamber.
The injection pump controls the timing and amount of fuel needed to gain the desired power. It does the job of both the throttle and the ignition system needed in gasoline engines. The pump incorporates a governor to cut the fuel supply if the crankshaft rpm endangers the engine. The amount of fuel in the fuel barrel when it is pressed will affect the engine rpm.
There are four primary systems for injecting fuel. The first is an individual pump and injector for each cylinder. The second is a combined pump and injector for each cylinder (unit injector type). The third is one pump serving injectors for several cylinders (distributor type). The fourth is pumps in a common housing with injectors for each cylinder (common rail system).
Removing Sulphur from Diesel: Effective Strategies
You may want to see also
Explore related products
The different types of injection pumps
The injection pump is a critical component of diesel engines, delivering fuel to the cylinders and determining efficiency, performance, and reliability. Advancements in injection pump technology have driven major improvements in diesel engine performance.
There are several types of injection pumps, each with unique characteristics:
Common Rail Fuel Injection Pump
The common rail fuel injection pump is an electronically controlled system developed to meet modern emissions regulations. It consists of a supply pump, common rail, electronically controlled injectors, sensors, and a computer that manages the system. This pump provides high-pressure fuel to the injectors, which are mounted on each cylinder.
Distributor (Rotary) Fuel Injection Pump
The distributor (rotary) fuel injection pump is another electronically controlled pump that uses sensors, an electronic control unit, and an actuator to manage fuel delivery. It has a single fuel pressure mechanism and distributes pressurised fuel to each cylinder through a rotary distribution valve.

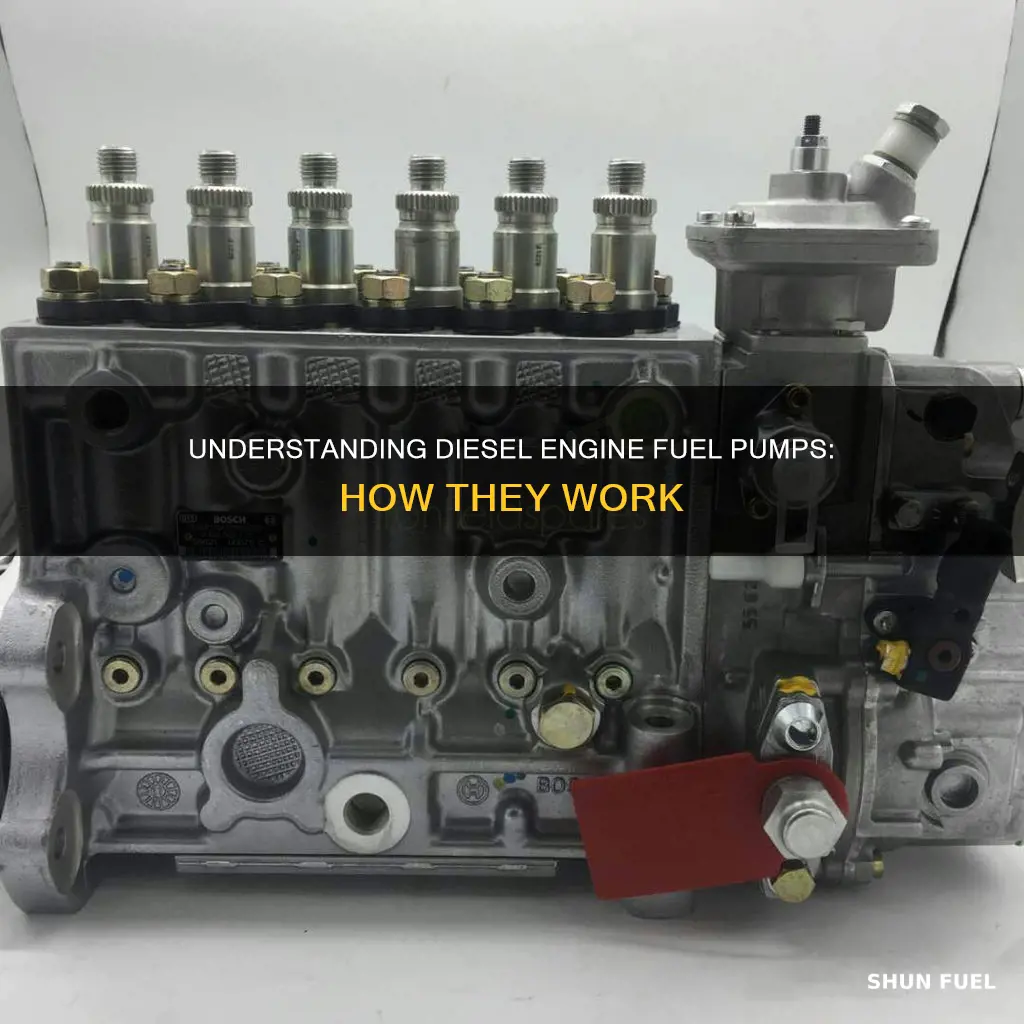

Inline Fuel Injection Pump
The Inline Fuel Injection Pump is a mechanically controlled system with a series of cam-operated injection cylinders. It matches the number of engine cylinders with the same number of fuel pressure mechanisms. Inline pumps are commonly used in medium to large trucks, construction machinery, and heavy-duty diesel engines as they can generate high pressures.
Distributor Injection Pump
The distributor injection pump is also a mechanically controlled pump but differs from the inline pump as it has just one fuel pressure mechanism regardless of the number of cylinders. It follows an injection order to distribute pressurised fuel to each cylinder.
Continuous Pump
The continuous pump is the latest type of diesel injection pump, widely used due to its durability and efficiency. It has a concise form and few functions, primarily responsible for stably increasing fuel pressure and regulating the timing and volume of sprayed fuel.
Unit Injector
The unit injector is a compact fuel injection design that combines the pump plunger and injector into a single unit. It creates high pressure through the mechanical force applied by the engine, delivering a fuel spray to the combustion chamber. This type of injector is commonly used in Volkswagens and large diesel engines.
Stabilizing Diesel: The Ultimate Guide to Fuel Preservation
You may want to see also
Explore related products
![A-Premium Enginie Water Pump [8Cyl 4.8 5.3 6.0L DOHC] w/Thermostat Compatible with GM Cars Chevy, GMC, Cadillac, Hummer, H2, Workhorse - Silverado, Express, Escalade, Tahoe, Sierra, Yukon, 9-7x More](https://m.media-amazon.com/images/I/71noUfOFmtL._AC_UL320_.jpg)
The evolution of the injection pump
The earliest injection pumps used an in-line layout with a series of cam-operated injection cylinders, similar to a miniature inline engine. These cylinders had a constant stroke volume, and injection volume was controlled by rotating them against a cut-off port that aligned with a helical slot. The earliest inline injection pumps delivered 3,000-5,000 psi of injection pressure.
To address the limitations of inline injection pumps, rotary pumps or distributor pumps were developed for use in cars and light trucks. Unlike inline pumps, distributor pumps use a single plunger to serve all cylinders, making them more compact and lightweight. An example of an early rotary pump is the Bosch VE pump, which could vary injection timing with crankshaft speed to allow greater power at high crank speeds. Later, in the 1990s, an intermediate stage between full electronic control was introduced, with pumps that used electronic control units to control some functions while still being mechanically timed and powered.
The first generation of four and five-cylinder VW/Audi TDI engines used these pumps before transitioning to unit injectors in the 1990s. This switch from indirect injection to direct injection engines provided better injection control and refinement. Since then, there has been a widespread shift to common rail diesel systems and electronic unit direct injection systems, which allow for higher pressures, finer control of injection volumes, and multiple injection stages. An example of an advanced electronic rotary pump is the Bosch VP44, which can produce 23,000 psi of pressure and electronically control the timing and quantity of fuel delivered to the engine.
The evolution of diesel injection technology has progressed from purely mechanical systems to electronic-controlled systems, with mechanical pumps being phased out to comply with international emissions directives and increase performance and economy.
Understanding Air-Fuel Ratios in Diesel Engines
You may want to see also
Explore related products
$6.99 $9.99
The injection pump vs the fuel pump
An injection pump is a device that pumps fuel into the cylinders of a diesel engine. It is driven indirectly from the crankshaft by gears, chains, or a toothed belt (often the timing belt) that also drives the camshaft. The injection pump does the job of both the throttle and the ignition system, which are required in gasoline engines. It maintains a rhythm or timing that keeps the engine running smoothly and controls the amount of fuel needed to gain the desired power.
The first pumps used an inline layout with a series of cam-operated injection cylinders, similar to a miniature inline engine. Inline injection pumps still find favour in large multi-cylinder engines such as trucks and agricultural vehicles. An example of an electronic rotary pump is the Bosch VP44, which can produce 23,000 psi of pressure. It controls the timing and quantity of fuel delivered to the engine.
On the other hand, a fuel pump is responsible for providing compressed air to the engine. There are two types of fuel pumps: low-pressure and high-pressure. A direct-injected engine has a lower-pressure fuel pump located in the fuel tank, which sends fuel to the high-pressure fuel pump under the hood. The high-pressure fuel pump is mechanically driven, usually from the engine's camshaft. The location of the fuel pump depends on the type of engine, with older cars with port-injected engines only having a pump in the tank.
In summary, the injection pump is responsible for delivering fuel to the cylinders of a diesel engine and maintaining the timing and power of the engine, while the fuel pump provides compressed air to the engine and can be either low-pressure or high-pressure, depending on the type of engine. The injection pump is unique to diesel engines, while fuel pumps are found in both diesel and gasoline engines.
