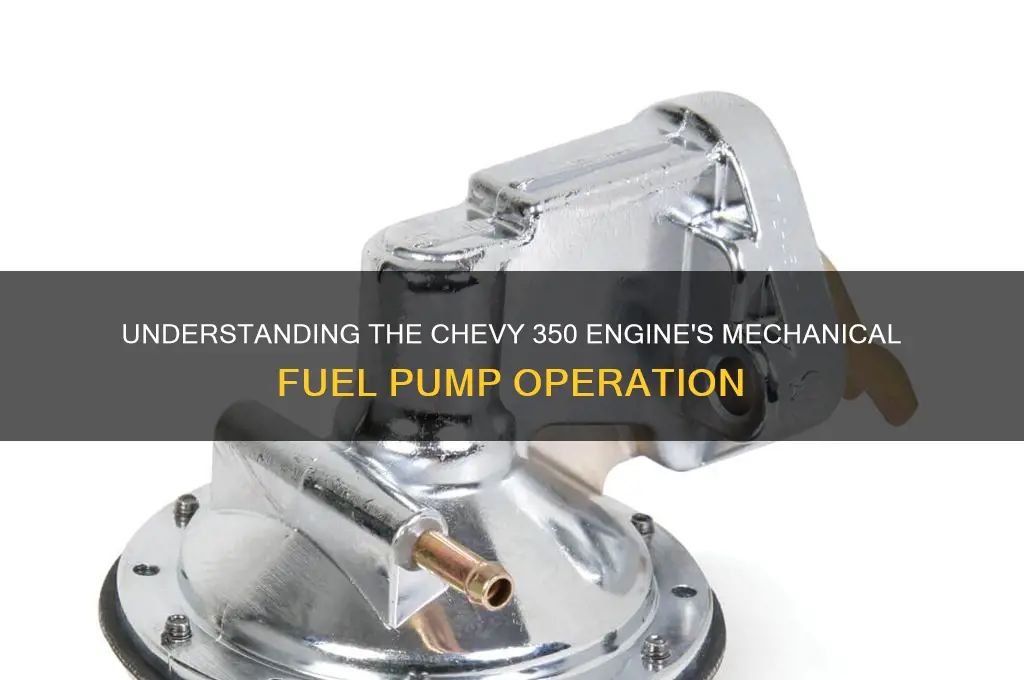

The Chevy 350 engine's mechanical fuel pump is a vital component in its fuel delivery system, operating via a simple yet effective mechanism driven by the engine's camshaft. Mounted on the engine block, the pump is connected to the camshaft through an eccentric lobe, which, as the camshaft rotates, causes the pump's diaphragm or plunger to move up and down. During the downward stroke, the diaphragm creates a vacuum, drawing fuel from the tank into the pump through the inlet valve. On the upward stroke, the diaphragm compresses the fuel, forcing it through the outlet valve and into the carburetor. This process ensures a consistent supply of fuel to the engine, with the pump's operation directly tied to the engine's speed, making it a reliable and self-regulating system in older carbureted vehicles.
Explore related products
What You'll Learn
Pump Mounting and Drive Mechanism
The mechanical fuel pump in a Chevy 350 engine relies on precise mounting and a robust drive mechanism to deliver fuel efficiently. Typically, the pump is mounted on the engine block near the oil pan, secured with bolts to ensure stability under vibration and load. This location allows the pump to draw fuel from the tank via a supply line and push it through the carburetor or fuel injection system. Proper alignment is critical; misalignment can lead to premature wear or failure of the pump’s internal components.
Driving the pump is a mechanical linkage connected to the camshaft, often via an eccentric lobe or camshaft-driven lever. As the camshaft rotates, the lobe oscillates the pump’s rocker arm, which in turn actuates the pump’s diaphragm or plunger. This reciprocating motion creates suction and pressure, drawing fuel into the pump and forcing it out to the engine. The drive mechanism must be adjusted to ensure the pump operates in sync with engine RPM, maintaining consistent fuel delivery across all speeds.
One common challenge is ensuring the drive mechanism’s longevity. Over time, the linkage can wear, leading to reduced pump efficiency or fuel starvation. Regular inspection of the rocker arm, pivot points, and mounting bolts is essential. Lubrication at these points can extend the mechanism’s life, though over-lubrication should be avoided to prevent contamination of the fuel system.
For DIY enthusiasts, upgrading to a high-performance pump with a reinforced mounting bracket and hardened drive components can improve reliability, especially in high-RPM applications. However, such modifications require careful consideration of the engine’s fuel demands and compatibility with the existing fuel system. Always consult a manual or expert when making adjustments to avoid costly mistakes.
In summary, the mounting and drive mechanism of a Chevy 350’s mechanical fuel pump are foundational to its function. Proper installation, alignment, and maintenance ensure reliable fuel delivery, while upgrades can enhance performance for demanding applications. Attention to these details keeps the engine running smoothly, mile after mile.
How to Prime a Fuel Pump After Replacement: Step-by-Step Guide
You may want to see also
Explore related products
Diaphragm Operation and Pressure Regulation
The diaphragm in a Chevy 350 engine's mechanical fuel pump is the heart of its operation, a flexible membrane that translates the camshaft's rotary motion into the reciprocating action needed to draw and deliver fuel. As the camshaft lobe rotates, it presses against the pump's rocker arm, which in turn depresses the diaphragm. This action creates a low-pressure zone in the pump's inlet chamber, drawing fuel from the tank through the inlet line. When the camshaft lobe rotates away, the diaphragm springs back, pushing fuel through the outlet valve and into the carburetor. This simple yet effective mechanism ensures a steady supply of fuel, critical for the engine's combustion process.
Pressure regulation in this system is equally vital, as it prevents over-pressurization that could damage the carburetor or fuel lines. The diaphragm's movement is precisely calibrated to maintain optimal fuel pressure, typically around 4 to 6 psi for a Chevy 350. The outlet valve plays a key role here, opening only when the pressure exceeds this threshold. This check valve ensures that fuel flows in one direction and prevents backflow, maintaining consistent pressure. For enthusiasts modifying their fuel systems, it’s crucial to verify that the pump’s pressure rating aligns with the carburetor’s requirements to avoid performance issues or damage.
A practical tip for diagnosing diaphragm-related issues is to listen for unusual noises during engine operation. A failing diaphragm may produce a high-pitched whine or inconsistent fuel delivery, leading to rough idling or stalling. If these symptoms arise, inspect the diaphragm for cracks, tears, or hardening, which are common in older pumps. Replacement diaphragms are readily available and typically cost between $10 and $30, making this a cost-effective repair. Always ensure the new diaphragm is compatible with your specific fuel pump model to maintain proper pressure regulation.
Comparing the mechanical fuel pump’s diaphragm operation to modern electric fuel pumps highlights the elegance of simplicity. While electric pumps rely on complex electronics and precise sensors, the mechanical pump’s diaphragm-driven system thrives on its straightforward design. This makes it easier to diagnose and repair, a boon for DIY mechanics. However, it’s less efficient at high engine speeds or under heavy loads, which is why many performance builds opt for electric upgrades. For stock or mildly modified Chevy 350s, though, the mechanical pump’s diaphragm operation remains a reliable and efficient solution.
In conclusion, understanding the diaphragm’s role and pressure regulation in a Chevy 350’s mechanical fuel pump is essential for maintaining optimal engine performance. By recognizing the signs of diaphragm wear and ensuring proper pressure calibration, you can keep your fuel system running smoothly. Whether you’re restoring a classic or fine-tuning a daily driver, this knowledge empowers you to address issues proactively and make informed decisions about upgrades or repairs.
