Fuel injectors are a particular type of solenoid that quickly actuates pistons, allowing the injector to deliver precise fuel amounts into the cylinder. Over time, the injectors can wear out or clog up, leading to engine problems. To check a fuel injector wire, you must first locate the two wires going into each injector. One of these wires should be receiving a constant 12-volt power supply from the vehicle's electrical system. You can then use a test light to check each wire for voltage. If the test light turns on for one wire, the injector is receiving the necessary voltage. If not, there may be an issue with the power supply.
| Characteristics | Values |
|---|---|
| Testing method | Test light, screwdriver, multimeter, voltmeter, DVOM |
| Tools required | Protective gloves and eyewear, metal rod, alligator clips, black and red multimeter leads, pin |
| Engine status | On position, without starting the engine |
| Voltage | 12 volts |
| Resistance | Similar Ohm readings to other injectors |
| Spray pattern | Robust, not muted or irregular |
| Fuel | Traces remaining |
| Sound | Audible clicking |
| Maintenance | Refer to vehicle's manual |
Explore related products
What You'll Learn
Using a test light to check for power and pulse signals
To check a fuel injector wire, a test light can be used to check for power and pulse signals.

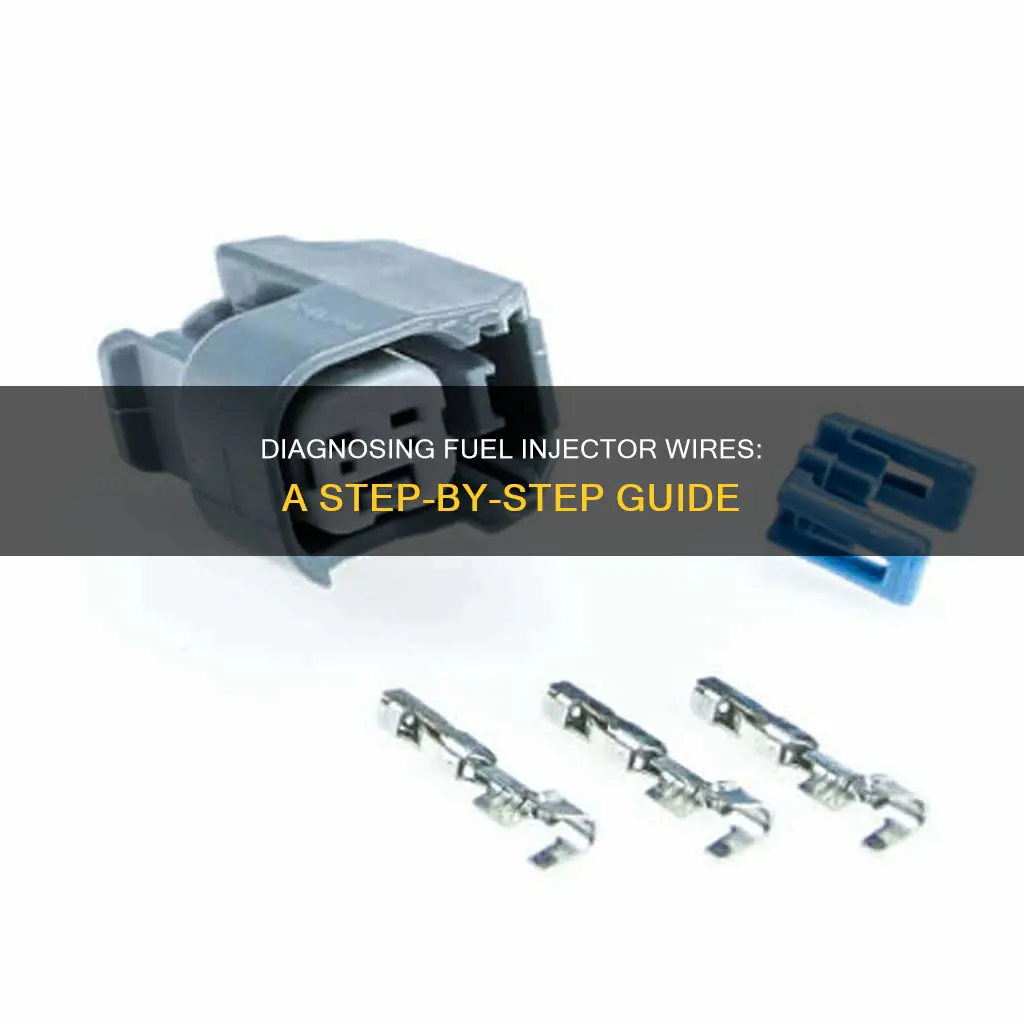

First, locate the two wires going into each injector. Each fuel injector will have a metal clip plugged into it with two wires coming out. One of these wires should be a 12-volt constant that is continuously receiving power from the vehicle's electrical system. These wires are often grey and black but can be any colour.
Then, test each wire for voltage. Take the sharp end of the test light and press it firmly into the rubber coating around each wire until it penetrates the metal wiring. If the test light illuminates, this means the injector is receiving the necessary constant voltage. If the light does not turn on, there is an issue with the power reaching the fuel injector, which will result in a failure to fire.
With the key in the 'on' position, use a test light connected to the negative side of the battery. Gently probe both sides of the injector wiring connector. One of the wires should react by illuminating the test light. With the engine running at an idle, the test light should flicker, and as the throttle is applied, the light should flicker more brightly. This light represents the signal being transmitted by the ECU to the injector to spray fuel. If the test light is failing to light up, the injector may be faulty or there could be an issue with the electronic control unit.
If the engine is running and no pulse is observed, suspect a bad wiring connection or a failed PCM injector driver, which will warrant a PCM replacement.
Fuel Injector Sizing: Calculating the Right Fit
You may want to see also
Explore related products
Testing the resistance with a multimeter
Testing the resistance of a fuel injector wire with a multimeter is a simple process, but it requires careful attention to safety precautions. Before beginning, ensure that you are wearing protective gloves and eyewear, as fuel may be present during testing. Additionally, always cover any holes in the wire's protective coating with electric tape once you're done.
To begin the test, locate the two wires going into each injector. Each fuel injector will have a metal clip plugged into it, with two wires coming out. These wires are typically grey and black but can be any colour. It is important to identify which wire is the 12-volt constant, as this should be continuously receiving power from the vehicle's electrical system.
Once you have identified the wires, set your multimeter to measure ohms. Most fuel injector readings should range between 11 and 14 ohms. Connect the multimeter leads to the terminals, ensuring that the polarity of the leads is irrelevant. This will give you a baseline ohm reading for all injectors.
If your readings show high resistance or an open circuit, the injector needs replacement. Additionally, if you observe a solid, single spray or irregular pattern, it indicates that your injector is dirty or that an internal component has broken or worn out. In this case, you can either add a high-quality cleaning fuel system additive to the fuel tank or bring your vehicle to a garage for a professional cleaning.
Cleaning Diesel Fuel Injectors: Seafoam Solution for Your Car
You may want to see also
Explore related products
Observing the spray pattern
Step 1: Remove the Air Filter Box
First, remove the air filter box from the intake to gain better access to the fuel injectors. This will make it easier to work on the engine and inspect the fuel injectors.
Step 2: Remove the Fuel Injectors
Next, remove the retaining clips from all the fuel injectors and take them out carefully. Place each fuel injector in a separate container, such as a glass mason jar, to catch the fuel spray during testing.
Step 3: Prepare the Electrical Components
Access the electrical compartment and remove the RPM relay. Jump pins 30 and 87 to activate the fuel pump. You can turn the key to the 'acc' position to power up the components without cranking the engine. Ensure you follow safety precautions, especially if there is fuel present during testing.
Step 4: Observe the Spray Pattern
With the fuel pump running due to the jumped wire, it's time to observe the spray patterns. Look for a robust spray pattern that is consistent across all injectors. A healthy injector should produce a clear-coloured, fine spray, resembling a light mist. Compare the spray pattern with reference images online to identify any deviations.
Step 5: Analyse the Results
After observing the spray pattern, analyse the results. Look for any inconsistencies or deviations from the ideal spray pattern. A distorted spray pattern could be caused by a dirty or clogged injector, so ensure that the injectors are clean and free of debris.
Step 6: Take Further Action
If the spray pattern is not optimal, consider sending the injectors for professional cleaning and testing. This will help identify any underlying issues, such as fuel delivery errors or leakage. Additionally, consider consulting a mechanic or a specialist to advise on further steps and ensure the injectors are functioning correctly.
Diagnosing Fuel Injectors: Testing the ECM's Control
You may want to see also
Explore related products
Checking for leaks
Initial Checks
Before beginning any inspection, it is important to be aware of the signs of a leaking fuel injector. These can include rough starts, particularly in cold conditions, a noticeable fuel smell from the engine or exhaust, and poor fuel economy. If you suspect a leak, there are several DIY methods to help you detect and confirm it.
Visual Inspection
Firstly, start your engine and let it run on idle. Inspect the fuel injectors individually for any signs of external leaks. A wet injector area or visible fuel around the injector is a clear indication of a leak. If you notice external leakage, you may need to replace the O-ring.
Auditory Inspection
Listen carefully for any unusual or abnormal sounds near the fuel rail, such as hissing, which could indicate a leak.
Spark Plug Inspection
Remove the spark plugs and inspect them for signs of fuel residue or fouling. If a cylinder spark plug is wet with fuel, it could indicate a leaking injector.
OBD2 Scanner
Using an OBD2 scanner can provide valuable diagnostic insights. It can help identify fuel-related trouble codes and monitor fuel trim data. For example, codes like P0172 (System Too Rich) or P030X (Cylinder Misfire) suggest that too much fuel is entering the combustion chamber, possibly due to a leaking injector.
Syringe Test
You can also use a syringe to measure the fuel's pressure and record the time it takes for each injector to fill the syringe. If you notice large drops or an unusually rapid fill, it could indicate a leak.
Safety Precautions
When performing these checks, it is important to prioritise safety. Wear protective gear, including work gloves, eye protection, and coveralls or long sleeves. Work in a well-ventilated area, and avoid smoking or open flames due to the risk of gas fumes igniting.
By following these steps and staying vigilant, you can effectively check for leaks in a fuel injector wire and take appropriate action to ensure the optimal performance of your vehicle.
Replacing Fuel Injectors in a 2001 Quest: Step-by-Step Guide
You may want to see also
Explore related products
Testing the injector signal from the computer
Prepare the Vehicle and Gather Tools
Before beginning, ensure the vehicle's engine is idling. You will need a long metal rod, such as a screwdriver, a test light, and protective gear, including gloves and eye protection. A test light is a tool that resembles a screwdriver with a fine point and a wire emerging from the handle. It is used to detect electrical current in a circuit.
Test the Injector Signal
To test the injector signal, start by touching the end of the screwdriver to the injector. Place your ear close to the opposite end of the screwdriver and listen for an audible clicking sound, which indicates that the injector is functioning.
Check Voltage with the Test Light
With the key in the "on" position, connect the test light or voltmeter to the negative side of the battery. Gently probe both sides of the injector wiring connector. One of the wires should illuminate the test light or register around 12 volts on the meter, indicating a functioning injector.
Observe Pulse with the Test Light
Attach the test light lead to the positive side of the battery and ask an assistant to start or crank the engine. Probe the opposite side of the injector connector from the power circuit. Observe the test light flickering in response to engine RPM/load. If no pulse is observed, suspect a faulty wiring connection or a failed PCM injector driver, which may require a PCM replacement.
Advanced Testing with a Voltmeter
For a more advanced test, use a voltmeter to check the resistance through the injector. Set the voltmeter to ohms and connect the leads to the injector's electrical terminals. Most injector readings should fall between 11 and 14 ohms. If the test reveals high resistance or an open circuit, the injector may need to be replaced.
Additional Considerations
It is important to note that fuel may be present during testing, so standard fire precautions, such as wearing protective gear, are crucial. Additionally, ensure long hair is tied back to prevent it from getting caught in any moving parts under the hood.
Inspecting Fuel Injector Wires: A Step-by-Step Guide
You may want to see also
Frequently asked questions
To check a fuel injector wire, you will need to test the wires coming out of the fuel injectors in your vehicle. You can do this by connecting a test light to the positive terminal of the battery. If you locate an injector with a power issue, make sure to test the rest of the injectors as well.
If you find a faulty wire, you will need to replace the wiring for that specific wire set. However, make sure to test all the wires before replacing any single set, as mass failures may indicate a failure in the electronic fuel injection relay or the engine control module.
There are a few ways to know if your fuel injector is working. One way is to check the fuel spray on TBI injectors, which can be visually inspected. If you observe a solid, single spray or an irregular pattern, it means your injector is dirty or a component has broken or worn out. Another way is to use a screwdriver to touch the end of the injector and gently place your ear to the opposite end to listen for an audible clicking sound.
