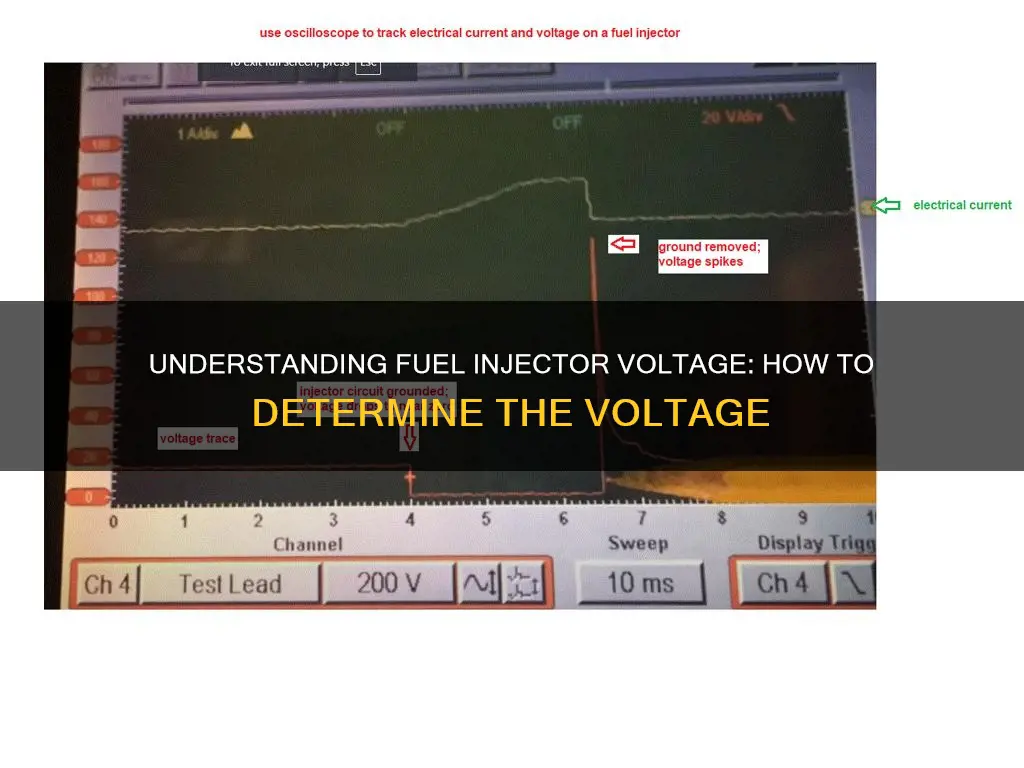

Fuel injectors are a type of solenoid that delivers precise fuel amounts to the cylinder. Over time, injectors can wear out, affecting fuel economy and engine performance. To ensure optimal performance, it is crucial to verify that fuel injectors receive the correct voltage. This involves testing injector resistance and wiring. The standard voltage for automobile EFI is a minimum of 9.6 volts during cranking, while high impedance injectors typically range from 12 to 17 ohms, and low impedance injectors from 2 to 5 ohms.
| Characteristics | Values |
|---|---|
| How to check voltage | Turn the car on. Set up DVOM to measure DC voltage. Place the negative lead of the DVOM on a ground source and the positive lead on the wiring harness terminal. |
| Correct voltage | One terminal should read 0 volts and the other should read 12 volts or around 12. |
| High impedance injectors | Common in modern cars and range from 12 to 17 ohms. |
| Low impedance injectors | Found on high-performance and larger injectors and range from 2 to 5 ohms. |
| Low voltage | 9.0 volts during cranking is on the low side. The rule of thumb for automobile EFI is no less than 9.6 volts. |
Explore related products
What You'll Learn
Testing injector resistance
Testing the injector resistance is a crucial aspect of ensuring that your car's fuel injectors are receiving the correct voltage and functioning optimally. Here's a comprehensive guide on how to perform this test:
Step 1: Turn Off the Vehicle: Begin by turning off your vehicle. This step is essential as you will be working with electrical components, and it ensures your safety.
Step 2: Disconnect the Injector Wiring Harness: Locate the injector wiring harness and carefully disconnect it. In some cases, you may need to remove a slide lock or press down on tabs to access and remove the wiring harness.
Step 3: Set Up Your Multimeter or DVOM: You will need a multimeter or a digital volt-ohm meter (DVOM) to measure resistance. Set the device to measure ohms, which indicates electrical resistance. If your meter doesn't have an auto-range function, set it to the lowest range.
Step 4: Test Resistance: Place the meter leads on the prongs inside the connector, ensuring they don't touch each other. Modern high-impedance injectors typically range from 12 to 17 ohms, while low-impedance injectors found in high-performance vehicles may display readings from 2 to 5 ohms. Check your vehicle's repair guide or search online for the correct resistance values specific to your injector.
Step 5: Repeat with All Injectors: Leave the ground lead in position and test the resistance of all injector wiring harnesses. The readings should be similar for each injector. A significant deviation in resistance between injectors indicates a potential issue with a specific injector.
Step 6: Compare Readings and Take Action: Compare the resistance readings of each injector to the specified values for your vehicle. If an injector displays a higher or lower resistance than the others, it may require further inspection or cleaning. Refer to your vehicle's service manual or consult a professional technician for guidance on interpreting the results and taking appropriate action.
It's important to note that while testing injector resistance can provide valuable insights, it primarily identifies gross failures. For a more conclusive assessment, you may consider measuring inductance and coil "Q" with an impedance bridge, which can detect more subtle issues affecting injector performance.
Fuel Injector Installation: Sitting Pretty in the Manifold
You may want to see also
Explore related products
Checking wiring
Checking the wiring of fuel injectors is important to ensure they are receiving the correct voltage. Before performing electrical tests, it is important to inspect the fuel injectors for any leaks, as they may cause fire hazards.
To check the wiring, you will need to use a multimeter or a Digital Volt-Ohmmeter (DVOM). First, locate the two wires going into each injector. Each fuel injector will have a metal clip plugged into it with two wires coming out of them. One of these wires is a 12-volt constant that should be continuously receiving power from the vehicle's electrical system. These wires are often grey and black but can be any colour.
Next, set the multimeter to "volts" and connect the multimeter's red lead to one of the disconnected plugs. Then, connect the black multimeter lead to the vehicle battery's positive terminal. With the engine running, the voltage on the multimeter should alternate between 12 volts and 0 volts. Repeat this process for each injector.
Alternatively, you can use a test light to check for voltage. Press the sharp end of the test light firmly into the rubber coating around each wire until it penetrates the metal wiring. One of the two wires should make the test light turn on when it comes into contact with the wire inside the protective coating. If the test light turns on with one wire, the injector is receiving the necessary constant voltage.
If you are using a DVOM, make sure the engine is off, as you don't need power for this check. Set the DVOM to measure ohms and check the resistance of each injector one by one. If the meter doesn't auto-range, set it to the lowest range, typically 12 to 17 ohms for high impedance injectors.
Understanding Fuel Injectors in a 460 Ford Engine
You may want to see also
Explore related products
Using a DVOM to measure DC voltage
To ensure that your fuel injectors are receiving the correct voltage, you can use a DVOM to measure the DC voltage. Here's a step-by-step guide:
Step 1: Turn the Car On
Turn the key to the 'ON' position for this test. You want battery power flowing, but you don't want the engine running. This will ensure that the injectors are receiving power.
Step 2: Set Up the DVOM to Measure DC Voltage
Set the DVOM (Digital Volt-Ohm Meter) to measure DC voltage. Use the lowest range possible if the meter doesn't auto-range. This step is crucial for accurate measurements.
Step 3: Connect the Negative Lead
Touch the negative lead (usually black) of the DVOM to a ground source. The car's metal frame is typically connected to ground, so look for an unpainted piece of the frame under the hood. Some DVOMs have alligator clips for easy connection.
Step 4: Connect the Positive Lead
Place the positive lead (usually red) on the wiring harness terminal of the fuel injector. The wiring harness will have two terminals that the injector prongs insert into. One terminal should read 0 volts, and the other should be around 12 volts.
Step 5: Test All Injector Wiring Harnesses
Leave the ground lead in position and test all injector wiring harnesses. They should all have similar readings, ideally around 12 volts. If one injector has a significantly different reading, it may need to be inspected.
Step 6: Understand Voltage Variations
Small variations in DC voltage may indicate a problem. However, the acceptable amount of variation depends on the specific application. Refer to manufacturer specifications for specific circuit values.
Safety Precautions:
- Always follow the safety guidelines provided by the manufacturer of your DVOM or multimeter.
- When finished, remove the probes in reverse order: red first, then black.
- Ensure you don't bridge the gap between the point being tested and adjacent wiring or terminals.
- Avoid inserting test probes into incorrect input jacks. Use the input jack marked 'V' for voltage measurements.
By following these steps and precautions, you can accurately measure the DC voltage of your fuel injectors and ensure they are functioning correctly.
The Right Way to Use Fuel Injector Cleaner
You may want to see also
Explore related products
Testing the spray pattern on an injector tester
To test the spray pattern, you will need to remove the injector and place it on an injector tester. The tester should have settings adjusted for easy visibility of the spray pattern. A properly functioning fuel injector should produce a clear, fine spray—a light mist. The spray pattern should be directed into the combustion chamber at the correct angle and atomisation shape. Any deviations from this ideal spray pattern could result in engine misfires.
A common cause of distorted spray patterns is a dirty or clogged injector. If deposits are found on the nozzle during testing, cleaning the injectors can correct the spray pattern. It is important to clean the injectors using only biodegradable, environmentally friendly chemicals. After cleaning, the injectors should be tested again to ensure the spray pattern has returned to normal.
In addition to the spray pattern, other factors such as flow rate, leaks, and injector resistance should also be checked to ensure the injectors are in good working condition. A comprehensive test report can be prepared and returned with the injectors, detailing all the tests performed and their results.
Fuel Injector Leak: What Are the Signs?
You may want to see also
Explore related products
Measuring ohms
First, it is important to understand the role of fuel injectors. Fuel injectors are responsible for delivering precise amounts of fuel into the cylinders of your engine. Over time, they can wear out or become clogged, affecting fuel consistency and engine performance.
To begin measuring ohms, follow these steps:
- Turn the car on: Turn the key to the "ON" position. You want battery power flowing, but ensure the engine is not running.
- Set up your DVOM (Digital Volt-Ohm Meter): Set the DVOM to measure ohms. If the meter doesn't auto-range, set it to the lowest range possible.
- Remove the injector wiring harness: Before proceeding, ensure the key is off as this step does not require power. Remove any plastic panels that may be blocking access to the injectors. Then, carefully remove the wiring harness by pressing down on the tabs or moving the slide lock if necessary.
- Test resistance with DVOM: Place the meter leads on the prongs inside the connector, ensuring they do not touch each other. Common high-impedance injectors should measure between 12 and 17 ohms, while low-impedance injectors will display a range of 2 to 5 ohms.
- Repeat with all injector wiring harnesses: Keep the ground lead in position and test all injector wiring harnesses. They should measure around 12 volts. A lower reading indicates excess resistance or a problem in the wiring.
- Compare resistance values: All injectors should have similar resistance values. A significant difference in resistance between injectors indicates a potential issue with that specific injector.
- Cross-reference with specifications: Consult your vehicle's repair guide or search online to find the correct resistance values for your specific injectors. This will help you determine if any injectors need further inspection or replacement.
By following these steps, you can effectively measure ohms for your fuel injectors, identify potential issues, and ensure they are receiving the correct voltage. Remember to refer to your vehicle's documentation or seek professional assistance if you have any doubts or difficulties during the testing process.
Replacing Fuel Injectors: 2002 Mazda 626 ES Guide
You may want to see also
Frequently asked questions
You can check the voltage of your fuel injector by following these steps:
- Turn the car on without starting the engine.
- Set up a DVOM to measure DC voltage.
- Touch the negative lead of the DVOM to a ground source.
- Place the positive lead on the wiring harness terminal.
- Test the voltage.
The voltage of a fuel injector will vary depending on the vehicle and the type of injector. High impedance injectors, which are the most common type found in modern cars, typically range from 12 to 17 ohms or volts. Low impedance injectors, found on high-performance and larger injectors, will have a lower range of 2 to 5 ohms.
If your fuel injector is receiving the correct voltage but is still not functioning properly, there could be an issue with the wiring or the injector itself. It is recommended to consult a professional mechanic to diagnose and resolve the issue.
