Disconnecting an in-tank fuel pump requires careful preparation and safety precautions due to the flammable nature of fuel and the electrical components involved. Before starting, ensure the vehicle is parked on a flat surface, the engine is turned off, and the battery is disconnected to prevent accidental ignition. Locate the fuel pump access panel, typically found in the trunk or rear seating area, and remove it to expose the fuel tank. Relieve the fuel system pressure by locating the Schrader valve on the fuel rail and depressurizing it using a specialized tool. Next, disconnect the negative battery terminal to disable the fuel pump relay and prevent electrical hazards. Access the fuel tank by lowering or removing the fuel pump module, which may involve draining the tank or using a siphon to remove excess fuel. Finally, carefully detach the electrical connector and fuel lines from the pump, ensuring no debris enters the tank, and proceed with replacement or maintenance as needed. Always refer to the vehicle’s manual for specific instructions and safety guidelines.
| Characteristics | Values |
|---|---|
| Safety Precautions | Relieve fuel system pressure, disconnect battery, wear safety goggles and gloves |
| Tools Required | Fuel line disconnect tool, wrench or socket set, screwdriver, safety wire cutters (if applicable), fuel pump module removal tool (if needed), new fuel pump module or components (if replacing) |
| Vehicle Compatibility | Varies by make, model, and year; consult vehicle-specific repair manual or online resources |
| Fuel Pump Location | Inside the fuel tank, typically accessed from the top of the tank via an access panel or by removing the tank |
| Fuel Pump Module Components | Fuel pump, sender unit, float, filter, and electrical connector |
| Disconnection Steps | 1. Relieve fuel pressure, 2. Disconnect battery, 3. Access fuel pump module, 4. Disconnect electrical connector, 5. Remove fuel lines or hoses, 6. Remove retaining clips or bolts, 7. Carefully lift out fuel pump module |
| Common Issues | Fuel leaks, electrical connector damage, retaining clip breakage, fuel pump module stuck in tank |
| Reinstallation Tips | Ensure proper alignment, torque specifications, and electrical connections; replace damaged components |
| Environmental Considerations | Dispose of fuel and old components according to local regulations; avoid spills and contamination |
| Professional Assistance | Recommended for complex or high-pressure fuel systems, or if unsure about the process |
Explore related products
What You'll Learn
- Safety Precautions: Wear gloves, goggles, ensure vehicle is off, and disconnect battery before starting
- Accessing the Pump: Remove rear seat or trunk panel to expose fuel tank access
- Disconnecting Wires: Unplug electrical connector from pump carefully to avoid damage
- Removing Lock Ring: Use specialized tool to loosen and remove fuel pump lock ring
- Post-Removal Steps: Check for leaks, reinstall components, and reconnect battery after completion
Safety Precautions: Wear gloves, goggles, ensure vehicle is off, and disconnect battery before starting
Before attempting to disconnect an in-tank fuel pump, prioritize safety to prevent accidents, injuries, or damage. Fuel systems operate under pressure and contain flammable liquids, making proper precautions essential. Always wear nitrile gloves to protect your skin from gasoline, which can cause irritation or absorb harmful chemicals. Pair these with safety goggles to shield your eyes from fuel splashes or debris dislodged during the process. These simple measures significantly reduce the risk of chemical exposure and physical harm.
Ensuring the vehicle is completely turned off is a critical step often overlooked. With the engine running, fuel lines remain pressurized, and electrical components are live, creating a hazardous environment. Turn the ignition key to the "Off" position and wait at least two minutes to allow the fuel system pressure to dissipate. This step is non-negotiable, as residual pressure can lead to fuel spraying or electrical shorts when disconnecting the pump.
Disconnecting the battery is equally vital to eliminate the risk of electrical sparks, which can ignite fuel vapors. Locate the negative terminal (usually marked with a "-" symbol) and use a wrench to loosen the nut, then remove the cable. If working on a modern vehicle with advanced safety systems, consult the manual to ensure no additional steps are required. This precaution not only protects you but also safeguards the vehicle’s electrical system from potential damage during the procedure.
Finally, approach the task with a methodical mindset. Rushing increases the likelihood of mistakes, such as skipping safety steps or mishandling components. Take your time to verify each precaution before proceeding. For instance, double-check that the engine is off and the battery is disconnected before accessing the fuel tank. By treating safety as a priority, you transform a potentially dangerous task into a manageable and secure process.
Understanding the Mechanics of a Chevy Mechanical Fuel Pump
You may want to see also
Explore related products

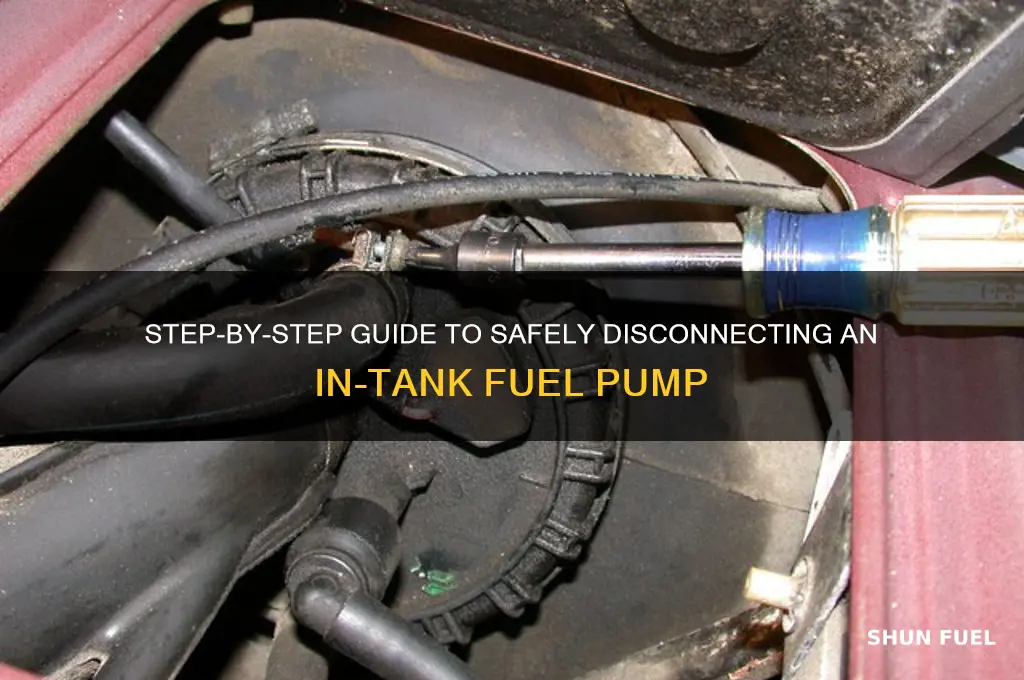

Accessing the Pump: Remove rear seat or trunk panel to expose fuel tank access
To disconnect an in-tank fuel pump, the first hurdle is often gaining access to the fuel tank itself. This process typically begins with removing interior components that conceal the tank’s access point. For most vehicles, this means tackling either the rear seat or the trunk panel, depending on the make and model. Rear seats are commonly secured with bolts or clips, while trunk panels may involve prying off plastic fasteners or unscrewing panels. Always consult your vehicle’s manual to identify the exact location and method, as designs vary widely.
Removing the rear seat is a straightforward task in many sedans and coupes. Start by locating the retaining bolts or clips, often found at the seat’s base or along the bottom edge. Use a socket wrench or screwdriver to remove these fasteners, then lift the seat upward to detach it from the floor brackets. Be cautious not to damage wiring or connectors underneath, especially if the seat is heated or equipped with sensors. Once removed, the fuel tank access panel should be visible, though it may still be covered by a protective layer of carpet or insulation.
Trunk panels, on the other hand, require a more delicate approach. Begin by identifying the panel covering the fuel tank access, usually located near the center of the trunk. Use a trim removal tool to pry off plastic fasteners without breaking them, as these are often reused during reassembly. Some panels may also be held in place by screws, which should be removed with a Phillips or flathead screwdriver. After the panel is free, set it aside carefully to avoid scratching the interior. Beneath it, you’ll typically find the fuel tank access point, though it may still be covered by a protective plate or insulation.
Once the access point is exposed, the next step is to remove any protective covers or plates securing the fuel tank. These are often held in place by additional screws or clips. Work methodically to avoid stripping screws or damaging the surrounding area. With the cover removed, the fuel pump module should now be accessible. However, before proceeding with disconnection, ensure the fuel system is depressurized and the battery is disconnected to prevent accidents. This step is critical for safety and should never be skipped.
In summary, accessing the in-tank fuel pump begins with removing interior components like the rear seat or trunk panel. Each vehicle has its own design nuances, so refer to the manual for specifics. Whether dealing with seats or panels, precision and care are key to avoiding damage. Once the access point is exposed, proceed with caution, ensuring safety measures are in place before attempting to disconnect the pump. This process, while detailed, is manageable with the right tools and knowledge.
Civic Fuel Pump Relay Troubleshooting: A Comprehensive 99 Model Guide
You may want to see also
Explore related products
Disconnecting Wires: Unplug electrical connector from pump carefully to avoid damage
The electrical connector is the lifeline of your in-tank fuel pump, and mishandling it can lead to costly repairs or safety hazards. Before attempting to disconnect it, ensure your vehicle is turned off and the battery is disconnected to eliminate any risk of electrical shock or accidental fuel pump activation. This simple precaution can save you from potential damage to both the pump and your vehicle’s electrical system.
Disconnecting the electrical connector requires precision and care. Locate the connector, typically found near the top of the fuel tank or along the fuel pump assembly. It’s often secured with a locking tab or clip designed to prevent accidental disconnection. Use a small screwdriver or your fingers to gently release this tab, but avoid prying forcefully, as this can break the plastic housing or damage the internal pins. Once the tab is released, pull the connector straight out—wiggling or twisting it may bend the pins or tear the wiring harness.
A common mistake is underestimating the fragility of the connector. The pins inside are delicate and can easily bend or break if handled roughly. If the connector feels stuck, double-check for any additional locking mechanisms or inspect for corrosion. A light application of electrical contact cleaner can help loosen stubborn connections, but avoid excessive force. If the connector still resists, consult your vehicle’s manual or seek professional assistance to prevent irreversible damage.
After successfully disconnecting the wires, inspect both the connector and the pump’s terminals for signs of wear, corrosion, or damage. Clean any debris or oxidation using a wire brush or contact cleaner to ensure a reliable connection when reinstalling. If you notice frayed wires or cracked insulation, replace the connector or wiring harness immediately to prevent future issues. Proper care during disconnection not only protects your fuel pump but also ensures the longevity of your vehicle’s fuel system.
CP3 Fuel Pump and Edge HT2 Programmer: Compatibility and Performance Review
You may want to see also
Explore related products
Removing Lock Ring: Use specialized tool to loosen and remove fuel pump lock ring
The fuel pump lock ring is a critical component securing the in-tank fuel pump assembly, and its removal requires precision and the right tools. Attempting to loosen it without a specialized tool often leads to damage, such as stripping the ring or bending its retaining tabs. A fuel pump lock ring tool, designed to engage the ring’s notches securely, ensures controlled torque application and minimizes the risk of mishaps. This tool is typically adjustable to fit various ring sizes and is indispensable for both professional mechanics and DIY enthusiasts tackling this task.
Analyzing the process reveals why a specialized tool is non-negotiable. The lock ring is under significant tension, often requiring more force than a standard wrench or pliers can safely provide. Generic tools may slip, causing injury or fuel system damage. Additionally, the ring’s position within the tank limits accessibility, making a dedicated tool’s slim profile and precise fit essential. Investing in or renting this tool is a small price compared to the potential costs of repairing a botched removal attempt.
To remove the lock ring effectively, follow these steps: First, relieve fuel system pressure by disconnecting the fuel pump fuse or relay and running the engine until it stalls. Next, depressurize the system by loosening the fuel rail Schrader valve. Position the specialized tool onto the lock ring, ensuring its pins engage the notches firmly. Apply steady, clockwise torque to loosen the ring, using a breaker bar if necessary. Once loosened, remove the ring by hand, taking care not to drop it into the tank. Always work in a well-ventilated area and avoid ignition sources.
Comparing this method to improvisational approaches highlights its superiority. While some may attempt to use a hammer and screwdriver or makeshift wrenches, these methods often result in damage or incomplete removal. The specialized tool not only simplifies the process but also ensures the ring remains intact for reuse or proper disposal. Its design accounts for the unique challenges of in-tank components, making it the only reliable choice for this task.
In conclusion, removing a fuel pump lock ring without the appropriate tool is a recipe for frustration and potential harm. By prioritizing the use of a specialized tool, you safeguard both the vehicle and yourself. This approach aligns with best practices in automotive repair, emphasizing precision, safety, and efficiency. Whether you’re a seasoned mechanic or a first-time DIYer, this tool is your key to a successful fuel pump disconnection.
Seafoam Fuel Pump Cleaner: Effective Solution or Myth?
You may want to see also
Explore related products
Post-Removal Steps: Check for leaks, reinstall components, and reconnect battery after completion
After disconnecting an in-tank fuel pump, the real work begins with ensuring everything is secure and functional. Start by meticulously checking for leaks around the fuel pump assembly and associated lines. Use a flashlight to inspect all connections, and if possible, run the engine briefly (with proper ventilation) to check for any fuel seepage under pressure. Even a small leak can escalate into a safety hazard, so address any issues immediately with fresh seals or clamps.
Reinstalling components requires precision and patience. Follow the manufacturer’s torque specifications for bolts and fasteners to avoid over-tightening, which can damage threads or crack components. Reattach fuel lines, ensuring they are properly aligned and secured with new O-rings or gaskets if necessary. Double-check that all electrical connectors are plugged in firmly, as loose connections can cause erratic pump operation or failure. Treat this step as a puzzle, ensuring every piece fits perfectly before moving on.
Before reconnecting the battery, verify that all tools and debris have been cleared from the engine bay and fuel tank area. Accidental shorts or sparks near fuel vapors can be catastrophic. Once the area is clean, reconnect the battery terminals, starting with the positive terminal. Allow the system to initialize for a few minutes, then check the fuel pump relay for proper operation by listening for the characteristic hum when the ignition is turned on.
A final test drive is essential to confirm the fuel pump is functioning correctly. Monitor the vehicle’s performance for any signs of fuel delivery issues, such as hesitation or stalling. If problems persist, recheck connections and inspect the fuel pressure regulator. This post-removal process isn’t just about reassembly—it’s about ensuring safety, reliability, and peace of mind for the road ahead.
Bleeding a Fuel Injection Pump: Step-by-Step Guide for Smooth Engine Performance
You may want to see also
Frequently asked questions
To disconnect an in-tank fuel pump, first relieve the fuel system pressure, then disconnect the negative battery terminal. Access the fuel pump by removing the rear seat or trunk lining, unplug the electrical connector, and detach the fuel lines using appropriate tools.
You’ll typically need a fuel line disconnect tool, a flathead screwdriver or pry tool for electrical connectors, and possibly a specialized fuel pump module removal tool, depending on the vehicle.
It’s not always necessary to drain the entire tank, but you should relieve fuel pressure and minimize fuel in the tank to avoid spills. Use a fuel pump depressurization tool or follow the vehicle’s specific procedure.
