Dash sizes refer to the diameter of hoses, tubes, and fittings in 1/16 increments. Dash 10 fuel lines are used in vehicles and can support various fuels, including gasoline, diesel, ethanol, nitromethane, oil, and refrigerants. The size of a fuel line is an important consideration for high-horsepower applications to ensure sufficient fuel delivery and optimal engine performance.
Explore related products
What You'll Learn
Dash 10 hose size and fitting
Dash size is a standard measuring system for hoses and fittings in the hydraulics world. It refers to the inside diameter (ID) of a hose, tube, or fitting in 1/16" increments. For example, a "-6" hose has an ID of 6/16" or 3/8". The dash size is an important factor in selecting the right hydraulic hose. It involves understanding the specifications of the hose, tube, and hydraulic fittings' inner diameter, outer diameter, and length.
Hoses are measured by inside diameter, while tubes are measured by outside diameter. Dash size is expressed in sixteenths of an inch, and each dash size corresponds to a progressively larger diameter. For example, "-1" is 1/16", "-2" is 2/16", and so on. In the case of a "-10" tube, it indicates an outside diameter of 10/16" or 5/8". Fittings usually have different part numbers, with one number indicating the size of the fitting end connection and the other indicating the hose size.
It is crucial to use the correct size and type of hose and fittings in a hydraulic system. Using the wrong size can cause leaks, reduced efficiency, and even equipment failure. Leaks can lead to a loss of fluid, increased pressure drop, and the introduction of contaminants into the system, which can damage the equipment and reduce its lifespan. Hoses that are too small will not be able to handle the correct flow of fluid, and fittings that are too small will not provide an adequate seal.
To ensure accurate fitting selection, it is important to measure both the inside diameter and thread pitch of the fitting. The inside diameter of the fitting hole can be measured using a caliper, while the thread pitch of the outside of the fitting can be determined using a thread pitch gauge. These measurements can then be used to select the correct size and type of components for a particular application, ensuring optimal performance and protecting your equipment.
Hydraulic Hose for Diesel Fuel Line: Is It Safe?
You may want to see also
Explore related products

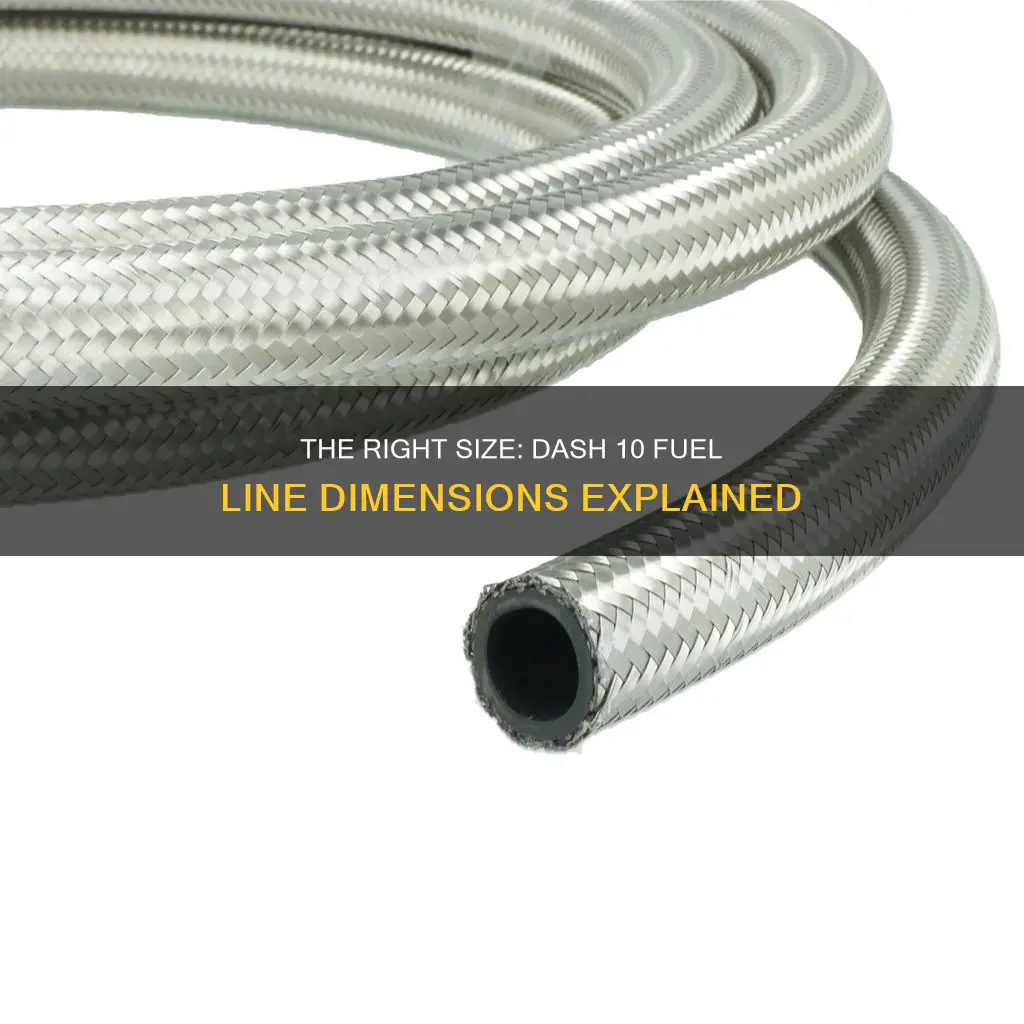

Dash 10 braided hose
The dash number of a hose refers to its diameter, with each dash size corresponding to a progressively larger diameter, measured in sixteenths of an inch. A dash 10 fuel line, therefore, has a diameter of 10/16 of an inch, or 5/8 of an inch.
GRP4 Fabrications and BAT Motorsport GmbH are two suppliers of Dash 10 braided hoses, with the latter offering NBR stainless steel braided hoses that can be delivered in pieces up to 50 meters in length.
Craftsman Riding Lawnmower: Fuel Line Size and Maintenance
You may want to see also
Explore related products
Dash 10 hose and oil cooler
The dash number of a hose refers to its diameter, with each dash size corresponding to a progressively larger diameter, measured in sixteenths of an inch. A dash 10 hose, then, has a diameter of 10/16", or 5/8".
Dash 10 hoses are suitable for use with oil and fuel and are often used with oil coolers. They come with threaded fittings, a sight gauge, and a drain plug. The fittings are -10, which is a common size for oil coolers. The hose itself is usually sold per metre and is made of rubber with a stainless-braid finish.
Oil coolers are used to cool the oil in an engine, which helps to maintain optimal performance and prevent overheating. They are a critical component of any engine, as they help to regulate the temperature and prevent damage.
Cooling Solutions offers a range of products for advanced engine tuning, including oil coolers and other cooling system components. Their hoses are made from first-grade silicone polymer and reinforced with polyester fabric, allowing them to operate in temperatures ranging from -40ºC to +180ºC.
Fuel Line Protection: Wrapping Materials and Their Benefits
You may want to see also
Explore related products
$32.03
Dash 10 hose and fuel line sizing
Dash sizing is a standard measurement for hoses, tubes, and fittings. Each dash size corresponds to a progressively larger diameter, measured in sixteenths of an inch. For example, "-1" is 1/16", "-2" is 2/16", and so on. Therefore, a "-10" tube would indicate a tube with an outside diameter of 10/16", or 5/8".
Dash 10 hoses are commonly used for oil and fuel lines and fittings. They are available in a variety of materials, including stainless steel, rubber, and braided hose with a stainless steel finish. Dash 10 hoses are designed to fit specific series of hoses, such as the 200 and 210 series. They feature a triple-seal, double O-ring nitrile design, ensuring a secure and leak-free connection.
When selecting a fuel line size, it is important to consider the horsepower requirements. For example, a 3/8" ID fuel line can easily support 600 HP with sufficient "pump head". Increasing the pump head can be achieved with a bigger pump or higher pump voltage, rather than increasing the line size.
The viscosity and surface tension of the liquid being pumped are key factors in determining the appropriate fuel line size. Liquids with lower viscosity and surface tension, such as gasoline, flow more easily through a pipe. In contrast, greases with higher viscosity may require a larger fuel line to achieve the same flow rate.
Dash 10 fuel lines, with their 5/8" outside diameter, provide sufficient flow capacity for various applications, including competition vehicles, and can be paired with oil coolers for effective engine temperature control.
Removing Fuel Line Clips: A Step-by-Step Guide
You may want to see also
Explore related products
$44.25
$44.25
Dash 10 hose and pressure
Dash numbers are a common way to express hose size, and they refer to the diameter of a hose, tube, or fitting in 1/16" increments. Dash sizes are typically measured in sixteenths of an inch, with each dash number representing a specific diameter increment. For example, a "-6" hose would indicate a hose with an inside diameter of 6/16" (3/8"), while a "-10" tube would correspond to an outside diameter of 10/16" (5/8"). It's important to note that dash sizes may not always precisely match the exact outside diameter due to variations between different hose brands and manufacturing tolerances. Therefore, for critical applications or when precise dimensions are required, referring to the manufacturer's specifications is essential.
The Dash 10 hose is a specific type of braided hose that is commonly used for oil and fuel lines. It is designed to suit Dash 10 rubber hose type fittings and comes with threaded fittings, a sight gauge, and a drain plug. The Dash 10 hose has a black anodised finish and is sold per meter. While the exact pressure rating of the Dash 10 hose is not readily available, it is important to note that the proper sizing of hoses is crucial for optimal performance, safety, and cost-effectiveness in hydraulic systems. A hose that is too small can restrict fluid flow and lead to increased pressure drop, while a hose that is too large may not withstand the required pressure, potentially resulting in leaks or bursts.
The dash size of a hose is an important factor to consider when designing or maintaining hydraulic systems. By understanding the relationship between dash numbers and hose dimensions, one can ensure proper fit and performance. Additionally, the flexibility of a hose can vary, and it is not always implied by the term "hose". While nylon tubing is very flexible, flexible metal hoses are relatively rigid. Therefore, it is crucial to refer to the manufacturer's specifications and select the appropriate hose for the specific application.
In conclusion, the Dash 10 hose is a specific type of braided hose commonly used for oil and fuel lines. While its exact pressure rating is unknown, proper sizing is crucial to ensure optimal performance, safety, and cost-effectiveness. The dash size of a hose, measured in sixteenths of an inch, helps determine the proper fit and performance of hydraulic systems. By referring to the manufacturer's specifications and considering the flexibility of different hose materials, one can select the appropriate hose for their specific application.
Treating Rusty Fuel Lines: Can Vinegar Be the Solution?
You may want to see also
Frequently asked questions
A dash size refers to the diameter of a hose, tube, or fitting in 1/16" increments.
A "-10" dash size corresponds to a tube with an outside diameter of 10/16" or 5/8".
No, a 3/8" fuel line can support 600 HP given sufficient "pump head".
