Fuel tank pressure testing is a critical aspect of vehicle maintenance that helps ensure the safety, efficiency, and performance of the fuel system. It involves pressurizing the tank with compressed air and monitoring for leaks or pressure loss. Before testing your fuel pressure, it is important to ensure your tank has at least two gallons of fuel and that your vehicle's fuel pump is working. There are various methods to check fuel tank pressure, including using a fuel pressure tester, a fuel pressure gauge, or an OBD diagnostic tool. The exact procedure may vary based on the manufacturer, and specific symptoms of fuel pump failure, such as low engine power delivery, can help diagnose the issue.
| Characteristics | Values |
|---|---|
| Fuel pressure testing tools | Fuel pressure gauge, OBD diagnostic tool, ignition tester, fuel pressure tester |
| Symptoms of fuel pump failure | Low engine power, inadequate power output, overheating, trouble starting the engine |
| Fuel pressure levels | 30-80 PSI for port-injected vehicles; 10 PSI for older throttle-body injected systems; 60 PSI for multi-port injector systems |
| Fuel tank pressure testing | Involves pressurizing the tank with compressed air and monitoring for leaks or pressure loss |
| Fuel tank pressure sensor | Should react by indicating a change in pressure; check wiring harness for continuity and proper voltage |
| Fuel tank pressure testing cost | Basic test: $50-$150; additional expenses for repairs |
Explore related products
What You'll Learn
Using a fuel pressure tester

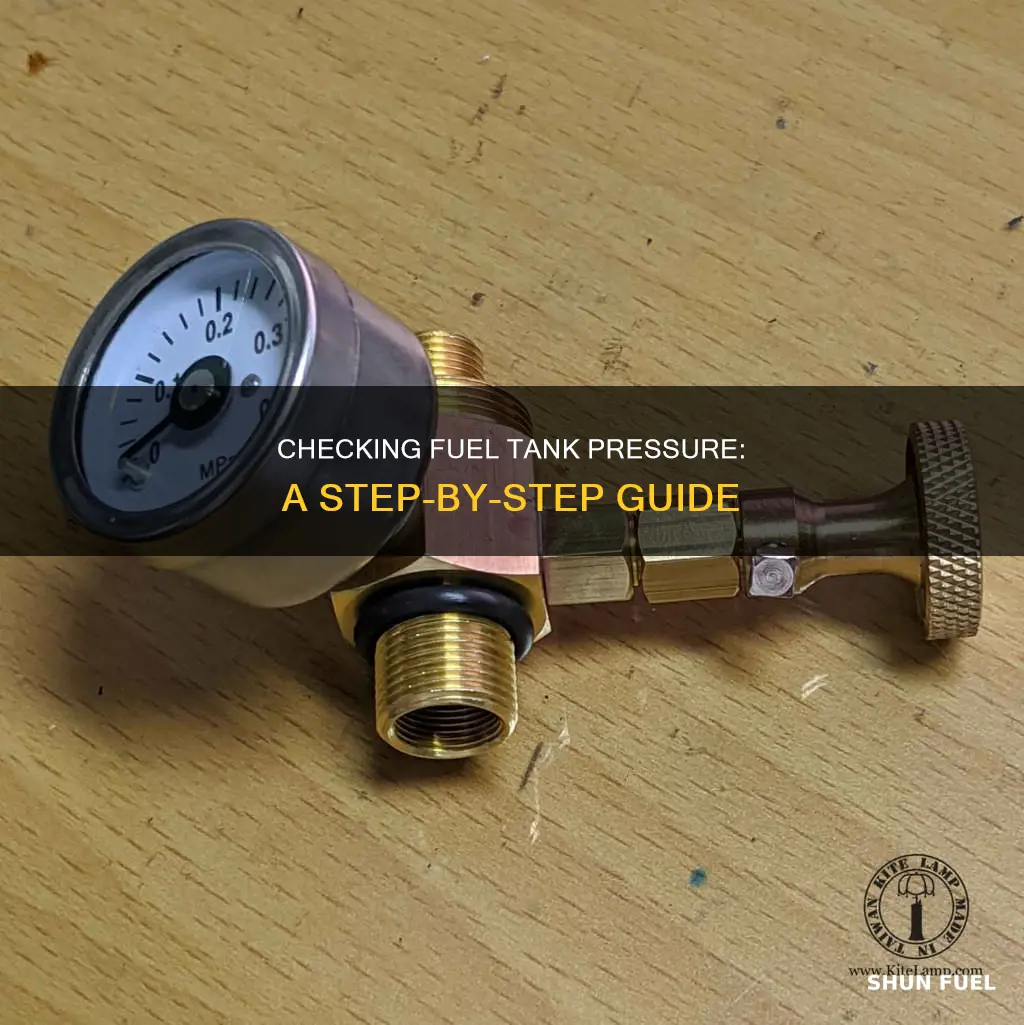

To check fuel tank pressure, you will need a fuel pressure tester. This consists of a fuel gauge and the fuel hose it is attached to. Before you begin, ensure you are working in a well-ventilated area, as some fuel fumes may escape during the procedure.
First, make sure your tank has at least two gallons of fuel. Check that your vehicle's fuel pump is working. Without a fully functional fuel pump, you won't be able to use your fuel pressure tester to get a proper reading. If the pump is working, attach the fuel pressure tester, making sure the connection is tight. If the tester has a pressure relief hose, route it to a container to capture the released fuel.
Turn the ignition switch to 'on', but do not start the engine. The fuel pump will pressurise the fuel system, and you will be able to read the fuel pressure gauge. To test the fuel pressure with the engine running, leave the fuel pressure gauge attached, but place it where it will not contact any of the rotating engine accessories (e.g. the fan). Start the engine and observe the fuel pressure gauge.
If the pressure is low, your fuel pump might be malfunctioning. For example, the fuel filter could be clogged, or the pump itself might be faulty. If the pressure is high, this could be caused by a clogged or kinked fuel return line, a bad fuel pump driver module, or a faulty fuel pressure regulator.
Gravity Fuel Tanks: Easy Home Refills
You may want to see also
Explore related products
Checking the fuel pump
Prepare the Vehicle:
- Ensure your vehicle's fuel tank has at least two gallons of fuel. Even if the fuel gauge indicates a full tank, it's advisable to confirm if the gauge is operational. If the gauge is faulty, manually inspect the tank to verify the fuel level.
- Check your vehicle owner's manual to determine the recommended fuel pressure level for your specific make and model. Different vehicles have varying ideal fuel pressure ranges, so it's important to refer to the manufacturer's specifications.
- Open the hood of your vehicle and locate the Schrader valve fitting on the fuel rail. This valve is typically present in most vehicles, but it may be hidden under a fuel rail cover or another plastic engine cover.
- Remove the Schrader valve cap to access the valve.
Checking Fuel Pump Functionality:
- Use a fuel pressure tester kit, which consists of a gauge designed to read fuel pressure and the attached fuel hose. Connect the tester kit to the Schrader valve fitting.
- With the tester connected and the fuel system pressurised, observe the pressure reading on the gauge. The gauge will display the pressure in psi, allowing you to verify if the fuel pressure is within the recommended range.
- If the pressure is within the acceptable range, the fuel pump is likely functioning correctly. However, if the pressure is too low or zero, there may be an issue with the fuel pump or related components.
Troubleshooting Fuel Pump Issues:
- If you suspect a problem with the fuel pump, start by checking the fuel pump fuse and relay. Ensure that the wiring to the pump is intact and check for solid connections.
- Verify if the pump is receiving power by checking for voltage when turned to the "on" position. If there's no voltage, inspect the wiring and connections. If voltage is present but the pump is still not functioning, the pump may have failed and require replacement.
- In some cases, low fuel pressure can be due to a clogged fuel filter or a failing pump. If the filter is serviceable, consider replacing it. Additionally, improper tank venting or a loose gas cap can contribute to low fuel pressure.
- On the other hand, high fuel pressure can be caused by a clogged or kinked fuel return line, a faulty fuel pressure regulator, or issues with the fuel pump driver module or powertrain control module.
Remember to exercise caution when working with fuel and ensure the area is well-ventilated to prevent the buildup of flammable fuel vapours. If you're unsure about performing these checks yourself, consider seeking assistance from a certified technician.
Testing Fuel Tanks: What Air Pressure is Needed?
You may want to see also
Explore related products
Monitoring for leaks
Electronic Monitoring Systems
Electronic monitoring systems are the most common method for fuel tank leak detection. These systems provide continuous, automatic monitoring of fuel tanks and immediate notification of any leaks. Sensors are placed at various points on the tank and underground pipes to detect changes in pressure, temperature, and fluid levels, indicating leaks. This system then sends an alert to a control centre, enabling quick response and damage prevention.
Ultrasonic Testing
Ultrasonic testing is a non-destructive method that employs sound waves to detect leaks in tanks and pipes. This technique is highly effective in identifying small leaks and can be used alongside other leak detection methods for enhanced security. It is a valuable tool for facilities with unique needs, ensuring the early detection of faults.
Interstitial Monitoring
For underground storage tanks installed after April 11, 2016, interstitial monitoring is the only permitted leak detection method. Interstitial sensors are used to continuously monitor fuel height and temperature, collecting data for leak detection. This method must be employed in conjunction with other techniques to ensure comprehensive leak detection.
Statistical Inventory Reconciliation (SIR)
SIR is a method that analyses inventory, delivery, and dispensing data over 30 to 60 days to determine whether a fuel tank system is leaking. It can also provide a tightness test result on the product piping system. However, it is a vendor-supplied service that incurs recurring fees.
Visual Inspections
Visual inspections involve sending an engineer to physically inspect the tanks, pipelines, and surrounding areas. While this method is effective in detecting leaks, it is more time-consuming, resource-intensive, and may be less reliable in identifying small leaks compared to electronic monitoring systems.
It is important to note that relying on a single method of leak detection may not be sufficient. Best practices suggest incorporating multiple leak detection methods, such as automatic tank gauging, to ensure comprehensive monitoring and prompt detection of any leaks in fuel tanks.
Diesel Fuel: Empty Tank Mystery Solved
You may want to see also
Explore related products
Interpreting pressure readings
Understanding Pressure Readings
Fuel tank pressure sensors provide accurate pressure readings, which are vital for the vehicle's evaporative emissions (EVAP) system. These sensors detect pressure changes and vacuum pressure within the fuel tank, helping to regulate the movement of fuel vapors from the tank to the engine. The sensors also play a role in evaporative emissions control, ensuring that the fuel tank operates with slight pressure to efficiently deliver fuel to the engine.
Identifying Faults and Issues
By interpreting pressure readings, mechanics and vehicle owners can identify potential leaks, faulty components, and overall system health. For example, a leaky fuel tank can lead to increased fuel consumption and engine performance issues. Pressure readings that fall outside the expected range can indicate the presence of leaks or other issues impacting vehicle performance and emissions output.
Diagnostic Procedures
Fuel tank pressure testing involves pressurizing the tank with compressed air and monitoring for leaks or pressure loss. This can be done using a fuel pressure tester, which connects to the fuel system and displays pressure readings in psi. Interpreting these readings can help identify issues such as a faulty fuel pressure regulator, a clogged fuel filter, or a failing fuel pump.
Taking Preventative Measures
Regular fuel tank pressure testing is essential, especially for older vehicles or those with high mileage. By detecting issues early, pressure testing can help avoid costly repairs and fuel wastage. Interpreting pressure readings as part of routine maintenance can ensure the safe and efficient operation of the vehicle, preventing issues such as fire hazards and environmental impacts associated with fuel leaks.
Manufacturer Specifications
It is important to refer to the vehicle's service manual or consult a mechanic for specific interpretations of pressure readings as they may vary across different vehicle makes and models. Additionally, understanding the unique characteristics of each fuel system per manufacturer can greatly enhance the ability to interpret and address any issues identified through pressure readings.
Draining Fuel Tanks: Using a Hose to Remove Gasoline
You may want to see also
Explore related products
Knowing when to get it checked by an expert
Checking fuel tank pressure is a relatively straightforward process, but there are times when it is best to get it checked by an expert.
Firstly, if you are unsure about any aspect of the process, it is best to leave it to a professional. This is particularly true if you are unsure about the tools required, or if you are uncomfortable with the safety aspects of the task. Fuel vapours are highly flammable, so it is important to take the necessary precautions, such as ensuring good ventilation and having a fire extinguisher nearby.
Secondly, if you discover that your fuel pressure is too low or too high, it is advisable to consult an expert. Low fuel pressure could be caused by a clogged fuel filter, a failing pump, improper tank venting, or a loose gas cap. High fuel pressure could be caused by a clogged or kinked fuel return line, a faulty fuel pump driver module, or a faulty fuel pressure regulator. In either case, an expert will be able to diagnose the specific issue and recommend the necessary repairs.
Thirdly, if your fuel pressure sensor has gone bad, you may experience symptoms such as an illuminated check engine light, difficulty starting the engine, or reduced engine power. In this case, a fuel pressure check by an expert can be a good starting point for diagnosis, as they will have the right tools and training to identify any fuel-related issues.
Finally, if you notice any signs of fuel pump failure, such as low engine power delivery or a lack of power output, it is important to get it checked by an expert. A fuel pump is a critical component of a car's powertrain system, and a malfunctioning pump can lead to a complete breakdown of the engine. An expert will be able to assess the condition of the fuel pump and make any necessary repairs or replacements.
In summary, while it is possible to check fuel tank pressure at home, there are several instances where it is advisable to seek the help of a professional. This includes situations where you feel uncomfortable with the process, where you have identified issues with fuel pressure or the fuel pump, or where you require expert diagnosis and repair services.
Lucrative Opportunities: Fuel Tanker Driver Salaries
You may want to see also
Frequently asked questions
Checking your fuel tank pressure requires a few tools, including a screwdriver, fuel pressure gauge, ratchets, and sockets. First, park your vehicle and apply the parking brake. Allow the engine to cool down, then locate the fuel pressure test port. Place a rag under the test port to catch any fuel drips and install the pressure tester to the port. Then, start the engine and record the pressure reading. Refer to your manufacturer's manual for the correct pressure specifications.
There are several signs that your fuel pump may be malfunctioning, including low engine power delivery, trouble starting the engine, and reduced engine power. If your engine is not running smoothly or the check engine light is on, a fuel pressure check is a good idea.
Low fuel pressure could be caused by a clogged fuel filter, a failing pump, improper tank venting, or a loose gas cap. Check the gasket on your gas cap and tighten it if necessary.
If you find that your fuel pump is malfunctioning, it's best to get it checked by an expert mechanic. You can also take your vehicle to a local auto care centre for a fuel pressure check.
