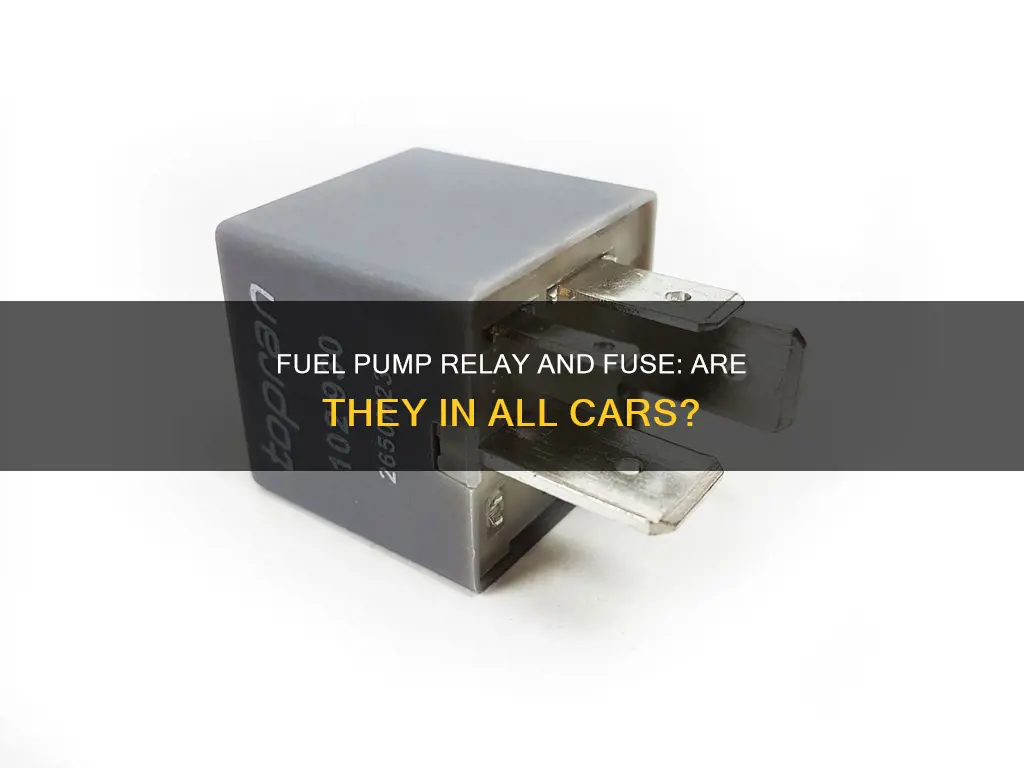

Car Fuel Pump: Relay Or Fuse? Unlocking The Mystery

When it comes to fuel delivery systems in cars, the question of whether every vehicle has a fuel pump relay or fuse is an important one. While many modern cars rely on fuel pump relays to control the high-pressure fuel pump, some older models or those with specific engine configurations may use fuses instead. Understanding the differences and similarities between these two methods can help car owners and mechanics make informed decisions when it comes to maintenance and repairs. This introduction aims to explore the various factors that determine whether a car's fuel system employs a relay or a fuse, shedding light on the complexities of automotive engineering.

Fuel Pump Relay Location: Where is the fuel pump relay typically found in different car models?

The fuel pump relay is a crucial component in the fuel system of most vehicles, responsible for controlling the power supply to the fuel pump. Its primary function is to ensure the fuel pump operates only when needed, which helps conserve fuel and protect the engine from potential damage caused by excessive fuel pressure. While the specific location of the fuel pump relay can vary depending on the make and model of the car, understanding its typical placement is essential for maintenance and troubleshooting.

In many modern vehicles, the fuel pump relay is conveniently located near the engine compartment, often within the engine bay. This placement allows for easy access during routine maintenance and facilitates quick identification. For instance, in some cars, the relay might be mounted on the firewall, close to the driver's side of the engine, or even integrated into the fuel pump module itself. These positions ensure the relay is protected from extreme temperatures and physical damage, contributing to the overall reliability of the fuel system.

For older car models, the fuel pump relay's location might vary significantly. Some may find it tucked away behind the glove compartment or beneath the dashboard, requiring more effort to access. In these cases, the relay could be part of a larger fuel pump module, which might be located in the trunk or even under the car's body panels. Identifying the exact position of the relay in these scenarios may require consulting the vehicle's service manual or seeking professional assistance.

It's worth noting that some car manufacturers have adopted innovative designs, placing the fuel pump relay in less conventional spots. For example, in certain luxury vehicles, the relay might be integrated into the engine control unit (ECU) or located deep within the engine bay, requiring a more intricate understanding of the vehicle's layout. Understanding these variations is crucial for mechanics and car enthusiasts alike to ensure proper maintenance and repairs.

In summary, while the fuel pump relay's location can vary widely across different car models, its primary purpose remains consistent: to control the fuel pump's operation. Whether it's easily accessible in the engine bay or tucked away in a less obvious spot, the relay's placement is designed to optimize fuel efficiency and engine protection. Knowing the typical locations of the fuel pump relay is essential for anyone working on their vehicle's fuel system, ensuring efficient maintenance and troubleshooting.

Fuse Box Identification: How to identify the correct fuse for the fuel pump?

When it comes to identifying the correct fuse for the fuel pump in your vehicle, it's important to understand the basics of the electrical system and the role of fuses. Not all cars have a dedicated fuel pump relay, and sometimes the fuel pump is controlled by a fuse directly. Here's a step-by-step guide to help you navigate this process:

Locate the Fuse Box: The first step is to locate your car's fuse box. This box is typically found under the dashboard, often near the driver's side, or in the engine compartment. It is usually labeled with a diagram or a description of the fuses inside.

Consult the Owner's Manual: Your vehicle's owner's manual is an invaluable resource. It provides detailed information about the fuse box layout, including the location of the fuel pump fuse. If you don't have a physical copy, you can often find it online. Look for sections related to the electrical system or fuses.

Identify the Fuse: Once you've located the fuse box, carefully inspect the fuses. The fuel pump fuse is usually identified by a specific label or a unique color. It might be labeled as 'Fuel Pump,' 'Fuel Injector,' or something similar. If you can't find a label, look for a fuse that is close to the fuel tank or the engine compartment, as these areas often control fuel-related functions.

Check the Fuse Box Diagram: If you still can't identify the correct fuse, refer to the diagram provided in the fuse box. This diagram will show the fuse positions and their corresponding functions. Locate the section related to the fuel system and find the fuse that controls the fuel pump.

Test the Fuse: In some cases, you might need to test the fuse to ensure it is functioning properly. You can use a multimeter to check for continuity or a simple test light to see if the fuse is powering the fuel pump when it should. If the fuse is blown, it will need to be replaced with a new one of the same amperage rating.

Remember, it's essential to be cautious when working with electrical components. If you're unsure, consult a professional mechanic or refer to your vehicle's specific repair manual for more detailed instructions tailored to your car's make and model.

Relay Function: What is the purpose of the fuel pump relay in a car?

The fuel pump relay is an essential component in the fuel system of a car, and its primary function is to control the power supply to the fuel pump. This relay acts as a switch, allowing or interrupting the flow of electricity to the pump, which is crucial for the proper operation of the vehicle's engine. When the engine is started, the fuel pump relay receives a signal from the engine control module (ECM) or the ignition switch, depending on the vehicle's design. This signal activates the relay, which then completes the electrical circuit to the fuel pump, enabling it to deliver fuel from the tank to the engine.

The purpose of this relay is to protect the fuel pump and the vehicle's electrical system. Without it, the fuel pump would continuously run, even when the engine is off, which could lead to several issues. Firstly, it would drain the car's battery, as the pump would draw power continuously. Secondly, the pump's motor could overheat and fail prematurely due to constant operation. Lastly, the continuous power supply to the pump could cause electrical problems, such as blown fuses or damaged wiring.

In modern vehicles, the fuel pump relay is often integrated into the engine control module or the fuel pump module itself. This design ensures that the relay is in close proximity to the fuel pump, allowing for faster response times and more efficient control. The relay's activation is typically triggered by a low-voltage signal from the ECM, which is designed to conserve power and protect the fuel system.

It's important to note that not all cars have a dedicated fuel pump relay. Some vehicles use a fuse instead, which is designed to protect the fuel pump circuit. However, the use of a fuse may not provide the same level of control and protection as a relay, as fuses are designed to interrupt the circuit permanently once the current exceeds a safe limit. In contrast, a relay can be reset or reactivated, allowing for more flexible control over the fuel pump's operation.

Understanding the role of the fuel pump relay is crucial for vehicle owners and mechanics alike. Regular maintenance and inspection of this component can help ensure the car's fuel system operates efficiently and reliably. If the relay fails, it may result in difficulty starting the engine or a complete inability to start, highlighting the importance of this small but vital part of the vehicle's electrical network.

Common Issues: What are the common problems with fuel pump relays?

The fuel pump relay is a crucial component in the fuel delivery system of a vehicle, responsible for controlling the high-pressure fuel pump that delivers fuel from the tank to the engine. While it is not universal, many cars do have a fuel pump relay, and when it fails, it can lead to a range of issues. Here are some common problems associated with fuel pump relays:

• Power Issues: One of the most frequent problems is related to power supply. The relay may fail to receive the correct voltage or experience intermittent power, leading to an inconsistent fuel supply. This can result in the engine not starting or stalling during operation. A faulty relay often shows signs of corrosion or damage due to moisture, especially in older vehicles or those exposed to harsh weather conditions.
• Overheating: Fuel pump relays can overheat, especially if they are located near the engine or in an enclosed space with poor ventilation. Overheating can cause the relay to fail prematurely, leading to a loss of fuel pressure and potential engine misfires. Regular inspection and maintenance of the relay's cooling system are essential to prevent this issue.
• Electrical Connections: Poor electrical connections within the relay or its wiring harness can cause intermittent operation or complete failure. Corrosion, damaged insulation, or loose connections may lead to arcing or short circuits, triggering a safety mechanism that cuts off power to the relay. Ensuring secure and clean connections is vital to maintaining the reliability of the fuel pump system.
• Relay Malfunction: In some cases, the fuel pump relay itself may malfunction due to internal component failure. This can occur due to age, excessive current draw, or manufacturing defects. When the relay fails, it may not engage or disengage properly, resulting in continuous or no fuel flow to the engine. Replacing the relay with a new one is often the solution to this problem.
• Fuel Pump Issues: While the relay controls the fuel pump, problems with the pump itself can also arise. Clogged or restricted fuel lines, contaminated fuel, or a faulty pump can cause the relay to activate more frequently or fail to engage. It is essential to inspect and maintain the entire fuel system, including the pump and lines, to ensure optimal performance.

Understanding these common issues can help vehicle owners and mechanics identify and address fuel pump relay problems promptly. Regular maintenance and inspection of the fuel system can prevent many of these issues and ensure reliable engine performance.

DIY Replacement: How to replace a faulty fuel pump relay without professional help?

The fuel pump relay is a crucial component in your vehicle's fuel system, responsible for controlling the power supply to the fuel pump. Over time, this relay can fail, leading to issues with fuel delivery and potentially leaving you stranded. While it might seem daunting, replacing a faulty fuel pump relay is a task you can tackle yourself with the right knowledge and tools. Here's a step-by-step guide to help you through the process.

Step 1: Identify the Problem

Before you begin, ensure that the fuel pump relay is indeed the culprit. Symptoms of a failing or failed relay include weak or no fuel pressure, difficulty starting the engine, or the engine shutting off while driving. If you've noticed any of these issues, it's time to replace the relay.

Step 2: Locate the Relay

The fuel pump relay is typically located near the engine compartment, often near the battery or under the dashboard. Consult your vehicle's manual to find the exact location. It is usually a small, rectangular box with multiple terminals.

Step 3: Gather the Tools and Parts

You'll need a few essential tools for this job, including a new fuel pump relay, a socket or wrench set, a flat-head screwdriver, and possibly a new fuel filter if your old one is also faulty. Ensure you have the correct relay for your vehicle's make and model.

Step 4: Disconnect the Old Relay

Carefully disconnect the electrical connections from the old relay. Take note of the color-coded wires and their positions. Gently pull the relay out of its housing, being mindful of any clips or retainers that hold it in place.

Step 5: Install the New Relay

Insert the new fuel pump relay into the housing, ensuring it is aligned correctly. Secure it with any clips or screws provided. Reconnect the wires, making sure to attach them to the correct terminals. Double-check your connections to avoid any short circuits.

Step 6: Test the System

Start the engine and listen for the fuel pump to operate. Check for any leaks or unusual noises. If the pump runs correctly, you've successfully replaced the relay. If not, double-check your connections and ensure the pump is functioning properly.

Remember, this is a general guide, and specific steps may vary depending on your vehicle. Always refer to your car's manual for detailed instructions. With patience and the right approach, you can replace a faulty fuel pump relay and get your vehicle running smoothly again.
