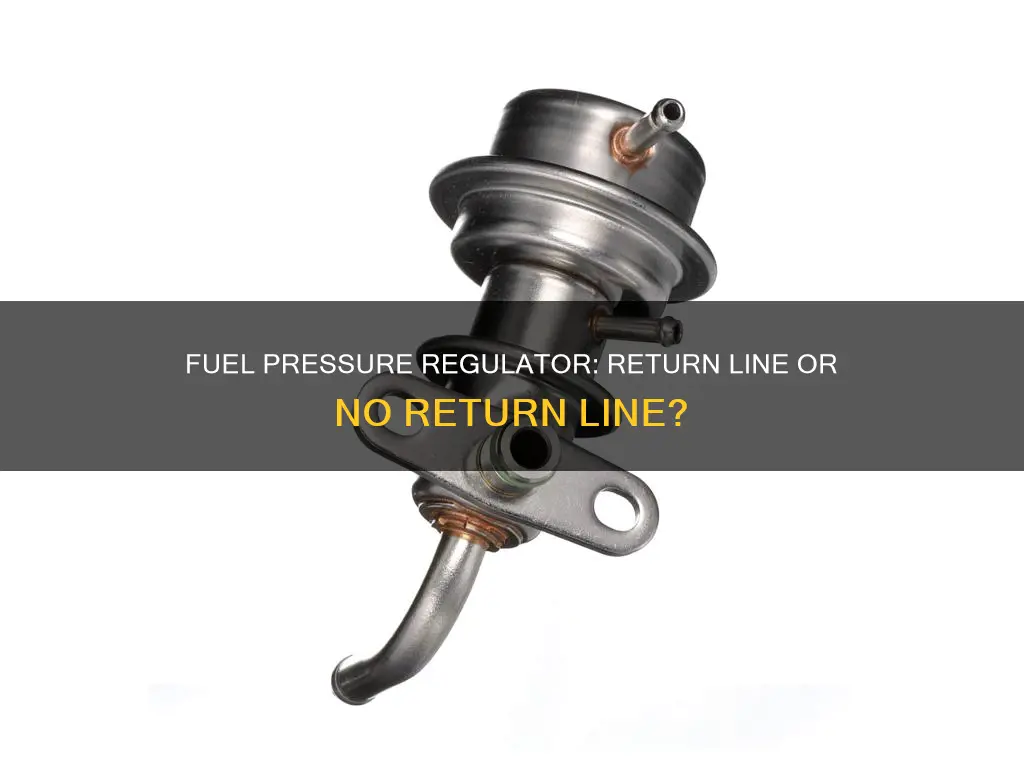

There are several types of fuel pressure regulators, including return, non-return, bypass, and deadhead regulators. Return or bypass regulators are characterized by a fuel return line from the regulator back to the fuel tank. This line allows excess pressure to be bled off through the return port, maintaining a constant and effective fuel pressure. On the other hand, non-return or blocking-style regulators do not require a return line and can reduce weight, complexity, and expense. However, they may need an internal or external relief valve to relieve bypassed fuel and pressure. The choice between a return and non-return regulator depends on factors such as the fuel system setup, pump type, and desired level of control over fuel pressure.
Fuel Pressure Regulator: Return Line Characteristics
| Characteristics | Values |
|---|---|
| Return Line Required | Yes: Return or bypass style regulators |
| No: Deadhead or blocking style regulators | |
| Return Line Function | Bleeds off excess pressure back to the fuel tank |
| Return Line Advantage | Constant, effective fuel pressure |
| More accurate pressure setting | |
| Return Line Disadvantage | Added expense, complexity, and weight of additional fuel lines and fittings |
| Return Line Installation | Multiple ways to configure |
| Aftermarket fuel pressure regulators should be hooked up after the rails |
Explore related products
What You'll Learn
Return style regulators are a common choice for performance fuel systems
Return style regulators, also known as "bypass" regulators, are a popular option for performance fuel systems. They are designed with a fuel return line that runs from the regulator back to the fuel tank. This line plays a crucial role in maintaining proper fuel pressure and preventing fuel system overpressure.
In a return-style regulator, fuel enters through the inlet port and passes a fuel bypass valve, which is initially held closed by a spring. As fuel pressure increases, it pushes against the spring through a diaphragm, forcing it to open the bypass valve. This redirects excess fuel back to the tank, reducing the pressure in the system. When the pressure drops, the spring closes the valve, allowing the pressure to rise again. This continuous process helps maintain the set fuel pressure.
One of the key advantages of return-style regulators is their ability to provide a constant and effective fuel pressure at the outlet port. Any excess pressure is bled off through the return port, ensuring that the fuel pressure remains consistent regardless of load. This consistent fuel pressure is essential for achieving optimal engine performance, fuel efficiency, and emissions control. It also helps prevent potential damage or safety issues associated with excessive fuel pressure.
Return-style regulators offer some additional benefits. They are easier on electric fuel pumps, as the pump only needs to maintain the set pressure, resulting in reduced heat, noise, and prolonged pump life. Additionally, the constant circulation of fuel reduces the risk of vapor lock and can enhance power output. However, it is important to note that return-style regulators require extra plumbing, including additional hoses and fittings, which can increase complexity and expense.
Removing Dormant Fuel Line Connectors: A Comprehensive Guide
You may want to see also
Explore related products
$45.99 $48.99
Return-style regulators are also called bypass regulators
Return-style regulators, also called bypass regulators, are a common choice for a performance fuel system. They are characterised by a fuel return line from the regulator back to the fuel tank. Fuel enters through the inlet port and travels past a fuel bypass valve/fuel return line port (which governs fuel flow and pressure) and is then distributed through an outlet port to the carburetor.
The opening and closing of the bypass valve is limited by a spring. Fuel pressure to the carburettor is set with a threaded adjustment mechanism. A vacuum/boost reference port allows the regulator to compensate for boost pressure with forced induction applications. Constant, effective fuel pressure to the outlet port is maintained. Any pressure overage is bled off through the return port as needed. This constant, effective fuel pressure enables fuel pressure to be set more accurately and should remain constant regardless of load.
Return-style regulators offer a few benefits over blocking regulators. They react faster to changes in engine load and supply more consistent and accurate fuel pressure. This reduces lean condition spikes. They are also easier on electric fuel pumps. By bleeding off the excess pressure, the pump only maintains the set pressure. This results in less heat, less noise, and longer pump life. The regulator keeps the entire system cooler and constantly circulates fuel, reducing the risk of vapour lock and increasing power.
However, a return-style regulator does require extra plumbing, meaning additional hoses and fittings. This can add expense, complexity, and weight. Large return lines must be used with limited bends and direct return to unpressurised tanks or reservoirs. They also cannot be used in some fuel systems, such as those with a single pump and multiple regulators set at different pressures.
Fuel Line Size for the Classic 86 K10 Truck
You may want to see also
Explore related products
A deadhead regulator controls pressure without a return line
Deadhead regulators are a simple and effective way to control fuel pressure, especially in older, low-pressure fuel delivery systems. They work by restricting the fuel line, which lowers the fuel pressure. This is in contrast to a bypass regulator, which bleeds off excess fuel pressure and recirculates the fuel back into the tank via a return line.
While deadhead regulators are simple and effective, they may struggle with the fuel flow demands of high-output engines, which can result in pressure creep, inconsistent fuel pressure, potential engine flooding, and heat. This is because the increase in power in modern engines leads to a proportional increase in fuel demand, placing additional strain on the fuel pressure regulator and fuel pump.
Converting from a static (deadhead) to a dynamic (return-style) fuel system can bring benefits in reliability and performance. A bypass regulator can react more quickly to sudden changes in engine load and keep the fuel bowls full. Additionally, a bypass regulator can help keep the fuel cooler, eliminate pressure creep, and increase the life of the fuel pump while decreasing noise.
Overall, while a deadhead regulator does not require a return line and can be effective for older, low-pressure systems, it may struggle with the demands of modern high-output engines.
Replacing Poulan PP4218AVX Pro Fuel Lines: A Step-by-Step Guide
You may want to see also
Explore related products
Returnless systems don't circulate fuel back to the fuel tank
Returnless fuel systems, also known as non-return or bypass systems, are designed without a return line to circulate fuel back to the fuel tank. Instead, they use the powertrain control module (PCM) to regulate fuel delivery. This is achieved through a fuel pressure sensor mounted on the supply rail of the fuel injectors, which allows the PCM to monitor fuel pressure. If the fuel pressure and flow decrease due to increased engine speed or load, the PCM compensates by increasing the injector duration or operating speed of the fuel pump.
In contrast, a return-type fuel system utilises a fuel pressure regulator that adjusts fuel pressure and flow based on the power of the vacuum suction from the engine's intake system. This ensures that the fuel pressure and flow remain consistent when the fuel reaches the injectors. While return-type systems offer the advantage of constant fuel filtering, returnless systems also incorporate fuel filters, albeit with varying placement options that can impact system longevity, serviceability, and repairability.
One key distinction between the two systems is how they handle excess fuel. In a return-type system, the fuel pressure regulator returns excess fuel to the tank through a return line. On the other hand, returnless systems lack a dedicated route for returning excess fuel, so the amount of fuel sent to the engine must be carefully calibrated to minimise waste. This tuning process is crucial in ensuring the efficient operation of a returnless system.
Returnless systems offer several benefits, including reduced weight, complexity, and expense due to the elimination of the return line. They also simplify the fuel delivery process by electronically managing fuel pressure and flow through the PCM and fuel pressure sensor. However, some users have reported challenges with returnless systems, particularly regarding tuning and ensuring the correct amount of fuel is delivered to the engine.
In summary, returnless fuel systems forgo the traditional return line seen in return-type systems and instead rely on electronic components to regulate fuel delivery. While this approach streamlines the fuel delivery process and reduces weight and complexity, it also introduces potential challenges related to tuning and fuel management. Ultimately, the choice between a returnless and return-type system depends on specific vehicle requirements, performance goals, and user preferences.
Fuel Line Size for 2008 Cobalt: What You Need to Know
You may want to see also
Explore related products
Return lines are sensitive to pressure drop
Return lines are an essential component of a fuel pressure regulator, but they are sensitive to pressure drops. This sensitivity is especially pronounced in very low-pressure ranges. To mitigate this issue, it is recommended to use large return lines (1/2-inch or larger) with minimal bends, returning directly to unpressurized tanks or reservoirs.
The pressure drop in a fuel line is primarily caused by friction as the fluid passes through the pipes and hoses. This friction leads to a reduction in the pressure at which the fluid is delivered. The length of the fuel line and the flow rate are the two main factors that influence the amount of friction experienced. Longer lines result in more friction, and higher flow rates also increase friction. Consequently, the pressure drop is directly proportional to the length of the line and the flow rate.
The impact of a pressure drop in a fuel line can vary depending on the system's tolerance for pressure loss before performance is affected. For example, adding just two PSI of line drop can significantly lower the available flow rate, as seen in a carbureted system. On the other hand, an EFI fuel pump exhibits a much smaller drop in flow rate when adding three PSI of pressure difference. This highlights the difference in sensitivity to fuel line size between carbureted and EFI systems.
The configuration of the fuel pressure regulator and the fuel lines can also impact the pressure drop. Flowing the main feed line into the regulator before the rails is generally not recommended. Instead, a parallel configuration, where the main feed line flows directly into the rails and then into the regulator, is considered more favourable. This setup ensures that the supply fuel does not have to pass through the regulator body, which could cause a restriction.
Fuel Line Size Guide for the Classic 1967 Dart
You may want to see also
Frequently asked questions
Return style regulators, also known as bypass regulators, are a common choice for a performance fuel system. Fuel from the pump enters the inlet, flows past the bypass valve, and exits through the outlet port. When the pressure increases, it pushes against a spring through a diaphragm, opening the bypass valve and redirecting fuel back to the tank. This reduces the pressure in the system.
Return style regulators offer constant and effective fuel pressure, enabling fuel pressure to be set more accurately and remain constant regardless of load. They are also useful for high-performance applications, providing fine-tuning to achieve a perfect balance and fuel efficiency.
It depends on the type of fuel pressure regulator. Return style or bypass regulators require a return line to bleed off excess pressure back to the fuel tank. Deadhead regulators, on the other hand, do not have a return line. Instead, they use a spring to close a valve and restrict fuel flow when pressure increases beyond the set amount.
