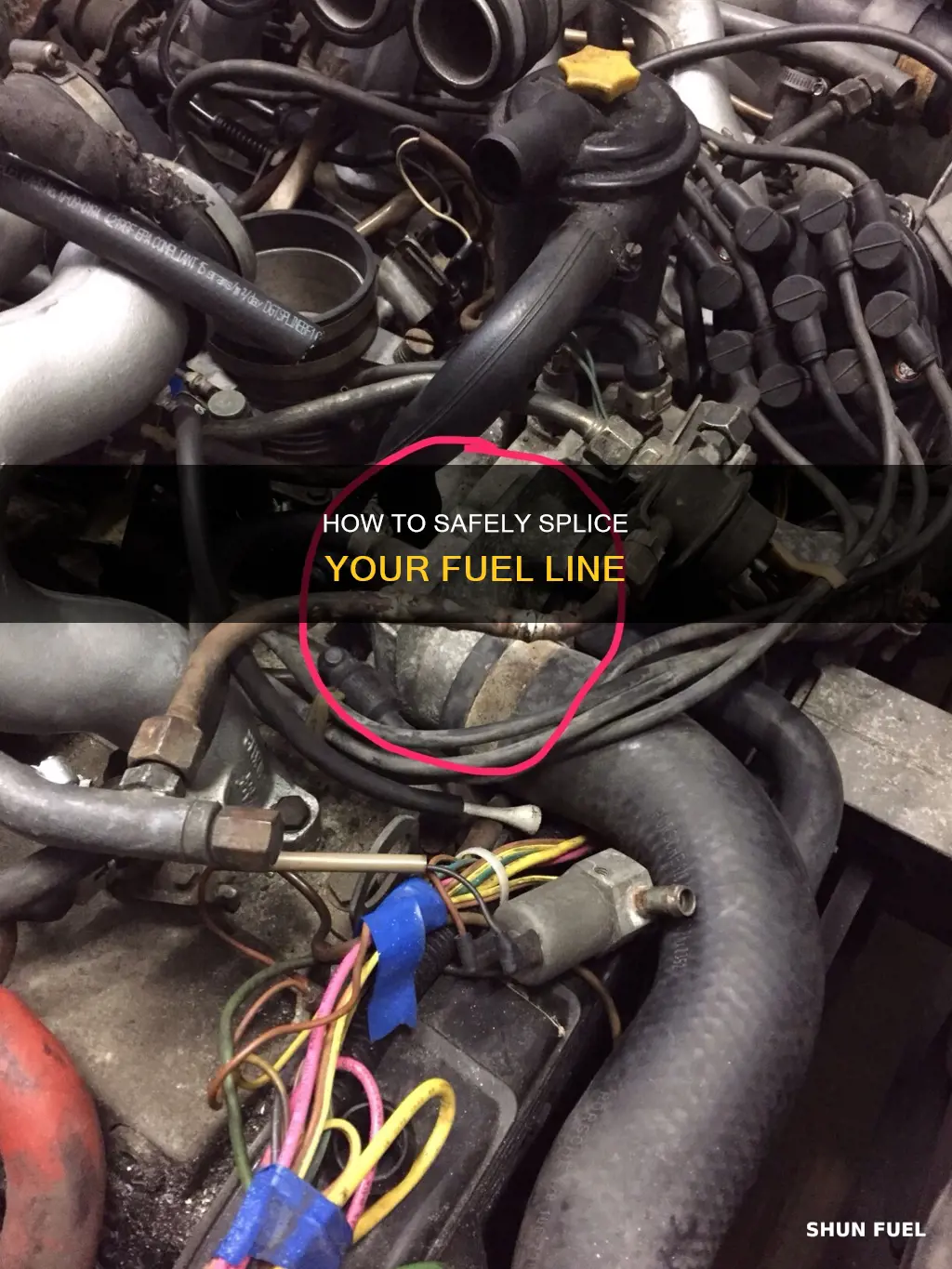

Fuel Line Splice: A Comprehensive Guide To Installation

Splitting in a fuel line is a complex and potentially dangerous task that requires careful consideration and technical expertise. It is not a simple DIY project and should only be attempted by professionals with the necessary skills and equipment. Before attempting any fuel line splicing, it is crucial to understand the specific requirements of your vehicle and the potential risks involved. This introduction sets the tone for a discussion on the importance of proper fuel line installation and the potential dangers of improper splicing.

Fuel Line Materials: Consider compatibility with fuel type and vehicle system

When considering the materials for fuel lines, it is crucial to prioritize compatibility with the specific fuel type and vehicle system. Different fuels, such as gasoline, diesel, or ethanol blends, have unique chemical properties that can impact the choice of materials. For instance, gasoline is more volatile and can dissolve certain plastics, making it essential to select fuel lines made from materials that can withstand these solvents. On the other hand, diesel fuel is less volatile but can still cause degradation in some materials over time. Therefore, it is imperative to choose fuel lines that are specifically designed to resist the corrosive effects of the fuel being used.

The vehicle system also plays a significant role in determining the appropriate fuel line materials. Different vehicle architectures, such as internal combustion engines or electric powertrains, may have varying requirements for fuel line flexibility, pressure resistance, and temperature stability. For example, high-performance vehicles with powerful engines might demand fuel lines that can handle increased pressure and temperature fluctuations. In contrast, hybrid or electric vehicles may require fuel lines that are more flexible to accommodate the unique layout and movement of components.

One common material used for fuel lines is rubber, which offers good flexibility and resistance to various fuels. However, it is essential to choose the right type of rubber, such as natural rubber or synthetic compounds like neoprene or butyl, depending on the specific fuel and vehicle requirements. Rubber fuel lines are often reinforced with fibers to enhance their strength and durability, ensuring they can withstand the pressures and vibrations encountered during vehicle operation.

Another critical aspect is the use of adhesives and seals. When splicing fuel lines, the choice of adhesive becomes vital to ensure a secure and leak-free connection. Adhesives should be compatible with both the fuel line material and the surrounding components to prevent any adverse reactions or weakening of the joint. Additionally, the seals used to protect the fuel lines from external elements, such as rubber or silicone gaskets, must be compatible with the fuel type to avoid any potential leaks or contamination.

In summary, selecting the right fuel line materials requires a thorough understanding of the fuel type and vehicle system. Compatibility with the fuel's chemical properties and the vehicle's operational demands is essential to ensure the longevity and reliability of the fuel system. By considering these factors, vehicle owners and mechanics can make informed decisions when splicing or replacing fuel lines, ensuring optimal performance and safety.

Fuel Line Routing: Ensure proper placement to avoid damage and interference

When it comes to fuel line routing, proper placement is crucial to prevent damage and ensure the safe operation of your vehicle. Fuel lines are delicate components that can be susceptible to various hazards, including impacts, vibrations, and heat. Here are some essential guidelines to follow for optimal fuel line routing:

• Avoid High-Traffic Areas: One of the primary concerns is placing the fuel lines away from areas with high vehicle traffic. This includes locations near the front bumper, where the risk of impact from pedestrians, debris, or other vehicles is higher. Aim to route the fuel lines along the sides or rear of the vehicle, where they are less likely to be damaged during everyday driving.
• Protect from Underbody Scrapes: Fuel lines are also vulnerable to damage from underbody scrapes, especially in vehicles with lower ground clearance. Ensure that the fuel lines are routed above the underbody to prevent contact with sharp edges or protruding components. Consider using protective sleeves or shields to further safeguard the lines from potential impacts.
• Maintain Proper Tension: Proper tensioning of the fuel lines is essential to prevent excessive movement and potential damage. Avoid routing the lines too tightly, as this can lead to wear and tear over time. Allow for some flexibility in the routing to accommodate engine movement and vibrations. Regularly inspect the lines for any signs of strain or damage, especially in areas with limited space.
• Keep Away from Heat Sources: Fuel lines should be positioned to avoid direct contact with hot components, such as exhaust manifolds, catalytic converters, or engine blocks. High temperatures can cause the fuel lines to degrade and potentially lead to fuel leaks. Use heat shields or insulators to protect the lines in these areas, ensuring they remain in good condition throughout the vehicle's lifetime.
• Secure with Clamps and Ties: Properly secure the fuel lines using appropriate clamps and ties to prevent movement and potential damage. Avoid using sharp or rigid ties that could cause cuts or abrasions on the fuel lines. Opt for soft, flexible ties or clamps that provide a secure hold without compromising the integrity of the lines. Regularly check and adjust the securing methods to ensure they remain effective.

By following these guidelines, you can ensure that your fuel lines are routed correctly, minimizing the risk of damage and interference. Proper placement and protection of fuel lines contribute to the overall safety and reliability of your vehicle's fuel system.

Fuel Line Length: Measure and cut to exact length for a secure fit

When it comes to installing or replacing a fuel line, ensuring the correct length is crucial for a secure and safe fit. Here's a step-by-step guide to help you measure and cut the fuel line to the exact length required:

Step 1: Remove the Old Fuel Line (if applicable): If you're replacing an existing fuel line, start by carefully removing the old one. Take note of its length and the way it was routed. This will give you a baseline for the new line's length and path.

Step 2: Measure the Required Length: Accurate measurement is key. Use a flexible measuring tape or a ruler to measure the distance between the fuel source (such as the fuel pump or tank) and the destination (usually the engine). Measure twice to ensure precision, as this will be the length of the new fuel line. Consider any bends or turns the line will take and add a small margin for error.

Step 3: Mark the Cutting Points: Once you have the correct length, mark the fuel line at both ends using a permanent marker or a piece of chalk. Ensure the marks are aligned with the desired cut points. This step is essential to maintain symmetry and a professional finish.

Step 4: Cut the Fuel Line: Using a sharp utility knife or a fuel line cutter, carefully cut along the marked lines. Take your time to make a clean cut, avoiding any jagged edges. If you're splicing the line, ensure the cut ends are smooth and free of debris.

Step 5: Prepare the Ends: After cutting, prepare the ends of the fuel line. If splicing, ensure the cut ends are smooth and slightly rounded to facilitate a secure connection. You may need to use a fuel line primer and solvent to clean the ends and create a strong bond.

Step 6: Assemble and Secure: Now, carefully assemble the fuel line, ensuring a tight and secure fit. Use fuel line connectors or clamps to hold the sections together. Make sure there are no kinks or bends that could restrict fuel flow. Double-check your work to ensure a leak-free connection.

By following these steps, you can ensure that the fuel line is cut to the exact length required, providing a secure and reliable fuel supply to your engine. Remember, precision and attention to detail are vital when working with fuel lines to avoid potential hazards.

Fuel Line Connections: Use appropriate fittings and ensure tight seals

When dealing with fuel line connections, it's crucial to prioritize safety and reliability. Splice-in fuel lines are a common solution for various automotive applications, but they require careful installation to ensure optimal performance and prevent potential hazards. The key to a successful splice lies in using the right fittings and ensuring tight seals to maintain the integrity of the fuel system.

Appropriate fittings are essential to establish a secure connection between the existing fuel line and the splice-in section. These fittings should be designed specifically for fuel lines to withstand the pressure and temperature variations associated with fuel transport. Common types of fittings include compression fittings, which use a compression nut and ferrule to create a tight seal, and quick-connect fittings, which offer ease of installation and disconnection. It is imperative to select fittings that match the diameter and material of the fuel line to ensure a proper fit.

To ensure a tight seal, several techniques can be employed. One method is to use a fuel line compound or tape specifically designed for fuel systems. These compounds provide an additional layer of insulation and sealing, preventing fuel leaks and potential fire hazards. Applying the compound or tape around the splice area and over the fittings creates a robust barrier against fuel leakage. Additionally, ensuring that all connections are free of debris and contaminants is vital. Any foreign matter between the fittings and the fuel line can compromise the seal, leading to potential issues.

When installing the splice, it is essential to follow a step-by-step process. Start by cleaning the ends of the fuel lines to be connected, removing any dirt or corrosion. Then, apply the chosen fitting method, ensuring that the fittings are tightened securely but not excessively, as this can damage the fuel line. After the fittings are in place, use the fuel line compound or tape to reinforce the connections. Finally, test the system by starting the engine and checking for any signs of fuel leaks.

In summary, splicing fuel lines requires attention to detail and the use of appropriate fittings and sealing techniques. By selecting the right fittings, ensuring tight seals, and following a meticulous installation process, you can create a reliable and safe fuel line connection. Regular maintenance and inspections are also recommended to identify and address any potential issues, ensuring the long-term performance and safety of the fuel system.

Fuel Line Testing: Check for leaks and pressure before and after installation

Before and after installing a new fuel line, it is crucial to conduct thorough testing to ensure the system's integrity and prevent potential issues. This process involves checking for leaks and verifying the fuel pressure to guarantee a safe and efficient fuel supply. Here's a step-by-step guide to performing these tests:

Pre-Installation Testing:

• Leak Detection: Start by identifying potential leak points. Inspect the existing fuel lines for any signs of damage, cracks, or corrosion. Pay close attention to connections, bends, and areas where lines join. Use a soapy water solution to coat the lines and observe for bubbles, indicating a leak. This step is essential to ensure that any pre-existing issues are addressed before the new line is installed.
• Fuel Pressure Check: Measure the fuel pressure in the system using a fuel pressure gauge. This gauge should be connected to the fuel pump and the return line to get an accurate reading. Compare the pressure with the manufacturer's specifications. Low pressure might suggest a faulty pump or clogged lines, while abnormally high pressure could indicate a potential safety hazard. Adjust or replace components as necessary before proceeding.

Post-Installation Testing:

• Re-Leak Test: After the new fuel line is installed, repeat the leak detection process. This time, ensure that all connections are securely tightened. Use the soapy water method again, but this time, also check for any signs of fuel seepage around the new splice or connection points. Any leaks at these points could lead to fuel contamination or system inefficiency.
• Pressure Verification: With the new fuel line in place, recheck the fuel pressure. Ensure that the pressure is stable and within the recommended range. If the pressure is significantly different from the pre-installation reading, it may indicate a problem with the new line or a need for further adjustments. Adjust the fuel pump settings or consider replacing the line if the pressure remains inconsistent.

By following these testing procedures, you can ensure that the fuel line installation is secure, leak-free, and functioning correctly. Regular maintenance and testing are vital to maintaining a reliable fuel system in vehicles or machinery. It is always advisable to consult the manufacturer's guidelines for specific testing procedures and pressure values for your particular system.
