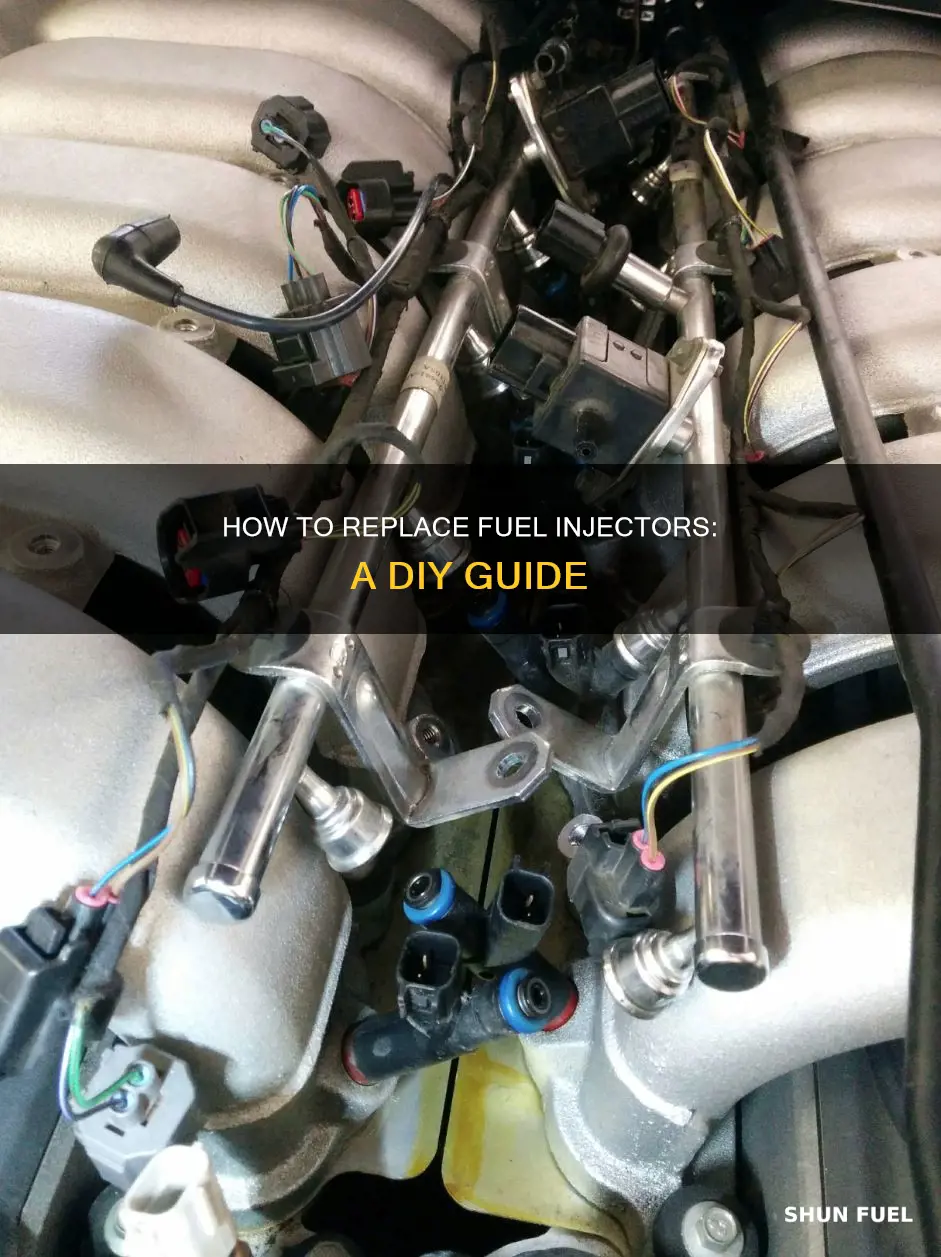

Diy Fuel Injector Replacement: A Guide To Saving Money

Replacing fuel injectors can be a daunting task for car owners, but it is a job that can be accomplished by those with the right tools and knowledge. While it is generally recommended to have a professional mechanic handle this job due to the complexity and potential risks involved, many car enthusiasts and DIYers are capable of replacing fuel injectors themselves. This guide will provide an overview of the process, including the necessary tools, safety precautions, and step-by-step instructions to help you decide if tackling this project is feasible for you.

Tools and Materials: Gather necessary tools like wrenches, sockets, and new fuel injectors

Before you begin the process of replacing fuel injectors, it's crucial to ensure you have the right tools and materials to make the job as smooth and efficient as possible. Here's a breakdown of what you'll need:

Tools:

• Wrenches and Sockets: You'll need a variety of wrenches and sockets to access the fuel injectors. The specific sizes will depend on your vehicle's make and model, but generally, you'll require a set of metric and standard wrenches and sockets in different sizes. Look for adjustable wrenches that can accommodate various bolt and nut sizes.
• Socket Adapter: In some cases, you might encounter bolts or nuts that are difficult to reach due to their location or angle. A socket adapter can be helpful in these situations, allowing you to use longer extensions or angles to access tight spots.
• Pliers: Pliers are essential for gripping and turning small bolts, nuts, and wires. Look for a set of adjustable pliers and needle-nose pliers for precision work.
• Fuel Filter Removal Tool: Some vehicles require a specialized tool to remove the fuel filter during the injector replacement process. Check your vehicle's manual to see if this tool is necessary.
• New Fuel Injectors: This is the most critical component of your replacement project. Ensure you purchase the correct fuel injectors for your specific vehicle make, model, and year. You can find these online or at auto parts stores.

Materials:

• New O-Rings or Seals: Fuel injectors rely on O-rings or seals to create a tight, leak-free connection. You'll need to replace these with new ones that are compatible with your vehicle's fuel type.
• Cleaning Supplies: It's a good idea to clean the fuel system before and after replacing the injectors. This can include fuel system cleaner, a fuel filter cleaner, and a fuel line brush to remove any debris or contaminants.
• Antifreeze or Coolant: Depending on your climate and the vehicle's age, you might want to add antifreeze or coolant to the fuel system to prevent freezing or corrosion.

Having the right tools and materials on hand will make the fuel injector replacement process much more manageable. Remember to consult your vehicle's manual for specific instructions and always prioritize safety when working on your car.

Diagnosis: Use a scan tool to identify faulty injectors and confirm replacement is needed

When it comes to diagnosing and replacing fuel injectors, using a scan tool is an essential step to ensure you're dealing with the right issue and to confirm if a replacement is indeed necessary. This diagnostic process is crucial as fuel injectors can malfunction due to various reasons, such as wear and tear, contamination, or electrical issues. By employing a scan tool, you can access the vehicle's computer system and retrieve valuable data that will guide your repair process.

A scan tool, often referred to as an OBD-II (On-Board Diagnostics) scanner, allows you to read the error codes stored in the car's engine control unit (ECU). These error codes are like a secret language that the vehicle's computer uses to communicate the specific problem(s) it has encountered. When it comes to fuel injectors, the codes can indicate issues such as a failing injector, a clogged or damaged injector, or problems with the injector's electrical connections. For instance, error code P0087 might suggest a problem with the fuel pressure regulator, while P0250 could point to a faulty fuel injector.

To use a scan tool effectively, you'll need to connect it to the OBD-II port, which is usually located under the dashboard on the driver's side. Once connected, the tool will display the error codes and other relevant data, such as live data streams, which show the current performance of various engine components. By analyzing these readings, you can pinpoint the exact injector(s) that are causing the issues. For example, if one injector is consistently delivering less fuel than the others, the live data might reveal a significant difference in fuel flow rates, confirming that replacement is required.

Furthermore, a scan tool can help you rule out other potential causes of engine performance issues. It can provide insights into the engine's overall health, such as air/fuel ratio, engine temperature, and sensor readings. By ensuring that these parameters are within the normal range, you can further validate that the problem is specifically with the fuel injectors. This process of elimination is crucial in saving time and resources by avoiding unnecessary replacements.

In summary, using a scan tool is a critical step in the diagnosis and repair of fuel injectors. It provides the necessary data to identify faulty injectors and confirm that replacement is needed. With this tool, you can make informed decisions, ensuring that your repair efforts are efficient and effective. Remember, proper diagnosis is the first step towards successful DIY fuel injector replacement.

Safety Precautions: Ensure engine is cool, disconnect battery, and drain fuel system before disassembly

Before attempting to replace fuel injectors, it is crucial to prioritize safety and take the necessary precautions to ensure a smooth and secure process. Firstly, allow the engine to cool down completely. Working on a hot engine can be extremely dangerous and may lead to burns or other injuries. Let the engine idle for at least 30 minutes after turning it off to ensure all components have reached a safe temperature.

Next, disconnect the battery to prevent any electrical hazards. This step is essential as it eliminates the risk of accidental electrical discharges that could damage the fuel injectors or other engine components. Locate the battery and carefully disconnect the negative terminal first, followed by the positive one. Remember to label the disconnected cables for easy reattachment later.

Additionally, it is imperative to drain the fuel system to avoid any fuel-related accidents. Start by locating the fuel pump and disconnecting the fuel lines. You can then attach a bucket or a suitable container under the fuel pump to catch any remaining fuel. Turn the ignition switch to the 'off' position and leave it there for a few minutes to ensure the fuel pump is deactivated. This process will help prevent fuel spills and potential fires during the disassembly process.

By following these safety precautions, you create a secure environment for working on your vehicle's fuel injectors. Ensuring the engine is cool minimizes the risk of burns, disconnecting the battery prevents electrical mishaps, and draining the fuel system eliminates potential hazards associated with fuel. These steps are essential to guarantee a safe and successful DIY fuel injector replacement.

Step-by-Step Guide: Follow a detailed tutorial for replacing fuel injectors, including removal and installation

Before you begin, it's crucial to understand the specific make and model of your vehicle, as fuel injector locations and access points can vary. Additionally, ensure you have the necessary tools and equipment, including a new set of fuel injectors, a socket set, a torque wrench, and safety gear like gloves and eye protection.

Step 1: Safety First

Start by disconnecting the battery to prevent any accidental electrical discharges. Locate the fuel pump relay and disconnect it to cut off fuel supply to the injectors. This step is essential for your safety and to avoid any spills or mess.

Step 2: Remove the Old Injectors

Locate the old fuel injectors, which are typically mounted along the top or side of the engine. Use the appropriate socket or tool to loosen and remove the mounting bolts. Carefully lift the injectors out of their positions, being mindful of any wiring or hoses connected to them. Take note of the position and orientation of the old injectors for reference during installation.

Step 3: Access the Injector Mounting Points

With the old injectors removed, you'll have access to the mounting points. Carefully inspect the mounting surfaces and ensure they are clean and free of any debris. This step is crucial for a proper seal during installation.

Step 4: Install the New Injectors

Carefully align the new fuel injectors with the mounting points, ensuring they are positioned correctly. Secure the injectors using the appropriate bolts and torque them to the specified specifications using your torque wrench. Double-check that all connections are secure and that there is no interference with other engine components.

Step 5: Reassemble and Test

Reattach any wiring or hoses that were disconnected during the removal process. Reconnect the fuel pump relay and battery. Start the engine and monitor for any leaks or unusual behavior. Let the engine idle for a few minutes to ensure the fuel system is functioning correctly.

Remember, replacing fuel injectors can be a complex task, and it's essential to follow manufacturer guidelines and seek professional assistance if you're unsure. Always prioritize safety and take your time to ensure a successful installation.

Testing and Calibration: Verify proper function with a test bench and calibrate the engine control unit

When replacing fuel injectors, it's crucial to ensure the system is functioning correctly. This involves a thorough testing and calibration process to guarantee optimal performance and prevent potential issues. Here's a step-by-step guide to help you through this process:

Testing with a Test Bench:

Start by setting up a test bench, which is a specialized tool used to simulate engine conditions and analyze fuel injector performance. This process is essential as it allows you to verify the injectors' functionality without actually running the engine. Connect the test bench to the fuel injectors and the engine control unit (ECU). The ECU is the brain of the engine, responsible for sending signals to the injectors. By connecting the test bench, you can communicate with the ECU and monitor the injectors' behavior. Adjust the test bench settings to mimic the engine's operating conditions, including different speeds, loads, and temperatures. This simulation will provide valuable data on the injectors' performance. Measure and record the fuel flow rate through each injector. Compare these readings with the expected values for your specific engine and vehicle. Proper testing will help identify any blockages, leaks, or faulty injectors that may have been installed incorrectly.

Calibration of the Engine Control Unit (ECU):

Calibration is a critical step to ensure the ECU accurately interprets sensor data and sends the right signals to the fuel injectors. Access the ECU's calibration settings, which can usually be found in the vehicle's diagnostic interface or through specialized software. Adjust the fuel injection timing, which refers to the precise moment when the injectors open to inject fuel into the engine. Fine-tune the timing to match the new injectors' characteristics, as different injectors may have varying spray patterns and flow rates. Calibrate the idle speed, which is the engine's speed at a stationary position. This setting ensures the engine runs smoothly and stably when idling. Also, adjust the air-fuel mixture ratio, which is crucial for optimal combustion and engine performance. This process involves setting the correct air-fuel ratio based on the new injectors' specifications.

After completing the calibration, it's essential to test the engine under various loads and speeds to ensure the changes have no adverse effects. Monitor the engine's performance, including power output, fuel consumption, and emissions. If any issues arise, you may need to fine-tune the calibration further. Remember, proper calibration is vital for efficient fuel usage, engine performance, and emissions control.

By following these testing and calibration procedures, you can ensure that the fuel injectors are functioning correctly and that the engine is running optimally. This process is a critical aspect of DIY fuel injector replacement, allowing you to achieve professional results and maintain your vehicle's performance.
