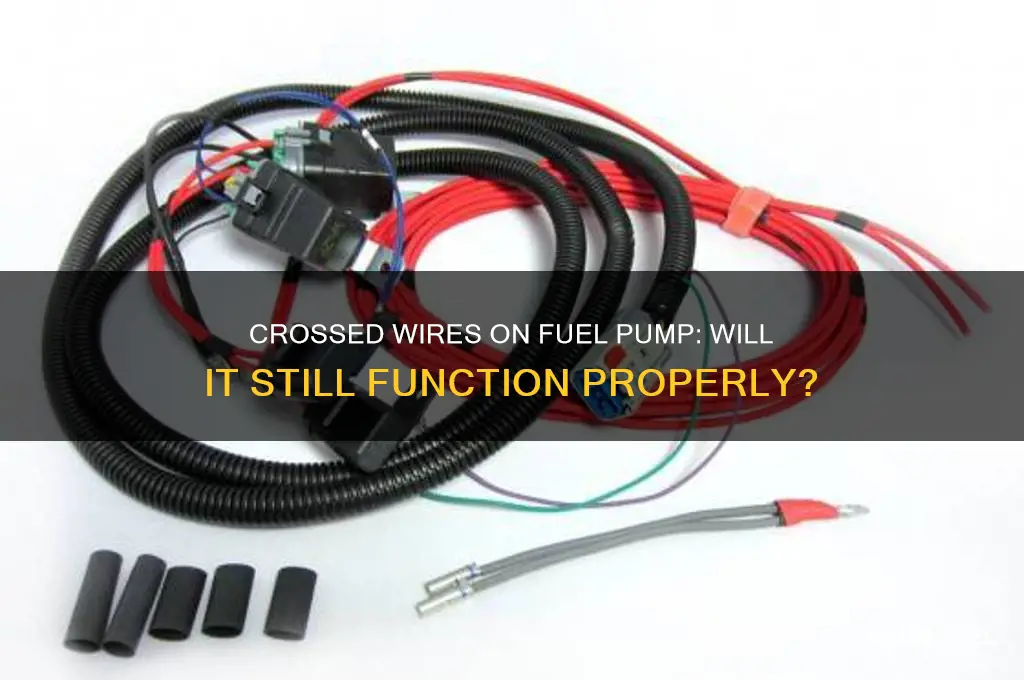

When considering whether a fuel pump will work if its wires are crossed, it’s essential to understand the role of the wiring in the fuel pump’s operation. The fuel pump relies on a specific electrical circuit to function correctly, with each wire serving a distinct purpose, such as power supply, ground, and signal from the fuel pump relay or ECU. If the wires are crossed, it can disrupt the proper flow of electricity, potentially causing the pump to malfunction, fail to operate, or even damage the pump or related components. For instance, reversing the power and ground wires could short-circuit the system, while misconnecting the signal wire might prevent the pump from receiving the necessary activation signal. Therefore, crossing the wires is highly discouraged, as it can lead to unreliable performance, safety hazards, or costly repairs. Always consult a wiring diagram or a professional to ensure correct installation and troubleshooting.
| Characteristics | Values |
|---|---|
| Will a fuel pump work if wires are crossed? | No, it will likely not work properly or at all. |
| Potential Outcomes | - Fuel pump runs continuously (drain battery, potential overheating) - Fuel pump doesn't run at all - Intermittent operation - Damage to the fuel pump or wiring |
| Reasons for Failure | - Incorrect voltage supply - Reversed polarity - Short circuits - Incorrect signal to the pump's control module |
| Safety Risks | - Fire hazard due to overheating or sparks - Fuel leaks - Engine damage |
| Recommendation | Always consult a wiring diagram and ensure correct wire connections. If unsure, seek professional assistance. |
Explore related products
What You'll Learn
Understanding Fuel Pump Wiring Basics
Fuel pump wiring is a critical component of your vehicle's fuel system, and understanding its basics can save you from potential headaches and costly repairs. The fuel pump relies on a precise electrical circuit to function, with each wire serving a specific purpose. Typically, you’ll find a power wire (usually red or pink), a ground wire (black), and a signal wire (often blue or green) connected to the pump. Crossing these wires—such as connecting the power wire to the ground or vice versa—can lead to immediate failure or erratic behavior. For instance, reversing the power and ground wires may cause the pump to run continuously, draining the battery, or not run at all, leaving you stranded.
Analyzing the consequences of crossed wires reveals why proper wiring is essential. The fuel pump operates within a specific voltage range, usually 12 volts in most vehicles. If the power and ground wires are swapped, the pump may receive incorrect polarity, preventing it from activating. Similarly, if the signal wire, which communicates with the engine control unit (ECU), is misconnected, the ECU may fail to send the necessary activation signal. This disruption can result in a no-start condition or inconsistent fuel delivery, leading to poor engine performance. Understanding these relationships underscores the importance of double-checking wire connections during installation or repairs.
To avoid wiring mishaps, follow a systematic approach when working on your fuel pump. Start by consulting your vehicle’s wiring diagram, which provides a detailed layout of the fuel pump circuit. Use a multimeter to verify voltage at each wire before connecting them—the power wire should show 12 volts with the ignition on, while the ground wire should read 0 volts. Ensure the signal wire is intact and properly connected to the ECU. If replacing the pump, match the new unit’s wire colors to the original setup, and use butt connectors or solder for secure connections. Always test the system before driving to confirm the pump operates as expected.
A comparative look at fuel pump wiring in different vehicles highlights variations that can trip up even experienced DIYers. For example, older carbureted engines often use a simple two-wire system (power and ground), while modern fuel-injected vehicles incorporate a third signal wire for ECU control. Some high-performance cars may include additional wires for features like variable fuel pressure. Understanding these differences ensures you don’t mistakenly apply a one-size-fits-all approach. For instance, crossing wires in a modern system could damage the ECU, a costly mistake compared to the simpler systems of the past.
Finally, a practical tip for troubleshooting fuel pump wiring issues is to isolate the problem step by step. If your vehicle isn’t starting, check the fuel pump fuse and relay first—these are common failure points. Next, test for power at the pump’s connector with the ignition on. If power is present but the pump doesn’t run, verify the ground connection. If both power and ground are good, inspect the signal wire for continuity. This methodical approach helps pinpoint the issue without resorting to guesswork. Remember, crossed wires are just one potential culprit, and systematic diagnosis is key to resolving the problem efficiently.
