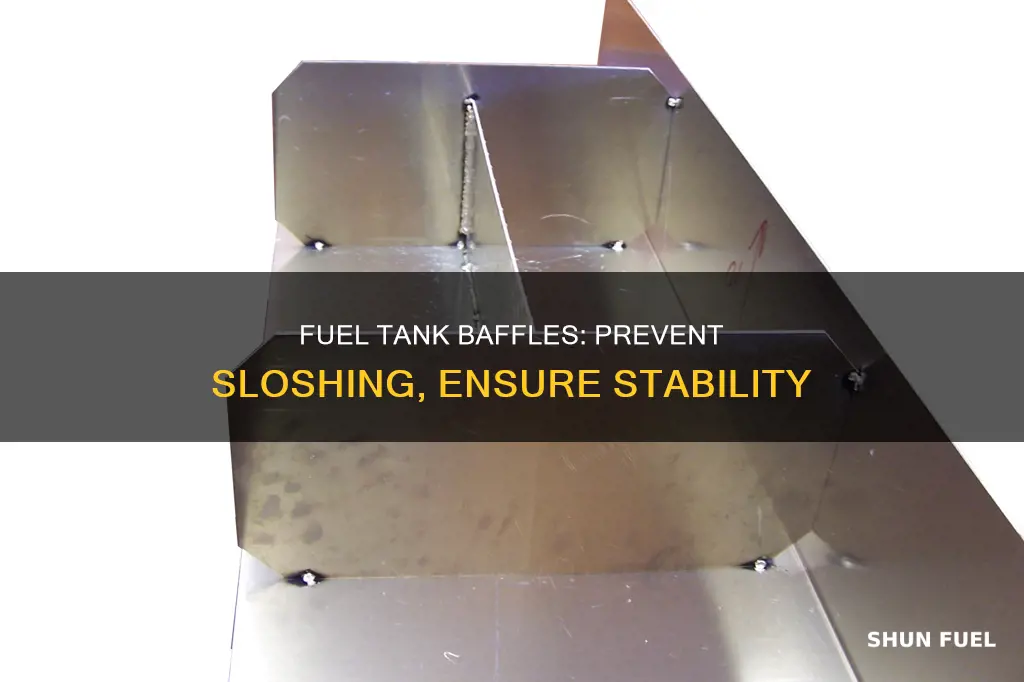

Baffles are used in fuel tanks to prevent fuel from sloshing around and to control fuel slosh. During a hard roll, the weight of the fuel can slam into the sides of the tank, stressing the tank and mounts. Baffles help to keep this sloshing and fluid hammer to a minimum. They also ensure that the fuel gets to the pump and reduce the capacity to increase fuel flow. Baffles are designed to keep the fuel in a certain area in the tank, usually the lowest part of the tank.
| Characteristics | Values |
|---|---|
| Prevent | Fuel sloshing around in the tank |
| Prevent | Fuel splashing back to the filler |
| Prevent | Fuel starvation |
| Prevent | Damage to the tank and mounts |
| Ensure | Fuel gets to the pump |
| Ensure | Fuel stays near the pump during acceleration and cornering |
| Ensure | Fuel flow is increased |
| Ensure | Fuel stays in the lowest part of the tank |
Explore related products
What You'll Learn
- Baffles prevent fuel from sloshing around in the tank
- They reduce the risk of fuel starvation and fluid hammer
- Baffles stop objects from banging around inside the tank and damaging components
- They help to manage oscillations in-flight
- Baffles are necessary for racing applications to keep fuel in a certain area of the tank
Baffles prevent fuel from sloshing around in the tank
Fuel tanks with baffles are designed to prevent fuel from sloshing around in the tank. Baffles are necessary to control fuel slosh, especially during hard acceleration or cornering. Without baffles, fuel can move around in the tank, slamming into the sides and stressing the tank and mounts. This can lead to potential safety hazards, as the weight of the fuel can cause deformation and damage during a crash or rollover.
Baffles help to keep the fuel in a certain area of the tank, usually the lowest part, to minimize sloshing and fluid hammer. They are designed to restrict the flow of fuel between different compartments, ensuring that it stays near the pump during acceleration and cornering. This also helps to prevent fuel starvation issues, where the pump sucks air instead of fuel, which can cause performance problems.
The placement of baffles is crucial to their effectiveness in controlling fuel slosh. For example, in drag racing, the first 60 feet of the race requires the most fuel control, so the baffles need to be designed to keep the fuel in the rear of the tank. In road racing, the fuel needs to stay near the pump during acceleration and cornering, so the baffles are designed accordingly.
Baffles are particularly important in fuel tanks for vehicles that experience rapid movements or changes in direction, such as racing cars. During a hard roll or sharp turn, the fuel can slam into the sides of the tank, causing instability and affecting handling. Baffles help to mitigate this issue by controlling the movement of fuel and reducing the risk of fuel starvation, ensuring a consistent supply of fuel to the engine.
While some consider baffles optional, they offer several benefits, including reduced noise from fuel sloshing, improved fuel efficiency, and enhanced safety. Baffles can also provide insulation for the fuel tank, protecting it from the surrounding environment and helping to regulate the temperature of the fuel. Overall, baffles play a crucial role in fuel tank design, ensuring the safe and efficient operation of vehicles, especially in high-performance or racing applications.
Cleaning Old Fuel Tanks: A Step-by-Step Guide
You may want to see also
Explore related products
They reduce the risk of fuel starvation and fluid hammer
Baffles in fuel tanks are essential in controlling fuel slosh, ensuring the pump never sucks air, and preventing fluid hammer. Fuel typically weighs between 4 and 7 pounds per gallon, and in a half-full 30-gallon tank, this can result in 60-105 pounds of fuel moving around. During a hard roll or acceleration, this weight can slam into the tank's sides and mounts, causing stress and potential deformation. Baffles help minimise this sloshing effect, reducing the risk of damage and ensuring the fuel remains in a certain area, typically the lowest part of the tank.
The placement of baffles is crucial to effective fuel control. For example, in drag racing, the first 60 feet of a race requires careful fuel management. Baffles are designed to keep fuel near the pump during acceleration and cornering, reducing the capacity to increase fuel flow. This helps prevent fuel starvation, where the pump sucks in air instead of fuel, which can lead to engine issues.
In addition to preventing fuel starvation, baffles also play a critical role in mitigating fluid hammer. Fluid hammer occurs when a fluid, such as fuel, slams into a deteriorated mount or tank wall during a crash or rollover. By reducing the fuel's movement within the tank, baffles help minimise the impact and potential damage caused by fluid hammer. This safety feature is particularly important for vehicles reaching high speeds or experiencing rapid acceleration and cornering, such as race cars.
The use of baffles in fuel tanks has been a topic of discussion among car enthusiasts and mechanics. Some argue that baffles are necessary for high-performance driving or racing applications, while others suggest that most drivers do not encounter situations where fuel slosh becomes a significant issue. The decision to use baffles depends on the specific use case and driving style, with some opting for cheaper, non-baffled tanks for more casual driving.
In summary, baffles in fuel tanks play a crucial role in reducing the risk of fuel starvation and fluid hammer. They achieve this by controlling fuel slosh, ensuring the fuel remains near the pump, and minimising the impact of fuel movement during crashes or rollovers. While the use of baffles may vary depending on the vehicle and its intended use, they provide significant benefits in terms of performance, safety, and fuel management.
Grounding Marine Fuel Tanks: Plastic Tanks Need Earthing?
You may want to see also
Explore related products
Baffles stop objects from banging around inside the tank and damaging components
Baffles are essential in fuel tanks to prevent the fuel from sloshing around and causing damage to the tank and other components. Without baffles, the fuel can move freely within the tank, especially during hard acceleration, cornering, or in the event of a rollover. This movement can create a "fluid hammer" effect, where the weight of the fuel slams into the sides of the tank and its mounts, causing stress and potential deformation.
By installing baffles, the fuel movement is controlled and restricted to specific areas, usually the lowest part of the tank. This helps to minimise the sloshing and reduces the risk of damage to the tank and its surrounding components. The baffles act as barriers, preventing objects from moving around and banging into critical parts, such as pumps, filler necks, and bolts.
In some cases, baffles are designed to keep the fuel near the pump during acceleration and cornering, ensuring a consistent fuel supply. This is particularly important in racing applications, where fuel control and flow are critical for performance. Baffles also help to prevent fuel starvation issues, ensuring that the pump does not suck air instead of fuel, which can occur during rapid movements without proper baffling.
The placement and design of baffles are crucial for their effectiveness. For example, the rear baffle must be in the correct position to control fuel slosh effectively. Additionally, the size and shape of the baffles need to be carefully considered to fit through the fuel filler hole and maximise their function inside the tank.
Baffles play a vital role in maintaining the integrity of fuel tanks and preventing potential damage caused by the movement of fuel and other objects within the tank. They help to control fuel slosh, minimise fluid hammer, and protect critical components from impact, ensuring the safe and efficient operation of the vehicle.
Vital Signs: Decoding Fuel Tanker Symbols
You may want to see also
Explore related products
They help to manage oscillations in-flight
Baffles in fuel tanks are essential for managing oscillations in-flight. They prevent the fuel from sloshing around and slamming into the sides of the tank during acceleration, cornering, or hard rolls. This movement of fuel can stress the tank and mounts, leading to potential damage or deformation. By controlling the fuel slosh, baffles ensure that the fuel stays near the pump, maintaining a consistent fuel flow.
The placement of baffles within the tank is crucial for effective oscillation management. They need to be designed to keep the fuel in a certain area, usually the lowest part of the tank, to prevent it from flowing too quickly between different sections. This design consideration ensures that the fuel pump always has access to fuel, reducing the risk of air entering the system and maintaining engine performance.
In addition to preventing fuel slosh, baffles also serve another critical function: mitigating fluid hammer. During rapid movements or changes in direction, the weight of the fuel can cause a fluid hammer effect, potentially leading to dangerous consequences. Baffles act as a safeguard against this phenomenon by minimizing the impact of the fuel on the tank walls and reducing the likelihood of damage.
Baffles are particularly important for vehicles that experience high-performance driving or racing conditions. In these scenarios, fuel tanks may only be partially filled, increasing the potential for fuel slosh and fluid hammer effects. By installing baffles, drivers can maintain control over fuel movement, ensuring a consistent fuel supply to the pump and reducing the risk of performance issues or fuel starvation during intense maneuvers.
While some may question the necessity of baffles, especially in non-performance applications, their presence provides a safety net against potential issues. In the event of a rollover or crash, baffles can help minimize the impact of fuel movement, reducing the chances of tank deformation or mount failure. Therefore, baffles play a crucial role in managing oscillations in-flight, enhancing vehicle performance, and contributing to overall safety.
Applying Adhesive Stickers: Diamond Plate Fuel Tank Guide
You may want to see also
Explore related products
Baffles are necessary for racing applications to keep fuel in a certain area of the tank
The placement of baffles in the fuel tank is crucial to their effectiveness. If the rear baffle is not in the right place, it won't adequately control fuel slosh. By creating a bias in the fuel tank, the fuel can be directed towards the pump, increasing fuel flow and reducing the capacity. This is particularly important for drag racing, where fuel control is critical in the first 60 feet.
In addition to their role in fuel slosh control, baffles also help to keep the fuel from flowing too quickly between different baffled areas within the tank. This ensures that the fuel ends up staying in the main area, usually the lowest part of the tank. The design of the baffles needs to take into account the type of racing, whether it's drag racing or road racing, as this will determine the placement and installation of the baffles.
Baffles are not just a safety measure but also contribute to the performance of the vehicle. By keeping the fuel in a certain area of the tank, baffles help prevent fuel starvation, ensuring that the engine has a consistent supply of fuel during acceleration and cornering. This is especially important for racing applications where fuel efficiency and performance are critical.
Overall, the use of baffles in racing applications is essential to maintain fuel in a specific area of the tank, reducing safety risks, improving performance, and ensuring a consistent fuel supply during dynamic driving conditions. The strategic placement of baffles contributes to their effectiveness in controlling fuel slosh and enhancing overall vehicle performance on the racetrack.
Golden Star Fuel Tanks: Where Are They Manufactured?
You may want to see also
Frequently asked questions
Baffles in fuel tanks are used to control fuel sloshing and to keep the fuel in a certain area of the tank, usually the lowest part. They also help to manage oscillations in-flight and prevent damage to the tank and mounts.
Baffles are designed to keep fuel from flowing too quickly from one area of the tank to another. This helps to reduce fuel sloshing and the potential for fluid hammer, which can occur during hard acceleration or cornering.
No, baffles are not necessary for all vehicles. They are more commonly used in high-performance or racing applications where fuel sloshing and control are more critical. For example, during drag racing or road racing, the placement and design of baffles can be crucial for optimal fuel flow and performance.
