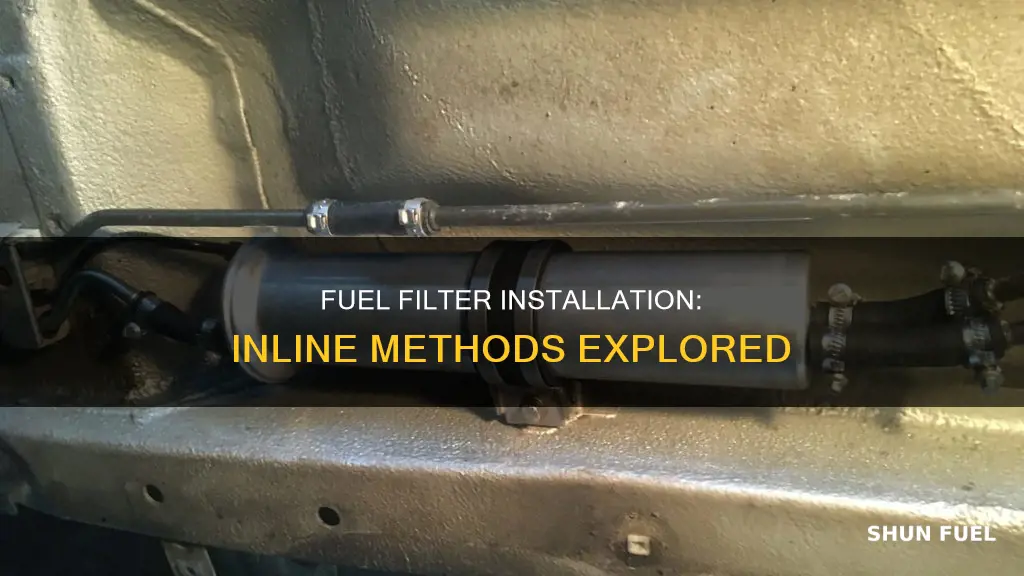

Installing an inline fuel filter is a complex process that requires careful consideration and mechanical expertise. The placement of the fuel filter is a crucial aspect, with varying opinions on whether it should be installed before or after the fuel pump. Some individuals suggest placing the filter between the pump and the carburetor, while others recommend positioning it near the gas tank to filter contaminants early in the fuel system. It is important to ensure that the filter is installed in the correct direction, although some sources suggest that the direction may not have a significant impact as long as fuel can pass through the filter. The type of fuel pump and engine configuration also play a role in determining the optimal location of the inline fuel filter. Safety precautions, such as allowing the engine to cool before maintenance, are crucial to a successful and secure installation.
Explore related products
What You'll Learn
Inline fuel filter direction of flow
Installing an inline fuel filter is a crucial aspect of maintaining a fuel system, ensuring that contaminants are caught early on. When it comes to the direction of flow for inline fuel filters, there are a few key considerations to keep in mind.
Firstly, it is important to place the inline fuel filter in the correct location. Most inline fuel filters are installed between the fuel pump and the carburetor. This placement ensures that the fuel entering the carburetor is clean and free of contaminants. It is generally advised to avoid placing the filter on the suction side of the fuel pump, as this can lead to a significant drop in fuel pressure and flow.
The direction of flow for an inline fuel filter is crucial to its effectiveness. Typically, the filter element should point into the flow of fuel. This way, any dirt or contaminants will accumulate on the outside of the filter element. Even if the filter becomes clogged, it will collapse in on itself, blocking the flow, instead of rupturing and releasing the trapped contaminants into the fuel system.
Some inline fuel filters come with an arrow indicating the intended direction of flow. It is important to follow this direction during installation to ensure the filter functions optimally. However, in some cases, the direction of flow might not be marked. In such instances, it is recommended to position the filter so that the filter element points into the flow, as described earlier.
When installing an inline fuel filter, it is generally a good practice to refer to the specific instructions provided by the manufacturer. Additionally, safety precautions should always be followed when working with fuel systems, including allowing the engine to cool down before performing any maintenance or inspections.
By following these guidelines on the direction of flow and installation location, you can ensure that your inline fuel filter functions effectively, protecting your fuel system from contaminants and potential damage.
Fuel Filters: Are They Essential or Optional?
You may want to see also
Explore related products
Inline fuel filter location
The best location for an inline fuel filter is between the pump and the carburetor. This ensures that the carburetor receives clean fuel. Any other configuration does not provide the intended protection.
Some car owners prefer to install the inline fuel filter near the gas tank under the car. This allows them to filter out any contaminants as early in the fuel system as possible. However, this location can be a little hard to inspect.
If you are running a stock-type engine-mounted mechanical diaphragm pump, you should avoid placing the filter on the suction side of the pump. This is because diaphragm pumps are not positive displacement, and they do not "suck" well. Placing a filter on the suction side will cause a significant drop in fuel pressure and flow.
Additionally, modern pump gas typically contains ethanol, which has a higher vapor pressure than straight gas. When you install a suction side filter, you lower the pressure on the fuel in the feed line, which can lead to vapor lock, especially on hot days.
It is recommended to consult a professional or refer to specific instructions for your vehicle model when determining the exact location for installing an inline fuel filter.
Removing Old Fuel Filters in Boat Motors
You may want to see also
Explore related products
Installing an inline fuel filter before the carburettor
First, it is important to choose the right type of fuel filter. There are various options available, such as high-flow Mallory fuel filters, inline solid fuel filters, or canister filters. The choice depends on your vehicle's specific requirements and your personal preferences.
Next, determine the correct placement of the inline fuel filter. It is recommended to place the filter between the fuel pump and the carburettor. This ensures that the fuel entering the carburettor is clean and free of contaminants. However, some considerations need to be made. If you have a stock-type engine-mounted mechanical diaphragm pump, avoid placing the filter on the suction side of the pump. This can cause a significant drop in fuel pressure and flow due to the pump's inability to "suck" effectively with a filter restriction.
Additionally, consider the angle of the fuel filter. Ideally, the intake should be on the higher side, sloping downwards. This helps with the flow of fuel and prevents any potential issues with a dirty fuel tank.
Now, let's guide you through the installation process:
- Run the engine until it stops due to a lack of fuel. This step ensures that the fuel pump is empty, making it safer to work on the fuel system.
- Allow the engine to cool down before proceeding with any maintenance or installation work.
- Using standard pliers, squeeze the tabs on the hose clamps and slide them away from the hose ends. This will enable you to access the fuel lines.
- Remove the fuel line from both ends of the existing fuel filter. Take note of the orientation and routing of the fuel lines for proper installation of the new filter.
- Install the new inline fuel filter by connecting it to the fuel lines. Ensure that the filter is secure and properly seated.
- Reattach the hose clamps at both ends of the fuel line using the pliers.
- Upon first use, carefully check for any fuel leaks. If leaks are detected, stop the engine immediately, re-secure the hose and clamp, and consult an authorized service dealer if needed.
Remember to refer to your vehicle's operating manual for additional fuel filter maintenance information and always take the necessary safety precautions when working on any automotive systems.
Fuel Filter Functionality: How Does It Work?
You may want to see also
Explore related products
Installing an inline fuel filter after the pump
Installing an inline fuel filter is a great way to ensure your engine receives clean fuel and performs optimally. When considering where to install an inline fuel filter, there are two options: before or after the fuel pump. While some mechanics advise that the ideal location for an inline fuel filter is before the pump, others argue that installing it after the pump has its advantages. Here are some detailed instructions and considerations for installing an inline fuel filter after the pump.
Firstly, it is essential to assess the condition of your fuel tank. If your fuel tank is clean and free of debris or contaminants, it is generally recommended to install the inline fuel filter between the pump and the carburetor. This configuration ensures that the fuel entering the carburetor is clean and free of impurities. However, if your fuel tank is known to have or suspected of having debris or contaminants, it may be advisable to install fuel filters both before and after the pump. This dual-filter approach will help catch any contaminants before they reach the pump and provide an additional layer of protection for the carburetor.
When installing an inline fuel filter after the pump, it is crucial to follow the correct procedure. Begin by running the engine until it stops due to a lack of fuel. Allow the engine to cool down before proceeding with any maintenance work. Use standard pliers to squeeze the tabs on the hose clamps and slide them away from the hose ends. Carefully remove the fuel line from both ends of the existing fuel filter. Install the new inline fuel filter by reversing the removal process and securely connecting it to the fuel lines. Upon initial startup, carefully check for any fuel leaks. If leaks are detected, immediately stop the engine, re-secure the hose and clamp, and consult an authorized service dealer if needed.
It is worth noting that installing an inline fuel filter after the pump has its advantages and disadvantages. One benefit is improved fuel flow rate compared to placing the filter before the pump. Additionally, placing the filter after the pump avoids potential issues with grounding the sending unit, which may occur when the filter is placed before the pump. However, a potential downside is that the filter is pressurized and located near the exhaust header, which may pose safety risks in the event of a small leak.
When deciding on the placement of an inline fuel filter, it is essential to consider the specific characteristics of your vehicle and engine setup. While installing an inline fuel filter after the pump can be a suitable option in many cases, it may require adjustments to the fuel-to-air ratio to compensate for the filter's location. Additionally, ensuring that the fuel tank is clean and free of debris is crucial to maintaining optimal engine performance and reducing the risk of clogging or contamination.
Locating the Fuel Filter on a 2007 Tundra
You may want to see also
Explore related products
Replacing a fuel filter
The fuel filter is typically located along the fuel line, either under the car or in the engine bay. Check your vehicle's owner's manual for the specific location of your fuel filter.
- Relieve the pressure in the fuel system to prevent fuel from spraying out when you remove the old filter. To do this, locate the fuel pump fuse or relay in the fuse box and remove it. Then, start the engine and let it run until it stalls and shuts off.
- Use a wrench or pliers to loosen and remove the fittings on both sides of the fuel filter. Be prepared for fuel to leak out of the lines when you remove them, so have a rag or container handy to catch any spills.
- Disconnect the fuel lines from the fuel filter. The fuel lines are typically connected with quick-connect fittings, which can be disconnected by pressing the tab on the fitting and pulling the line away from the filter.
- Remove the old fuel filter. It is typically held in place with a clamp or bracket, which can be removed with a wrench or pliers. Carefully take out the old filter from its housing and discard it.
- Install the new fuel filter. Insert the new filter into the housing and secure it in place with the clamp or bracket.
- Reconnect the fuel lines to the new fuel filter.
- Upon first use, check for leaks. If fuel is leaking, stop the engine, and re-secure the hose and clamp. Consult an authorized service dealer for assistance if needed.
It is important to always follow the manufacturer's instructions and consult the vehicle's owner's manual to ensure proper replacement.
Finding the Fuel Filter: 1994 Chevy Silverado Guide
You may want to see also
Frequently asked questions
The inline fuel filter should be installed between the pump and the carburetor. This ensures clean fuel for the carburetor and protects the fuel system.
The direction does not seem to matter as long as the fuel passes through the filter. However, some recommend that the angle slope down with the intake on the higher side.
It is recommended to install the filter after the pump to avoid premature wear. Additionally, ensure that the filter is easily accessible for visual checks and maintenance.
Here are the basic steps:
- Run the engine until it stops due to a lack of fuel, and wait for it to cool down.
- Use pliers to squeeze the tabs on the hose clamps and slide them away from the hose ends.
- Remove the fuel line from both ends of the fuel filter.
- Install the new fuel filter in the reverse order, and check for leaks.
Always refer to the specific instructions provided by the manufacturer for your vehicle.
