When troubleshooting fuel pump issues on a 2000 Chevrolet Silverado, understanding the fuel pump relay and its pins is crucial. The fuel pump relay is typically located in the underhood fuse/relay box and controls power delivery to the fuel pump. To test or jump the relay, you’ll need to identify the correct pins: usually, Pin 85 is the ground, Pin 86 connects to the ignition switch, Pin 87 supplies power to the fuel pump, and Pin 30 is the battery feed. By connecting Pin 87 to Pin 30 with a fused jumper wire, you can bypass the relay to determine if the fuel pump is functioning properly. Always consult the vehicle’s wiring diagram for accurate pin identification and exercise caution to avoid electrical damage.
Explore related products
What You'll Learn
- Relay Pin Identification: Locate and identify the specific pins on the fuel pump relay for the 2000 Silverado
- Testing Relay Pins: Use a multimeter to test continuity and voltage across the relay pins
- Common Faulty Pins: Identify which pins are most prone to failure in the fuel pump relay
- Jumping Pins Safely: Learn the correct method to jump pins on the relay without causing damage
- Relay Replacement Tips: Steps to replace the fuel pump relay if jumping pins is not effective
Relay Pin Identification: Locate and identify the specific pins on the fuel pump relay for the 2000 Silverado

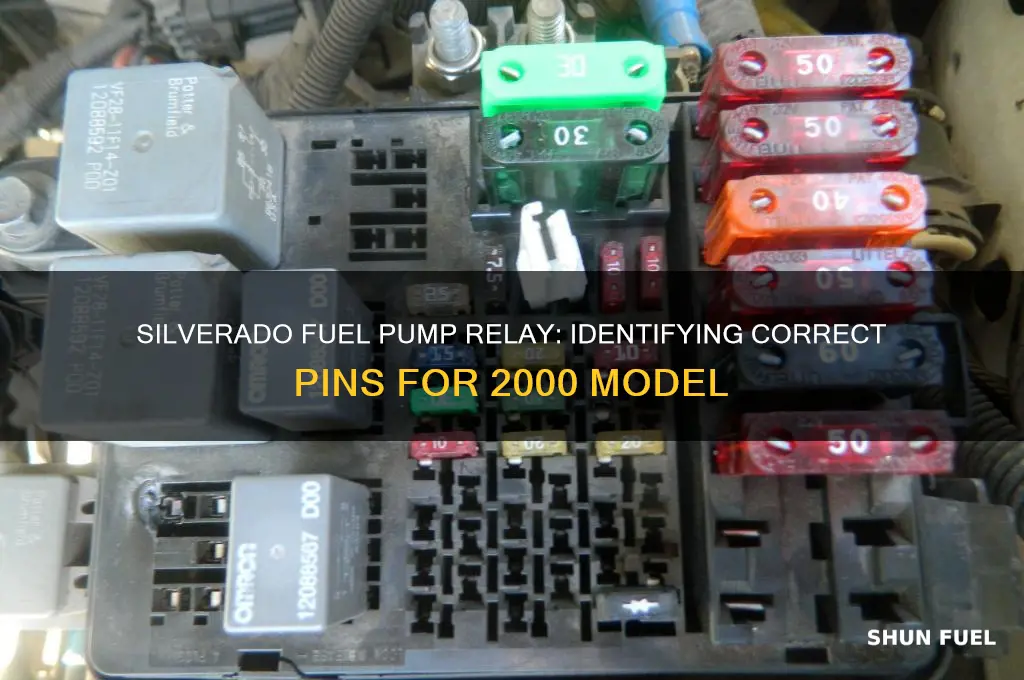

The 2000 Chevrolet Silverado’s fuel pump relay is a critical component in the vehicle’s fuel delivery system, ensuring the pump activates only when the engine is running. To troubleshoot or test the relay, you’ll need to identify and jump specific pins. The relay is typically located in the underhood fuse/relay box, labeled as "FUEL PUMP" or similar. It’s a 5-pin relay with a standard layout: two control pins (85 and 86), two power pins (30 and 87), and one ground pin (87a). Understanding this pin configuration is essential for accurate diagnosis and safe operation.
Analyzing the relay’s function reveals that pins 85 and 86 are the control circuit, activated by the ignition switch. Pin 30 is the battery power input, while pin 87 supplies power to the fuel pump when the relay is energized. Pin 87a is a ground or secondary circuit, often unused in this application. To jump the relay, connect pins 85 and 87 using a fused jumper wire or a small screwdriver with insulated handle. This bypasses the control circuit, directly sending power to the fuel pump. Ensure the ignition is on during the test to simulate normal operating conditions.
A practical tip for identifying pins is to consult the relay’s underside, where the pin numbers are often molded into the plastic housing. If the markings are unclear, refer to the vehicle’s service manual or online diagrams specific to the 2000 Silverado. Alternatively, use a multimeter to test for continuity between pins while the relay is out of the socket. Pin 30 should show battery voltage with the ignition on, and pin 87 should connect to the fuel pump wiring harness. This method ensures you’re working with the correct pins before attempting a jump.
Caution is paramount when jumping relay pins. Avoid prolonged activation of the fuel pump without the engine running, as this can damage the pump or flood the engine with excess fuel. Always use a fused jumper to prevent short circuits, and disconnect the battery if you’re unsure about the procedure. If the fuel pump doesn’t activate when jumping pins 85 and 87, inspect the pump’s fuse, wiring, and ground connections for faults. Jumping the relay is a diagnostic step, not a permanent fix, so address the root cause promptly.
In conclusion, identifying and jumping the correct pins on the 2000 Silverado’s fuel pump relay requires a clear understanding of its pin layout and function. By focusing on pins 85 and 87, you can effectively test the fuel pump’s operation. Combine this knowledge with safety precautions and diagnostic tools to ensure accurate results and avoid damage. This approach not only saves time but also provides a reliable method for troubleshooting fuel delivery issues in your Silverado.
Upgrading Your Vehicle: A Step-by-Step Guide to Installing an Aftermarket Fuel Pump Electronic
You may want to see also
Explore related products
Testing Relay Pins: Use a multimeter to test continuity and voltage across the relay pins
To diagnose issues with the fuel pump relay on a 2000 Silverado, testing relay pins using a multimeter is a precise and effective method. Start by locating the fuel pump relay, typically found in the under-hood fuse/relay box. Identify the relay’s pins, usually labeled 30, 87, 85, and 86, which correspond to power, load, ground, and control circuit, respectively. With the multimeter set to the continuity mode, test the connection between pin 30 and pin 87. A functional relay should show continuity when energized, indicating the circuit is complete. If there’s no continuity, the relay may be faulty. This step isolates whether the relay itself is the problem or if the issue lies elsewhere in the circuit.
Voltage testing provides further insight into the relay’s operation. Switch the multimeter to the voltage setting and connect the probes to pin 85 (control) and pin 86 (ground). With the ignition on, the control circuit should show battery voltage, typically around 12 volts. If voltage is absent, the issue could be a faulty fuel pump fuse, a bad oil pressure switch, or a wiring problem. Next, test pin 30 (power) to ground. If voltage is present here but not at the fuel pump, the relay may not be engaging properly. This systematic approach helps pinpoint whether the relay is receiving the necessary signals to activate the fuel pump.
A practical tip for testing is to use a relay diagram specific to the 2000 Silverado, as pin configurations can vary between models. If unsure, consult the vehicle’s service manual or a reliable online resource. When testing, ensure the ignition is off before handling the relay to avoid electrical hazards. For accuracy, clean the relay terminals and multimeter probes to ensure good contact. If the relay tests good but the fuel pump still doesn’t operate, consider testing the pump itself or checking for a broken wire between the relay and the pump.
Comparing the multimeter readings to expected values is crucial. For instance, if pin 30 shows 12 volts but pin 87 remains at 0 volts with the relay energized, the relay’s internal switch is likely defective. In contrast, if both pins show 12 volts but the pump doesn’t run, the issue may be a bad ground or a faulty pump. This comparative analysis narrows down the problem area efficiently. Always double-check your readings to avoid misdiagnosis, as electrical issues can be subtle.
In conclusion, testing relay pins with a multimeter is a straightforward yet powerful diagnostic technique for the 2000 Silverado’s fuel pump relay. By systematically checking continuity and voltage across specific pins, you can determine whether the relay is functioning correctly or if it needs replacement. This method not only saves time but also prevents unnecessary part replacements. Armed with a multimeter and a basic understanding of relay operation, even a novice can tackle this task with confidence.
Cub Cadet 1046 Fuel Pump: Does It Have One?
You may want to see also
Explore related products
Common Faulty Pins: Identify which pins are most prone to failure in the fuel pump relay
The 2000 Chevrolet Silverado's fuel pump relay is a critical component in the vehicle's fuel delivery system, and pinpointing the most vulnerable pins can save time and frustration during diagnostics. Among the relay's pins, Pin 86 (ground) and Pin 30 (battery power) are particularly susceptible to failure due to their constant exposure to high current and environmental factors like corrosion or loose connections. When these pins fail, the relay cannot complete the circuit, cutting power to the fuel pump and causing the engine to stall or fail to start.
Analyzing failure patterns reveals that Pin 85 (signal from the ECM) is another weak point, especially in older vehicles. This pin relies on a consistent signal to activate the relay, but age-related wear or voltage fluctuations can degrade its functionality. Technicians often report intermittent issues here, such as the fuel pump engaging sporadically or not at all. Testing this pin with a multimeter for continuity and voltage is a critical step in diagnosing relay-related problems.
A comparative look at user reports highlights Pin 87 (output to the fuel pump) as a less common but still significant failure point. While it carries less current than Pin 30, it is prone to damage from overheating or poor solder joints in the relay housing. If this pin fails, the fuel pump will not receive power even if the relay is otherwise functional. Jumping this pin directly to Pin 30 is a common troubleshooting method, but caution is advised to avoid bypassing safety features.
To identify faulty pins, start by inspecting the relay for visible damage, such as burnt marks or corrosion around the pins. Next, use a multimeter to test for continuity between Pin 87 and Pin 85 when the ignition is on. If continuity is absent, focus on Pin 85 and its associated wiring. For Pin 86, check the ground connection by testing resistance to the vehicle chassis. If resistance is high, clean the ground terminal or replace the relay. Practical tip: Always disconnect the battery before working on the relay to prevent short circuits.
In conclusion, understanding the specific vulnerabilities of each pin in the fuel pump relay streamlines troubleshooting and repair. By focusing on Pins 86, 85, and 87, and employing targeted diagnostic techniques, even novice mechanics can efficiently address common issues in the 2000 Silverado's fuel delivery system. Regular maintenance, such as cleaning terminals and checking for loose connections, can prevent many of these failures before they occur.
Step-by-Step Guide: Removing the Fuel Pump in a 2003 Saab 9-3
You may want to see also
Explore related products
Jumping Pins Safely: Learn the correct method to jump pins on the relay without causing damage
Jumping pins on a fuel pump relay can be a quick fix to diagnose or temporarily resolve fuel delivery issues in a 2000 Silverado, but it requires precision to avoid damage. The fuel pump relay in this model typically has four pins: two for the coil (low amperage) and two for the contacts (high amperage). Jumping the wrong pins or using improper tools can fry the relay, damage the fuel pump, or even cause a fire. Always start by identifying the correct pins—usually pin 85 (ground) and pin 86 (positive)—and verify their positions using a wiring diagram or multimeter.
To jump the pins safely, begin by disconnecting the battery to prevent electrical surges. Use a fused jumper wire or a dedicated relay test tool to bridge the pins, ensuring the fuse rating matches the circuit’s requirements (typically 10–15 amps for fuel pump relays). Avoid using bare wires or metal objects, as these can short the circuit. Apply power for no more than 5–10 seconds at a time to prevent overheating. If the fuel pump engages, the relay is likely faulty; if not, the issue may lie elsewhere in the system.
A common mistake is jumping the high-amperage pins (30 and 87) directly, which can bypass safety features and overload the circuit. Instead, focus on the coil pins (85 and 86) to simulate the relay’s activation. If unsure, test the relay outside the vehicle by swapping it with a known-good unit or using a multimeter to check for continuity and resistance. This diagnostic approach minimizes risk while providing clear insights into the relay’s condition.
Practical tips include labeling the pins before starting and keeping a fire extinguisher nearby as a precaution. If the fuel pump fails to engage after jumping the pins, inspect the pump’s wiring harness and fuse for damage. Remember, jumping pins is a temporary solution—replace the relay if it’s faulty to ensure long-term reliability. By following these steps, you can safely diagnose the issue without compromising your vehicle’s electrical system.
Revive Your Fuel Pump: Quick Fixes to Get It Working Again
You may want to see also
Explore related products
Relay Replacement Tips: Steps to replace the fuel pump relay if jumping pins is not effective
Jumping pins on a fuel pump relay can sometimes provide a temporary fix, but if your 2000 Silverado’s fuel pump still isn’t engaging, it’s likely time for a relay replacement. Relays are critical components that control electrical circuits, and a faulty one can leave you stranded. Replacing the fuel pump relay is a straightforward task that requires minimal tools and a bit of patience. Start by locating the relay, typically found in the under-hood fuse box. Consult your vehicle’s manual for the exact location, as it varies by model. Once identified, use a flathead screwdriver to pry the relay out of its slot carefully, ensuring not to damage surrounding components.
Before installing the new relay, inspect the old one for signs of corrosion, burnt pins, or melted plastic. These issues can indicate a deeper electrical problem, such as a failing fuel pump or wiring harness. If the old relay looks damaged, test the fuel pump’s wiring for continuity using a multimeter to rule out other faults. When inserting the new relay, ensure it clicks securely into place. A loose connection can cause intermittent issues, defeating the purpose of the replacement. Always use a relay that matches the original specifications to avoid compatibility issues.
One common mistake during replacement is neglecting to check the fuse associated with the fuel pump relay. Even if the relay is new, a blown fuse will prevent the circuit from functioning. Locate the fuel pump fuse in the fuse box and replace it if necessary. This step often resolves issues that mimic a faulty relay. Additionally, ensure the ignition is off when working on electrical components to prevent accidental shorts or injuries.
After replacing the relay, test the fuel pump by turning the key to the "on" position (without starting the engine). Listen for the pump’s hum, which should last 2-3 seconds as it primes the system. If the pump doesn’t engage, double-check the relay’s orientation and connections. If the problem persists, consult a professional to diagnose potential issues with the pump itself or the vehicle’s computer system. A successful replacement should restore your Silverado’s fuel delivery, ensuring reliable performance on the road.
Step-by-Step Guide to Installing a Fuel Pump Assembly Easily
You may want to see also
Frequently asked questions
To test the fuel pump, jump pins 30 (battery power) and 87 (fuel pump power). This bypasses the relay and sends power directly to the fuel pump.
The fuel pump relay is typically labeled with pin numbers. Pin 30 is the power input (usually from the battery), and pin 87 is the power output to the fuel pump. Refer to the relay diagram or use a multimeter to confirm.
Yes, jumping the wrong pins can cause electrical damage or short circuits. Always ensure you are jumping the correct pins (30 and 87) and avoid connecting power to control or ground pins (e.g., 85, 86, or 86a).
