Fuel level sensors are used in a variety of vehicles and machines to measure fuel levels. They are used in cars, trucks, trains, ships, motorcycles, generators, and more. Fuel level sensors can be used in vehicles with one or multiple fuel tanks. There are several types of fuel level sensors, including floating fuel sensors, capacitive fuel sensors, ultrasonic fuel sensors, and resistive fuel tank level sensors. Fuel level sensors can be calibrated to adjust their readings to accurately measure and reflect the fuel levels on the dashboard.
| Characteristics | Values |
|---|---|
| Type | Floating fuel sensor, capacitive fuel sensor, ultrasonic fuel sensor, resistive fuel tank level sensor, hall-based fuel level sensor |
| Functionality | Sensors use ultrasonic sound waves to measure fuel levels. They emit sound waves that bounce off the surface of the fuel and return to the sensor. |
| Compatibility | Cars, motorcycles, boats, locomotives, ships, generators, machines, fuel pumps, campers, trains, trucks, off-road vehicles, earthmovers, industrial appliances |
| Accuracy | Floating fuel sensors have a relative error ranging from 10-20%. Capacitive and ultrasonic fuel sensors have a relative error of 1-2%. |
| Installation | The measuring tubes will be cut to fit the tank with a gap of 1-1.5 inches (3-4 cm) between the sensor and the bottom to prevent a short circuit. |
| Calibration | Fuel calibration is important to adjust the device's readings and accurately reflect the fuel levels. Calibration techniques include measuring and pouring a stipulated volume of fuel into the tank and recording the reading. |
Explore related products
What You'll Learn
How fuel level sensors work
Fuel level sensors are ingenious devices installed inside fuel tanks to measure the accurate fuel level in real-time. They are used on stationary units, such as fuel tanks at gas stations, and on vehicles: cars, locomotives, ships, etc. The data is shared with telematics software, which massages the raw data and presents it to users in a digestible format.
There are several types of fuel level sensors, each with its own advantages and disadvantages. The three main sensing technologies are ultrasonic, float and reed switch, and capacitive. Ultrasonic sensors are the most accurate, using the time of flight principle to generate a sound wave that bounces off the surface of the fuel and returns to the sensor. The time it takes for the sound wave to return is used to calculate the distance of the fuel and determine its level. However, they are expensive and can be compromised by foam. Float and reed switch sensors are the most common type and consist of a float with a magnet that rides up and down a vertical shaft with the fuel level. As the fuel level changes, the position of the float also changes, resulting in a corresponding change in resistance. Capacitive fuel indicators, on the other hand, have two electrodes that are immersed at the two ends of a fuel tank. The capacitance between the electrodes changes as the fuel level changes, and this change in value is converted into fuel level readings. They are accurate, less susceptible to fuel sloshing and sedimentation, and suitable for both liquid and gas fuels.
The choice between ultrasonic and capacitive fuel sensors depends on various factors. Tank height and shape play a crucial role for capacitive fuel sensors, whereas ultrasonic sensors are only used for vehicles running on gas due to the availability of other options for diesel and petrol. Additionally, dirt and water accumulation at the bottom of the tank can distort the ultrasonic beam and cause false fluctuations in the fuel level readings.
When installing a fuel level sensor, it is important to ensure that the measuring part of the sensor is slightly bigger than the tank height so that it can reach the fuel at the bottom. A gap of 1-1.5 inches (3-4 cm) should be left between the sensor and the bottom to prevent a short circuit due to possible dirt or water accumulation. In the case of extra-long fuel tanks, using two sensors installed diagonally at opposite sides can help eliminate fluctuations in sensor readings.
Building a Boat Fuel Tank: A Comprehensive Guide
You may want to see also
Explore related products
Pros and cons of different types of fuel level sensors
Fuel level sensors are ingenious devices installed inside fuel tanks to measure the accurate fuel level in real time. They are used on stationary units, such as fuel tanks at gas stations, and on vehicles: cars, locomotives, ships, aircraft, etc.
There are several types of fuel level sensors, each with its own pros and cons. Here is a detailed overview of the most common types:

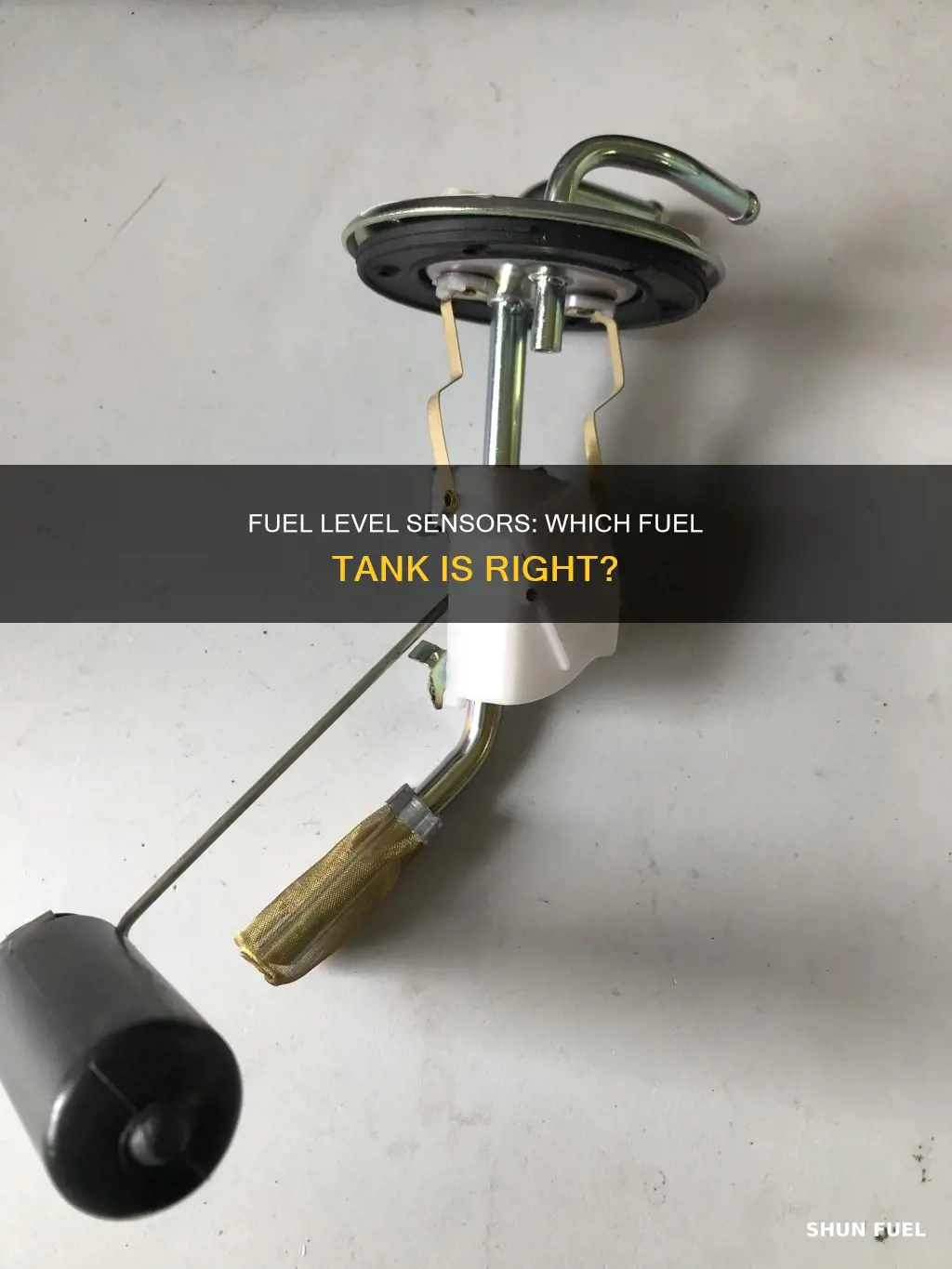

Floating Fuel Sensors
Floating fuel sensors are typically pre-installed in vehicles at the factory. They provide a gauge of the fuel level on the dashboard. However, one of the drawbacks of float sensors is that they only offer an approximate reading and are not highly accurate, with a relative error ranging from 10-20%. They are also susceptible to flaws due to fuel sloshing.
Capacitive Fuel Sensors
Capacitive fuel sensors consist of two electrodes that are immersed at the two ends of a fuel tank. The capacitance between the electrodes changes as the fuel level changes, and this change in value is converted into fuel level readings. These sensors are accurate and less susceptible to fuel sloshing and sedimentation. They are suitable for both liquid and gas fuels and are commonly used in various vehicles, including cars, trucks, vessels, and machines.
Ultrasonic Fuel Sensors
Ultrasonic fuel sensors emit sound waves towards the fuel surface, and the time it takes for the waves to reflect back determines the distance and, consequently, the fuel level. These sensors are known for their precision, with a low relative error of only 1-2%. They are commonly used in vehicles with irregular fuel tanks and are suitable for fuel tanks of different shapes and sizes. However, they tend to be more expensive, and factors such as foam or dirt can compromise the readings.
Hall-Effect Fuel Sensors
Hall-effect fuel sensors, also known as Hall-based sensors, detect changes in the magnetic field (the Hall effect) to determine the fuel level. These sensors offer accurate and non-contact fuel measurement, even in asymmetric fuel tanks. However, they have limited compatibility with most fuel types and are generally more expensive. They are mainly used in industrial fuel systems where compatibility with corrosive fuels is required.
Remote Sensing Fuel Sensors
Remote sensing fuel sensors, such as LiDAR (Light Detection and Ranging) or radar systems, use remote sensing technologies to measure fuel levels without any equipment in the tank. These systems offer advantages in certain scenarios where float-based or capacitance-based systems may not be feasible.
Tractor Fuel Tank Cleaning: Efficient DIY Methods
You may want to see also
Explore related products
Calibration of fuel level sensors
Understanding Calibration
Calibration refers to setting the baseline or zero point for a fuel level sensor. It eliminates errors caused by mechanical variations, sensor adjustments, or electrical drift, ensuring precise fuel level readings. Calibration is necessary to convert fuel level readings into fuel volume, as fuel level sensors measure level rather than volume.
Identify Calibration Parameters
The first step is to identify the specific parameters that require calibration. This includes factors such as sensitivity, accuracy, and zero offset. Refer to the manufacturer's guidelines for precise instructions tailored to your sensor type and model, as procedures may vary.
Baseline Measurement
Take a baseline measurement of the sensor output in its current state. Record the initial voltage value before adding any fuel. This baseline measurement serves as a reference point for subsequent calibration steps.
Fuel Volume Measurement
Divide the fuel tank into 10 to 20 equal parts (passes) and pour fuel into the tank pass by pass. Each pass should be approximately 1/10th to 1/20th of the total tank volume. Record the resulting fuel volume in litres for each pass in a calibration table. If the tank has an irregular shape, adjust the pass volume accordingly, especially when reaching asymmetrical areas.
Sensor Output Recording
After adding each pass of fuel, wait for the fuel level to even out (approximately 2-3 minutes). Then, record the sensor output corresponding to each pass in the calibration table. This step involves measuring the voltage, resistance, or frequency associated with each fuel level.
Data Integration and Testing
Once the calibration table is complete, integrate the data into your fleet management software. Define the calibration points, such as full and empty tank levels. Test the fuel monitoring system for accurate data output and ensure the readings on the dashboard align with the actual fuel levels.
Sensor Training
In some cases, it is beneficial to "train" the sensor by performing the calibration procedure after the vehicle has been in use for a while. This allows for the normalization of mechanical factors and the formation of a stable dielectric layer on the sensor probe, enhancing the accuracy of the sensor output.
By following these steps and considerations, you can ensure accurate calibration of your fuel level sensors, leading to improved fuel management, operational efficiency, and safety.
Trash in Fuel Tank? Quick and Easy Removal Tips
You may want to see also
Explore related products
Installation of fuel level sensors
Fuel level sensors are devices designed to make precise measurements of fuel levels in vehicles. They are installed inside the fuel tank to measure the fuel level in real time. The data collected is then transmitted to the dashboard of a vehicle. The exact position of the installation may vary depending on the type of vehicle and the type of sensor used.
There are several types of fuel level sensors, each with its own installation requirements and advantages. Here are some of the most common types:
- Floating Fuel Sensor: This type of sensor is typically pre-installed in vehicles at the factory. It provides an approximate reading of the fuel level on the dashboard, with a relative error ranging from 10-20%.
- Capacitive Sensor: This sensor is designed to monitor fuel consumption and fuel drains. It consists of two tubes that do not make physical contact, with one tube inserted into the other. The tubes are electrified and connected to the sensor, allowing them to act as capacitor plates. When placed into a vehicle's tank, they are filled with fuel, including the space between the tubes.
- Ultrasonic Fuel Sensor: Ultrasonic fuel sensors emit bursts of sound waves that bounce off the surface of the fuel and return to the sensor. By calculating the time it takes for the sound wave to return, the distance to the fuel surface can be determined. These sensors are highly accurate but are typically used only for vehicles running on gas.
- Resistive Contact-based Sensor: This type of sensor is mechanically connected to a float that moves up or down depending on the fuel level. As the float moves, the resistance of the sensor changes, resulting in a corresponding change in the output voltage. However, these sensors may be subject to wear and tear due to sliding contact inside the sensor elements.
- Bluetooth Fuel Sensor: This type of sensor transmits fuel level data as digital signals over a wireless Bluetooth channel. It offers easy and cheaper installation, and the latest models have no wires at all, even for the power supply.
When installing fuel level sensors, it is important to consider the compatibility of the sensor with the software and to ensure that the CAN bus in the vehicle supports fuel level data monitoring. Additionally, for capacitive sensors, it is crucial to have the tank height and shape information before installation to ensure accurate measurements.
Fuel Tank Upgrade: 93 Chevy S-10 Tank Size Options
You may want to see also
Explore related products
Applications of fuel level sensors
Fuel level sensors are used in a variety of applications to monitor fuel consumption and levels in different types of vehicles, machinery, and equipment.
In the automotive industry, fuel level sensors are used to indicate fuel levels in all types of vehicles, from cars to heavy-duty trucks and off-road vehicles. These sensors are also used in motorsport, unmanned aerial vehicles (UAVs), and aerospace applications. For vehicles with multiple fuel tanks, installing a fuel sensor in each tank provides an accurate measurement of the fuel level.
In industrial applications, fuel level sensors are used to monitor fuel levels in stationary units, such as fuel tanks at gas stations, and in equipment such as back-up power generators. This is especially important in remote locations with limited maintenance access and for critical infrastructures like hospitals and communication towers.
Fuel level sensors are also used in defence and military applications, where precise fuel monitoring is crucial for operations. Additionally, in motorsport and aerospace, fuel level sensors help measure fuel levels in harsh environments with high vibrations.
The sensors work in different ways, depending on the application and the type of sensor used. Some common types of fuel level sensors include:
- Float switches and sensors: These sensors use a float to provide a signal path when the fuel level is below a specified level. When the liquid rises above the specified level, the signal path is broken, and the signal is monitored by a Remote Telemetry Unit (RTU).
- Capacitive sensors: These sensors consist of two tubes that do not touch each other, with one tube inserted into the other. The tubes act as capacitor plates and are electrified, measuring the fuel level based on the change in capacitance.
- Ultrasonic sensors: These sensors emit bursts of sound waves that bounce back from the fuel surface, and the distance is calculated based on the time it takes for the sound waves to return.
Measuring Fuel Tanks: Using a Stick for Accuracy
You may want to see also
Frequently asked questions
A fuel level sensor measures the level of fuel in a tank. They are used in vehicles, vessels, earthmovers, generators, machines, and fuel pumps.
There are several types of fuel level sensors, including resistive, ultrasonic, and capacitive. Resistive fuel sensors, also known as Hall effect fuel sensors, detect changes in the magnetic field, called the Hall effect, to determine fuel levels. Ultrasonic sensors emit sound waves toward the fuel surface, and the time it takes for them to reflect back determines the distance and, therefore, the fuel level. Capacitive sensors have two electrodes at either end of the tank, and the capacitance between them changes as the fuel level does; this value is then converted into fuel level readings.
The accuracy of fuel level sensors varies depending on the type of sensor. Floating fuel sensors, which are pre-installed in vehicles, are not highly accurate, with a relative error of 10-20%. On the other hand, capacitive and ultrasonic fuel sensors are known for their precision, with a relative error of only 1-2%.
Calibration of fuel sensors is important to ensure accurate readings. Fuel calibration typically involves measuring and pouring a stipulated volume of fuel (usually 1/10th or 1/20th of the tank volume) into the tank and then recording the reading. This process is important because factors such as fuel density, sensor drift, and installation variations can affect the values.
Yes, the type of fuel level sensor used can depend on the shape and size of the tank, as well as the number of tanks. For example, extra-long tanks may require two sensors installed diagonally at opposite sides. Tanks with complex shapes may not be compatible with ultrasonic sensors, as the echo signal can be distorted or lost. Additionally, vehicles with two or more fuel tanks will typically require a fuel sensor in each tank to provide an accurate reading.
