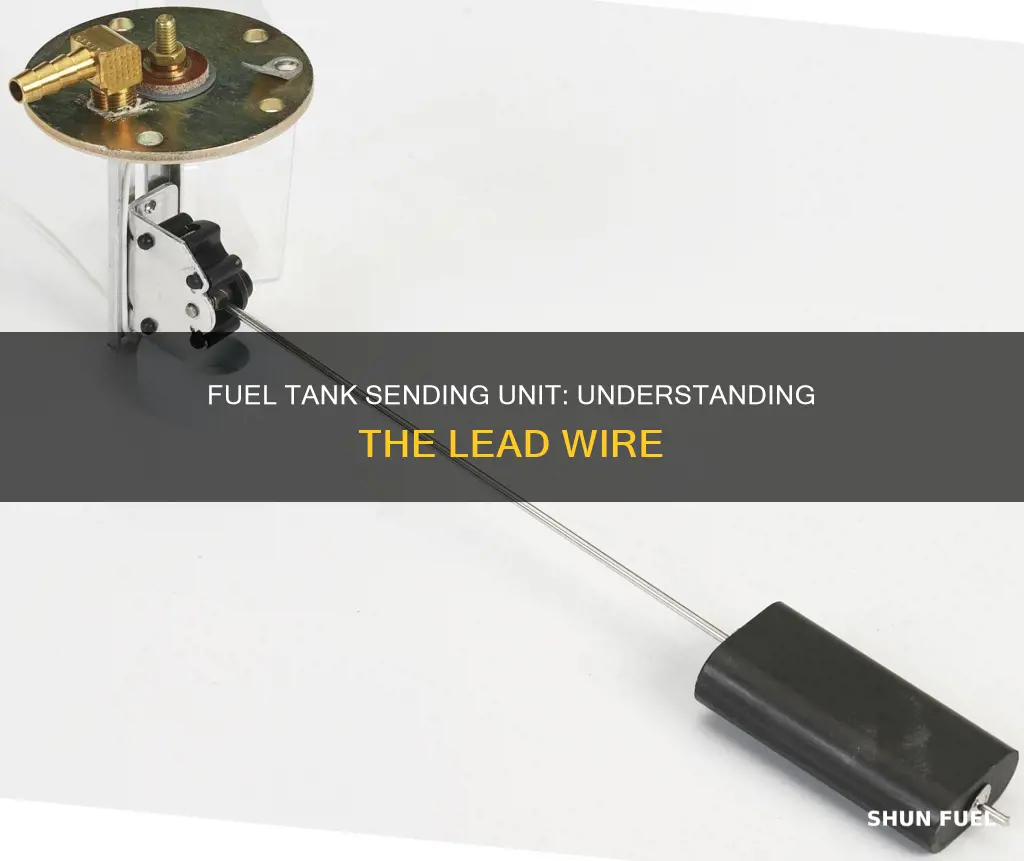

Fuel tank sending units are used to measure the level of fuel in a tank and relay this information to a gauge. They are typically connected to the gauge via wires, with the sending unit acting as a variable resistor that grounds the positive signal from the gauge to control the needle position. The wiring colours vary, but a pink wire is often connected to the 'S' terminal on the fuel gauge, while a black or brown wire serves as the ground. In some cases, a tan wire is used to connect the sending unit to the gauge. It is important to ensure that the ground wire is securely connected to achieve an accurate fuel level reading.
Explore related products
What You'll Learn
The S wire stands for the signal wire
The "S" wire stands for the signal wire coming from the sending unit. The original wire coming from the fuel tank sending unit is "Tan" (signal). The sending unit should also be grounded to the body or chassis. The signal wire transmits information to the gauge. It changes the voltage at the output of the gauge to affect an electromagnet in the gauge to position the needle.
The signal wire and the ground wire are the two wires that come out of the sending unit. They are non-polarity sensitive, meaning they can be hooked up in any way and will still work. The signal wire usually connects to the "S" terminal on the fuel gauge, while the ground wire connects to the GND terminal.
The signal wire is also referred to as the "Tan" wire, while the ground wire is black. The signal wire transmits a signal from the 5v depending on the position of the sensor. The ground wire is a negative ground supplied by the computer.
In some cases, the signal wire may be pink, as indicated in wiring diagrams for certain vehicles. It is important to consult the specific wiring diagram for your vehicle to accurately identify the signal wire.
By understanding the function of the "S" wire as the signal wire, you can ensure proper wiring and connectivity between the sending unit and the fuel gauge, enabling accurate fuel level readings.
Exploring Ford Explorer: Removing the Fuel Tank
You may want to see also
Explore related products
The ground wire is important for the fuel gauge to work
The fuel gauge sending unit is an important component of a vehicle's fuel system. It is responsible for monitoring the level of fuel in the tank and sending this information to the fuel gauge, which then displays the fuel level to the driver. Typically, the sending unit has two wires coming out of it: a signal wire and a ground wire.
The ground wire is crucial for the proper functioning of the fuel gauge. It serves as a return path for electrical current, completing the circuit between the sending unit and the fuel gauge. Without a proper ground connection, the fuel gauge may not receive accurate information about the fuel level, leading to incorrect readings or even a non-functional gauge.
In some cases, the fuel tank itself can provide the necessary ground connection. For example, in older vehicles with metal fuel tanks, the tank can be grounded to the vehicle's chassis, providing a path for electrical current. However, this may not always be the case, especially in newer vehicles or those with non-metallic fuel tanks.
To ensure proper grounding, it is essential to follow the manufacturer's instructions and consult with experts when wiring the sending unit. In some instances, the ground wire from the sending unit may need to be connected to a specific grounding point, such as the vehicle's frame or a dedicated grounding terminal.
Additionally, it is worth noting that issues with the ground wire or the fuel gauge itself can lead to inaccurate readings. For example, a broken or disconnected ground wire can cause the fuel gauge to display an "empty" reading, even when there is fuel in the tank. In such cases, troubleshooting and repairing the ground connection may be necessary to restore the fuel gauge's functionality.
Connecting Fuel Oil Tanks: The Ultimate Guide to Tying Them Together
You may want to see also
Explore related products
The wiring diagram shows a pink wire running to the sender
The pink wire is often accompanied by a black wire, which serves as the ground wire. It connects to the GND terminal on the back of the gauge, ensuring that the electrical circuit is completed and functional.
In some cases, there may be a third wire, typically green or green/black, which is connected to a low fuel warning light. This wire is not always present, depending on the specific vehicle and its features.
It is important to note that while the wiring colours are indicative of their functions, the wires themselves are non-polarity sensitive. This means that they can be connected in any configuration and will still function correctly. However, it is crucial to ensure that the wiring connections are secure and that there is no damage or corrosion, as this can lead to electrical issues and potential safety hazards.
Additionally, when troubleshooting fuel gauge issues, it is recommended to inspect for any gas leaks or the smell of gas. Any leak can be extremely dangerous and requires immediate attention.
Fuel's Journey: Aircraft Tank Filling Process Explained
You may want to see also
Explore related products
The sending unit has two wires coming out of it
It is important to note that the sending unit should also be grounded to the body or chassis of the vehicle. This can be done through a separate ground wire or by mounting screws to the top of the tank. In some cases, the tank itself may provide the grounding if it is made of aluminium.
The wiring of the sending unit is important for the fuel gauge to function correctly. By connecting the signal wire to the "S" terminal on the fuel gauge, the gauge is able to receive a signal from the sending unit and display the fuel level accurately. The ground wire, connected to the GND terminal, completes the circuit and ensures the fuel gauge operates properly.
When troubleshooting fuel gauge issues, it is important to check the wiring between the sending unit and the gauge. This includes verifying that the wires are connected correctly and securely, as well as checking for any signs of damage or corrosion. If the wires are intact and properly connected, then the issue may lie with the sending unit itself or the fuel gauge.
In some cases, issues with the fuel gauge can be resolved by grounding the sending unit wire directly to the vehicle's body or chassis. This can bypass any potential issues with the existing ground connection and help determine if the problem is related to grounding. It is always important to ensure that all connections are secure and that there is no damage or corrosion affecting the wiring.
Testing an Engine: Dry Run Without Fuel Tank
You may want to see also
Explore related products
The fuel gauge works based on variable resistance
A fuel gauge is an instrument used to indicate the amount of fuel in a fuel tank. It consists of two main parts: the sender, which measures the level of fuel in the tank, and the gauge, which displays that level to the driver. The sending unit is located inside the fuel tank and consists of a float, usually made of foam, connected to a thin, metal rod. The end of the rod is attached to a variable resistor, which is an electrical device that resists the flow of electricity. The more resistance there is, the less current will flow.
The variable resistor in a fuel tank consists of a strip of resistive material connected on one side to the ground. A wiper connected to the gauge slides along this strip of material, conducting the current from the gauge to the resistor. The position of the float in the fuel tank determines the amount of resistance in the circuit. When the float is near the top of the tank, the wiper on the variable resistor is close to the grounded (negative) side, resulting in low resistance and a large amount of current passing through the sending unit back to the fuel gauge. As the fuel level drops, the float sinks and the wiper moves, increasing the resistance and decreasing the amount of current sent back to the gauge.
The fuel gauge in the dashboard measures and displays the amount of electric current flowing through the sending unit. When the tank level is high and maximum current is flowing, the needle points to "F", indicating a full tank. As the current decreases with lower fuel levels, the needle moves away from "F". In some vehicles, when the resistance reaches a certain point, it will also turn on a "low fuel" light.
The variable resistor in the fuel tank can be read by a microprocessor, which communicates the reading to another microprocessor in the dashboard. This allows the gauge to be more accurate, especially in cars with irregularly shaped fuel tanks. The microprocessor can also provide damping to the needle movement, preventing sudden changes in the gauge when the vehicle turns or accelerates.
Some fuel gauges use a magnetoresistance-type fuel level sensor, which works similarly to a potentiometer but with a sealed detector at the float pivot that determines the angular position of a magnet pair at the pivot end of the float arm. These sensors are highly accurate and completely eliminate the risk of fire or explosion associated with sending an electric current through a resistor inside the fuel tank.
Fuel Tank Capacity for GMT400 Diesel Variants
You may want to see also
Frequently asked questions
You need to find a ground wire that connects to the top of the cell where the sender terminals are.
The lead wire on a fuel tank sending unit is usually pink. However, it can also be purple or black.
If there is power at the sending unit, it comes from the gauge. This is an indication that the wiring is okay, as long as the ground to the sending unit is good.
