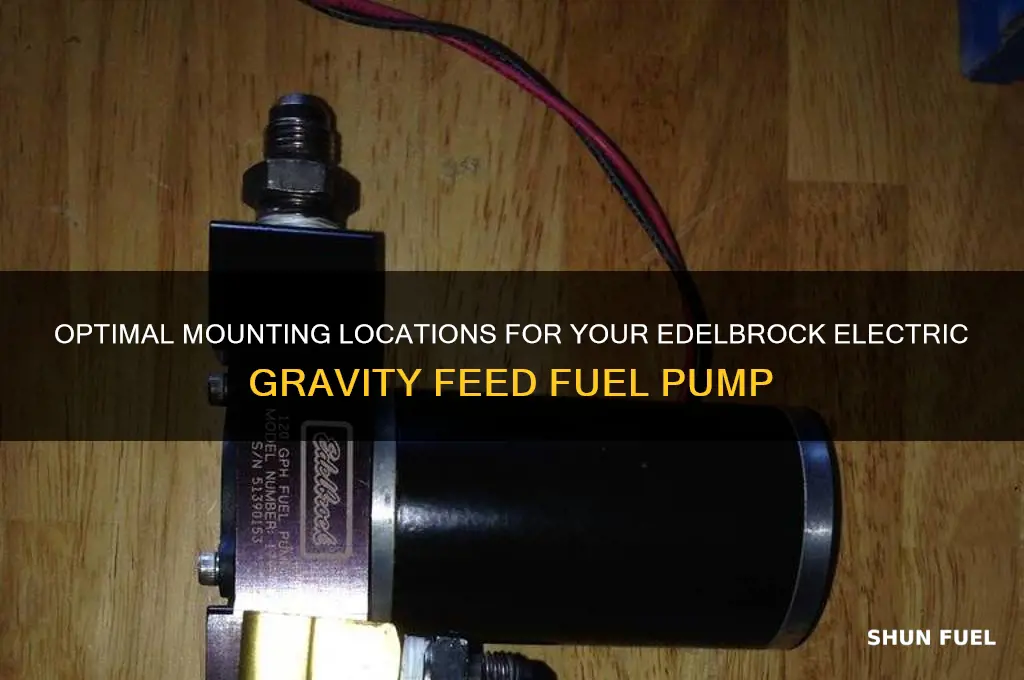

When considering where to mount an Edelbrock electric gravity feed fuel pump, it's essential to prioritize accessibility, safety, and proper fuel flow. The ideal location is typically near the fuel tank, ensuring a consistent gravity feed while minimizing the risk of air pockets or fuel starvation. Mount the pump on a flat, secure surface, away from excessive heat sources like the exhaust or engine block, to prevent damage or vapor lock. Additionally, ensure it’s easily reachable for maintenance and inspection. Common mounting spots include the chassis, firewall, or inner fender wells, provided they are clear of moving parts and offer adequate ventilation. Always consult the manufacturer’s guidelines for specific recommendations to ensure optimal performance and longevity.
| Characteristics | Values |
|---|---|
| Mounting Location | Near the fuel tank, below the fuel level (gravity feed requires lower position) |
| Orientation | Upright, with the inlet port facing downward |
| Clearance | Ensure at least 2-3 inches of clearance around the pump for airflow |
| Vibration Isolation | Use rubber mounts or isolators to minimize vibration |
| Accessibility | Mount in an easily accessible area for maintenance and inspection |
| Protection from Heat | Avoid mounting near exhaust systems or hot engine components |
| Fuel Line Routing | Keep fuel lines as short and straight as possible to minimize restrictions |
| Electrical Connection | Ensure the wiring is routed away from moving parts and heat sources |
| Material Compatibility | Use fuel-resistant materials for mounting brackets and fasteners |
| Grounding | Properly ground the pump to the vehicle chassis to prevent electrical issues |
| Noise Reduction | Mount away from the driver's cabin to minimize pump noise |
| Compatibility with Fuel Type | Ensure the pump is compatible with the type of fuel being used (e.g., gasoline, ethanol blends) |
| Regulatory Compliance | Follow local regulations for fuel system installations |
| Mounting Hardware | Use Edelbrock-recommended hardware or equivalent for secure installation |
| Testing After Installation | Check for leaks and proper operation before driving the vehicle |
Explore related products
What You'll Learn
Engine bay mounting options
Mounting an Edelbrock electric gravity feed fuel pump in the engine bay requires careful consideration of heat, vibration, and accessibility. The engine bay is a high-temperature environment, so positioning the pump away from exhaust manifolds, turbochargers, and headers is critical to prevent fuel vaporization or pump damage. Ideal locations include the firewall, inner fender wells, or the core support, where airflow is sufficient to dissipate heat. Avoid areas directly above or below components that generate intense heat, as this can compromise the pump’s longevity.
When selecting a mounting spot, prioritize vibration isolation to ensure the pump operates smoothly. Use rubber mounts or vibration-damping pads to secure the pump, reducing the risk of fatigue-related failures in the mounting hardware or the pump itself. The firewall is a popular choice because it’s relatively cool and offers a stable mounting surface, but ensure the pump is positioned low enough to maintain gravity feed efficiency. Inner fender wells are another option, provided they’re clear of moving parts and offer adequate clearance for fuel lines.
Accessibility is another key factor in engine bay mounting. Place the pump in a location where it’s easy to inspect, maintain, or replace without disassembling half the engine bay. For example, mounting the pump near the core support allows for quick visual checks and fuel line adjustments. Avoid cramped spaces where access is limited, as this can turn routine maintenance into a frustrating ordeal. Always ensure the pump is securely fastened to prevent movement during driving, which could lead to fuel line disconnections or damage.
Comparing engine bay mounting options, the firewall stands out as the most balanced choice for an Edelbrock electric gravity feed fuel pump. It offers a cooler environment, stable mounting surface, and reasonable accessibility. However, if the firewall is already crowded with components, the inner fender well is a viable alternative, provided it’s shielded from direct heat sources. Core support mounting is less common due to space constraints but can work in vehicles with ample room. Ultimately, the best location depends on your vehicle’s layout and your willingness to adapt the mounting setup to fit the pump’s needs.
To ensure a successful installation, follow these practical tips: measure the pump’s dimensions and clearance requirements before drilling any holes, use stainless steel hardware to resist corrosion, and route fuel lines away from hot components. Test the pump’s operation after mounting to verify proper fuel flow and check for leaks. By thoughtfully selecting an engine bay mounting location and adhering to best practices, you can maximize the performance and reliability of your Edelbrock electric gravity feed fuel pump.
Step-by-Step Guide to Mounting an Electric Fuel Pump Correctly
You may want to see also
Explore related products
Fuel cell installation tips
Mounting an Edelbrock electric gravity feed fuel pump requires strategic placement to ensure optimal performance and safety. One critical aspect often overlooked is the fuel cell installation, which serves as the pump’s lifeline. A poorly installed fuel cell can lead to fuel starvation, pump failure, or even safety hazards. To avoid these issues, start by selecting a fuel cell with a capacity that matches your engine’s demands—typically, a 5-gallon cell suffices for most street applications, while racing setups may require 10-20 gallons. Ensure the cell is mounted at a lower elevation than the pump to facilitate gravity feed, reducing the pump’s workload and extending its lifespan.
When positioning the fuel cell, prioritize accessibility for maintenance and inspection. Mount it in a secure, vibration-free area, such as the rear of the vehicle or trunk, using steel straps or brackets rated for the cell’s weight. Avoid areas prone to extreme heat, like near exhaust systems, as this can degrade the cell’s integrity. For added safety, install a rollover valve to prevent fuel spillage in accidents and ensure the cell is grounded to avoid static electricity buildup. Proper grounding can be achieved by connecting the cell to the vehicle’s chassis using a 10-gauge wire.
Ventilation is another critical factor in fuel cell installation. Fuel cells must be vented to prevent pressure buildup, which can cause leaks or damage. Use a vented cap or install a vent line routed away from the engine bay and passenger compartment. The vent line should be at least ¼-inch in diameter and made of fuel-resistant material. For systems with a return line, ensure the fuel cell has a dedicated return port to prevent aeration and maintain consistent fuel pressure.
Finally, consider the fuel pump’s proximity to the fuel cell during installation. While the pump should be mounted higher than the cell, it must also be within 12-18 inches vertically to maintain efficient gravity feed. Excessive distance can lead to cavitation, reducing pump efficiency. Use rubber isolators when mounting the pump to minimize vibration and noise. By integrating these fuel cell installation tips, you’ll create a reliable fuel delivery system that maximizes the Edelbrock pump’s performance while ensuring safety and longevity.
How Motors Draw Gas Without a Fuel Pump: Alternative Methods Explained
You may want to see also
Explore related products
Firewall clearance considerations
Mounting an Edelbrock electric gravity feed fuel pump near the firewall demands meticulous attention to clearance to prevent heat damage and ensure safe operation. The firewall, being a heat conductor from the engine bay, can reach temperatures exceeding 300°F (149°C) under load. Positioning the pump too close without adequate insulation risks melting its housing or damaging internal components, potentially leading to fuel leaks or pump failure. Measure the distance between the pump and firewall, aiming for a minimum gap of 2–3 inches (5–7.5 cm) to allow airflow and dissipate heat. Use a thermal barrier, such as a heat shield or insulating sleeve, if closer placement is unavoidable.
Analyzing common mounting mistakes reveals a recurring issue: underestimating heat transfer through metal components. Even with proper spacing, direct contact between the pump’s mounting bracket and firewall can conduct heat, bypassing the intended clearance. To mitigate this, use non-conductive spacers or rubber gaskets between the bracket and firewall. Additionally, avoid routing fuel lines too close to exhaust manifolds or headers, as radiant heat can degrade the lines over time. A well-planned installation considers both direct and indirect heat sources, ensuring longevity and reliability.
Persuasively, prioritizing firewall clearance isn’t just about preventing damage—it’s about optimizing performance. A fuel pump operating at elevated temperatures can experience reduced flow rates, compromising engine efficiency. For example, Edelbrock pumps are rated for optimal performance between 60°F and 120°F (15°C and 49°C). Exceeding this range, even marginally, can lead to vapor lock or inconsistent fuel delivery. By maintaining proper clearance and insulation, you safeguard not only the pump but also the engine’s overall performance, especially in high-temperature environments like desert racing or summer track days.
Comparatively, mounting the pump on the firewall versus elsewhere in the engine bay highlights trade-offs. Firewall mounting offers convenience and proximity to the fuel lines, but it requires more stringent heat management. In contrast, mounting the pump further away, such as on the frame rail or inner fender, reduces heat exposure but may complicate fuel line routing and increase the risk of contamination. If firewall mounting is the chosen approach, combine it with active cooling measures, such as directing airflow from a shroud or fan, to balance accessibility and thermal protection.
Descriptively, envision the firewall as a boundary between the engine’s inferno and the pump’s delicate internals. Its role in heat dissipation is both a challenge and an opportunity. By treating the firewall not as an obstacle but as a design constraint, you can craft a mounting solution that harmonizes form and function. Picture a setup where the pump sits securely, insulated yet integrated, with fuel lines neatly routed and heat shields gleaming—a testament to thoughtful engineering. This approach transforms a potential hazard into a showcase of precision, ensuring the pump thrives even in the harshest conditions.
Understanding the Functionality of Fass Fuel Pump Pulse Systems
You may want to see also
Explore related products
Frame rail mounting guide
Mounting an Edelbrock electric gravity feed fuel pump on the frame rail is a popular choice for many enthusiasts due to its accessibility and structural integrity. This method ensures the pump is securely positioned away from excessive heat and vibration, which can compromise performance and longevity. Frame rail mounting also simplifies fuel line routing, reducing the risk of leaks and improving overall efficiency. However, success hinges on precise execution, as improper placement can lead to fuel starvation or mechanical stress.
Steps for Frame Rail Mounting:
- Locate the Ideal Position: Choose a spot along the frame rail that is level and within 12 inches of the fuel tank to maintain gravity feed efficiency. Avoid areas near exhaust systems or components that generate excessive heat.
- Prepare the Mounting Bracket: Use a sturdy steel or aluminum bracket to secure the pump. Ensure the bracket is compatible with the pump’s dimensions and allows for vibration isolation using rubber bushings or pads.
- Secure the Bracket: Weld or bolt the bracket to the frame rail, ensuring it is firmly attached. Bolting is preferred for ease of removal and adjustment, but welding provides maximum stability.
- Install the Pump: Attach the pump to the bracket, ensuring it is level and aligned with the fuel tank. Use stainless steel hardware to prevent corrosion.
Cautions to Consider:
- Avoid mounting the pump too low, as it may expose it to debris or water on the road.
- Ensure the pump is not obstructed by other components, which could restrict airflow and cause overheating.
- Double-check fuel line connections for tightness to prevent leaks, especially during high-vibration conditions.
Frame rail mounting is a reliable and practical solution for installing an Edelbrock electric gravity feed fuel pump. By following these steps and precautions, you can achieve a secure, efficient setup that enhances your vehicle’s fuel delivery system. This method not only optimizes performance but also ensures long-term durability, making it a preferred choice for both casual drivers and racing enthusiasts alike.
Does a Toyota RAV4 Have a Fuel Pump? Explained
You may want to see also
Explore related products
Fuel line routing best practices
Mounting an Edelbrock electric gravity feed fuel pump requires careful consideration of fuel line routing to ensure optimal performance and safety. The pump’s efficiency depends on minimizing bends, kinks, and obstructions in the fuel line, as these can restrict flow and create pressure drops. Always route the fuel line along the chassis or frame rails, using rubber or nylon clamps every 12 to 18 inches to secure it firmly. Avoid areas prone to excessive heat, such as near the exhaust manifold or catalytic converter, as high temperatures can degrade the fuel line material and compromise fuel delivery.
When planning the fuel line path, prioritize a downward slope from the tank to the pump to assist gravity in feeding fuel. This reduces the pump’s workload and ensures consistent flow, especially in high-performance applications. If the tank is lower than the pump, install a fuel line with a slight rise before descending to the pump to prevent air pockets. Use high-quality fuel line materials, such as stainless steel or reinforced rubber, to withstand pressure and resist corrosion from ethanol-blended fuels.
Sharp bends in the fuel line can restrict flow and increase the risk of leaks. Aim for gradual curves with a minimum bend radius of 5 inches for 3/8-inch fuel lines. If routing around tight spaces is unavoidable, consider using pre-formed bends or flexible hose sections to maintain smooth flow. Inspect the fuel line for any signs of abrasion or wear, especially where it passes through firewall openings or near moving components like suspension parts.
Proper grounding of the fuel pump and fuel line is often overlooked but critical for safety and performance. Ensure the pump’s ground wire is securely connected to a clean, unpainted metal surface on the chassis. Poor grounding can lead to erratic pump operation or electrical issues. Additionally, use a fuel filter within 12 inches of the pump to protect it from debris and ensure clean fuel delivery. Regularly inspect the entire fuel system for leaks, especially after installation or modifications, using a soapy water solution to detect escaping fuel vapor.
Finally, test the fuel line routing under various conditions, including hard acceleration, braking, and cornering, to ensure it remains secure and functional. Vibrations and movement can cause lines to shift or loosen over time, so periodic checks are essential. By adhering to these best practices, you’ll maximize the efficiency and reliability of your Edelbrock electric gravity feed fuel pump while minimizing the risk of fuel system failures.
Testing the 1993 Mitsubishi MFI Fuel Pump Relay: A Step-by-Step Guide
You may want to see also
Frequently asked questions
The best location is near the fuel tank, as close as possible to ensure a consistent fuel supply. Mount it in a cool, dry area away from exhaust heat and moving parts.
Yes, but it’s not ideal. Mounting it inside the engine bay increases the risk of heat exposure, which can affect performance. It’s better to mount it outside the engine bay if possible.
No, it does not need to be below the fuel tank. Since it’s a gravity feed pump, it works best when mounted at or near the fuel tank level to ensure proper fuel flow.
The pump should be mounted horizontally or with a slight downward angle toward the engine to ensure proper fuel flow. Avoid mounting it upside down or at a steep angle.
