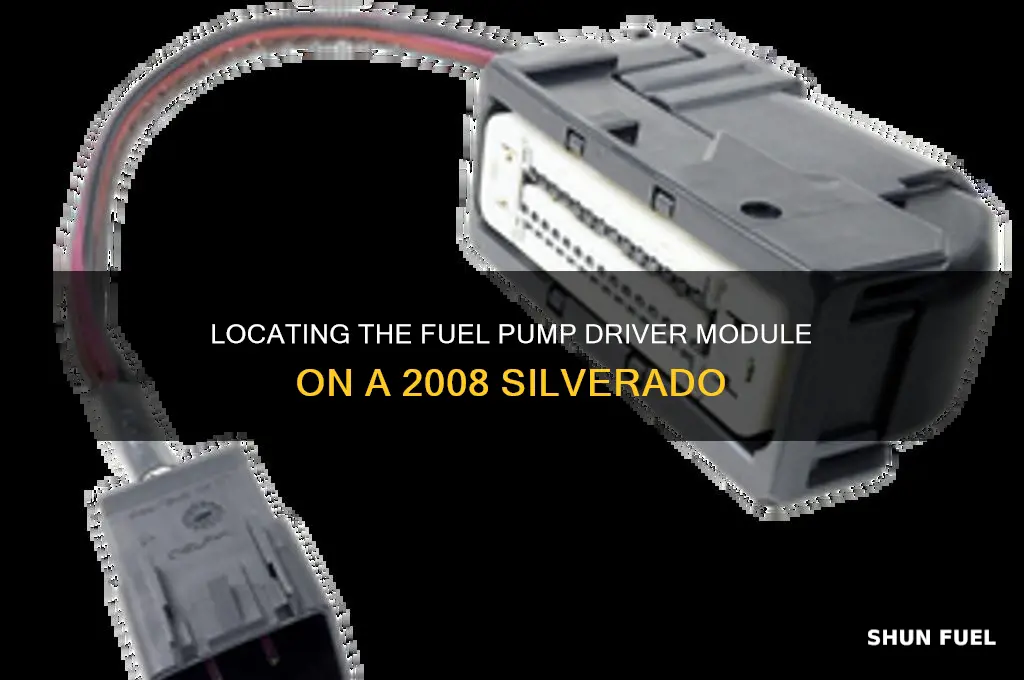

The fuel pump driver module (FPDM) on a 2008 Chevrolet Silverado is a critical component responsible for controlling the fuel pump's operation, ensuring proper fuel delivery to the engine. Located near the fuel tank, typically on the driver's side frame rail or within the rear quarter panel, the FPDM is often integrated into the fuel pump assembly itself or mounted separately, depending on the specific model and configuration. Identifying its exact location requires consulting the vehicle's service manual or visually inspecting the area around the fuel tank, as its placement can vary slightly based on the Silverado's trim level or drivetrain. Properly locating the FPDM is essential for diagnosing fuel system issues, such as a non-starting engine or erratic fuel pressure, as it houses the relay and control circuitry that powers the fuel pump.
| Characteristics | Values |
|---|---|
| Location | Typically located near the fuel tank, often on the frame rail or inside the fuel tank assembly. |
| Function | Controls the fuel pump operation, ensuring proper fuel delivery to the engine. |
| Appearance | Small, rectangular module with electrical connectors. |
| Compatibility | Specific to 2008 Chevrolet Silverado models. |
| Common Issues | Failure can lead to no-start conditions or erratic fuel pump operation. |
| Replacement Difficulty | Moderate; requires locating the module and disconnecting electrical connectors. |
| Part Number (Reference) | Varies by specific model and manufacturer (e.g., AC Delco part numbers). |
| Diagnostic Trouble Codes (DTCs) | Related codes may include P0230, P0231, or P0232 for fuel pump circuit issues. |
| Access | May require removing underbody panels or fuel tank for access. |
| Cost (Approximate) | $100-$300 depending on brand and whether it’s OEM or aftermarket. |
Explore related products
What You'll Learn
Location of Fuel Pump Driver Module
The fuel pump driver module (FPDM) in a 2008 Chevrolet Silverado is a critical component responsible for controlling the fuel pump’s operation, ensuring proper fuel delivery to the engine. Locating this module is essential for diagnostics, maintenance, or replacement. In the 2008 Silverado, the FPDM is typically mounted on the frame rail, near the driver’s side rear tire. This placement is strategic, as it keeps the module away from extreme heat and moisture, which could compromise its functionality. Accessing it requires basic tools and a clear understanding of its exact position.
To locate the FPDM, start by parking the vehicle on a flat surface and engaging the parking brake. Use a jack and jack stands to safely lift the driver’s side rear of the vehicle for better visibility and access. The module is usually found on the inside of the frame rail, secured by a bracket and bolts. It is often encased in a protective housing to shield it from road debris and environmental factors. A flashlight may be necessary to spot it, as the area can be shadowed. Once identified, inspect the module for signs of damage, corrosion, or loose connections, which are common issues that can affect fuel system performance.
Comparing the 2008 Silverado’s FPDM location to other vehicles highlights Chevrolet’s design choice for accessibility. Unlike some models that place the module inside the fuel tank, the Silverado’s external mounting simplifies repairs and reduces labor costs. However, this external location also means the module is more exposed to potential impacts from road hazards. Owners should periodically check the area around the FPDM for signs of physical damage, especially after driving on rough terrain or in areas with debris.
For those replacing the FPDM, ensure the replacement module is compatible with the 2008 Silverado’s specific make and model. Disconnect the battery before beginning work to prevent electrical mishaps. After removing the old module, clean the mounting area to ensure a secure fit for the new one. Reattach all connectors and bolts tightly, but avoid over-tightening to prevent damage. Once installed, lower the vehicle and test the fuel system by starting the engine and checking for any leaks or abnormal noises. Proper installation is key to restoring optimal fuel pump functionality.
In summary, the fuel pump driver module on a 2008 Silverado is located on the driver’s side frame rail near the rear tire. Its external placement offers repair advantages but requires regular inspection for damage. Understanding its location and function empowers owners to address fuel system issues efficiently, ensuring their vehicle remains reliable and safe. Always prioritize safety when working under the vehicle and consult a professional if unsure about any step.
