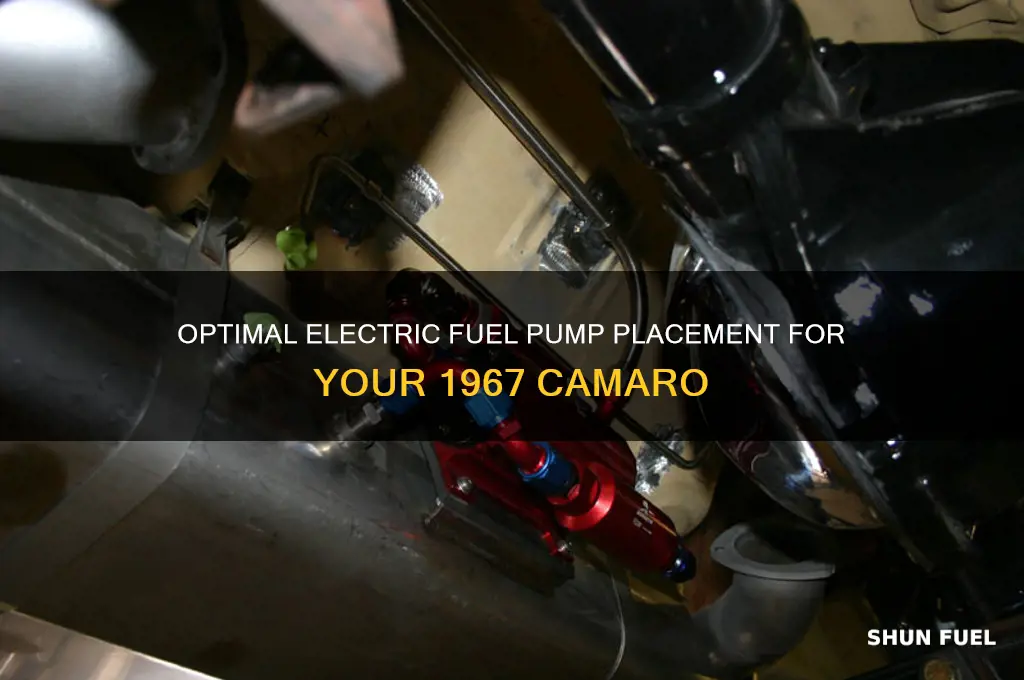

Installing an electric fuel pump on a 1967 Camaro requires careful consideration of location to ensure optimal performance, safety, and ease of maintenance. The ideal spot is typically in the fuel tank, as this provides a submerged environment that helps keep the pump cool and ensures a consistent fuel supply. However, if an in-tank installation isn’t feasible due to tank design or preference, mounting the pump near the fuel tank or along the chassis rail is a viable alternative, though it must be protected from heat sources and potential damage. Proper grounding, secure mounting, and adherence to manufacturer guidelines are essential to prevent leaks, electrical issues, and ensure reliable fuel delivery for your classic Camaro.
| Characteristics | Values |
|---|---|
| Recommended Location | Inside the fuel tank (in-tank installation) |
| Alternative Location | Near the fuel tank, on the chassis rail or frame (external installation) |
| Mounting Orientation | Ensure pump is mounted securely to avoid vibration and fuel line stress |
| Fuel Line Routing | Use high-pressure fuel lines with proper fittings and clamps |
| Electrical Connection | Connect to a switched 12V power source (e.g., fuel pump relay or ignition) |
| Grounding | Securely ground the pump to the chassis for reliable operation |
| Fuel Filter Placement | Install a pre-filter before the pump and a post-filter after the pump |
| Safety Considerations | Avoid areas prone to extreme heat or exhaust exposure |
| Compatibility | Use a fuel pump compatible with the 67 Camaro's fuel system (e.g., EFI or carbureted) |
| Regulator Requirement | Install a fuel pressure regulator if not integrated into the pump |
| Noise Reduction | Use rubber mounts or isolators to minimize pump noise |
| Clearance | Ensure sufficient clearance from moving parts and hot surfaces |
| Ventilation | Ensure proper ventilation if installing externally to prevent fuel vapor buildup |
| Wiring Protection | Use heat-resistant wiring and protect wires from abrasion or damage |
| Testing | Test the pump for proper operation before finalizing installation |
Explore related products
What You'll Learn
Engine Bay Placement Options
Mounting an electric fuel pump in the engine bay of a '67 Camaro requires balancing accessibility, safety, and performance. The firewall offers a popular location, often near the brake booster or master cylinder. This placement keeps the pump close to the fuel lines, reducing the risk of vapor lock, a common issue in carbureted systems. However, ensure the pump is secured with vibration-dampening mounts to prevent damage from engine movement. Additionally, verify clearance with other components to avoid overheating or interference.
For those prioritizing aesthetics and functionality, the inner fender wells present a discreet yet practical option. Mounting the pump here keeps it out of sight while maintaining proximity to the fuel system. Use stainless steel hardware to combat corrosion, especially in areas exposed to road debris and moisture. Route the wiring harness along existing paths to maintain a clean look and minimize the risk of chafing. This location also allows for easier inspection and maintenance compared to deeper engine bay placements.
If space is at a premium, consider the core support as a mounting point. This area, located behind the grille, provides a central position that simplifies fuel line routing. However, be mindful of heat from the radiator and ensure the pump is shielded from direct airflow to prevent overheating. Use heat-resistant insulation if necessary. This placement also requires careful planning to avoid obstructing airflow to the radiator or interfering with other front-end components.
Lastly, for enthusiasts seeking a custom solution, fabricating a bracket to mount the pump near the carburetor can optimize fuel delivery. This setup minimizes pressure drop and ensures consistent fuel supply. Secure the pump with adjustable brackets to fine-tune its position relative to the carburetor. While this method demands more effort, it offers performance benefits, particularly in high-horsepower applications. Always test the system for leaks and proper operation before finalizing the installation.
Step-by-Step Guide: Installing Walbro Fuel Pump on Honda V6 Engines
You may want to see also
Explore related products
Fuel Tank Installation Pros/Cons
Installing an electric fuel pump in a '67 Camaro often leads to debates about the ideal location, with the fuel tank being a primary contender. Placing the pump inside the tank offers several advantages, starting with improved fuel cooling. As the pump submerges in the fuel, it reduces the risk of overheating, a common issue with external setups. This internal placement also ensures a consistent fuel supply, as the pump draws directly from the source, minimizing the chances of airlocks or vapor lock, especially during high-performance driving.
However, tank-mounted installations come with challenges. Retrofitting a '67 Camaro's original tank to accommodate an in-tank pump requires careful modification, including cutting into the tank and ensuring a sealed, leak-free environment. This process demands precision and often involves specialized tools or professional assistance, adding to the cost and complexity. Additionally, accessing the pump for maintenance or replacement becomes more difficult, as it necessitates dropping the tank, a labor-intensive task that can deter DIY enthusiasts.
Despite these drawbacks, the safety benefits of in-tank installations are compelling. By keeping the pump away from the engine bay, the risk of fuel leaks near hot components is significantly reduced. This setup also lowers the chances of electrical shorts or fires, making it a safer option for both daily drivers and track-focused builds. For those prioritizing reliability and safety, the fuel tank installation is often the superior choice.
A practical tip for those considering this route is to invest in a high-quality aftermarket tank designed for electric fuel pumps. These tanks come pre-modified with sender units and pump mounts, streamlining the installation process. While more expensive upfront, they save time and reduce the potential for errors, making them a worthwhile investment for long-term performance and peace of mind. Ultimately, the decision hinges on balancing convenience, safety, and the willingness to tackle intricate modifications.
Installing a Fuel Pump on Your 1956 Ford Thunderbird: Step-by-Step Guide
You may want to see also
Explore related products
Inline vs. In-Tank Pump Setup
Choosing between an inline and an in-tank fuel pump setup for your 1967 Camaro hinges on your performance goals, budget, and willingness to modify the vehicle. Inline pumps, typically mounted along the fuel line between the tank and engine, offer simplicity and ease of access for maintenance. They’re ideal for carbureted setups or mild performance builds where fuel demand is moderate. However, inline pumps can introduce aeration issues if not properly vented, and their exposed location makes them vulnerable to heat and debris. For a 67 Camaro, common inline installation spots include the frame rail or under the car near the rear axle, ensuring they’re away from exhaust heat and securely mounted to avoid vibration damage.
In-tank fuel pump setups, on the other hand, are favored for high-performance applications due to their ability to handle increased fuel demands and maintain consistent pressure. By submerging the pump in the fuel tank, it stays cooler and reduces the risk of cavitation, ensuring reliable operation under heavy load. This setup requires modifying the stock fuel tank or installing an aftermarket tank designed for in-tank pumps, which can be costly and labor-intensive. For a 67 Camaro, this involves cutting into the tank, installing a hanger assembly, and ensuring proper grounding to prevent electrical issues. While more complex, in-tank pumps are the go-to choice for fuel-injected or high-horsepower builds where fuel delivery is critical.
When deciding between the two, consider your engine’s fuel requirements. A stock or mildly modified 67 Camaro with a carburetor may perform well with an inline pump, especially if you opt for a high-quality unit like a Holley or Aeromotive model. For engines pushing over 400 horsepower or using fuel injection, an in-tank pump becomes nearly mandatory to meet the increased demand. Inline pumps can struggle to deliver sufficient volume and pressure under these conditions, leading to lean conditions or engine damage. Always pair your pump with a pre-filter and a regulator to ensure clean fuel and stable pressure, regardless of the setup.
Installation nuances further differentiate the two. Inline pumps require careful routing of fuel lines to avoid kinks or leaks, and their external location demands attention to heat shielding and mounting stability. In-tank pumps, while more involved to install, eliminate the need for external lines and reduce the risk of fuel starvation during hard cornering or acceleration. If opting for an in-tank setup, ensure the pump’s flow rate matches your engine’s needs—a pump rated for 255 LPH (liters per hour) is common for moderate performance builds, while high-output engines may require 340 LPH or more. Always follow manufacturer guidelines for wiring and grounding to prevent electrical failures.
Ultimately, the choice between inline and in-tank fuel pump setups for your 67 Camaro boils down to balancing performance needs with practicality. Inline pumps offer a budget-friendly, straightforward solution for mild builds, while in-tank pumps provide the reliability and capacity required for serious performance upgrades. Assess your engine’s fuel demands, your budget for modifications, and your tolerance for installation complexity before making a decision. Whichever route you choose, proper installation and maintenance will ensure your fuel system delivers consistent performance for years to come.
Where to Find Your Golf's Fuel Pump: A Quick Guide
You may want to see also
Explore related products
Mounting Near Fuel Filter Tips
Mounting an electric fuel pump near the fuel filter on a '67 Camaro offers both practical and performance advantages, but it requires careful consideration to ensure safety and efficiency. Positioning the pump close to the filter minimizes the distance fuel must travel, reducing the risk of vapor lock and ensuring consistent fuel delivery. This setup also simplifies plumbing, as shorter lines mean fewer potential leak points and less pressure drop. However, the proximity to the filter demands attention to heat management, as the pump’s operation can generate warmth that may affect fuel temperature.
When installing the pump near the filter, prioritize a location that allows for adequate airflow and heat dissipation. Avoid placing the pump directly above the exhaust system or other high-heat areas. Instead, opt for a spot where ambient air can cool the pump, such as near the inner fender or along the frame rail. Using heat shielding or insulating materials between the pump and nearby components can further mitigate thermal issues. Ensure the pump is securely mounted to prevent vibration, which can lead to premature failure or fuel line damage.
Another critical factor is the orientation of the pump relative to the filter. Position the pump slightly lower than the filter to facilitate fuel flow and prevent air pockets from forming. This arrangement ensures the pump draws fuel efficiently, reducing the strain on the system. Use rubber isolators or vibration-damping mounts to secure the pump, as these materials absorb shocks and extend the pump’s lifespan. Additionally, ensure all fittings are tightened to manufacturer specifications to avoid leaks, which can be hazardous in a high-heat environment.
For optimal results, integrate the pump and filter into a single assembly if possible. This not only streamlines the installation but also enhances the overall aesthetics of the engine bay. Custom brackets or mounting plates can be fabricated to hold both components securely, ensuring they remain aligned during operation. When routing fuel lines, use high-pressure hose rated for fuel systems and secure them with clamps to prevent movement. Regularly inspect the setup for signs of wear or damage, particularly after long drives or high-performance use.
In conclusion, mounting an electric fuel pump near the fuel filter on a '67 Camaro combines functionality with efficiency, but it demands attention to detail. By addressing heat management, orientation, and secure mounting, you can create a reliable fuel delivery system that enhances performance and safety. This approach not only simplifies maintenance but also ensures your classic muscle car operates smoothly for years to come.
Mastering Transit Fuel Pump Coding: A Comprehensive Step-by-Step Guide
You may want to see also
Explore related products
Safety & Clearance Considerations
Installing an electric fuel pump on a 1967 Camaro requires careful attention to safety and clearance to prevent hazards and ensure optimal performance. The fuel pump’s location must be free from excessive heat sources, such as exhaust manifolds or headers, as prolonged exposure to high temperatures can degrade the pump’s components or even ignite fuel vapors. Measure the distance between the pump and potential heat sources; a minimum clearance of 6 inches is recommended, though 12 inches is ideal for added safety. Additionally, avoid placing the pump directly above the exhaust system, as radiant heat can still pose a risk.
Clearance is equally critical to prevent physical damage and ensure accessibility for maintenance. The fuel pump should be mounted in a location that allows for at least 2 inches of clearance on all sides to accommodate wiring, fuel lines, and future repairs. Avoid areas prone to debris or moisture, such as directly behind the front grille or under the vehicle where road spray and dirt accumulate. For in-tank installations, ensure the tank has sufficient space to house the pump without obstructing the fuel sender or other internal components. If mounting externally, consider using a protective shield to guard against debris and accidental impacts.
Electrical safety is another key consideration. Route the pump’s wiring away from moving parts, sharp edges, and high-temperature areas to prevent insulation damage. Use high-temperature wire looms or heat-resistant sleeving for added protection. Ground the pump securely to the chassis to prevent electrical interference and ensure reliable operation. If the pump draws more than 10 amps, upgrade the wiring to a minimum of 12-gauge to handle the load safely. Always install an inline fuse within 12 inches of the power source to protect against short circuits.
Finally, consider the fuel pump’s orientation and vibration management. Mount the pump securely using rubber isolators or anti-vibration pads to minimize noise and stress on the unit. Ensure the pump is installed in a position that allows fuel to flow naturally toward the engine, avoiding air pockets or restrictions. For external installations, angle the pump slightly downward to prevent fuel from pooling around the motor. Regularly inspect the mounting hardware for looseness, as vibrations from the engine and road can cause bolts to work themselves free over time.
By prioritizing these safety and clearance considerations, you’ll not only protect your 67 Camaro from potential hazards but also ensure the fuel pump operates efficiently and reliably for years to come.
DIY Fuel Pump Removal Tool: A Step-by-Step Guide to Making Your Own
You may want to see also
Frequently asked questions
The ideal location for an electric fuel pump on a 67 Camaro is in the fuel tank (in-tank installation) for optimal performance and safety. If an in-tank setup is not possible, mounting the pump near the fuel tank on the driver’s side frame rail is a common alternative.
While it’s technically possible to install an electric fuel pump in the engine bay, it’s not recommended due to heat exposure and the risk of fuel vapor buildup. Always prioritize a location closer to the fuel tank for better efficiency and safety.
Ensure the pump is grounded properly, use a high-quality fuel line, and install a pre-filter before the pump to prevent debris from damaging it. Additionally, verify the pump is compatible with your fuel system and follow manufacturer guidelines for wiring and mounting.
