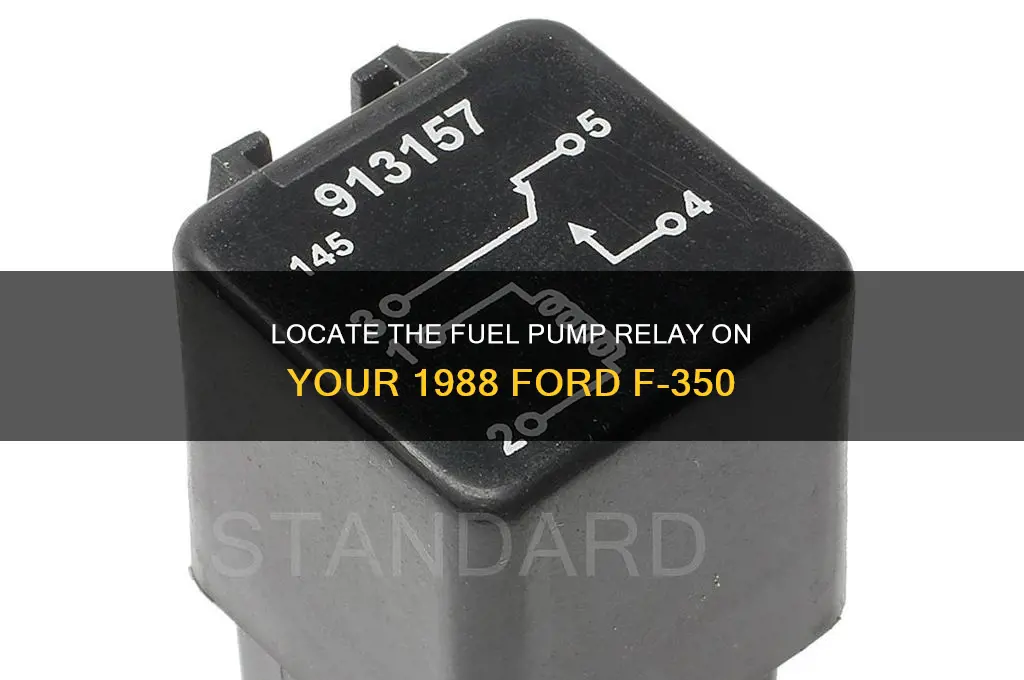

The 1988 Ford F-350 is a robust and reliable truck, but locating its fuel pump relay can be a bit tricky for those unfamiliar with its layout. The fuel pump relay is a crucial component responsible for controlling the fuel pump’s operation, ensuring the engine receives the necessary fuel for ignition. On the '88 F-350, the fuel pump relay is typically found in the engine compartment, often mounted on the firewall or near the fuse box. It’s important to consult the vehicle’s manual or a wiring diagram for precise location details, as Ford may have placed it in slightly different positions depending on the specific model or configuration. Identifying and accessing the relay correctly is essential for troubleshooting fuel delivery issues or performing maintenance on this classic truck.
| Characteristics | Values |
|---|---|
| Location | Under the hood, typically near the firewall or fuse box. |
| Fuse Box | Often located in the engine compartment fuse box. |
| Relay Identification | Labeled as "Fuel Pump Relay" or similar; may require manual identification. |
| Shape/Color | Rectangular or square-shaped relay, usually black or gray. |
| Pin Configuration | Typically 4 or 5 pins, depending on the relay model. |
| Function | Controls power to the fuel pump, ensuring it operates only when ignition is on. |
| Replacement | Accessible for replacement without specialized tools. |
| Year/Model Specific | Specific to 1988 Ford F-350; location may vary slightly by trim or engine. |
| Diagnostic Tip | If fuel pump issues persist, check relay for clicking sound when ignition is on. |
| Wiring Diagram | Available in Ford F-350 service manuals for detailed wiring connections. |
Explore related products
What You'll Learn
Fuel pump relay location in 88 Ford F-350
The fuel pump relay in a 1988 Ford F-350 is a critical component for ensuring your truck’s engine receives the necessary fuel to operate. Located under the hood, this relay is typically housed in the main underhood fuse box, often referred to as the power distribution box. This box is usually mounted on the driver’s side fender apron, making it accessible for inspection and replacement. Identifying the correct relay is straightforward, as it is labeled "Fuel Pump" or "FP" on the box’s lid diagram. If the diagram is missing or faded, consult the owner’s manual or a Ford service manual for precise location details.
When troubleshooting fuel pump issues, start by verifying the relay’s condition. A faulty relay can cause the fuel pump to fail, leading to engine stalling or difficulty starting. To test the relay, swap it with another relay of the same type in the fuse box (e.g., the horn relay) and check if the fuel pump engages when the ignition is turned on. If the pump works after swapping, the relay is likely defective and needs replacement. Always ensure the ignition is off when handling electrical components to avoid short circuits or injury.
For those unfamiliar with automotive electrical systems, replacing the fuel pump relay is a simple DIY task. First, locate the power distribution box and remove its lid to access the relays. Identify the fuel pump relay by matching its position to the diagram on the lid or manual. Pull the relay straight out of its socket and insert the new one, ensuring it clicks into place. Reattach the lid and test the vehicle to confirm the repair. Relays are inexpensive and widely available at auto parts stores, making this a cost-effective fix.
Comparing the 1988 Ford F-350’s fuel pump relay to newer models highlights the simplicity of older designs. Unlike modern vehicles with integrated control modules, the ’88 F-350 uses a standalone relay, making diagnostics and repairs more straightforward. However, this also means the relay is more exposed to heat and moisture, increasing the likelihood of failure over time. Regular inspection of the power distribution box for corrosion or damage can prevent unexpected issues and extend the relay’s lifespan.
In summary, the fuel pump relay in an 88 Ford F-350 is located in the underhood power distribution box, typically on the driver’s side fender apron. Its accessibility and simplicity make it an easy component to inspect, test, and replace. By understanding its location and function, you can quickly address fuel pump-related problems and keep your truck running reliably. Always refer to the vehicle’s manual or a trusted guide for accurate identification and troubleshooting steps.
