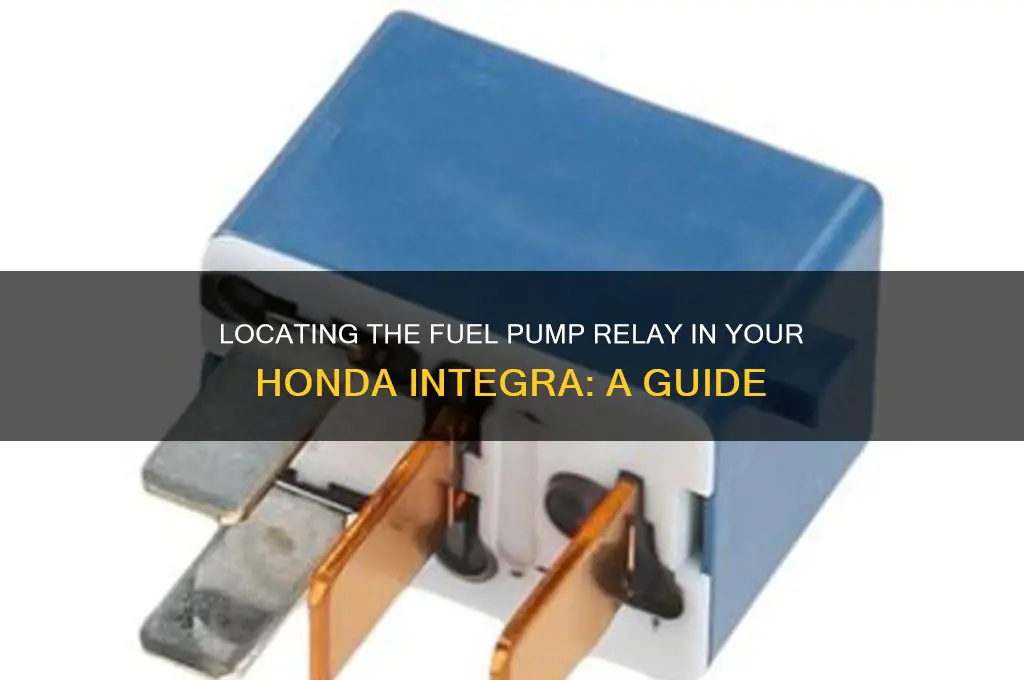

The fuel pump relay in a Honda Integra is a critical component of the vehicle's fuel system, responsible for controlling the power supply to the fuel pump. Located typically in the under-hood fuse box or relay panel, this relay ensures that the fuel pump operates only when the engine is running or being started, conserving energy and enhancing safety. Identifying and understanding the location and function of the fuel pump relay is essential for troubleshooting fuel delivery issues, such as a no-start condition or inconsistent engine performance. Proper maintenance and timely replacement of a faulty relay can prevent potential breakdowns and ensure the Integra's fuel system operates efficiently.
| Characteristics | Values |
|---|---|
| Location | Under the dashboard, on the driver's side, behind the fuse box |
| Vehicle Model | Honda Integra (specific years: 1994-2001, depending on generation) |
| Relay Type | Standard 4-pin relay (typically) |
| Function | Controls power supply to the fuel pump |
| Symptoms of Failure | No fuel pressure, engine cranks but won’t start, intermittent starting issues |
| Replacement Part Number | Varies by model year (e.g., Honda part number 39530-SR3-A01) |
| Access Difficulty | Moderate (requires removing lower dashboard panels) |
| Tools Required | Screwdriver, socket set, relay puller (optional) |
| Related Components | Fuel pump, fuse (typically fuse #15 in the under-dash fuse box), ECU |
| Diagnostic Method | Check for power at relay terminals, test relay continuity, inspect fuse |
Explore related products
What You'll Learn
Location of Fuel Pump Relay
The fuel pump relay in a Honda Integra is a critical component that ensures the fuel pump operates only when the engine is running or being started, enhancing safety and efficiency. Located under the dashboard on the driver’s side, it is often found near the fuse box or integrated within it. This placement is consistent across most Integra models, particularly the third-generation (1994–2001) variants. Accessing it requires removing a lower dashboard panel, which can be done with basic hand tools. Identifying the correct relay is straightforward, as it is typically labeled "FUEL PUMP" or "FP" on the fuse box diagram provided in the owner’s manual.
For those troubleshooting fuel delivery issues, testing the relay is a logical first step. A faulty relay can cause the fuel pump to fail, leading to a no-start condition. To test it, swap the fuel pump relay with another relay of the same type (e.g., the horn relay) and observe if the issue persists. If the fuel pump operates after the swap, the relay is likely defective. Replacement relays are inexpensive and widely available, making this a cost-effective DIY repair. Always ensure the ignition is off when handling electrical components to avoid accidental activation.
Comparing the Integra’s fuel pump relay location to other vehicles highlights Honda’s design consistency. Unlike some brands that place the relay in the engine bay or trunk, Honda prioritizes accessibility by keeping it within the cabin. This design choice simplifies diagnostics and reduces exposure to harsh environmental conditions. However, it also means the relay is more susceptible to damage from interior moisture or spills, emphasizing the importance of regular inspections, especially in older vehicles.
A practical tip for Integra owners is to familiarize themselves with the relay’s location and function before issues arise. Keeping a spare relay in the glove compartment can save time and frustration during roadside emergencies. Additionally, when replacing the relay, ensure the new unit matches the original’s specifications, as using an incorrect relay can lead to electrical malfunctions. With proper care and awareness, the fuel pump relay remains a reliable component in the Integra’s fuel system.
1996 F350 Fuel Pump: Electrical or Mechanical? Find Out Here
You may want to see also
Explore related products
Symptoms of a Faulty Relay
A faulty fuel pump relay in your Integra can manifest in several ways, often mimicking other common car issues. One of the most noticeable symptoms is difficulty starting the engine, especially after the vehicle has been sitting for a while. This occurs because the relay fails to send power to the fuel pump, preventing it from priming the fuel system. If your Integra cranks but doesn’t start, or if it starts only after multiple attempts, the relay may be the culprit.
Another telltale sign is a sudden stall while driving, particularly at high speeds or under load. This happens when the relay intermittently loses connection, cutting power to the fuel pump and starving the engine of fuel. While other issues like a clogged fuel filter or faulty ignition coil can cause stalling, a failing relay often produces inconsistent behavior—the car may run fine for days, then stall unexpectedly. If stalling is accompanied by a lack of fuel pressure, the relay should be inspected immediately.
An often overlooked symptom is unusual noises from the fuel tank area. A healthy fuel pump operates quietly, but a relay that’s failing may cause the pump to cycle on and off rapidly, producing a whirring or buzzing sound. This erratic behavior not only damages the pump over time but also indicates the relay’s inability to maintain a steady electrical connection. If you hear such noises, especially during startup or while idling, it’s a strong indicator of relay failure.
Lastly, a faulty relay can trigger the check engine light, though this symptom alone isn’t definitive. Modern vehicles like the Integra use onboard diagnostics to monitor fuel system performance, and a malfunctioning relay can disrupt this process. If the light comes on alongside other symptoms like hard starting or stalling, retrieve the diagnostic trouble codes (DTCs) using a scanner. Codes related to fuel pressure or pump operation (e.g., P0087 or P0230) often point to a relay issue.
To diagnose a suspected faulty relay, start by locating it in your Integra—typically in the under-hood fuse box or near the battery. Swap it with a relay of the same type (e.g., from the horn or AC system) to test functionality. If the issue resolves temporarily, replace the relay with a new one, ensuring it matches the amperage and pin configuration. Regularly inspecting relays during routine maintenance can prevent unexpected breakdowns, especially in older vehicles where electrical components degrade over time.
Piper Warrior Fuel System: Does It Rely on a Fuel Pump?
You may want to see also
Explore related products
How to Test the Relay
The fuel pump relay in a Honda Integra is a critical component that ensures your vehicle’s fuel system operates efficiently. Testing this relay can help diagnose issues like a no-start condition or inconsistent fuel delivery. To begin, locate the relay, typically found in the under-hood fuse box or near the ECU. Once identified, you’ll need a multimeter and a basic understanding of electrical circuits to proceed.
Start by removing the relay from its socket. Inspect the relay’s pins and ensure they match the diagram in your vehicle’s manual. A typical fuel pump relay has four or five pins, with specific functions assigned to each. Using your multimeter set to the ohms (resistance) setting, test the continuity between the power and ground pins. A functional relay should show a closed circuit (low resistance) when activated and an open circuit (high resistance) when deactivated. If the relay fails this test, it’s likely defective and needs replacement.
Next, perform a voltage drop test to assess the relay’s ability to switch power. Connect the multimeter to the relay’s input and output pins while the ignition is on. Activate the relay by bridging the control circuit pins with a jumper wire. The voltage drop across the relay should be minimal (less than 0.5 volts) if it’s functioning correctly. A significant drop indicates internal resistance, signaling a faulty relay.
For a more practical approach, swap the fuel pump relay with another relay of the same type in the fuse box, such as the A/C compressor relay. If the fuel pump operates after the swap, the original relay is the culprit. This method is quick but requires caution to avoid misplacing relays or causing unrelated issues. Always consult your vehicle’s manual for relay compatibility before swapping.
In conclusion, testing the fuel pump relay in a Honda Integra involves a combination of visual inspection, continuity checks, and voltage drop tests. By systematically evaluating the relay’s functionality, you can pinpoint the source of fuel system issues and avoid unnecessary repairs. Always prioritize safety and accuracy, using the correct tools and referencing your vehicle’s specifications throughout the process.
Volvo V70 Electric Fuel Pump: Fact or Fiction?
You may want to see also
Explore related products
Replacement Steps for Integra Relay
The fuel pump relay in a Honda Integra is typically located under the dashboard on the driver's side, near the fuse box. Identifying its exact position is crucial for troubleshooting or replacement, as a faulty relay can lead to engine stalling or failure to start. Before proceeding, ensure the vehicle is turned off and the ignition key is removed to avoid electrical hazards.
Replacement begins with locating the relay, which is often labeled in the fuse box diagram found in the owner’s manual. Once identified, use a flathead screwdriver to gently pry the relay out of its slot. Note the orientation of the relay’s pins to ensure the new one is inserted correctly. A common mistake is forcing the relay, which can damage the socket, so apply steady, even pressure.
Selecting the correct replacement relay is essential. The Integra’s fuel pump relay typically operates at 12 volts and handles a current rating of 30–40 amps. Verify compatibility by cross-referencing the part number with the original relay or consulting a trusted auto parts supplier. Using an incorrect relay can lead to insufficient fuel delivery or electrical overload.
After installing the new relay, test its functionality by turning the ignition to the "ON" position and listening for the fuel pump’s priming sound. If the engine starts smoothly, the replacement was successful. However, if issues persist, inspect the fuel pump fuse or wiring harness for additional faults. Regularly checking the relay during routine maintenance can prevent unexpected breakdowns.
For DIY enthusiasts, replacing the fuel pump relay is a straightforward task that saves time and money compared to professional repairs. However, if you’re unsure about any step, consult a mechanic to avoid misdiagnosis or damage. Keeping a spare relay in your emergency kit is a practical tip for Integra owners, especially during long trips or in remote areas.
Step-by-Step Guide: Installing a Fuel Pump in a 2008 Nissan Versa
You may want to see also
Explore related products
Common Issues and Fixes
The fuel pump relay in a Honda Integra is a critical component that ensures the fuel pump operates efficiently, delivering fuel from the tank to the engine. However, it’s not uncommon for this relay to fail, leading to symptoms like engine stalling, difficulty starting, or a complete failure to start. Diagnosing a faulty fuel pump relay involves checking for power at the relay’s terminals using a multimeter. If voltage is absent, the issue may lie in the wiring or the relay itself. Replacing the relay is straightforward: locate it in the under-hood fuse box, disconnect the battery, swap the old relay for a new one, and reconnect the battery. Always verify the part number to ensure compatibility with your Integra’s model year.
One common issue with the Integra’s fuel pump relay is corrosion or loose connections in the fuse box. Moisture and dirt can accumulate over time, disrupting the electrical connection. To fix this, remove the relay and inspect the socket for signs of corrosion. Clean the contacts with electrical contact cleaner and a small brush, ensuring all residue is removed. If the socket is severely damaged, consider replacing the entire fuse box module. Regularly inspecting the fuse box during routine maintenance can prevent this issue, especially in older vehicles exposed to harsh weather conditions.
Another frequent problem is a malfunctioning fuel pump relay that intermittently fails, causing the engine to stall unpredictably. This can be frustrating to diagnose because the issue may not occur consistently. A practical approach is to swap the fuel pump relay with another relay of the same type in the fuse box (e.g., the horn relay) to see if the problem persists. If the issue moves to the new location, the relay is likely faulty. However, if the problem remains, further investigation into the fuel pump or wiring is necessary. Always carry a spare relay in your emergency kit for quick troubleshooting on the road.
In some cases, the fuel pump relay may fail due to excessive electrical load or a short circuit in the fuel pump wiring. This can cause the relay to overheat and melt, posing a fire hazard. To prevent this, inspect the fuel pump wiring harness for frayed or damaged wires, particularly near the fuel tank. If a short circuit is suspected, disconnect the fuel pump connector and test for continuity between the wires and ground. If a short is detected, repair or replace the wiring harness immediately. Upgrading to a higher-quality relay with a higher amperage rating can also provide added protection against future failures.
Lastly, a less obvious issue is a fuel pump relay that fails due to age-related wear, even if it appears functional. Relays have a finite lifespan, and those in high-mileage Integras are more prone to failure. As a preventive measure, replace the fuel pump relay during major tune-ups or when addressing other fuel system issues. This proactive approach can save you from unexpected breakdowns. Keep a record of replacement dates to track the relay’s lifespan and plan for future maintenance. By addressing these common issues systematically, you can ensure your Integra’s fuel system remains reliable and efficient.
