The 2004 Nissan Titan, a robust and reliable pickup truck, relies on a well-functioning fuel system for optimal performance. A critical component of this system is the fuel pump, which ensures a steady supply of fuel to the engine. However, like any electrical component, the fuel pump is protected by a fuse that can blow if there’s an overload or short circuit. Locating the fuel pump fuse in a 2004 Nissan Titan is essential for troubleshooting issues such as engine stalling or failure to start. The fuse is typically found in the fuse box, either under the hood or inside the cabin, and is labeled for easy identification. Understanding its location and function can save time and prevent unnecessary repairs, ensuring your Titan remains dependable on the road.
| Characteristics | Values |
|---|---|
| Location of Fuel Pump Fuse | Inside the fuse box located under the hood (near the battery). |
| Fuse Box Name | IP DM (Intelligent Power Distribution Module) or Engine Fuse Box. |
| Fuse Number | Fuse #40 (2004 Nissan Titan models). |
| Fuse Rating | 20 Amps (typically for the fuel pump circuit). |
| Fuse Color | Blue (standard color for 20A fuses in Nissan vehicles). |
| Function | Powers the fuel pump to deliver fuel from the tank to the engine. |
| Related Relay | Fuel Pump Relay (located in the same fuse box or nearby). |
| Troubleshooting Tip | Check for blown fuse, corrosion, or loose connections in the fuse box. |
| Replacement Fuse | Use a 20A fuse of the same type (blade-style fuse). |
| Manual Reference | Consult the 2004 Nissan Titan owner’s manual for exact diagrams. |
Explore related products
What You'll Learn
- Fuse Box Location: Identify the fuse box location in a 2004 Nissan Titan for the fuel pump fuse
- Fuse Rating: Determine the correct amperage rating for the fuel pump fuse in a 2004 Nissan Titan
- Symptoms of Failure: Recognize symptoms of a blown fuel pump fuse in a 2004 Nissan Titan
- Replacement Steps: Learn how to replace the fuel pump fuse in a 2004 Nissan Titan
- Common Issues: Understand common issues related to the fuel pump fuse in a 2004 Nissan Titan

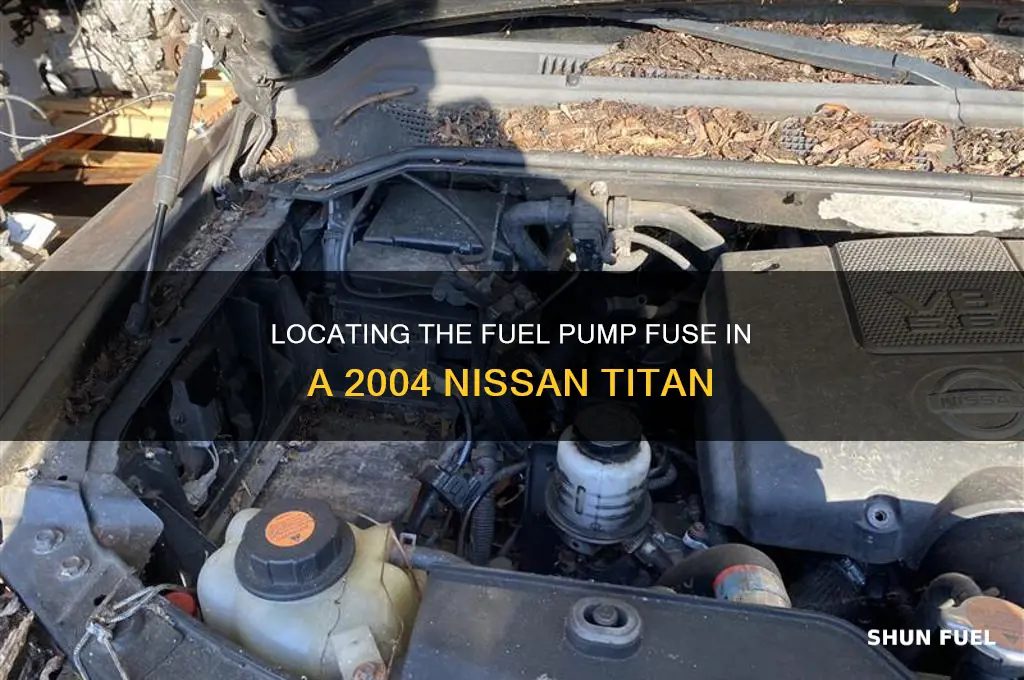

Fuse Box Location: Identify the fuse box location in a 2004 Nissan Titan for the fuel pump fuse
The 2004 Nissan Titan's fuel pump fuse is a critical component, and locating it promptly can save you from unnecessary troubleshooting. The fuse box housing this fuse is not immediately visible, requiring a bit of navigation under the hood. Understanding its exact location is essential for both routine maintenance and emergency repairs.
To locate the fuse box, start by opening the hood and identifying the driver's side area. The fuse box is situated near the firewall, close to the brake master cylinder. It’s a rectangular, black plastic box with a removable lid. This placement is strategic, as it protects the fuses from environmental elements while keeping them accessible for inspection and replacement.
Once you’ve located the fuse box, the next step is to identify the specific fuse for the fuel pump. The lid of the fuse box typically includes a diagram labeling each fuse. For the 2004 Nissan Titan, the fuel pump fuse is often labeled as "FUEL PUMP" or "F/P" and is usually a 20-amp fuse. Refer to the diagram to confirm its position before proceeding.
When accessing the fuse box, ensure the vehicle is turned off to avoid electrical hazards. Use a fuse puller or a pair of needle-nose pliers to carefully remove the fuel pump fuse for inspection. If the fuse is blown, replace it with one of the same amperage rating. Always keep spare fuses in your vehicle for such situations, as a blown fuel pump fuse can cause the engine to stall unexpectedly.
In summary, the fuel pump fuse in a 2004 Nissan Titan is located in the fuse box near the firewall on the driver's side. Familiarizing yourself with this location and the process of checking or replacing the fuse can save time and prevent roadside inconveniences. Regularly inspecting the fuse box ensures your vehicle’s electrical system remains in optimal condition.
Step-by-Step Guide to Installing a Fuel Pump Pushrod in SBC
You may want to see also
Explore related products
Fuse Rating: Determine the correct amperage rating for the fuel pump fuse in a 2004 Nissan Titan
The fuel pump fuse in a 2004 Nissan Titan is a critical component, ensuring the fuel system operates safely and efficiently. Determining the correct amperage rating for this fuse is essential to prevent electrical issues and potential damage to the vehicle. The first step in this process is to consult the vehicle’s owner’s manual, which typically provides a fuse box diagram and specifies the amperage rating for each fuse, including the fuel pump fuse. For the 2004 Nissan Titan, the fuel pump fuse is commonly rated at 15 amps, but this can vary based on the specific model or optional equipment. Always verify this information with the manual or a trusted repair guide to ensure accuracy.
Analyzing the electrical demands of the fuel pump provides insight into why the correct fuse rating matters. The fuel pump in a 2004 Nissan Titan draws a significant amount of current, especially during startup or high-load conditions. A fuse with too low an amperage rating may blow prematurely, causing the engine to stall or fail to start. Conversely, a fuse with too high a rating could fail to protect the circuit in the event of a short or overload, potentially leading to electrical fires or damage to the fuel pump. The 15-amp rating strikes a balance, allowing sufficient current flow while providing adequate protection. If you’re unsure, consult a professional mechanic or use a multimeter to test the circuit’s current draw under normal operating conditions.
When replacing the fuel pump fuse, it’s crucial to use the correct type and rating. Avoid the temptation to substitute a higher-amperage fuse as a temporary fix, as this can lead to dangerous electrical issues. Instead, keep spare 15-amp blade-type fuses in your vehicle’s emergency kit, ensuring they match the specifications outlined in the owner’s manual. Additionally, inspect the fuse holder for signs of corrosion or damage, as these issues can cause poor connectivity and lead to fuse failure. Cleaning the fuse box contacts with electrical contact cleaner and a soft brush can help maintain reliable performance.
Comparing the 2004 Nissan Titan’s fuel pump fuse rating to other vehicles highlights the importance of model-specific information. While many vehicles use a 15-amp fuse for the fuel pump, some may require a different rating based on engine size, fuel system design, or other factors. For example, a high-performance vehicle might use a 20-amp fuse to accommodate increased fuel demands. Always prioritize the manufacturer’s specifications for your specific vehicle to avoid compatibility issues. Online forums and repair databases can provide additional insights, but cross-reference any information with official sources to ensure reliability.
In conclusion, determining the correct amperage rating for the fuel pump fuse in a 2004 Nissan Titan involves consulting the owner’s manual, understanding the electrical demands of the fuel pump, and using the appropriate fuse type. A 15-amp rating is typically correct, but always verify this for your specific model. Proper maintenance, such as keeping spare fuses and inspecting the fuse box, ensures the fuel system operates safely and efficiently. By following these guidelines, you can avoid common pitfalls and maintain the reliability of your vehicle’s fuel delivery system.
Bypassing the Shutoff Switch: A Step-by-Step Guide to Test Fuel Pumps
You may want to see also
Explore related products
Symptoms of Failure: Recognize symptoms of a blown fuel pump fuse in a 2004 Nissan Titan
A blown fuel pump fuse in a 2004 Nissan Titan can manifest in several ways, often mimicking symptoms of a failing fuel pump itself. The first sign is typically a sudden loss of power or difficulty starting the engine. Unlike a gradual decline in performance, which might suggest fuel pump wear, a blown fuse results in an immediate and complete disruption of fuel delivery. This distinction is crucial for diagnosis, as it narrows down the issue to the electrical system rather than the mechanical components.
One telltale symptom is the engine cranking but failing to start, accompanied by a lack of fuel pressure. To confirm this, use a fuel pressure gauge to check the pressure at the fuel rail. If the pressure is nonexistent or significantly below the specified range (typically 40–60 psi for the Titan’s 5.6L V8 engine), the fuse is a likely culprit. Another diagnostic step is to listen for the fuel pump’s priming cycle when turning the ignition to the "ON" position. A functioning pump emits a faint humming sound for 2–3 seconds; silence indicates a potential electrical issue, including a blown fuse.
In some cases, the vehicle may start but stall shortly after, especially under load or at higher speeds. This intermittent behavior can be misleading, as it may resemble fuel pump fatigue. However, a blown fuse typically results in a consistent inability to maintain fuel delivery, rather than sporadic performance issues. Inspecting the fuse itself is straightforward: locate it in the engine bay fuse box (often labeled "FUEL PUMP" or "F/P"), and check for a broken or melted filament within the fuse body. A visual inspection can save time before proceeding to more complex diagnostics.
Preventive measures include regular fuse inspections during routine maintenance, particularly if the vehicle is over 15 years old, as aging electrical systems become more susceptible to failures. Keep a spare 15-amp fuse in the vehicle, as this is the typical rating for the Titan’s fuel pump fuse. If a blown fuse is confirmed, replacing it may resolve the issue temporarily, but investigate the root cause—such as a short circuit or overloaded circuit—to prevent recurrence. Ignoring these symptoms can lead to unnecessary fuel pump replacements, a costly mistake when the issue is as simple as a $2 fuse.
Testing Your 1990 Mustang Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Replacement Steps: Learn how to replace the fuel pump fuse in a 2004 Nissan Titan
The fuel pump fuse in a 2004 Nissan Titan is a critical component, ensuring the fuel pump operates efficiently to deliver fuel to the engine. Located in the fuse box, typically under the hood or near the driver’s side dashboard, this fuse is rated at 20 amps and is labeled as "FUEL PUMP" or "F/P." Identifying its exact location requires consulting the owner’s manual or the fuse box diagram, which often appears on the fuse box cover or in the vehicle’s documentation. Before attempting replacement, verify the fuse’s condition using a multimeter or visual inspection for a broken filament, as a blown fuse can cause the engine to stall or fail to start.
Replacing the fuel pump fuse in a 2004 Nissan Titan is a straightforward process, but precision is key. Start by turning off the ignition and locating the fuse box. Use a fuse puller or a pair of needle-nose pliers to carefully extract the old fuse, ensuring not to damage the surrounding components. Insert the new 20-amp fuse into the same slot, aligning it correctly to avoid a loose connection. Test the vehicle’s functionality by starting the engine and listening for the fuel pump’s hum, which confirms proper operation. If the issue persists, further diagnostics may be necessary, such as checking the fuel pump relay or wiring harness.
While replacing the fuel pump fuse is a simple task, it’s essential to approach it with caution. Always wear safety gloves to prevent electrical shocks and ensure the vehicle is parked on a flat surface with the parking brake engaged. Avoid using fuses with incorrect amperage ratings, as this can lead to electrical system damage or fire hazards. If the fuse blows repeatedly, this indicates an underlying issue, such as a faulty fuel pump or short circuit, which requires professional inspection. Regularly inspecting fuses during routine maintenance can prevent unexpected breakdowns and extend the vehicle’s lifespan.
Comparing the 2004 Nissan Titan’s fuel pump fuse replacement to other vehicles highlights its accessibility. Unlike some models that bury the fuse box in hard-to-reach areas, the Titan’s design allows for easy access, making DIY repairs more feasible. However, the Titan’s reliance on a single fuse for the fuel pump means that failure can be immediately debilitating, unlike systems with redundant components. This underscores the importance of carrying spare fuses and understanding the replacement process, ensuring you’re prepared for roadside emergencies. By mastering this task, owners can save time and money while maintaining their vehicle’s reliability.
Diagnosing Honda ECU: Effective Methods to Test for a Faulty Fuel Pump
You may want to see also
Explore related products
Common Issues: Understand common issues related to the fuel pump fuse in a 2004 Nissan Titan
The 2004 Nissan Titan, a robust pickup truck, relies heavily on its fuel pump fuse to ensure consistent fuel delivery to the engine. However, this component is prone to specific issues that can disrupt performance. One common problem is fuse blowouts, often caused by electrical overloads or short circuits in the fuel pump system. When this occurs, the vehicle may stall or fail to start, leaving drivers stranded. Identifying the fuse’s location—typically in the engine bay fuse box under the lid diagram—is the first step in diagnosing the issue.
Another frequent issue is corrosion or poor connections in the fuse holder or wiring harness. Moisture, dirt, or age can degrade the contacts, leading to intermittent power loss to the fuel pump. Symptoms include sputtering, hesitation, or difficulty starting, especially in damp conditions. Regular inspection of the fuse box for signs of corrosion and cleaning the contacts with electrical cleaner can prevent this problem.
A less obvious but critical issue is incorrect fuse replacement. The 2004 Titan’s fuel pump fuse is rated for a specific amperage, typically 15 or 20 amps. Using a higher-amp fuse as a temporary fix can lead to wiring damage or fire hazards, while a lower-amp fuse may blow prematurely. Always replace the fuse with the exact type specified in the owner’s manual or fuse box diagram.
Lastly, fuel pump relay failure often mimics fuse-related issues. The relay, which controls power to the fuel pump, can malfunction due to wear or electrical faults, causing the fuse to blow repeatedly. If replacing the fuse doesn’t resolve the problem, testing the relay with a multimeter or swapping it with a known-good unit can confirm if it’s the culprit.
Understanding these common issues empowers owners to troubleshoot effectively, saving time and potential repair costs. Regular maintenance, such as inspecting the fuse box and using the correct fuse, can prevent many fuel pump fuse-related problems in the 2004 Nissan Titan.
Mastering BMW Fuel Pump Priming: A Step-by-Step Guide
You may want to see also
Frequently asked questions
The fuel pump fuse in a 2004 Nissan Titan is located in the fuse box under the hood. It is typically labeled as "FUEL PUMP" or "F/P" and is usually a 20-amp fuse.
Symptoms include the engine not starting, loss of power, stalling, or the vehicle cranking but not firing. A blown fuse can prevent the fuel pump from delivering fuel to the engine.
Locate the fuse box under the hood, identify the fuel pump fuse using the diagram on the fuse box cover, remove the blown fuse with a fuse puller or pliers, and replace it with a new 20-amp fuse of the same type.
Yes, a blown fuel pump fuse can trigger the check engine light because the engine control module (ECM) detects a lack of fuel pressure or system malfunction.
If the fuse repeatedly blows, there may be an underlying issue such as a short circuit, faulty fuel pump, or wiring problem. It’s recommended to have the electrical system inspected by a professional mechanic.
