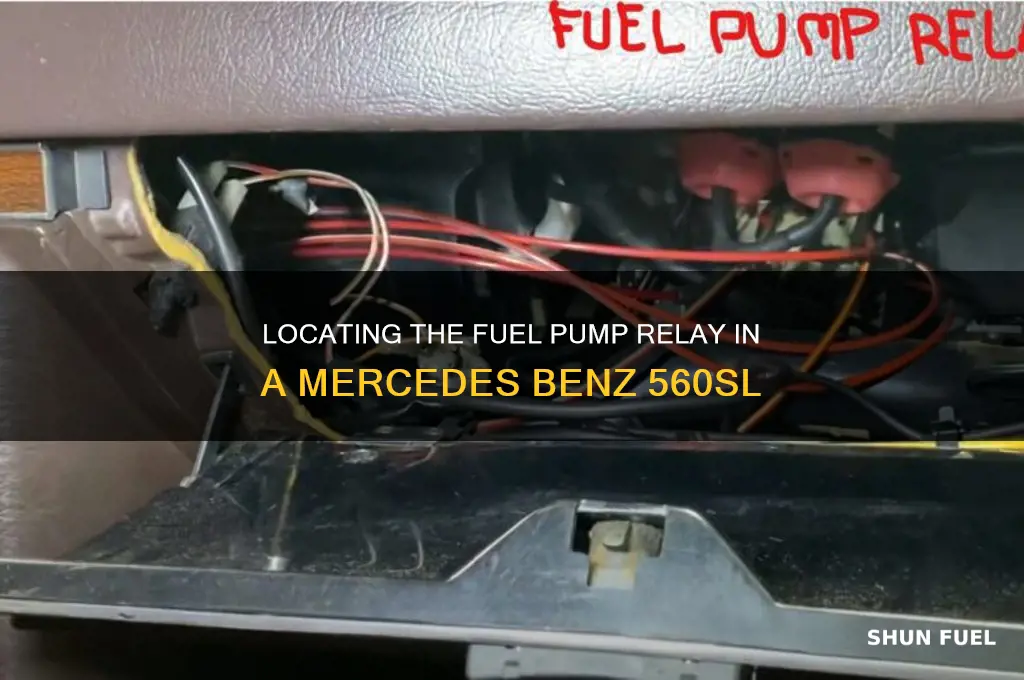

The Mercedes-Benz 560SL, a classic luxury roadster from the 1980s, features a fuel pump relay that is essential for ensuring proper fuel delivery to the engine. Locating this relay can be crucial for troubleshooting fuel-related issues or performing maintenance. In the 560SL, the fuel pump relay is typically found in the main fuse and relay panel, which is situated in the engine compartment. Specifically, it is often located near the firewall on the driver’s side, housed within a black plastic box labeled with relay designations. Identifying the correct relay requires consulting the vehicle’s manual or a wiring diagram, as it is usually marked with a specific number or code. Understanding its location is key for owners and mechanics alike to diagnose and resolve fuel system problems efficiently.
| Characteristics | Values |
|---|---|
| Location | Under the dashboard, on the driver's side, near the firewall. |
| Model Year | 1986–1989 Mercedes-Benz 560SL. |
| Relay Type | Fuel pump relay (controls power to the fuel pump). |
| Function | Activates the fuel pump when the ignition is turned on. |
| Appearance | Small, rectangular black or gray plastic housing with pins. |
| Access | Requires removing a lower dashboard panel for visibility. |
| Related Components | Connected to the fuel pump, ignition system, and ECU. |
| Replacement | Available at Mercedes-Benz dealerships or auto parts suppliers. |
| Common Issues | Failure can cause no-start conditions or fuel pump malfunction. |
| Diagnostic Tip | Check for power at the relay terminals if fuel pump issues occur. |
Explore related products
What You'll Learn
- Location in Engine Bay: Identifying the exact spot of the fuel pump relay in the 560SL
- Relay Functionality: Understanding the role of the fuel pump relay in the vehicle
- Symptoms of Failure: Common signs indicating a faulty fuel pump relay
- Replacement Process: Steps to replace the fuel pump relay in a 560SL
- Compatibility and Parts: Finding the correct fuel pump relay for the Mercedes 560SL
Location in Engine Bay: Identifying the exact spot of the fuel pump relay in the 560SL
The Mercedes-Benz 560SL’s fuel pump relay is a critical component tucked within the engine bay, but its location isn’t immediately obvious to the untrained eye. Situated in the left rear corner of the engine compartment, near the firewall, it’s housed within the main fuse and relay box. This placement is deliberate, as it protects the relay from excessive heat and moisture while ensuring easy access for diagnostics and replacements. To locate it, start by opening the hood and identifying the black rectangular box on the driver’s side, typically marked with a diagram on the lid. This box contains multiple relays, so consult the diagram to pinpoint the fuel pump relay specifically.
For a hands-on approach, follow these steps: First, ensure the vehicle is turned off and cooled down to avoid electrical hazards or burns. Next, locate the fuse and relay box, which is secured with a clip or screw. Remove the lid to reveal the relays, each labeled with a code or number. The fuel pump relay is often designated as “K10” or a similar identifier, depending on the model year. If the diagram is faded or missing, cross-reference with a service manual or online resource for your specific 560SL variant. Once identified, test the relay by swapping it with another of the same type (e.g., the horn relay) to check for functionality.
Comparatively, the 560SL’s fuel pump relay location differs from earlier Mercedes models, which often placed it in the trunk or under the rear seat. This change reflects an evolution in design, prioritizing accessibility and integration with other engine components. However, its proximity to the firewall means it’s more exposed to heat, so inspect for signs of melting or corrosion during routine maintenance. Unlike modern vehicles with centralized fuse boxes, the 560SL’s layout requires a bit of familiarity with its unique architecture, making it a rewarding find for DIY enthusiasts.
Persuasively, understanding the exact location of the fuel pump relay isn’t just about troubleshooting—it’s about empowerment. A failing relay can mimic symptoms of a bad fuel pump, leading to unnecessary repairs. By knowing where to look, you can save time and money, ensuring your 560SL runs smoothly. Keep a spare relay in your toolkit, as they’re inexpensive and prone to failure over time. With this knowledge, you’re not just a driver—you’re a caretaker of a classic engineering marvel.
Understanding Pulse Fuel Pumps: Functionality and Operation Explained
You may want to see also
Explore related products
Relay Functionality: Understanding the role of the fuel pump relay in the vehicle
The fuel pump relay in a Mercedes-Benz 560SL is a critical component that bridges the electrical system and the fuel delivery mechanism. Its primary function is to control the power supply to the fuel pump, ensuring it operates only when necessary. This relay acts as a switch, activated by the ignition system, allowing the fuel pump to pressurize the fuel lines and deliver gasoline to the engine. Without this relay, the fuel pump would either run continuously, wasting energy and reducing its lifespan, or fail to activate at all, leaving the vehicle unable to start. Understanding its role is essential for diagnosing issues related to fuel delivery and engine performance.
Analyzing the relay’s operation reveals its dual purpose: energy conservation and system protection. When the ignition is turned on, the relay receives a signal from the engine control unit (ECU), closing the circuit and powering the fuel pump. Once the engine is running, the relay keeps the pump active but disengages during idle or when the ignition is off. This intermittent operation prevents overheating and reduces wear on the fuel pump. In the Mercedes-560SL, this relay is particularly important due to the vehicle’s high-performance engine, which demands precise fuel delivery under varying driving conditions.
Locating the fuel pump relay in a Mercedes-Benz 560SL requires familiarity with the vehicle’s electrical layout. Typically, it is housed in the fuse and relay box, often found in the engine compartment or under the dashboard. To identify it, consult the owner’s manual or a service guide, which provides a diagram of the relay’s position. When troubleshooting, start by checking the relay for signs of damage, such as corrosion or burnt contacts. A faulty relay can cause symptoms like difficulty starting, stalling, or a complete loss of power. Testing the relay involves using a multimeter to verify continuity and proper switching, ensuring it responds correctly to the ECU’s signals.
Practical tips for maintaining the fuel pump relay include regular inspections as part of routine service. Clean the relay contacts with electrical contact cleaner to remove debris and ensure reliable connections. If the relay fails, replace it with a manufacturer-approved part to maintain compatibility and performance. For DIY enthusiasts, understanding the relay’s role simplifies diagnostics, allowing for quicker identification of fuel system issues. Always disconnect the battery before working on the electrical system to prevent short circuits or accidental activation of components.
In conclusion, the fuel pump relay in a Mercedes-Benz 560SL is a small but vital component that ensures efficient and safe fuel delivery. Its role in managing power to the fuel pump highlights its importance in both performance and longevity of the vehicle’s systems. By understanding its function, location, and maintenance requirements, owners can address issues proactively and keep their classic Mercedes running smoothly. Whether diagnosing a problem or performing routine checks, the fuel pump relay deserves attention as a key player in the vehicle’s electrical and fuel systems.
Does a Toyota RAV4 Have a Fuel Pump? Explained
You may want to see also
Explore related products
Symptoms of Failure: Common signs indicating a faulty fuel pump relay
A faulty fuel pump relay in a Mercedes Benz 560SL can manifest in several ways, often mimicking symptoms of other fuel system issues. One of the earliest and most common signs is difficulty starting the engine, especially after the vehicle has been sitting for an extended period. This occurs because the relay fails to send the necessary electrical signal to activate the fuel pump, leaving the engine starved for fuel. If the car cranks but doesn’t start, or if it starts only after multiple attempts, the fuel pump relay may be the culprit.
Another telltale symptom is stalling or misfiring during acceleration or at high speeds. When the relay malfunctions intermittently, it can cut power to the fuel pump momentarily, causing the engine to lose power or stall unexpectedly. This is particularly dangerous during highway driving, as it compromises both performance and safety. Drivers may also notice a sudden drop in fuel efficiency, as the erratic fuel delivery disrupts the engine’s optimal combustion process.
A less obvious but equally important indicator is unusual noises from the fuel tank area. If the relay fails to engage the fuel pump consistently, the pump may run dry, leading to whining or humming sounds. These noises often occur during startup or when the engine is under load. While this symptom can also point to a failing fuel pump itself, it’s critical to test the relay first, as it’s a simpler and less expensive component to replace.
To diagnose a faulty fuel pump relay, start by checking the relay’s physical condition. Look for signs of corrosion, overheating, or damage to the relay’s terminals. Next, swap the fuel pump relay with another relay of the same type in the fuse box (e.g., the horn relay) to see if the issue persists. If the problem moves to the new relay’s function, the original relay is likely at fault. For a more precise test, use a multimeter to check for continuity across the relay’s terminals when activated.
In the Mercedes Benz 560SL, the fuel pump relay is typically located in the fuse and relay panel under the hood, near the battery. Familiarizing yourself with its location and function can save time and frustration when troubleshooting. Replacing a faulty relay is a straightforward task, requiring only basic tools and a compatible replacement part. Addressing the issue promptly not only restores performance but also prevents potential damage to the fuel pump or other engine components.
Step-by-Step Guide: Removing Fuel Pump in a 1992 Caravan
You may want to see also
Explore related products
Replacement Process: Steps to replace the fuel pump relay in a 560SL
The fuel pump relay in a Mercedes-Benz 560SL is a critical component located in the fuse and relay panel, typically found in the engine compartment near the firewall. Before diving into the replacement process, it's essential to verify the exact location, as some models may have slight variations. Once identified, replacing the fuel pump relay is a straightforward task that can restore proper fuel delivery and engine performance.
Step-by-Step Replacement Process:
- Locate the Relay Panel: Open the hood and identify the fuse and relay panel, usually on the driver’s side near the firewall. Consult the owner’s manual or a repair guide for the 560SL to confirm the exact position.
- Access the Relay: Remove the panel cover to expose the relays and fuses. The fuel pump relay is often labeled or can be identified using a diagram from the manual.
- Extract the Old Relay: Grip the relay firmly and pull it straight out of its socket. Avoid tilting or forcing it to prevent damage to the surrounding components.
- Install the New Relay: Insert the replacement relay into the same socket, ensuring it clicks securely into place. Double-check that it is aligned correctly to avoid malfunctions.
- Reassemble and Test: Replace the panel cover and start the engine to verify the fuel pump operates smoothly. Listen for the pump’s hum, which should activate for a few seconds when the ignition is turned on.
Cautions and Practical Tips:
Always disconnect the battery before working on electrical components to prevent short circuits. Use a relay with the exact specifications recommended for the 560SL to ensure compatibility. If the issue persists after replacement, inspect the fuel pump fuse or wiring for additional faults.
Replacing the fuel pump relay in a 560SL is a manageable DIY task that requires minimal tools and time. By following these steps and exercising caution, you can address fuel delivery issues efficiently and maintain the vehicle’s performance.
Diagnosing Fuel Pump Issues in Your 2005 Acura TL: A Step-by-Step Guide
You may want to see also
Explore related products
Compatibility and Parts: Finding the correct fuel pump relay for the Mercedes 560SL
The Mercedes 560SL, a classic luxury roadster, relies on a fuel pump relay to ensure consistent fuel delivery to its engine. Located in the fuse and relay panel, this component is crucial for maintaining performance and reliability. However, finding the correct replacement relay requires careful consideration of compatibility and part specifications.
Identifying the Correct Relay: The fuel pump relay for the 560SL is typically found in the fuse and relay panel, often situated in the engine bay or under the dashboard. Original equipment manufacturer (OEM) part numbers, such as 000 542 80 19 or 000 542 98 19, are essential for ensuring compatibility. Cross-referencing these numbers with reputable suppliers or parts catalogs can help verify authenticity and fitment. Aftermarket options may offer cost savings but require scrutiny to confirm they meet the vehicle’s electrical and mechanical requirements.
Compatibility Considerations: The 560SL’s fuel pump relay must match the vehicle’s specific year, model, and engine configuration. For instance, relays for the 1986–1989 models may differ from earlier versions due to updates in the electrical system. Additionally, the relay’s pin configuration and voltage rating (typically 12V) must align with the car’s wiring harness. Mismatched parts can lead to electrical malfunctions or damage to the fuel pump.
Practical Tips for Replacement: When replacing the fuel pump relay, start by disconnecting the battery to prevent electrical shorts. Locate the relay panel and identify the fuel pump relay using the vehicle’s manual or a diagram. Swap the old relay with the new one, ensuring the pins align correctly. Test the system by starting the engine and checking for proper fuel delivery. If issues persist, inspect related components like the fuel pump fuse or wiring for faults.
Avoiding Common Pitfalls: One common mistake is assuming universal compatibility among Mercedes relays. While some relays may appear similar, subtle differences in design or specifications can render them incompatible. Another pitfall is neglecting to test the relay before installation. Using a multimeter to check for continuity can confirm the relay’s functionality. Lastly, avoid purchasing parts from unverified sources, as counterfeit components may fail prematurely or cause further damage.
Step-by-Step Guide to Installing a Carter Mechanical Fuel Pump
You may want to see also
Frequently asked questions
The fuel pump relay in a Mercedes Benz 560SL is typically located in the fuse and relay box under the hood, near the battery or firewall.
The fuel pump relay is usually labeled as "Fuel Pump" or "Relay 109" in the fuse and relay box diagram. It’s a small, cube-shaped component with electrical terminals.
Symptoms include the engine not starting, stalling, or difficulty starting, as the relay fails to send power to the fuel pump.
Yes, replacing the fuel pump relay is a straightforward DIY task. Simply locate the relay in the fuse box, disconnect it, and swap it with a new one of the same type.
