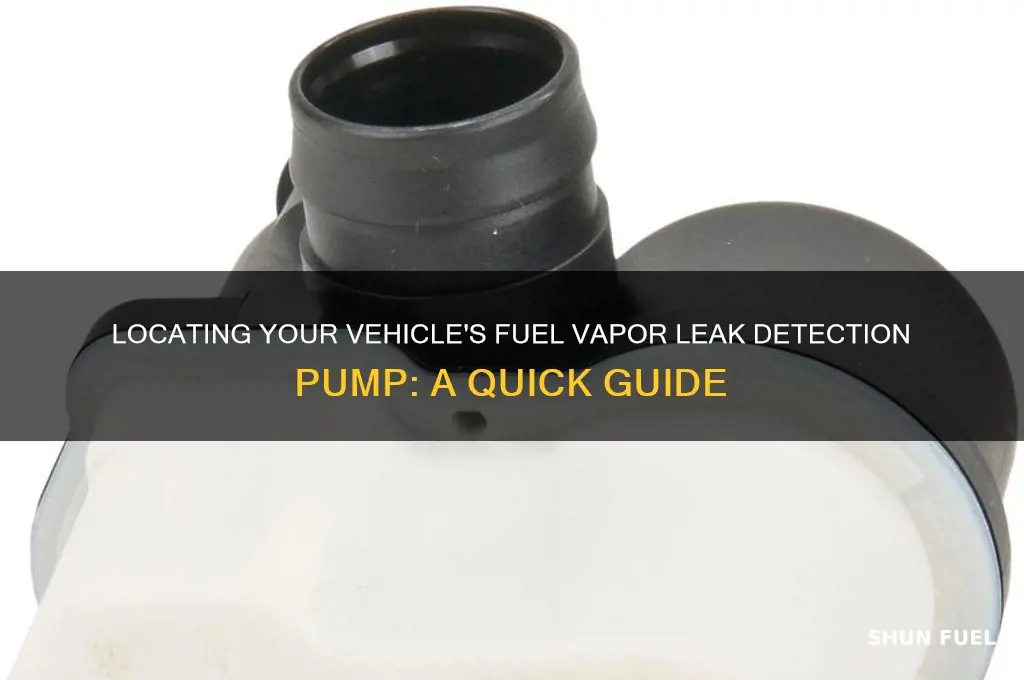

The fuel vapor leak detection pump is a critical component in modern vehicle emissions systems, designed to identify and prevent fuel vapor leaks from the evaporative emissions control (EVAP) system. Typically located near the charcoal canister or integrated into the fuel tank assembly, this pump operates by creating a vacuum or pressure within the EVAP system to detect even minor leaks. Its primary function is to ensure compliance with environmental regulations by minimizing hydrocarbon emissions that contribute to air pollution. Understanding its location and operation is essential for diagnosing and resolving EVAP system issues, as malfunctions can trigger check engine lights and affect vehicle performance.
| Characteristics | Values |
|---|---|
| Location | Typically found in the charcoal canister or near the fuel tank system. |
| Function | Detects leaks in the fuel vapor recovery system. |
| Operation | Draws a vacuum to check for leaks in the evaporative emissions system. |
| Power Source | Powered by the vehicle's electrical system (usually 12V). |
| Components | Includes a pump, pressure sensor, and control module. |
| Diagnostic Codes | Can trigger OBD-II codes (e.g., P0455, P0456) if a leak is detected. |
| Maintenance | Requires periodic inspection and may need replacement if faulty. |
| Environmental Role | Ensures compliance with emissions regulations by preventing fuel vapor leaks. |
| Common Vehicles | Found in most modern gasoline-powered vehicles (post-1996). |
| Alternative Names | Evaporative Emissions (EVAP) Leak Detection Pump. |
Explore related products
What You'll Learn
- Location in Vehicle: Typically found near the charcoal canister in the evaporative emissions system
- Function Overview: Detects leaks in the fuel vapor system to prevent emissions and ensure safety
- Common Failure Signs: Check Engine Light, failed emissions test, or fuel odor
- Testing Procedures: Use a scan tool or smoke machine to diagnose leaks accurately
- Replacement Steps: Disconnect battery, remove pump, install new one, and reset codes
Location in Vehicle: Typically found near the charcoal canister in the evaporative emissions system
The fuel vapor leak detection pump is a critical component in modern vehicles, designed to ensure the integrity of the evaporative emissions system. Its strategic placement near the charcoal canister is no coincidence; this location is pivotal for its function. The charcoal canister, responsible for trapping fuel vapors from the fuel tank, works in tandem with the leak detection pump to prevent these vapors from escaping into the atmosphere. By situating the pump close to the canister, the system minimizes the distance vapors must travel during diagnostic tests, enhancing accuracy and efficiency. This proximity also simplifies maintenance, as technicians can access both components simultaneously during inspections or repairs.
From an analytical perspective, the placement of the fuel vapor leak detection pump near the charcoal canister reflects a thoughtful engineering approach. The evaporative emissions system operates under precise pressure and vacuum conditions to detect leaks. Positioning the pump adjacent to the canister reduces the volume of air and vapor that needs to be processed during testing, thereby improving the system’s sensitivity. This design choice is particularly crucial in vehicles with larger fuel tanks or complex emissions systems, where even minor leaks can compromise performance. Understanding this relationship helps vehicle owners and mechanics diagnose issues more effectively, ensuring compliance with environmental regulations.
For those looking to locate or inspect the fuel vapor leak detection pump, here’s a practical guide: start by identifying the charcoal canister, typically found near the fuel tank or along the vehicle’s undercarriage. The pump is usually mounted within a foot of the canister, connected by hoses or lines that integrate it into the evaporative emissions system. In some vehicles, the pump may be encased in a protective housing to shield it from debris and moisture. Refer to your vehicle’s service manual for exact diagrams and specifications, as the precise location can vary by make and model. Regularly checking these components for damage or wear is essential, especially in older vehicles where hoses may degrade over time.
A comparative analysis reveals that not all vehicles place the fuel vapor leak detection pump in the same relative position to the charcoal canister. In compact cars, space constraints often dictate a more integrated design, with the pump and canister housed in a single module. In contrast, larger vehicles like SUVs or trucks may separate the two components slightly to accommodate the larger fuel tank and emissions system. Despite these variations, the underlying principle remains consistent: keeping the pump close to the canister optimizes system performance. This design philosophy underscores the importance of understanding your vehicle’s specific layout to address potential issues proactively.
Finally, a persuasive argument for maintaining the fuel vapor leak detection pump and its proximity to the charcoal canister lies in its environmental and economic benefits. A well-functioning evaporative emissions system not only reduces harmful hydrocarbon emissions but also prevents fuel loss, saving money at the pump. Neglecting these components can lead to failed emissions tests, costly repairs, and even fines in regions with strict environmental regulations. By prioritizing regular inspections and understanding the pump’s location, vehicle owners can contribute to both sustainability and long-term cost savings. This small but vital component is a testament to the intricate balance between automotive engineering and environmental responsibility.
Step-by-Step Guide to Priming Your Mechanical Fuel Pump Post-Replacement
You may want to see also
Explore related products
Function Overview: Detects leaks in the fuel vapor system to prevent emissions and ensure safety
The fuel vapor leak detection pump is a critical component in modern vehicles, strategically located near the charcoal canister in the evaporative emission control (EVAP) system. Its primary function is to identify leaks in the fuel vapor system, ensuring that harmful hydrocarbons don’t escape into the atmosphere. By creating a vacuum and monitoring pressure changes, the pump detects even minor leaks, often as small as 0.02 inches in diameter. This precision is essential for compliance with environmental regulations, as undetected leaks can contribute to air pollution and smog formation. Without this component, vehicles would fail emissions tests and pose a greater risk to both the environment and public health.
To understand its operation, consider the pump’s role during a diagnostic cycle. When activated, typically during the vehicle’s key-on or key-off sequence, it seals the EVAP system and applies a vacuum. If the system holds pressure, no leak is detected. However, if pressure drops, the pump signals a leak to the engine control module (ECM), triggering a check engine light. Technicians can then use diagnostic trouble codes (DTCs), such as P0455 or P0456, to pinpoint the issue. Regular maintenance, like inspecting hoses and valves, can prevent false positives and ensure the pump functions accurately. Ignoring these warnings may lead to failed emissions tests or costly repairs.
From a safety perspective, the fuel vapor leak detection pump mitigates fire and explosion risks. Fuel vapors are highly flammable, and leaks in the system can accumulate in the engine bay or fuel tank area. By identifying leaks early, the pump prevents vapor buildup, reducing the likelihood of ignition from sparks or high temperatures. This is particularly crucial in older vehicles or those exposed to extreme conditions, where components may degrade faster. For vehicle owners, understanding this safety feature underscores the importance of addressing EVAP system warnings promptly, rather than dismissing them as minor issues.
Comparatively, the fuel vapor leak detection pump’s design varies across vehicle makes and models, but its core function remains consistent. In some vehicles, it’s integrated into the EVAP system’s purge valve assembly, while in others, it’s a standalone unit near the charcoal canister. For example, in many GM vehicles, the pump is located under the hood, whereas in some Toyota models, it’s positioned near the fuel tank. Despite these differences, the pump’s diagnostic process is standardized, allowing mechanics to troubleshoot using universal OBD-II scanners. This uniformity ensures that regardless of the vehicle, the pump’s role in emissions control and safety remains unwavering.
Practically, vehicle owners can take proactive steps to support the pump’s function. Regularly tightening the gas cap, which is a common leak point, can prevent false leak detections. Avoiding overfilling the fuel tank reduces pressure on the EVAP system, minimizing stress on the pump. For DIY enthusiasts, investing in a smoke machine for EVAP system testing can complement the pump’s diagnostics, identifying leaks visually. However, if the pump itself fails—often indicated by a constant check engine light or failure to pass emissions tests—professional replacement is recommended, as improper installation can compromise the entire system. By maintaining this component, drivers not only ensure compliance with environmental standards but also enhance their vehicle’s safety and reliability.
Installing a Fuel Pump on a 1997 Honda Accord: Step-by-Step Guide
You may want to see also
Explore related products
Common Failure Signs: Check Engine Light, failed emissions test, or fuel odor
The fuel vapor leak detection pump, often located near the charcoal canister in the evaporative emission control (EVAP) system, plays a critical role in preventing fuel vapors from escaping into the atmosphere. When this component fails, it triggers a cascade of symptoms that are both noticeable and problematic. One of the earliest and most common indicators is the illumination of the Check Engine Light. This warning is not to be ignored, as it often points to a specific trouble code related to the EVAP system, such as P0440 or P0455, which signify leaks in the vapor lines or a malfunctioning pump. Modern vehicles are equipped with onboard diagnostics that detect even minor inefficiencies, making this light a reliable first alert.
A failed emissions test is another red flag that often ties back to a faulty fuel vapor leak detection pump. The EVAP system is designed to capture and store fuel vapors, which are later burned in the engine. If the pump fails, these vapors may escape, increasing hydrocarbon emissions and causing the vehicle to exceed regulatory limits. This is particularly common in older vehicles or those with high mileage, where wear and tear on the EVAP components is more pronounced. For example, a 2005 Honda Civic with over 150,000 miles is statistically more likely to fail emissions due to EVAP system issues than a newer model with fewer miles.
Perhaps the most immediate and sensory sign of a failing fuel vapor leak detection pump is the presence of a fuel odor, especially around the vehicle’s fuel tank or near the EVAP system components. This occurs when the pump fails to properly seal or pressurize the vapor lines, allowing raw fuel vapors to escape. While a faint odor might seem minor, it indicates a potential safety hazard, as fuel vapors are highly flammable. Drivers should address this issue promptly, especially if they notice the smell intensifies during refueling or after the engine has been running.
To diagnose and address these issues, start by using an OBD-II scanner to retrieve the specific trouble code triggering the Check Engine Light. Codes like P0440 or P0455 narrow down the problem to the EVAP system, but further inspection is needed to pinpoint the faulty component. A smoke test can help identify leaks in the vapor lines, while a visual inspection of the pump and its connections can reveal cracks, corrosion, or disconnections. Replacing the pump typically costs between $200 and $400, depending on the vehicle make and labor rates, but it’s a necessary investment to restore emissions compliance and safety.
In summary, the fuel vapor leak detection pump’s failure manifests through the Check Engine Light, failed emissions tests, and fuel odors—each symptom demanding attention. Ignoring these signs not only risks environmental harm but also compromises vehicle performance and safety. Regular maintenance, such as inspecting the EVAP system during routine service, can prevent these issues, especially in vehicles over 10 years old or with high mileage. Addressing these symptoms promptly ensures compliance with emissions standards and maintains the integrity of the vehicle’s fuel system.
Step-by-Step Guide to Installing a 2005 Ford Transit Fuel Pump
You may want to see also
Explore related products
Testing Procedures: Use a scan tool or smoke machine to diagnose leaks accurately
The fuel vapor leak detection pump, often part of the evaporative emission control system, is a critical component in modern vehicles designed to prevent harmful fuel vapors from escaping into the atmosphere. When diagnosing leaks in this system, precision is key, and two tools stand out for their effectiveness: scan tools and smoke machines. Each offers unique advantages, but their combined use can provide a comprehensive diagnosis, ensuring no leak goes undetected.
Analytical Approach: Understanding the Tools
A scan tool is essential for reading diagnostic trouble codes (DTCs) related to the evaporative system, such as P0442 or P0455, which indicate small or large leaks. These codes pinpoint potential problem areas but don’t reveal the exact location of the leak. This is where a smoke machine becomes invaluable. By pressurizing the system with smoke, technicians can visually identify leaks as smoke escapes from cracks, loose connections, or damaged components. Together, these tools bridge the gap between data-driven diagnostics and physical inspection, offering a complete solution for leak detection.
Instructive Steps: How to Use a Smoke Machine
To effectively use a smoke machine, start by connecting it to the vehicle’s evaporative system via the purge valve or charcoal canister. Set the machine to deliver a controlled amount of smoke, typically at 10–15 PSI, ensuring it doesn’t exceed the system’s pressure limits. Observe the system carefully, looking for smoke escaping from hoses, valves, or the fuel tank. Common leak points include deteriorated vapor lines, faulty gas caps, or cracked charcoal canisters. Always follow the manufacturer’s guidelines for both the smoke machine and the vehicle to avoid damage.
Comparative Analysis: Scan Tool vs. Smoke Machine
While a scan tool provides critical data, it relies on the vehicle’s sensors, which may not always pinpoint the exact leak location. A smoke machine, on the other hand, offers immediate visual confirmation but requires the system to be intact enough to hold pressure. For instance, a scan tool might indicate a leak in the vapor lines, but a smoke machine will show exactly where the smoke is escaping. Combining both tools ensures a thorough diagnosis, reducing the risk of misdiagnosis and unnecessary part replacements.
Practical Tips and Cautions
When using a smoke machine, ensure the vehicle’s ignition is off to prevent accidental activation of system components. Avoid over-pressurizing the system, as this can cause damage. For scan tools, always update the software to ensure compatibility with the latest vehicle models. If a leak is detected near the fuel tank, exercise caution, as fuel vapors are highly flammable. Finally, document all findings for future reference, as recurring leaks may indicate a systemic issue rather than an isolated problem.
Accurate leak detection in the fuel vapor system requires a dual approach: leveraging the data-driven insights of a scan tool and the visual precision of a smoke machine. By combining these tools, technicians can diagnose leaks efficiently, ensuring compliance with emissions standards and maintaining vehicle performance. Whether you’re a professional mechanic or a DIY enthusiast, mastering these testing procedures will save time, reduce costs, and enhance diagnostic accuracy.
Testing Your 2003 VW Beetle Convertible's Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Replacement Steps: Disconnect battery, remove pump, install new one, and reset codes
The fuel vapor leak detection pump, often located near the charcoal canister in the vehicle's emissions system, plays a critical role in maintaining environmental compliance by preventing fuel vapors from escaping into the atmosphere. When this component fails, replacing it becomes essential to avoid check engine lights and potential emissions test failures. The process, while straightforward, requires precision and adherence to safety protocols to ensure both personal safety and system integrity.
Step 1: Disconnect the Battery
Begin by disconnecting the negative terminal of the vehicle’s battery to eliminate the risk of electrical shorts or accidental activation of the fuel system. Use a 10mm or 13mm wrench, depending on your vehicle’s terminal size, and secure the cable away from the battery to prevent accidental reconnection. This step is non-negotiable, as working on the fuel system without disconnecting power can lead to hazardous situations. Allow the system to de-energize for at least 5 minutes before proceeding.
Step 2: Remove the Faulty Pump
Locate the fuel vapor leak detection pump, typically found near the charcoal canister under the vehicle or in the engine bay, depending on the make and model. Disconnect the electrical connector by pressing the release tab and gently pulling it apart. Next, remove the hoses connected to the pump, noting their positions for reassembly. Use a flathead screwdriver to pry off hose clamps if necessary, but avoid damaging the hoses. Unscrew the mounting bolts securing the pump (usually 8mm or 10mm) and carefully lift the unit out, taking care not to disturb surrounding components.
Step 3: Install the New Pump
Position the new pump in the same orientation as the old one, ensuring it aligns with the mounting holes. Secure it with the original bolts, tightening them to the manufacturer’s torque specifications (typically 8-12 ft-lbs). Reattach the hoses, ensuring they are firmly seated and clamped to prevent leaks. Reconnect the electrical connector, ensuring it clicks into place. Double-check all connections to avoid post-installation issues.
Step 4: Reset Codes and Test
With the pump installed, reconnect the battery and start the vehicle. Allow it to idle for 2-3 minutes to initialize the system. Use an OBD-II scanner to clear any stored diagnostic trouble codes (DTCs) related to the fuel vapor system. Drive the vehicle for at least 10 miles to allow the system to run a complete self-test. Monitor for unusual smells or warning lights, which could indicate a leak or improper installation.
This replacement process, while accessible to DIY enthusiasts, demands attention to detail and safety precautions. By following these steps, you can restore your vehicle’s emissions system functionality and avoid costly repairs or failed inspections.
Quick Guide: Resetting Your Fuel Pump Clip Safely and Easily
You may want to see also
Frequently asked questions
The fuel vapor leak detection pump is typically located near the charcoal canister or within the evaporative emissions (EVAP) system, often in the engine bay or under the vehicle.
