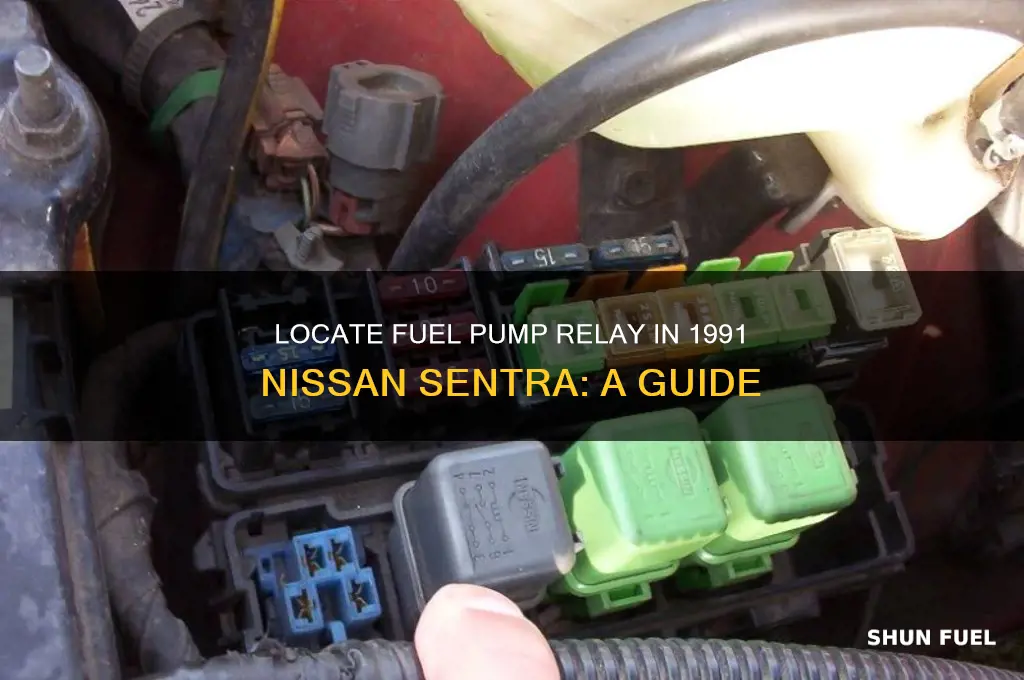

The fuel pump relay in a 1991 Nissan Sentra is a critical component responsible for controlling the fuel pump's operation, ensuring the engine receives the necessary fuel for combustion. Located under the hood, this relay is typically housed within the fuse and relay box, often found near the battery or along the firewall. Identifying its exact position can be challenging without a vehicle-specific manual, as Nissan may have placed it in different locations across various models or trims. Owners are advised to consult their Sentra's service manual or seek guidance from automotive forums and resources dedicated to this particular make and model to accurately locate the fuel pump relay.
| Characteristics | Values |
|---|---|
| Location | Under the dashboard, near the firewall or on the driver's side kick panel. |
| Relay Type | Fuel pump relay (controls power to the fuel pump). |
| Vehicle Model | 1991 Nissan Sentra |
| Access Difficulty | Moderate (may require removing panels or reaching under the dash). |
| Common Issues | Relay failure can cause no-start conditions or fuel pump malfunction. |
| Replacement Part | Nissan OEM fuel pump relay or compatible aftermarket part. |
| Diagnostic Tip | Check for power at the relay terminals to confirm if the relay is faulty. |
| Related Components | Fuel pump, ECU (Engine Control Unit), fuse box. |
| Year Range Applicability | Typically applies to 1991-1994 Nissan Sentra models. |
| Safety Precaution | Disconnect the battery before accessing or replacing the relay. |
Explore related products
What You'll Learn
Location of fuel pump relay in 1991 Nissan Sentra
The fuel pump relay in a 1991 Nissan Sentra is a critical component for ensuring your vehicle’s fuel system operates correctly. Located under the dashboard on the driver’s side, this relay is part of the larger fuse and relay box. To access it, you’ll need to remove the lower dashboard panel, which typically involves unscrewing a few Phillips-head screws and gently prying the panel away from the dash. Once exposed, the relay box will have a diagram on its cover or inside the lid to help you identify the fuel pump relay’s exact position.
Identifying the fuel pump relay itself requires a bit of attention to detail. It’s a small, rectangular component with four or five pins, usually labeled as "F/P RELAY" or "FUEL PUMP RELAY." If the label isn’t visible, consult your Nissan Sentra’s service manual for a diagram. A common issue with this relay is that it can fail over time, causing the fuel pump to stop working, which results in a no-start condition. Testing the relay involves swapping it with another relay of the same type in the box (e.g., the horn relay) to see if the issue persists.
For those tackling this task without prior experience, a few practical tips can save time and frustration. First, ensure the car is turned off and the ignition key is removed before starting any work. Second, use a flashlight to clearly see the relay box and its components, as the area under the dash can be dimly lit. Third, if you’re unsure about the relay’s condition, consider using a multimeter to test for continuity across the pins. A faulty relay will show no continuity when tested.
Comparing the 1991 Nissan Sentra’s fuel pump relay location to newer models highlights how automotive design has evolved. In modern vehicles, relays are often housed in the engine bay or integrated into the ECU, making them less accessible for DIY repairs. The Sentra’s under-dash location, while somewhat hidden, is still relatively straightforward to access with basic tools. This accessibility makes it a good starting point for beginners learning about automotive electrical systems.
In conclusion, locating and troubleshooting the fuel pump relay in a 1991 Nissan Sentra is a manageable task with the right approach. By understanding its position under the dashboard, identifying the correct relay, and following practical tips, you can diagnose and resolve fuel pump issues efficiently. This knowledge not only saves on repair costs but also empowers you to maintain your vehicle’s reliability.
V8 Fuel Pump Compatibility: Can a 97 Model Fit a 99 F350 V10?
You may want to see also
Explore related products
Identifying the fuel pump relay in a 1991 Sentra
The fuel pump relay in a 1991 Nissan Sentra is a critical component for ensuring your vehicle’s engine receives the necessary fuel. Located under the dashboard on the driver’s side, it’s part of the fuse and relay box, often tucked near the brake pedal. This placement is typical for older Nissan models, designed for accessibility yet requiring some familiarity with the vehicle’s interior layout. Identifying it involves recognizing its rectangular shape and a label or diagram on the fuse box cover, which usually denotes it as "FUEL PUMP" or "FP."
To locate the fuel pump relay, start by turning the ignition off and ensuring the parking brake is engaged. Open the driver’s side door for better lighting and access. The fuse and relay box is typically a black or gray rectangular unit, secured with a clip or screw. Remove the cover to reveal a grid of fuses and relays. Refer to the diagram on the cover or consult the owner’s manual to pinpoint the fuel pump relay’s exact position. It’s usually a larger relay compared to others in the box, often with four or five pins.
A practical tip for verification is to swap the fuel pump relay with another relay of the same type in the box (e.g., the horn relay). If the fuel pump begins to hum when the ignition is turned on, you’ve correctly identified it. This method is particularly useful if the relay isn’t clearly labeled. However, exercise caution when swapping relays to avoid damaging components or misplacing parts. Always return the relays to their original positions after testing.
Understanding the fuel pump relay’s role is key to diagnosing fuel system issues. If your 1991 Sentra struggles to start or stalls, a faulty relay could be the culprit. Symptoms include no fuel pump noise when the ignition is turned on or intermittent starting problems. Testing the relay with a multimeter or replacing it with a known good unit can confirm its condition. Replacement relays are typically inexpensive and available at auto parts stores, ensuring a quick fix for this common issue.
In summary, identifying the fuel pump relay in a 1991 Nissan Sentra requires a combination of visual inspection, reference to diagrams, and practical testing. Its location under the dashboard, paired with its distinct size and labeling, makes it accessible for DIY troubleshooting. By understanding its function and using simple diagnostic techniques, you can address fuel system issues efficiently, keeping your Sentra running smoothly.
Diagnosing a Faulty Prius Fuel Pump: Step-by-Step Testing Guide
You may want to see also
Explore related products
Common issues with 1991 Nissan Sentra fuel pump relay
The 1991 Nissan Sentra's fuel pump relay is a critical component in the vehicle's fuel delivery system, often located under the dashboard near the fuse box or in the engine bay. Despite its importance, this relay is prone to several issues that can disrupt fuel flow and engine performance. One common problem is electrical corrosion, which occurs when moisture or dirt accumulates on the relay's terminals, leading to poor conductivity. This can cause the fuel pump to operate intermittently or fail entirely, leaving drivers stranded. Regular inspection and cleaning of the relay terminals with a wire brush and dielectric grease can prevent this issue.
Another frequent issue is relay failure due to age, as the internal components degrade over time. After more than three decades, the relay’s contacts may wear out, or the coil may weaken, resulting in insufficient power delivery to the fuel pump. Symptoms include difficulty starting the engine, stalling, or a complete loss of power. Replacing the relay with a high-quality OEM or aftermarket part is a straightforward fix, typically costing between $20 and $50. Always verify compatibility with your specific Sentra model before purchasing.
A less obvious but equally problematic issue is incorrect relay installation, which can occur during DIY repairs or after-market modifications. The 1991 Sentra’s fuel pump relay is polarity-sensitive, meaning reversing the terminals can damage the relay or the fuel pump. To avoid this, consult the vehicle’s manual or a trusted repair guide to ensure proper orientation. Additionally, using a multimeter to test the relay’s continuity before installation can confirm its functionality and prevent further complications.
Lastly, overheating is a concern, especially in high-temperature environments or when the relay is subjected to excessive electrical load. Over time, this can melt the relay’s plastic housing or damage its internal components. To mitigate this, ensure the relay is securely mounted in a well-ventilated area and avoid overloading the electrical system with high-draw accessories. If overheating persists, consider relocating the relay or upgrading to a heat-resistant model designed for harsher conditions.
By addressing these common issues—electrical corrosion, age-related failure, incorrect installation, and overheating—owners of the 1991 Nissan Sentra can maintain reliable fuel pump relay performance and avoid unexpected breakdowns. Proactive maintenance and informed troubleshooting are key to extending the life of this vital component.
F350 Fuel Pump Compatibility: Are 1994 Front and Rear Pumps Interchangeable?
You may want to see also
Explore related products
Replacing the fuel pump relay in a 1991 Sentra
The fuel pump relay in a 1991 Nissan Sentra is a critical component that ensures your vehicle’s fuel system operates efficiently. Located under the dashboard on the driver’s side, it’s often tucked near the fuse box or kick panel. Identifying its exact position can be tricky due to the car’s age and varying trim levels, but a Haynes or Chilton manual for this model will provide a diagram for precise location. Before diving into replacement, verify the relay is the issue by checking for symptoms like a no-start condition, sputtering, or a dead engine after running.
While the process is simple, there are a few cautions to keep in mind. First, ensure the replacement relay matches the original in terms of pin configuration and amperage rating—using an incorrect relay can damage the fuel system. Second, inspect the relay socket for corrosion or damage; clean it with electrical contact cleaner if necessary. Lastly, test the new relay by reconnecting the battery and attempting to start the vehicle. If the issue persists, the problem may lie elsewhere, such as the fuel pump itself or a faulty wiring harness.
In conclusion, replacing the fuel pump relay in a 1991 Nissan Sentra is an accessible DIY repair that can save you a trip to the mechanic. By understanding its location, having the right tools, and following precautions, you can restore your vehicle’s fuel system functionality efficiently. This repair not only addresses immediate issues but also serves as preventive maintenance, ensuring your Sentra remains reliable for years to come.
Does Your ATV's Fuel Pump Relay Rely on Ground Signal?
You may want to see also
Explore related products
Testing the fuel pump relay in a 1991 Nissan Sentra
The fuel pump relay in a 1991 Nissan Sentra is a critical component that ensures your vehicle’s fuel system operates efficiently. Located under the dashboard on the driver’s side, near the fuse box, this relay acts as a switch, controlling power to the fuel pump. Testing it can help diagnose issues like a no-start condition or inconsistent fuel delivery. Before diving into the process, gather a multimeter, a jumper wire, and a basic understanding of electrical circuits.
To test the fuel pump relay, start by locating it. In the 1991 Sentra, it’s typically a black or gray rectangular module with four or five pins. Once identified, remove the relay by pulling it straight out of its socket. Inspect it for physical damage, such as burnt pins or a cracked casing, which could indicate a failure. If it appears intact, proceed with electrical testing using a multimeter. Set the multimeter to the ohms setting and test the continuity between the relay’s pins according to the diagram in your vehicle’s manual. A lack of continuity on the control circuit pins (usually pins 85 and 86) suggests a faulty relay.
Another practical method involves swapping the fuel pump relay with a similar relay from another circuit, such as the horn or A/C relay. If the fuel pump activates after the swap, the original relay is likely defective. However, exercise caution when doing this, as mismatched relays can cause damage. Always consult your vehicle’s wiring diagram to ensure compatibility. This method is quick but less precise than multimeter testing.
For a more definitive test, use a jumper wire to bypass the relay entirely. Connect the battery’s positive terminal to the fuel pump’s power wire (usually pin 87) while grounding the pump’s negative terminal. If the pump runs, the relay is at fault. If not, the issue may lie with the pump itself or another part of the circuit. This step isolates the relay’s role in the system, providing clarity in troubleshooting.
In conclusion, testing the fuel pump relay in a 1991 Nissan Sentra requires a systematic approach. Combine visual inspection, multimeter testing, relay swapping, and bypass methods to accurately diagnose the issue. Always prioritize safety by disconnecting the battery before working on electrical components. With these steps, you can determine whether the relay is the culprit or if further investigation is needed.
Locate the Fuel Pump Reset Button in Your 1998 Ford Ranger
You may want to see also
Frequently asked questions
The fuel pump relay in a 1991 Nissan Sentra is typically located in the engine compartment fuse box, often near the battery or firewall.
The fuel pump relay is usually a small, rectangular or square-shaped module with a series of pins. It may be labeled "F/P RELAY" or "FUEL PUMP" on the fuse box cover or relay itself.
Yes, you can test the relay using a multimeter to check for continuity or by swapping it with a similar relay in the fuse box to see if the fuel pump activates.
Common symptoms include the engine not starting, stalling, or difficulty starting, as well as a lack of fuel pressure or no fuel pump operation when the ignition is turned on.
To replace the relay, locate it in the fuse box, pull it straight out, and insert the new relay in the same position. Ensure it clicks into place securely.
