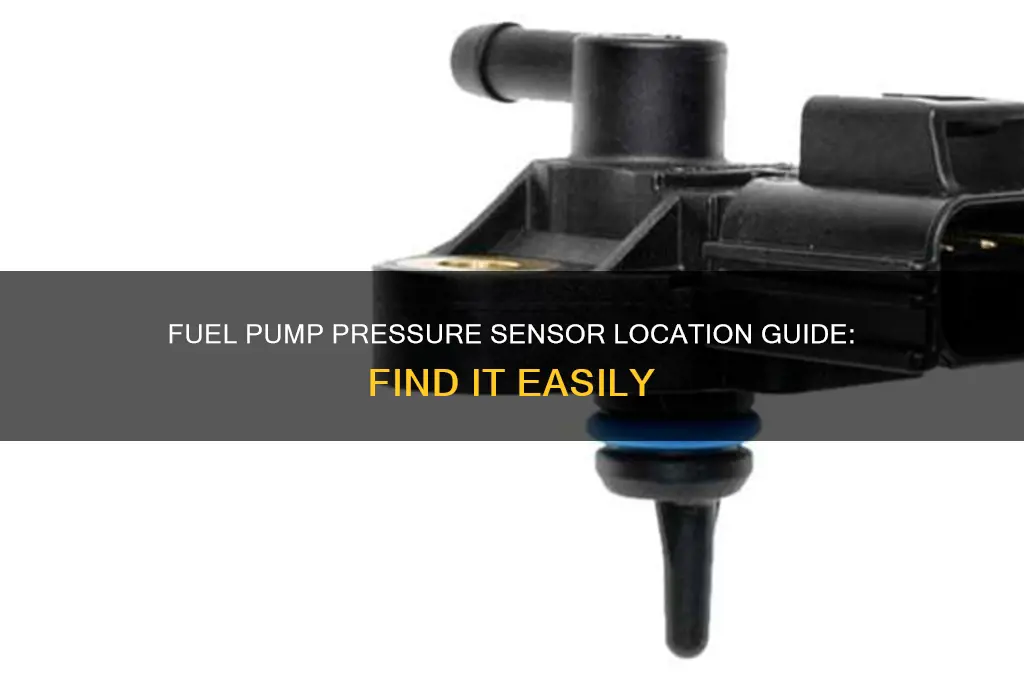

Fuel Pump Pressure Sensor in Cars
The fuel pump pressure sensor is a critical component in modern vehicles, ensuring the engine receives the correct amount of fuel at optimal pressure. Located near the fuel pump, often inside the fuel tank or along the fuel line, this sensor monitors fuel pressure and sends data to the engine control unit (ECU). Its precise placement varies by vehicle make and model, but its function remains consistent: to maintain engine efficiency and prevent issues like poor performance or excessive fuel consumption.
Analyzing its role, the fuel pump pressure sensor acts as a safeguard against system malfunctions. For instance, if fuel pressure drops below the required threshold, the sensor alerts the ECU, which adjusts the pump’s operation to restore balance. This real-time monitoring is essential for vehicles with high-performance engines or those operating in extreme conditions, where fuel delivery precision is non-negotiable. Without this sensor, engines risk running too lean or too rich, leading to damage or inefficiency.
For DIY enthusiasts or mechanics, locating the fuel pump pressure sensor requires consulting the vehicle’s manual or a repair guide. In most cars, it’s integrated into the fuel pump module inside the tank, accessible by removing the rear seat or a dedicated access panel. In some models, it’s positioned along the fuel rail or near the fuel filter, making it easier to inspect without tank removal. Always disconnect the battery before working on fuel system components to avoid sparks or electrical hazards.
Comparatively, older vehicles often lack this sensor, relying instead on mechanical fuel pumps and carburetors. The introduction of electronic fuel injection systems in the 1980s popularized the use of pressure sensors, aligning with stricter emissions and efficiency standards. Today, advancements like digital sensors and smart fuel systems further enhance accuracy, reducing environmental impact and improving fuel economy. This evolution underscores the sensor’s importance in modern automotive engineering.
In practice, diagnosing a faulty fuel pump pressure sensor involves checking for symptoms like engine misfires, stalling, or the check engine light. A mechanic can use a multimeter or scan tool to test the sensor’s output voltage, which should correspond to the fuel pressure gauge readings. Replacement typically costs between $100 and $300, depending on the vehicle and labor rates. Regular maintenance, such as fuel filter changes, can prolong the sensor’s lifespan and ensure consistent performance.
In conclusion, the fuel pump pressure sensor is a small yet vital part of a vehicle’s fuel system, directly influencing engine health and efficiency. Understanding its location, function, and maintenance requirements empowers car owners to address issues proactively, ensuring their vehicle runs smoothly for years to come. Whether you’re a seasoned mechanic or a curious driver, recognizing the sensor’s role highlights its significance in modern automotive technology.
Efficiently Removing Clamps from Your Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Location in Diesel Engines
In diesel engines, the fuel pump pressure sensor is typically located near the fuel pump itself, often integrated into the fuel pump assembly or mounted on the fuel rail. This strategic placement ensures accurate monitoring of fuel pressure as it exits the pump, a critical parameter for engine performance and efficiency. Diesel engines rely on high-pressure fuel injection systems, making the sensor's location vital for real-time feedback to the engine control unit (ECU).
Consider the common-rail diesel system, a prevalent design in modern diesel engines. Here, the fuel pump pressure sensor is usually positioned on the common rail, which acts as a reservoir for high-pressure fuel. This location allows the sensor to measure the pressure before it’s distributed to individual injectors, ensuring consistent fuel delivery across all cylinders. For example, in a Cummins ISX engine, the sensor is often found on the passenger side of the engine block, near the fuel filter housing, providing easy access for diagnostics and maintenance.
When troubleshooting or replacing the fuel pump pressure sensor in a diesel engine, it’s essential to consult the vehicle’s service manual for precise location details. Some engines, like those in heavy-duty trucks or agricultural machinery, may have sensors mounted directly on the fuel pump housing, while others might place them along the fuel lines leading to the injectors. Always disconnect the battery before working on the fuel system to prevent accidental activation of the fuel pump, which operates at pressures up to 30,000 psi in modern common-rail systems.
A comparative analysis reveals that diesel engines often position the fuel pump pressure sensor closer to the pump compared to gasoline engines, where sensors may be located further downstream. This difference stems from diesel’s higher operating pressures and the need for immediate pressure feedback to optimize combustion. For instance, in a Ford Power Stroke engine, the sensor is integrated into the fuel pump module, whereas in a gasoline engine, it might be found near the fuel filter or along the return line.
In conclusion, understanding the location of the fuel pump pressure sensor in diesel engines is crucial for diagnostics, maintenance, and performance optimization. Whether integrated into the fuel pump assembly, mounted on the common rail, or positioned along the fuel lines, its placement is designed to provide accurate pressure readings essential for the ECU’s fuel management system. Always refer to specific engine documentation and follow safety precautions when working with high-pressure diesel fuel systems.
Lubrication Process of Inlet Metering Opposed Plunger Fuel Pumps Explained
You may want to see also
Explore related products
Finding the Sensor in Trucks
Locating the fuel pump pressure sensor in trucks can be a nuanced task due to the diversity in truck models and engine designs. Unlike passenger vehicles, trucks often house their fuel systems in less accessible areas, such as beneath heavy-duty frames or near the fuel tank, which may require specialized tools for access. For instance, in many diesel trucks like the Ford Super Duty or Chevrolet Silverado HD, the sensor is typically integrated into the fuel pump module located inside the fuel tank. This placement ensures accurate pressure readings directly from the fuel source but complicates replacement or inspection, often necessitating tank removal.
When searching for the sensor, start by consulting the truck’s service manual, which provides model-specific diagrams and instructions. For example, in some Dodge Ram trucks, the sensor is part of the fuel pump assembly and can be accessed by dropping the tank, a process that requires disconnecting electrical connectors and fuel lines. Always ensure the fuel system is depressurized before attempting any work to avoid hazards. If the sensor is external, as in older carbureted trucks, it might be found along the fuel line near the engine bay, often secured with a bracket and accessible with basic hand tools.
A comparative analysis reveals that modern trucks with electronic fuel injection systems tend to have more integrated sensors, while older models may have standalone units. For instance, in a 1990s GMC Sierra, the sensor might be a discrete component near the fuel filter, whereas a 2020 model could have it embedded within the fuel pump module. This evolution underscores the importance of understanding your truck’s specific design. If unsure, online forums or manufacturer-specific communities can provide insights tailored to your make and model.
Practical tips include using a fuel pressure gauge to test the sensor’s functionality before assuming it’s faulty. For trucks with in-tank sensors, consider renting a fuel tank strap tool to simplify removal. Always work in a well-ventilated area and use safety goggles to protect against fuel spills. If the sensor is external, inspect the wiring harness for corrosion or damage, a common issue in trucks exposed to harsh weather conditions. Replacing the sensor typically costs between $100 and $300, depending on the truck and whether you perform the work yourself or hire a mechanic.
In conclusion, finding the fuel pump pressure sensor in trucks requires a blend of research, caution, and adaptability. Whether dealing with an in-tank module or an external unit, understanding your truck’s layout and following safety protocols ensures a successful diagnosis or repair. With the right tools and knowledge, even the most hidden sensors can be located and addressed efficiently.
Are Motorcraft Fuel Pumps Made in China? Uncovering the Truth
You may want to see also
Explore related products
Sensor Placement in Motorcycles
The fuel pump pressure sensor in motorcycles is typically located near the fuel pump itself, often integrated into the fuel pump module or mounted on the fuel rail. This strategic placement ensures accurate monitoring of fuel pressure, which is critical for optimal engine performance. However, the specific location can vary depending on the motorcycle’s make, model, and design. For instance, in some Harley-Davidson models, the sensor is found within the fuel tank assembly, while in sportbikes like the Yamaha R1, it may be positioned closer to the engine for quicker response times. Understanding this placement is essential for diagnostics, maintenance, or upgrades.
When considering sensor placement in motorcycles, the compact nature of these vehicles demands precision. Unlike cars, motorcycles have limited space, forcing engineers to prioritize accessibility and protection from environmental factors. For example, sensors are often shielded from heat sources like exhaust systems and secured against vibrations to prevent damage. A poorly placed sensor can lead to inaccurate readings, affecting fuel efficiency and engine reliability. Riders performing DIY maintenance should consult their motorcycle’s service manual to locate the sensor, as incorrect handling can void warranties or cause system malfunctions.
One critical aspect of sensor placement is its impact on diagnostic efficiency. A fuel pump pressure sensor positioned close to the fuel injectors, for instance, allows for faster detection of pressure fluctuations, enabling the ECU to adjust fuel delivery in real time. This is particularly important in high-performance motorcycles, where even minor deviations can affect acceleration and power output. Riders experiencing symptoms like rough idling or poor fuel economy should inspect the sensor’s location and connections first, as these issues often stem from sensor-related problems rather than the fuel pump itself.
Practical tips for dealing with sensor placement include using a multimeter to test the sensor’s voltage and resistance, ensuring it aligns with manufacturer specifications. If the sensor is difficult to access, consider investing in specialized tools designed for motorcycle maintenance. For instance, a fuel line disconnect tool can simplify the process of reaching sensors located near the fuel pump. Additionally, when replacing a sensor, ensure the new unit is compatible with your motorcycle’s system, as aftermarket parts may not always integrate seamlessly. Proper placement and maintenance of the fuel pump pressure sensor not only extend the life of your motorcycle but also enhance its overall performance and safety.
DIY Fuel Pump Replacement Guide for 1998 Camaro Owners
You may want to see also
Explore related products
Identifying the Sensor in Fuel Tanks
The fuel pump pressure sensor, a critical component in modern fuel systems, is often nestled within the fuel tank itself, making its identification a task that requires both knowledge and precision. This sensor plays a pivotal role in maintaining optimal fuel pressure, ensuring the engine receives the right amount of fuel for efficient combustion. Locating it is the first step in any diagnostic or maintenance procedure related to fuel pressure issues.
Understanding the Sensor's Role: Before diving into the physical search, it's essential to grasp why this sensor is crucial. The fuel pump pressure sensor monitors the pressure within the fuel system, sending real-time data to the engine control unit (ECU). This information is vital for adjusting fuel injection timing and ensuring the engine operates smoothly. In vehicles with return-less fuel systems, this sensor is even more critical as it directly influences the fuel pump's operation.
Locating the Sensor: A Step-by-Step Guide
- Access the Fuel Tank: Start by safely raising the vehicle to access the underside. Locate the fuel tank, typically found beneath the rear seat or cargo area in most vehicles. Ensure the fuel tank is as empty as possible to minimize hazards.
- Identify the Fuel Pump Module: The fuel pump pressure sensor is usually integrated into the fuel pump module, which is immersed in the fuel tank. This module often includes the fuel pump, fuel level sender, and the pressure sensor. It is connected to the fuel lines and electrical wiring.
- Visual Inspection: Carefully inspect the fuel pump module for a small, cylindrical or rectangular component with an electrical connector. This is likely the pressure sensor. In some designs, it might be a separate unit attached to the fuel pump assembly, while in others, it could be integrated into the pump housing.
- Consult Vehicle Manuals: If visual identification is challenging, refer to the vehicle's service manual or repair guides. These resources provide detailed diagrams and descriptions of the fuel system, making it easier to pinpoint the sensor's exact location.
Cautions and Considerations: Working with fuel systems requires caution. Always relieve fuel system pressure before attempting any repairs or inspections. Additionally, be mindful of the sensor's sensitivity; handle it with care to avoid damage. In some cases, accessing the sensor might require specialized tools or the removal of additional components, emphasizing the need for thorough research and preparation.
Identifying the fuel pump pressure sensor is a task that combines mechanical knowledge with attention to detail. By understanding its function and following a systematic approach, technicians and enthusiasts can efficiently locate this vital component, ensuring accurate diagnostics and effective maintenance of the vehicle's fuel system.
Step-by-Step Guide: Installing a Fuel Pump on a 2004 Ford F150
You may want to see also
Frequently asked questions
The fuel pump pressure sensor is usually located inside the fuel tank, near or integrated with the fuel pump assembly.
In some vehicles, the fuel pump pressure sensor may be located along the fuel rail in the engine bay, depending on the vehicle's design and fuel system configuration.
To access the fuel pump pressure sensor, you typically need to remove the fuel tank or access the fuel pump module, which requires disconnecting the fuel lines, electrical connectors, and lowering the tank in most cases. Always follow safety precautions and refer to the vehicle's manual.
