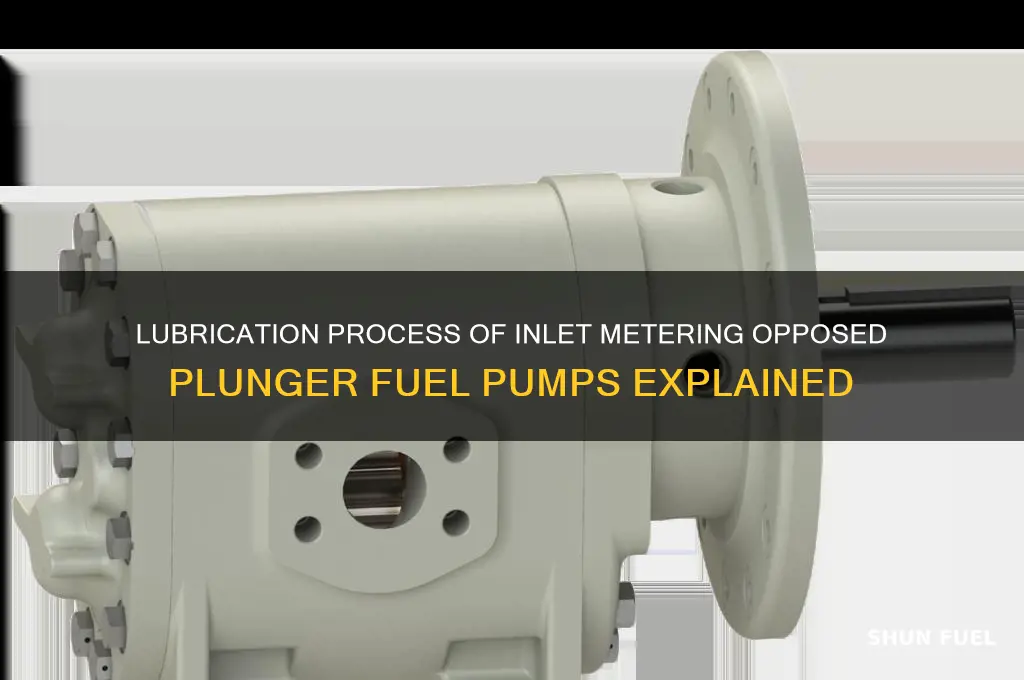

The inlet metering opposed plunger fuel pump, a critical component in many diesel engines, relies on a sophisticated lubrication system to ensure its longevity and efficient operation. This system is designed to minimize friction and wear between the pump's moving parts, particularly the plungers and barrels, which are subjected to high pressures and temperatures. Lubrication is typically achieved through a combination of methods, including the use of fuel itself as a lubricant, where a portion of the fuel is directed to the contact surfaces to reduce wear. Additionally, some designs incorporate a dedicated lubrication circuit that supplies oil from the engine’s main oiling system, ensuring consistent and adequate lubrication even under extreme operating conditions. Understanding how this lubrication process works is essential for maintaining the pump’s performance and preventing premature failure.
| Characteristics | Values |
|---|---|
| Lubrication Method | Pressure lubrication |
| Lubrication Source | Engine oil from the engine's oil pump |
| Lubrication Path | Oil is supplied through dedicated passages to the pump's moving parts |
| Lubricated Components | Plungers, barrels, cam followers, and other friction surfaces |
| Lubrication Pressure | Maintained at engine oil pressure levels |
| Oil Flow Regulation | Controlled by the engine's oil pump and pressure relief valve |
| Lubrication Type | Forced lubrication (splash lubrication may supplement in some designs) |
| Oil Viscosity Requirement | Must meet engine manufacturer's specifications for proper flow |
| Lubrication Maintenance | Regular oil changes to ensure clean and adequate lubrication |
| Common Failure Due to Poor Lubrication | Wear, overheating, and seizure of plungers or barrels |
| Lubrication Monitoring | Oil pressure gauge and warning systems in the engine |
