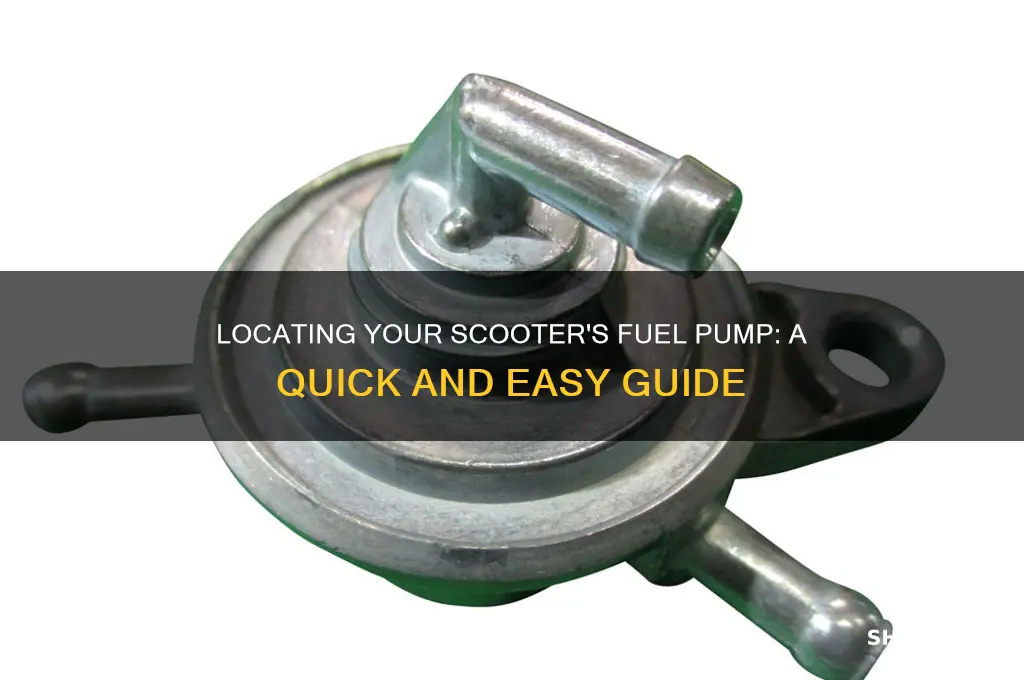

The fuel pump on a scooter is a critical component responsible for delivering fuel from the tank to the engine, ensuring optimal performance and efficiency. Its location varies depending on the scooter’s make and model, but it is typically found near the fuel tank or integrated into the tank itself. Some scooters may have an external fuel pump mounted on the chassis or under the seat, while others might feature an in-tank pump for better protection and quieter operation. To locate the fuel pump, consult the scooter’s manual or inspect the fuel tank area, keeping in mind that accessibility may require removing panels or components. Understanding its position is essential for maintenance, troubleshooting, or replacing the pump if issues arise.
| Characteristics | Values |
|---|---|
| Location | Typically inside the fuel tank |
| Purpose | To deliver fuel from the tank to the engine |
| Type | Electric fuel pump (most common) |
| Common Scooter Types | Found in most modern scooters with fuel injection systems |
| Access | Usually requires removing the fuel tank or a dedicated access panel |
| Maintenance | May require replacement if faulty, often involves fuel system cleaning |
| Symptoms of Failure | Engine stalling, difficulty starting, loss of power |
| Cost of Replacement | Varies, typically $50-$200 depending on scooter model and labor |
| DIY Difficulty | Moderate to difficult, requires mechanical knowledge and tools |
| Professional Recommendation | Recommended for complex fuel system repairs |
Explore related products
What You'll Learn
Locating the fuel pump on different scooter models
The fuel pump's location on a scooter varies significantly across models, influenced by design priorities such as accessibility, safety, and space optimization. For instance, on many Vespa models, the fuel pump is integrated into the fuel tank itself, requiring removal of the seat and a dedicated access panel to reach it. This design prioritizes a sleek exterior but complicates maintenance. In contrast, Honda scooters like the PCX series often house the fuel pump beneath the floorboard, accessible by removing a few screws and a protective cover. Understanding these differences is crucial for troubleshooting or maintenance, as misidentification can lead to unnecessary disassembly or damage.
When dealing with electric scooters that use fuel-injected systems (rare but emerging), the fuel pump is typically located near the battery compartment, often paired with a compact fuel tank. This placement reflects the need to balance fuel delivery with the limited space available in electric-hybrid designs. For Chinese-made scooters (e.g., TaoTao or Jonway), the fuel pump is frequently mounted externally near the engine block, secured with brackets and exposed for easier access. While this simplifies repairs, it increases vulnerability to damage from debris or accidents. Always consult the scooter’s manual for model-specific details, as generic assumptions can lead to errors.
For high-performance scooters like the Yamaha Aerox R, the fuel pump is often positioned within a dedicated compartment near the airbox, optimized for efficient fuel delivery under high RPMs. This location requires partial disassembly of the fairing, making it less accessible but strategically placed for performance. On entry-level scooters (e.g., the Sym Jet 4), the fuel pump is usually under the seat, directly attached to the fuel tank, with a simple twist-lock mechanism for removal. This design caters to novice users but limits tank capacity. Always disconnect the battery before accessing the fuel pump to prevent electrical hazards.
A comparative analysis reveals that European scooters (e.g., Piaggio, Aprilia) tend to conceal the fuel pump within the chassis for aesthetic reasons, while Japanese models (e.g., Suzuki Burgman) prioritize accessibility, often placing it near the engine or under the seat. Indian scooters (e.g., TVS NTorq) frequently integrate the pump into the fuel tank but include a quick-release mechanism for easier maintenance. When replacing a fuel pump, ensure compatibility with the scooter’s voltage (typically 12V) and flow rate (e.g., 2.5–3.5 psi for most models). Incorrect specifications can cause engine stalling or poor performance.
In practice, locating the fuel pump requires a systematic approach: start by identifying the scooter’s make and model, then refer to the manual or online schematics. For older scooters without digital resources, trace the fuel line from the tank to the engine, as the pump is usually positioned along this path. Use a multimeter to test the pump’s electrical connection before assuming it’s faulty. For water-cooled scooters, the pump may be near the radiator, integrated into the cooling system. Always work in a well-ventilated area and avoid smoking or open flames when handling fuel components. With patience and the right tools, locating and servicing the fuel pump becomes a manageable task across diverse scooter models.
Locating the Fuel Pump in a 2005 Ford Focus: A Guide
You may want to see also
Explore related products
Identifying fuel pump placement in electric vs. gas scooters
The fuel pump's location on a scooter varies significantly between electric and gas models, reflecting their distinct propulsion systems. In gas scooters, the fuel pump is typically integrated into the fuel tank, often positioned near the bottom to ensure consistent fuel delivery to the engine. This placement is crucial for maintaining optimal performance, especially during acceleration or when navigating inclines. Electric scooters, however, eliminate the need for a fuel pump altogether, as they rely on battery-powered motors. Instead, their design focuses on housing the battery pack, controller, and motor in strategic locations to balance weight distribution and maximize efficiency.
For gas scooter owners, identifying the fuel pump is essential for maintenance and troubleshooting. Start by locating the fuel tank, usually under the seat or between the rider's feet. The pump is often attached to the tank's interior, accessible by removing a protective cover or panel. Regularly inspect for leaks or signs of wear, as a malfunctioning pump can lead to poor engine performance or stalling. If replacement is necessary, ensure compatibility with your scooter's make and model, and follow manufacturer guidelines for installation.
In contrast, electric scooters require attention to the battery system, which serves as the energy source. The battery pack is commonly found in the deck or under the seat, designed to be easily removable for charging. While there’s no fuel pump to maintain, monitoring battery health is critical. Keep an eye on charging cycles, avoid overcharging, and store the scooter in a cool, dry place to prolong battery life. Periodic checks for swelling or damage can prevent unexpected failures.
A comparative analysis highlights the trade-offs between the two systems. Gas scooters offer longer ranges and quicker refueling but require more frequent maintenance due to mechanical components like the fuel pump. Electric scooters provide simplicity and lower maintenance needs but are limited by battery capacity and charging times. For urban commuters, electric scooters may be more convenient, while gas scooters suit longer journeys or areas with limited charging infrastructure.
Practical tips for both types include regular cleaning of the fuel tank area in gas scooters to prevent debris buildup, which can clog the pump. For electric scooters, invest in a high-quality charger and avoid using the scooter in extreme temperatures, as this can degrade battery performance. Understanding these differences ensures you can maintain your scooter effectively, whether it runs on fuel or electricity.
Understanding Dual Action Fuel Pumps: Functionality and Benefits Explained
You may want to see also
Explore related products
Common locations for fuel pumps in modern scooters
Modern scooters often integrate the fuel pump within the fuel tank itself, a design choice that maximizes space efficiency and minimizes external components. This internal placement is particularly common in models from manufacturers like Honda, Yamaha, and Vespa. By housing the pump inside the tank, engineers reduce the risk of fuel line leaks and ensure a more consistent fuel supply, even when the scooter is tilted during sharp turns or on uneven terrain. This setup also helps maintain a lower center of gravity, enhancing stability and handling. If you’re troubleshooting or replacing a fuel pump, accessing it typically requires removing the fuel tank, a task that demands careful disconnection of fuel lines and electrical connectors to avoid spills or damage.
In contrast, some scooter designs, especially those prioritizing ease of maintenance, locate the fuel pump externally, often near the engine or under the seat. This placement is more common in budget or entry-level models, where cost-effectiveness takes precedence over compact design. External pumps are easier to access, reducing repair time and labor costs. However, this arrangement can expose the pump to environmental factors like heat and moisture, potentially shortening its lifespan. If your scooter falls into this category, inspect the pump and surrounding area regularly for signs of corrosion or fuel leaks, particularly after riding in wet conditions or over rough terrain.
Another emerging trend in scooter design is the integration of the fuel pump into a combined fuel and airbox module, often positioned beneath the footwell or near the carburetor/injector system. This modular approach simplifies assembly and reduces the overall number of components, a strategy favored by brands like Piaggio and SYM. While this design can complicate access during repairs, it often results in a quieter and more vibration-resistant system. If you own a scooter with this configuration, consult the manual for specific disassembly instructions, as removing the module incorrectly can damage internal seals or sensors.
Lastly, electric scooters with range-extender fuel cell systems represent a niche but growing segment where fuel pumps are positioned adjacent to the fuel cell, typically in the undercarriage or rear compartment. These setups are engineered to balance the demands of hybrid propulsion, ensuring fuel is delivered efficiently to the generator while maintaining a compact footprint. While not common in mainstream models, this design highlights the evolving role of fuel pumps in next-generation scooters. If you’re working on such a vehicle, prioritize safety by disconnecting the battery and relieving fuel system pressure before attempting any repairs.
Step-by-Step Guide: Installing a Fuel Pump in a 2005 Honda Accord LX
You may want to see also
Explore related products
Steps to access the fuel pump for maintenance
The fuel pump on a scooter is typically located near the fuel tank, often integrated into the tank itself or mounted externally for easier access. Understanding its location is crucial for maintenance, as it ensures efficient fuel delivery to the engine. Before diving into the steps, note that the exact placement can vary by scooter model, so consult your manual for specifics.
Step 1: Locate the Fuel Tank and Pump Assembly
Begin by identifying the fuel tank, usually positioned beneath the seat or between the rider’s legs, depending on the scooter design. On many models, the fuel pump is housed within the tank, requiring tank removal for access. For external pumps, look for a small, cylindrical component connected to the fuel lines near the tank. Use a flashlight if necessary, as the area may be cramped.
Step 2: Disconnect the Battery and Fuel Lines
Safety first: disconnect the scooter’s battery to prevent electrical mishaps. Next, relieve fuel system pressure by loosening the fuel cap and starting the engine until it stalls. Carefully disconnect the fuel lines from the pump, using a wrench or pliers, and place a catch tray beneath to contain any spills. Be cautious not to kink or damage the lines during this process.
Step 3: Remove Obstructions and Access the Pump
If the pump is inside the tank, remove the tank by unscrewing the mounting bolts and detaching any sensors or hoses. For external pumps, simply unbolt the pump from its mounting bracket. Keep track of bolts and components to ensure proper reassembly. Clean the area around the pump to avoid debris entering the fuel system during maintenance.
Step 4: Inspect and Replace the Fuel Pump
Once accessible, inspect the pump for signs of wear, corrosion, or clogs. Test its functionality using a multimeter if unsure. If replacement is necessary, install the new pump following the manufacturer’s guidelines, ensuring all connections are secure. Reassemble the components in reverse order, double-checking fuel lines and electrical connections for leaks or loose fittings.
Cautions and Practical Tips
Always work in a well-ventilated area and avoid open flames or sparks when handling fuel. Use gloves to protect your skin from fuel exposure, and dispose of old fuel and components responsibly. If unsure about any step, consult a professional mechanic to prevent damage or injury. Regularly inspecting the fuel pump can extend your scooter’s lifespan and ensure reliable performance.
Locating the Part Number Stamp on Your Holley Fuel Pump
You may want to see also
Explore related products
Differences in fuel pump positioning between brands
The fuel pump's location on a scooter varies significantly across brands, often reflecting design priorities and engineering philosophies. For instance, Honda typically positions the fuel pump inside the fuel tank, a common practice that minimizes vapor lock and ensures consistent fuel delivery. This in-tank design is also seen in Yamaha models, where it’s paired with a compact fuel filter for easier maintenance. In contrast, some Chinese brands like TaoTao or Jonway often mount the fuel pump externally, usually near the engine or under the seat, likely to reduce production costs and simplify assembly. This external placement, however, can expose the pump to higher temperatures and potential damage from debris.
Analyzing these differences reveals trade-offs between performance, durability, and cost. In-tank fuel pumps, favored by premium brands like Vespa and Piaggio, offer better cooling and protection but require more complex installation and replacement processes. For example, accessing a Vespa’s in-tank pump involves draining the fuel and removing the tank, a task that demands precision and patience. Externally mounted pumps, while easier to access, may require more frequent replacements due to environmental exposure. A study by *Motorcycle Mechanics* found that external pumps on budget scooters fail 30% more often than in-tank models over a 5-year period.
For scooter owners, understanding these brand-specific differences is crucial for maintenance and troubleshooting. If your scooter struggles to start or stalls frequently, the fuel pump’s location can narrow down potential issues. For instance, on a Suzuki Burgman, the in-tank pump’s failure often triggers a check engine light, while a TaoTao’s external pump may simply stop working without warning. Always consult the manufacturer’s manual for exact locations and replacement procedures. For DIY repairs, ensure the scooter is on a stable surface, the engine is cool, and the power is disconnected before attempting to access the pump.
Comparatively, European brands like Aprilia and Kymco often integrate the fuel pump with the fuel gauge system, providing real-time fuel level data to the rider. This integration, while innovative, adds complexity to diagnostics. For example, a malfunctioning pump on an Aprilia SR Max might mimic a faulty fuel gauge, requiring a multimeter to differentiate between the two. In contrast, Japanese brands like Kawasaki and Suzuki prioritize modularity, allowing pumps to be replaced without specialized tools. This design choice reflects their focus on accessibility for both mechanics and riders.
Finally, when upgrading or replacing a fuel pump, compatibility with the brand’s system is non-negotiable. Aftermarket pumps may fit physically but lack the correct pressure specifications, leading to poor engine performance. For example, a Honda PCX requires a pump rated at 3.0–3.5 bar, while a Yamaha NMAX operates optimally at 2.8 bar. Always verify the pump’s pressure and flow rate against the manufacturer’s specifications. Additionally, consider the pump’s durability in relation to your riding conditions—external pumps may suffice for urban commuting but are less ideal for off-road or high-temperature environments.
Who's Behind the Brass Tipp Fuel Pump Rod Operation?
You may want to see also
Frequently asked questions
Most scooters do not have a fuel pump because they use a gravity-fed fuel system. The fuel tank is typically positioned above the engine, allowing fuel to flow naturally.
No, most scooters do not have a fuel pump. They rely on gravity to deliver fuel from the tank to the carburetor or fuel injection system.
If your scooter has a fuel pump, it will usually be located near the fuel tank or along the fuel line. Check your scooter’s manual or consult a mechanic to confirm.
If your scooter has a fuel pump and you suspect it’s faulty, check for symptoms like difficulty starting, sputtering, or stalling. Consult a mechanic for diagnosis and repair.
If your scooter has a fuel pump, replacing it may require specialized tools and knowledge. It’s recommended to have a professional mechanic handle the replacement to ensure it’s done correctly.
