Rajan Wilcox

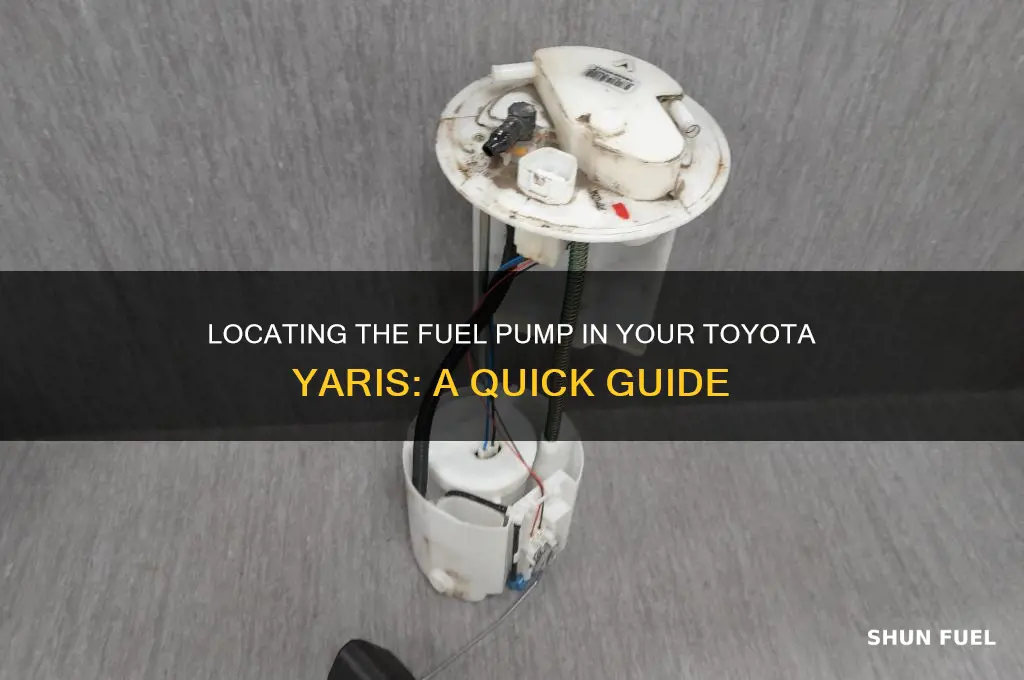

The fuel pump on a Toyota Yaris is typically located inside the fuel tank, a common design feature in modern vehicles to maintain fuel pressure and ensure efficient operation. Accessing the fuel pump requires removing the rear seat cushion or a dedicated access panel, depending on the model year, followed by lowering the fuel tank for maintenance or replacement. This placement helps protect the pump from external damage and keeps it submerged in fuel, which aids in cooling and prevents vapor lock. If you suspect issues with the fuel pump, such as reduced engine performance or difficulty starting, it’s advisable to consult the vehicle’s manual or seek professional assistance for accurate diagnosis and repair.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank (in-tank fuel pump) |
| Access Method | Requires removing the rear seat and fuel pump access panel |
| Fuel Tank Position | Beneath the rear seat area |
| Model Applicability | Most Toyota Yaris models (2006–2020) |
| Pump Type | Electric fuel pump |
| Replacement Difficulty | Moderate (requires specialized tools and fuel system depressurization) |
| **Common Symptoms of Failure | Engine stalling, difficulty starting, loss of power, whining noise from tank |
| **Estimated Replacement Time | 1–2 hours (professional) or 2–4 hours (DIY) |
| Cost of Replacement | $200–$500 (parts + labor, depending on model and location) |
| Safety Precautions | Work in well-ventilated area, disconnect battery, relieve fuel pressure |
Explore related products
What You'll Learn
Fuel pump location in Toyota Yaris engine bay
The fuel pump in a Toyota Yaris is typically located within the fuel tank, a design choice that offers several advantages. This in-tank placement ensures the pump remains submerged in fuel, which helps to keep it cool and reduces the risk of overheating. Additionally, this location minimizes the chance of fuel line leaks and provides a more stable fuel supply to the engine. For most Toyota Yaris models, accessing the fuel pump requires removing the rear seat or a specific access panel, depending on the year and generation of the vehicle.
When attempting to locate the fuel pump in a Toyota Yaris engine bay, it’s crucial to understand that the engine bay itself does not house the pump. Instead, the fuel tank, usually situated beneath the rear seat or cargo area, contains the pump. To access it, start by disconnecting the battery to prevent accidental electrical shorts. Next, relieve the fuel system pressure by locating the Schrader valve on the fuel rail and carefully releasing the pressure. This step is essential for safety and to avoid fuel spillage during the process.
For DIY enthusiasts, replacing or inspecting the fuel pump on a Toyota Yaris requires careful planning. Begin by draining the fuel tank to minimize spillage and fire hazards. Use a siphon pump or a hand-operated fuel transfer pump to safely remove the fuel. Once the tank is drained, remove the rear seat or access panel to expose the fuel tank. Disconnect the electrical connector and fuel lines from the pump assembly, then carefully lower the tank to access the pump. Always refer to the vehicle’s service manual for model-specific instructions and torque specifications.
Comparing the Toyota Yaris to other compact cars, its fuel pump location is relatively standard for modern vehicles. Unlike older models that often mounted the pump externally, the in-tank design is now the industry norm due to its efficiency and safety benefits. However, this placement can make replacement more labor-intensive, as it involves removing the fuel tank. For those uncomfortable with this task, consulting a professional mechanic is advisable to ensure the job is done correctly and safely.
In conclusion, while the fuel pump on a Toyota Yaris is not located in the engine bay, understanding its position within the fuel tank is key to maintenance and repairs. Proper preparation, including relieving fuel pressure and draining the tank, is critical for a safe and successful procedure. Whether you’re inspecting, replacing, or troubleshooting the fuel pump, familiarity with its location and the steps required to access it will save time and reduce the risk of errors. Always prioritize safety and consult reliable resources when working on your vehicle.
Bad Fuel Pump: How It Drastically Reduces Your Gas Mileage
You may want to see also
Explore related products
Identifying the fuel pump on a Yaris hatchback
The fuel pump in a Toyota Yaris hatchback is located within the fuel tank, a common placement in modern vehicles to reduce fire risks and maintain fuel pressure. This design choice means accessing the pump requires removing the fuel tank, a task that demands caution and preparation. Before starting, ensure the vehicle is on a level surface, the engine is cool, and the fuel tank is as empty as possible to minimize spillage and weight.
To identify the fuel pump, first locate the fuel tank beneath the rear seats. In the Yaris hatchback, the tank is typically positioned in the center of the vehicle, directly above the exhaust system. The pump itself is integrated into the tank assembly, often attached to a module that includes the sending unit for the fuel gauge. If you’re unsure of its exact location, consult the vehicle’s service manual for a diagram specific to your model year.
Once the tank is exposed, look for a large, cylindrical component with electrical connectors and fuel lines attached. This is the fuel pump module. In some Yaris models, the module may be secured with a locking ring or bolts, requiring a specialized tool for removal. Be mindful of residual fuel pressure in the system; relieve it by loosening the fuel cap or using a pressure relief tool before proceeding.
For DIY enthusiasts, identifying the fuel pump is straightforward with the right approach, but replacing it is a more complex task. If you’re not confident in your mechanical skills, consider seeking professional assistance to avoid fuel system damage or safety hazards. Always work in a well-ventilated area and use non-sparking tools to prevent ignition risks.
In summary, the fuel pump on a Toyota Yaris hatchback is part of the fuel tank assembly, accessible from beneath the vehicle. Proper identification involves locating the tank, recognizing the pump module, and understanding its connections. While the process is manageable with preparation, the actual replacement requires careful handling of fuel lines and electrical components, making it a task best suited for experienced mechanics or well-prepared DIYers.
Rebuilding Fuel Pump 322843: Step-by-Step Guide for DIY Enthusiasts
You may want to see also
Explore related products
Accessing the fuel pump in a Yaris sedan
The fuel pump in a Toyota Yaris sedan is located within the fuel tank, a design choice that helps maintain fuel pressure and reduces the risk of vapor lock. This placement, while optimal for performance, complicates access for maintenance or replacement. Unlike external fuel pumps, which can often be reached without extensive disassembly, the Yaris’s in-tank pump requires careful steps to avoid damage or safety hazards. Understanding this layout is crucial before attempting any work on the fuel system.
To access the fuel pump, start by relieving the fuel system pressure using the Schrader valve located on the fuel rail. This step is non-negotiable, as residual pressure can lead to fuel spray or injury. Next, disconnect the negative battery terminal to prevent accidental ignition. With safety measures in place, locate the fuel tank, typically found beneath the rear seat in the Yaris sedan. Removing the rear seat involves releasing the retaining clips and lifting the assembly upward, exposing the fuel pump access panel. This process requires patience, as forcing components can cause damage.
Once the access panel is exposed, disconnect the electrical connector and fuel lines from the pump assembly. Toyota often uses quick-connect fittings, which require specific tools or techniques to release without breaking. Labeling connections beforehand can streamline reassembly. After disconnection, remove the retaining bolt or strap securing the pump to the tank. Carefully extract the pump assembly, being mindful of residual fuel that may spill. A drain pan or absorbent material can mitigate messes and environmental hazards.
Replacing the fuel pump involves reversing these steps, but with added attention to detail. Ensure the new pump’s O-ring or gasket is intact to prevent leaks. Torque the retaining bolt to specifications—typically 10-15 Nm—to avoid over-tightening. Reconnect electrical and fuel lines, ensuring they click securely into place. Reinstall the access panel and rear seat, then reconnect the battery. Finally, pressurize the system by cycling the ignition and inspect for leaks before starting the engine. This methodical approach ensures both safety and functionality.
Comparatively, accessing the fuel pump in a Yaris sedan is more involved than in vehicles with external pumps but less complex than some luxury models with additional shielding. The process highlights the balance between engineering efficiency and maintenance practicality. For DIY enthusiasts, investing in a fuel line disconnect tool and familiarizing oneself with the Yaris’s specific design can make this task manageable. Professional assistance is advisable for those uncomfortable with fuel system work, as mistakes can have serious consequences.
Step-by-Step Guide to Installing a Fuel Pump on a 1991 Dodge Dakota
You may want to see also
Explore related products
![AUQDD AW9406 Professional Water Pump Kit With Gasket Fit For (Engine 1.5L L4 Only) 2004-2006 Scion xA xB [2000-2005 Toyota Echo ]2001-2009 Prius 2006-2018 Yaris](https://m.media-amazon.com/images/I/61PEQm1SqCL._AC_UY218_.jpg)
Tools needed to locate Yaris fuel pump
Locating the fuel pump on a Toyota Yaris requires more than just knowing its position—you need the right tools to access it efficiently. The fuel pump is typically located inside the fuel tank, which means you’ll need to remove the tank or access it through a dedicated service panel. Here’s a breakdown of the essential tools to simplify the process.
Step 1: Safety and Preparation Tools
Before diving in, prioritize safety. A pair of safety goggles and nitrile gloves are non-negotiable to protect against fuel spills and debris. Additionally, a fire extinguisher should be within reach, as working with fuel systems carries a fire risk. A drain pan is also essential to catch any fuel remaining in the tank during removal. These tools aren’t just accessories—they’re critical for a safe and clean operation.
Step 2: Fuel System Tools
To depressurize the fuel system, a fuel pressure gauge and a fuel line disconnect tool are indispensable. The gauge ensures the system is safe to work on, while the disconnect tool allows you to release pressure and detach fuel lines without spills. For older models without a service panel, a fuel pump module removal tool may be necessary to extract the pump assembly from the tank.
Step 3: Mechanical Tools
Removing the fuel tank or accessing the pump requires basic mechanical tools. A socket set with metric sizes (typically 10mm to 14mm) and a ratchet will handle most bolts. A flathead and Phillips screwdriver are useful for prying or removing panels. If the tank is rusted or stubborn, a penetrating oil like WD-40 applied 15 minutes prior can ease removal. For tanks without a service panel, a floor jack and jack stands are essential to safely raise the vehicle and access the tank from below.
Step 4: Diagnostic Tools (Optional but Helpful)
If you’re troubleshooting the fuel pump, a multimeter can test for power and ground at the pump connector. A fuel pressure tester can verify if the pump is functioning correctly before removal. These tools add precision to your diagnosis and can save time by confirming the pump is the issue before disassembly.
By equipping yourself with these tools, you’ll not only locate the fuel pump but also ensure the process is safe, efficient, and accurate. Each tool serves a specific purpose, turning a potentially daunting task into a manageable DIY project.
Signs Your Fuel Pump is Failing: What to Look For
You may want to see also
Explore related products
Common Yaris fuel pump placement by model year
The Toyota Yaris, known for its compact design and fuel efficiency, has seen variations in fuel pump placement across different model years. Understanding these differences is crucial for maintenance, repairs, or upgrades. For instance, the fuel pump in earlier Yaris models (2006–2011) is typically located inside the fuel tank, accessible by removing the rear seat cushion and the tank cover. This design prioritizes protection from external elements but requires more steps for access. In contrast, later models (2012–2019) often retain the in-tank placement but may feature improved mounting mechanisms, making removal slightly easier with the right tools. Knowing your model year ensures you approach the task with the correct expectations and preparation.
Analyzing the evolution of fuel pump placement reveals Toyota’s focus on safety and efficiency. In the first-generation Yaris (1999–2005), the fuel pump was also housed within the fuel tank, a standard practice for most modern vehicles. This design minimizes fire risks by keeping the pump submerged in fuel, reducing exposure to air. However, accessing the pump in these older models can be more labor-intensive, often requiring the removal of the fuel tank itself. For DIY enthusiasts, this means allocating extra time and ensuring proper safety measures, such as relieving fuel system pressure before starting work.
For those working on a second-generation Yaris (2006–2011), the process is more streamlined but still demands precision. After removing the rear seat cushion, locate the fuel pump access panel, typically secured by a few bolts. Disconnect the electrical connector and fuel lines carefully to avoid spills or damage. A practical tip: use a catch pan to collect any residual fuel during removal. This generation’s design balances accessibility with the safety benefits of an in-tank pump, making it a manageable task for intermediate-level mechanics.
The third-generation Yaris (2012–2020) continues the in-tank placement trend but introduces slight refinements. For example, some models feature a quick-release mechanism for the fuel pump assembly, reducing the risk of spills during replacement. However, accessing the pump still requires removing the rear seat and access panel. A cautionary note: always refer to the vehicle’s service manual for model-specific instructions, as variations exist within this generation. For instance, hybrid models may have additional components near the fuel tank, requiring extra care during disassembly.
In summary, the fuel pump on a Toyota Yaris is consistently located inside the fuel tank across all model years, but the accessibility and removal process have evolved. Earlier models (1999–2005) may require fuel tank removal, while later generations (2006–2020) offer more direct access via the rear seat compartment. Regardless of the model year, safety precautions—such as working in a well-ventilated area and using appropriate tools—are essential. By understanding these placement trends, Yaris owners can approach fuel pump maintenance with confidence and efficiency.
Understanding Dual Fuel Heat Pumps: Efficient Heating and Cooling Explained
You may want to see also
Frequently asked questions
The fuel pump on a Toyota Yaris is typically located inside the fuel tank, which is situated under the rear seat or in the rear of the vehicle.
To access the fuel pump, you’ll need to remove the rear seat cushion, disconnect the battery, and then lower the fuel tank to access the pump assembly.
Replacing the fuel pump is a moderately complex task that requires working with the fuel system. If you’re not experienced, it’s recommended to have a professional mechanic handle the replacement.
Common signs include difficulty starting the engine, sputtering or stalling, reduced fuel efficiency, and unusual noises coming from the fuel tank area.
Replacing the fuel pump involves dropping the fuel tank, which can be labor-intensive. It’s not considered an easy DIY task and often requires specialized tools.
