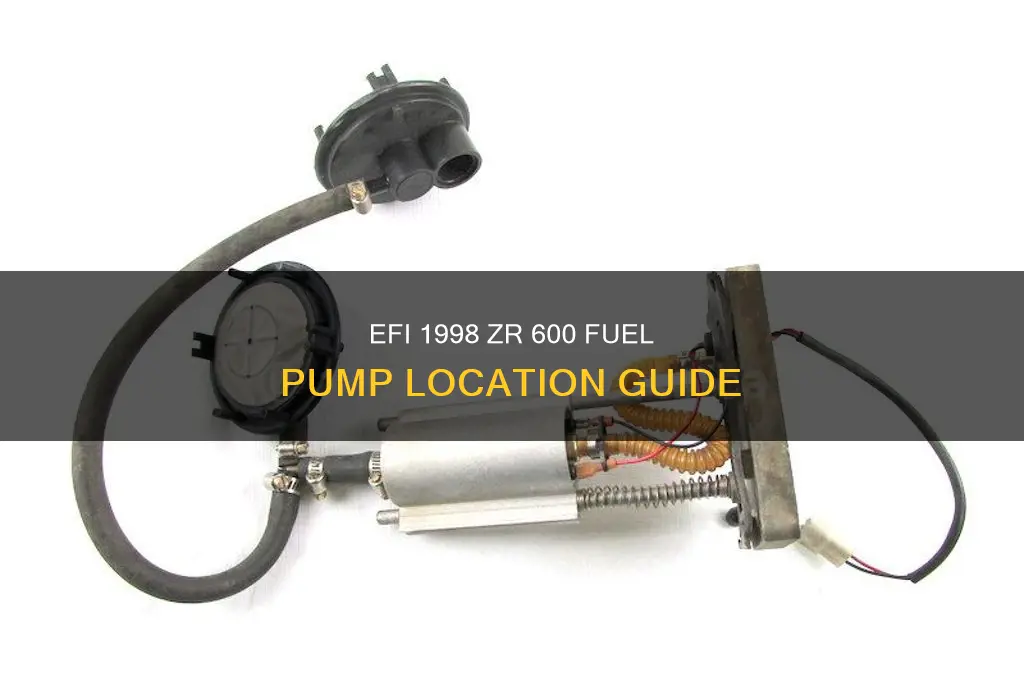

The fuel pump on a 1998 Arctic Cat ZR 600 EFI (Electronic Fuel Injection) model is typically located inside the fuel tank. This in-tank design is common in EFI systems to ensure consistent fuel pressure and reduce the risk of vapor lock. To access the fuel pump, you’ll need to remove the fuel tank from the snowmobile, which usually involves disconnecting the fuel lines, electrical connectors, and mounting bolts. Once the tank is removed, the fuel pump assembly can be accessed by opening the tank’s access panel or removing the tank’s top cover, depending on the specific design. Always ensure the fuel system is depressurized and the power is disconnected before beginning any work to avoid safety hazards.
| Characteristics | Values |
|---|---|
| Location of Fuel Pump | Inside the fuel tank (common for EFI systems in snowmobiles like the 1998 ZR 600) |
| Access Method | Requires removal of the fuel tank for direct access to the pump |
| Fuel Tank Removal Steps | 1. Drain fuel, 2. Disconnect fuel lines, 3. Remove mounting bolts, 4. Lower tank |
| Fuel Pump Type | Electric in-tank fuel pump |
| Compatibility | Specific to EFI (Electronic Fuel Injection) models of the 1998 ZR 600 |
| Common Issues | Clogging, failure due to age, or electrical malfunctions |
| **Replacement Considerations | Ensure compatibility with OEM or high-quality aftermarket parts |
| Tools Required | Wrenches, screwdrivers, fuel line disconnect tools |
| Safety Precautions | Work in well-ventilated area, avoid sparks near fuel |
Explore related products
$62.69 $65.99
What You'll Learn
Fuel pump location in 1998 ZR 600 EFI snowmobile engine compartment
The fuel pump in a 1998 ZR 600 EFI snowmobile is a critical component, ensuring consistent fuel delivery to the engine for optimal performance. Locating it requires familiarity with the snowmobile’s engine compartment layout. Typically, the fuel pump is mounted near the fuel tank, often on the underside of the vehicle, to minimize fuel line length and maintain efficiency. This placement also protects the pump from extreme cold and vibration, common in snowmobile environments.
To access the fuel pump, start by removing the snowmobile’s belly pan, a protective panel beneath the engine. This exposes the underside of the fuel tank and surrounding components. The fuel pump is usually attached directly to the tank or positioned nearby, connected via fuel lines and an electrical harness. In some models, it may be integrated into the fuel tank itself, requiring tank removal for direct access. Always disconnect the battery before working on fuel system components to prevent accidental ignition.
Comparing the 1998 ZR 600 EFI to earlier carbureted models highlights a key difference: EFI systems rely on electric fuel pumps, whereas carbureted engines often use mechanical pumps driven by the engine. This shift improves fuel delivery precision but requires careful maintenance of electrical connections. If the pump fails, symptoms like hard starting or stalling under load may occur, necessitating prompt inspection.
For DIY enthusiasts, replacing the fuel pump involves draining the fuel tank, disconnecting the fuel lines, and unbolting the pump assembly. Ensure the replacement pump matches the original specifications, including pressure and flow rate, typically around 30–40 PSI for EFI systems. Reinstall the belly pan securely after testing the new pump to avoid debris ingress during operation. Regularly inspecting fuel lines for cracks or leaks can prevent pump failure and ensure longevity.
In summary, the fuel pump’s location in the 1998 ZR 600 EFI is strategically designed for efficiency and protection. Accessing it requires removing the belly pan and understanding the EFI system’s electrical dependencies. Proper maintenance and precise replacement procedures are essential to keep this vital component functioning reliably in harsh winter conditions.
