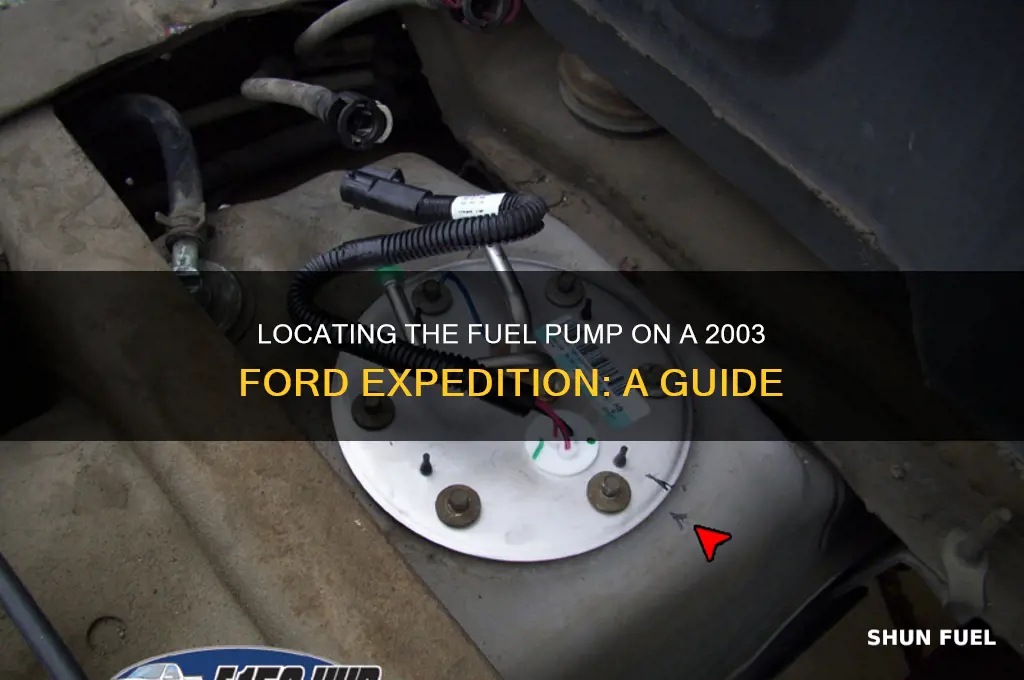

The fuel pump on a 2003 Ford Expedition is located inside the fuel tank, which is situated beneath the vehicle, typically near the rear passenger side. Accessing the fuel pump requires removing the fuel tank, a task that involves disconnecting the fuel lines, electrical connectors, and tank straps. Due to its location, replacing the fuel pump is a moderately complex job that often necessitates specialized tools and safety precautions, such as relieving fuel system pressure and working in a well-ventilated area. Consulting the vehicle’s service manual or seeking professional assistance is recommended for accurate and safe completion of the task.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank |
| Access Method | Requires removal of the fuel tank or a dedicated access panel (if equipped) |
| Tank Removal | Necessary in most cases; involves draining fuel, disconnecting lines, and lowering the tank |
| Tools Required | Jack, jack stands, wrenches, screwdrivers, and possibly a fuel line disconnect tool |
| Safety Precautions | Work in a well-ventilated area, avoid sparks, and relieve fuel system pressure before starting |
| Replacement Time | Approximately 2-4 hours depending on experience and access |
| Common Issues | Fuel pump failure, clogged fuel filter, or faulty wiring harness |
| Diagnostic Tips | Check for power at the pump connector and listen for pump operation when the key is turned to "ON" |
| Replacement Kit | Often includes a new fuel pump, sending unit, and fuel filter |
| Compatibility | Ensure replacement parts match the 2003 Ford Expedition's engine and fuel system specifications |
Explore related products
What You'll Learn
Fuel pump location in 2003 Ford Expedition
The fuel pump in a 2003 Ford Expedition is located inside the fuel tank, a common placement in many modern vehicles to keep the pump cool and reduce the risk of vapor lock. This design choice also ensures that the pump is submerged in fuel, which helps lubricate and cool the motor, extending its lifespan. Accessing the fuel pump requires removing the fuel tank, a task that demands careful preparation and safety precautions due to the flammable nature of gasoline.
To locate and replace the fuel pump, start by relieving the fuel system pressure using the Schrader valve on the fuel rail. Disconnect the battery to prevent accidental sparks, then raise the vehicle and secure it on stands to access the fuel tank. The tank is typically held in place by straps and may require removing the exhaust or other components for clearance. Once the tank is lowered, carefully disconnect the fuel lines and electrical connector before removing the pump assembly. Replacement kits often include a new pump, sending unit, and float, ensuring a complete repair.
Comparing the 2003 Ford Expedition’s fuel pump to earlier models reveals improvements in durability and efficiency. Older designs often placed the pump externally, exposing it to heat and vibration, which led to premature failure. The in-tank design not only enhances reliability but also integrates the fuel level sensor, simplifying diagnostics. However, this design makes replacement more labor-intensive, as the entire tank must be dropped, unlike external pumps that are accessible without removing the tank.
For DIY enthusiasts, replacing the fuel pump on a 2003 Ford Expedition is a moderate-difficulty task requiring basic mechanical skills and tools. Essential tools include a jack, jack stands, wrenches, and a fuel line disconnect tool. Always work in a well-ventilated area, avoid open flames, and use safety goggles to protect against fuel spills. If unsure, consult a repair manual or seek professional assistance, as improper installation can lead to leaks or system malfunctions.
Understanding the fuel pump’s location and function is crucial for troubleshooting common issues like hard starting, stalling, or reduced power. Symptoms of a failing pump include whining noises from the tank, inconsistent fuel pressure, or a check engine light. Regularly inspecting the fuel system and addressing issues promptly can prevent costly repairs and ensure the Expedition’s reliability. Knowing the pump’s in-tank location empowers owners to make informed decisions about maintenance and repairs.
Accessing the Fuel Pump in a 2001 Mazda 626 LX: A Guide
You may want to see also
Explore related products
Steps to access the fuel pump
The fuel pump on a 2003 Ford Expedition is located inside the fuel tank, a common placement in modern vehicles to keep the pump cool and reduce the risk of vapor lock. Accessing it requires careful planning and execution to ensure safety and efficiency. Here’s a step-by-step guide to accessing the fuel pump, tailored to this specific model.
Step 1: Prepare the Vehicle
Begin by relieving the fuel system pressure to prevent accidental fuel spray or injury. Locate the fuel pressure relief valve, typically found on the fuel rail near the engine, and attach the appropriate tool to depress it. Start the engine and let it run until it stalls, then turn the ignition off. This step is critical, as residual pressure in the fuel lines can be hazardous. Next, disconnect the battery to eliminate any risk of electrical sparks. Finally, ensure the vehicle is on a level surface and use jack stands to securely lift the rear of the car, providing ample clearance to work beneath it.
Step 2: Remove the Fuel Tank
With the vehicle safely elevated, locate the fuel tank beneath the chassis. The tank is secured by straps and fasteners, which must be removed to lower it. Start by loosening the bolts on the tank straps using a socket wrench, but do not remove them entirely until you’re ready to lower the tank. Disconnect the fuel lines and electrical connectors attached to the tank, taking note of their positions for reassembly. Use a drain pan to catch any residual fuel that may spill during this process. Once all connections are detached, carefully lower the tank using a floor jack or a secure support system to avoid strain or damage.
Step 3: Access and Replace the Fuel Pump
With the fuel tank removed, the fuel pump module will be visible through the tank’s access port. Remove the locking ring securing the module using a specialized fuel tank locking ring tool to avoid damaging the tank. Lift the module out carefully, as it may still contain fuel. Inspect the pump and sending unit for wear or damage before replacing it with a new unit. Ensure the new pump is properly seated and reattach the locking ring securely. Reinstallation follows the reverse order of removal, starting with placing the tank back into position and reattaching all components.
Cautions and Practical Tips
Always work in a well-ventilated area and avoid open flames or sparks when handling fuel. If you’re unsure about any step, consult a repair manual or seek professional assistance. Keep a fire extinguisher nearby as a precaution. When reassembling, double-check all connections and ensure the tank is securely fastened to prevent leaks or instability. This process, while detailed, is manageable with patience and the right tools, saving you the cost of professional labor.
Step-by-Step Guide: Replacing the Fuel Pump in a 1970 Camaro 350
You may want to see also
Explore related products
Tools needed for fuel pump replacement
Replacing the fuel pump on a 2003 Ford Expedition requires a specific set of tools to ensure the job is done efficiently and safely. The fuel pump is located inside the fuel tank, which means you’ll need tools to access and remove the tank, as well as specialized equipment to handle the pump itself. Here’s a breakdown of the essential tools you’ll need for this task.
Step 1: Accessing the Fuel Tank
To begin, you’ll need a floor jack and jack stands to safely lift the vehicle and access the underside. A wrench set (both metric and standard sizes) or a socket set with a ratchet is essential for removing bolts and fasteners securing the fuel tank. Additionally, a flathead and Phillips screwdriver will come in handy for any clips or panels that need to be removed. For cutting through the fuel lines, a pair of fuel line disconnect tools is crucial to avoid spills or damage. Always work in a well-ventilated area and use safety goggles to protect against fuel splashes.
Step 2: Removing the Fuel Pump
Once the tank is lowered, you’ll need a fuel pump module removal tool or a locking fuel line tool to disconnect the pump assembly. A torque wrench is highly recommended to ensure the new pump is installed with the correct tightness, typically around 20-25 ft-lbs for the Expedition. A drain pan is also necessary to catch any residual fuel when disconnecting the lines. If the tank is particularly stubborn, a rubber mallet can help gently loosen it without causing damage.
Cautions and Practical Tips
Before starting, relieve the fuel system pressure using a pressure gauge or by disconnecting the fuel pump relay and running the engine until it stalls. Always disconnect the battery to prevent accidental sparks. When working with fuel, avoid open flames or smoking, and keep a fire extinguisher nearby as a precaution. If you’re unsure about any step, consult a repair manual specific to the 2003 Ford Expedition for detailed diagrams and torque specifications.
While the tools listed above are essential, having a helper can make the process smoother, especially when handling the fuel tank. Investing in a fuel pump replacement kit can also save time, as it often includes specialized tools and gaskets needed for the job. With the right tools and precautions, replacing the fuel pump on a 2003 Ford Expedition is a manageable task for a DIY enthusiast.
Locating the Fuel Pump on a 1997 Honda Accord: A Guide
You may want to see also
Explore related products
Symptoms of a failing fuel pump
The fuel pump in a 2003 Ford Expedition is located inside the fuel tank, a common placement for many modern vehicles to keep the pump cool and extend its lifespan. However, this location can make diagnosing and replacing a failing pump more challenging. Recognizing the symptoms early can save you from being stranded or causing further damage to your engine. Here’s what to watch for:
One of the first signs of a failing fuel pump is a sputtering engine at high speeds. As the pump weakens, it struggles to deliver a consistent fuel supply, especially under the increased demand of highway driving. You might notice the vehicle hesitates or jerks when accelerating, particularly when overtaking or climbing hills. This symptom often worsens over time, starting as an occasional hiccup before becoming a persistent issue. If you experience this, it’s crucial to address the problem promptly, as continued strain can lead to complete pump failure.
Another telltale symptom is difficulty starting the engine, especially after the vehicle has been sitting for a while. A failing fuel pump may not build sufficient pressure to deliver fuel to the injectors, resulting in extended cranking or a no-start condition. You might hear the starter spinning without the engine catching, or the engine may start briefly before stalling. This issue can be intermittent at first, making it easy to dismiss, but it typically becomes more frequent as the pump deteriorates. If you notice this, check the fuel pressure with a gauge to confirm the pump’s condition.
A less obvious but equally important symptom is a sudden drop in fuel efficiency. A failing fuel pump may not deliver fuel at the correct pressure or volume, causing the engine to run richer than necessary. This inefficiency can lead to increased fuel consumption, often without other noticeable performance issues. If your Expedition’s mileage has dropped significantly without changes in driving habits or conditions, inspect the fuel system, including the pump, for potential issues.
Lastly, unusual noises from the fuel tank area can indicate a failing pump. A whining or humming sound that changes with acceleration or load is a common sign of internal wear or a failing motor. While some noise is normal during startup, persistent or unusually loud sounds warrant attention. Ignoring these noises can lead to sudden pump failure, leaving you stranded. If you hear anything out of the ordinary, have the pump inspected and tested by a professional to avoid further complications.
Recognizing these symptoms early can help you address a failing fuel pump before it leaves you stranded or causes additional damage. Given the pump’s location inside the fuel tank, replacement can be labor-intensive, so proactive maintenance and timely repairs are key. Always consult a repair manual or a qualified mechanic for specific guidance on your 2003 Ford Expedition.
Locating the Fuel Pump on a 1995 Mercury Villager
You may want to see also
Explore related products
Cost to replace fuel pump in 2003 Expedition
The fuel pump on a 2003 Ford Expedition is located inside the fuel tank, which means replacing it requires dropping the tank—a labor-intensive process that drives up costs. This design choice, common in many vehicles of that era, ensures the pump stays cool but complicates access for repairs. Understanding this location is the first step in estimating replacement costs, as it directly impacts labor time and parts accessibility.
Labor typically accounts for 60–70% of the total cost to replace a fuel pump in a 2003 Expedition. Most mechanics charge between $80 and $120 per hour, and the job usually takes 2–3 hours due to the need to remove the fuel tank. This puts labor costs in the $160–$360 range. DIYers can save on labor but should factor in the risk of fuel spills or improper installation, which could lead to further expenses.
Parts costs for a fuel pump replacement vary widely depending on quality and brand. Aftermarket pumps range from $100 to $250, while OEM (Original Equipment Manufacturer) parts can cost $250–$400. Cheaper pumps may save money upfront but often lack durability, leading to more frequent replacements. Additionally, some kits include a new fuel filter or sending unit, which can add $50–$100 to the total.
Geography and shop rates also influence the cost. In urban areas with higher living costs, labor rates can exceed $150 per hour, pushing the total expense to $500 or more. Rural areas may offer lower rates, but parts availability could delay repairs. Online forums and local mechanics often recommend comparing quotes from at least three shops to find the best balance of price and reliability.
To minimize costs, consider bundling the fuel pump replacement with other maintenance tasks, such as a fuel tank inspection or filter change. Some shops offer discounts for combined services. Alternatively, purchasing the part yourself and bringing it to a trusted mechanic can reduce markup fees. Always ensure the replacement pump meets Ford’s specifications to avoid compatibility issues or voiding warranties.
Locate Your Fuel Pump Using Your VIN: A Step-by-Step Guide
You may want to see also
Frequently asked questions
The fuel pump on a 2003 Ford Expedition is located inside the fuel tank, which is situated underneath the vehicle, near the rear passenger side.
To access the fuel pump, you’ll need to safely raise the vehicle, remove the fuel tank’s protective shield, disconnect the fuel lines and electrical connectors, and then lower the tank to access the pump assembly.
Yes, common issues include fuel pump failure, which can cause the engine to stall or not start, and a whining noise from the fuel tank area. Regular maintenance and timely replacement can prevent these problems.
