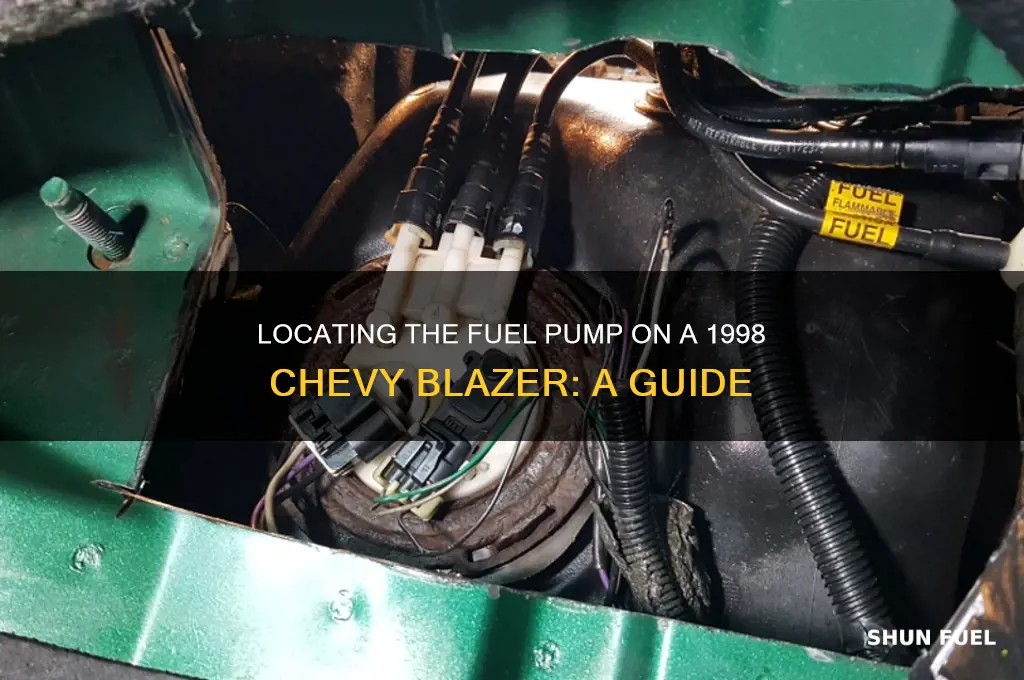

The fuel pump on a 1998 Chevy Blazer is typically located inside the fuel tank, a common design in many vehicles of that era to help maintain fuel pressure and reduce the risk of vapor lock. Accessing the fuel pump requires removing the fuel tank, which involves safely lowering it from the vehicle after disconnecting the fuel lines and electrical connections. This task is best performed with the fuel tank as empty as possible to minimize weight and potential spillage. Once the tank is removed, the fuel pump module can be accessed and replaced if necessary, though it’s important to follow safety precautions, such as relieving fuel system pressure and working in a well-ventilated area, to avoid hazards associated with flammable fuels.
| Characteristics | Values |
|---|---|
| Location | Inside the fuel tank |
| Access Method | Requires removing the fuel tank for access |
| Fuel Tank Removal | Tank must be lowered from the vehicle |
| Tank Straps | Two straps secure the fuel tank; both need to be removed |
| Pump Module | Integrated with the fuel sending unit and filter |
| Electrical Connector | Located on top of the fuel tank near the pump module |
| Tools Required | Jack, jack stands, wrenches, screwdrivers, and a fuel line disconnect tool |
| Safety Precautions | Relieve fuel system pressure before removal; work in a well-ventilated area |
| Replacement Difficulty | Moderate to difficult due to tank removal |
| Common Issues | Pump failure, electrical connector corrosion |
| Year/Model Specific | 1998 Chevrolet Blazer (S-10/Jimmy platform) |
Explore related products
What You'll Learn
Fuel pump location in 1998 Chevy Blazer
The fuel pump in a 1998 Chevy Blazer is located inside the fuel tank, a common placement for many vehicles of that era. This design choice was made to keep the fuel pump cool and submerged in fuel, which helps prevent overheating and ensures consistent performance. Accessing the fuel pump requires removing the fuel tank, a task that demands careful preparation and safety precautions due to the flammable nature of gasoline.
To locate and replace the fuel pump, start by relieving the fuel system pressure using the Schrader valve on the fuel rail. Next, disconnect the negative battery terminal to prevent accidental sparks. Raise the vehicle securely on jack stands to access the fuel tank from underneath. The tank is typically held in place by straps and bolts, which must be removed to lower it safely. Once the tank is accessible, disconnect the electrical connector and fuel lines from the pump assembly before removing the retaining ring or lock ring that secures the pump module.
A key consideration when working on the fuel pump is the potential for fuel spillage. Have a drain pan ready to catch any residual fuel when lowering the tank. Additionally, inspect the fuel tank for signs of corrosion or damage, as these issues can complicate the process or indicate the need for further repairs. Always work in a well-ventilated area and avoid open flames or sparks during the procedure.
Comparing the 1998 Chevy Blazer’s fuel pump location to newer models highlights the evolution of fuel system design. Modern vehicles often incorporate in-tank pumps with integrated sending units, a feature present in the Blazer as well. However, advancements in materials and diagnostics have made newer systems more durable and easier to service. For the Blazer, understanding the in-tank placement underscores the importance of proper tools and safety measures when performing maintenance or replacements.
In summary, the fuel pump on a 1998 Chevy Blazer is housed within the fuel tank, requiring tank removal for access. This process involves relieving fuel pressure, disconnecting electrical and fuel lines, and carefully lowering the tank. Safety precautions, such as working in a well-ventilated area and avoiding ignition sources, are critical. While the design is standard for its time, it contrasts with modern systems in terms of serviceability and material advancements. Following these steps ensures a safe and effective repair or replacement.
Locating the Fuel Pump on a 1991 S10 Blazer: A Guide
You may want to see also
Explore related products
Accessing the fuel pump on a 1998 Blazer
The fuel pump on a 1998 Chevy Blazer is located inside the fuel tank, a common placement for many vehicles of that era. This design choice was made to keep the fuel pump cool and submerged in fuel, which helps prevent overheating and ensures consistent performance. However, this location also means that accessing the fuel pump requires more than just popping the hood—it involves a bit of disassembly and careful planning.
To access the fuel pump, start by relieving the fuel system pressure. This is a critical safety step, as it minimizes the risk of fuel spraying or igniting during the process. Locate the fuel pressure relief valve, typically found on the fuel rail near the engine, and depress it to release the pressure. Once the system is depressurized, disconnect the negative battery terminal to prevent any accidental electrical shorts. These initial steps are essential for a safe and efficient repair.
Next, focus on removing the fuel tank. Begin by raising the rear of the Blazer using a jack and securing it on stands. This provides the necessary clearance to work underneath the vehicle. Locate the fuel tank straps, usually found on either side of the tank, and remove the bolts securing them. Carefully lower the tank to access the top, where the fuel pump assembly is located. Be cautious not to damage any fuel lines or wiring during this process, as these components are integral to the fuel system’s operation.
Once the tank is accessible, remove the fuel pump assembly by detaching the electrical connector and fuel lines. The assembly is typically secured with a locking ring, which can be released using a specialized tool or a flathead screwdriver and hammer. After removing the ring, lift the assembly out of the tank. Inspect the pump and sending unit for wear or damage, as these components often need replacement if the pump has failed. Reinstallation follows the reverse process, ensuring all connections are secure and the tank is properly supported.
While accessing the fuel pump on a 1998 Blazer is a straightforward task with the right tools and precautions, it’s not without its challenges. Working with fuel systems requires attention to detail and adherence to safety protocols. If you’re unsure at any point, consulting a repair manual or seeking professional assistance can save time and prevent costly mistakes. By following these steps, you can confidently tackle this repair and keep your Blazer running smoothly.
Locate the Fuel Pump on Your 2009 Brute Force 750
You may want to see also
Explore related products
Fuel pump tank removal steps for 1998 Blazer
The fuel pump on a 1998 Chevy Blazer is located inside the fuel tank, a common design for many vehicles of that era. This placement protects the pump from external damage and helps maintain a consistent fuel temperature. Removing the fuel pump requires careful steps to ensure safety and efficiency, as working with fuel systems carries inherent risks.
Step-by-Step Removal Process:
- Prepare the Vehicle: Park the Blazer on a flat surface, engage the parking brake, and disconnect the battery’s negative terminal to prevent electrical hazards. Relieve fuel system pressure by locating the Schrader valve on the fuel rail (near the engine) and depressurizing it with a tool.
- Access the Fuel Tank: Drain the tank using a siphon pump or by loosening the drain plug if accessible. Lift the vehicle securely with jack stands to access the tank from underneath. Remove the protective skid plate if equipped.
- Disconnect Components: Unbolt the fuel tank straps and lower the tank slightly. Disconnect the electrical connector and fuel lines from the pump assembly, using line disconnect tools to avoid damage.
- Remove the Pump Assembly: With the tank lowered, unlock the retaining ring or lock tab securing the pump module to the tank. Carefully pull the assembly out, taking note of the fuel level sender and float arm positioning for reassembly.
Cautions and Practical Tips:
Always work in a well-ventilated area and avoid open flames or sparks. If the tank is difficult to lower, inspect for stuck lines or debris. For reassembly, ensure the new pump’s seal is properly seated to prevent leaks.
Removing the fuel pump on a 1998 Blazer is a systematic process requiring attention to safety and detail. By following these steps and precautions, you can efficiently access and replace the pump, restoring your vehicle’s fuel system functionality.
Locating the Fuel Pump in a 1994 Honda Civic: A Guide
You may want to see also
Explore related products
![Hot Wheels '75 Chevy Blazer Custom [Black], HW Dirt 5/10, 115/250](https://m.media-amazon.com/images/I/51VeMAL3tHL._AC_UL320_.jpg)
Identifying fuel pump issues in 1998 Chevy Blazer
The fuel pump in a 1998 Chevy Blazer is located inside the fuel tank, a common placement for many vehicles of that era. This design protects the pump from external damage but complicates access for diagnosis and replacement. Understanding its location is the first step in identifying potential fuel pump issues, as symptoms often mimic other fuel system problems.
One telltale sign of a failing fuel pump is difficulty starting the engine, especially after the vehicle has been sitting for a while. This occurs because the pump struggles to maintain fuel pressure in the lines. To test this, turn the ignition to the "on" position (without starting the engine) and listen for the pump's priming hum. If the sound is weak or absent, the pump may be failing. However, this method isn’t definitive; further testing is required to confirm the issue.
Another symptom is a sudden loss of power during acceleration or stalling at high speeds. This happens when the pump cannot deliver sufficient fuel under demand. A fuel pressure gauge can be used to diagnose this by connecting it to the fuel rail and monitoring pressure during operation. Normal pressure for a 1998 Blazer should be around 40–60 PSI, depending on the engine. If pressure drops significantly under load, the pump is likely at fault.
Comparatively, fuel filter clogs or faulty injectors can produce similar symptoms, making it crucial to rule out these issues before replacing the pump. A clogged filter will restrict fuel flow but won’t affect pressure as dramatically as a failing pump. Injector problems often cause misfires or rough idling, whereas pump issues tend to manifest as broader performance losses. Always inspect the filter and injectors before concluding the pump is the culprit.
Preventive maintenance can extend the life of the fuel pump. Regularly replacing the fuel filter (every 30,000 miles) and using high-quality gasoline reduces strain on the pump. If the pump does fail, replacement involves dropping the fuel tank, a task best suited for experienced DIYers or professionals due to safety risks associated with working with fuel systems. Identifying and addressing fuel pump issues early not only saves money but also prevents being stranded due to a sudden failure.
TYC Fuel Pumps Review: Reliability, Performance, and Value Explored
You may want to see also
Explore related products
Replacing the fuel pump on a 1998 Blazer
The fuel pump on a 1998 Chevy Blazer is located inside the fuel tank, a design common in many vehicles of that era to keep the pump cool and improve reliability. This placement, while advantageous for performance, complicates replacement, requiring the removal of the fuel tank. Before diving into the process, ensure you have the necessary tools, including a jack, jack stands, wrenches, and a new fuel pump assembly. Safety is paramount; work in a well-ventilated area, disconnect the battery, and relieve fuel system pressure to minimize risks.
Replacing the fuel pump begins with safely raising the Blazer and removing the fuel tank. Start by disconnecting the negative battery terminal to prevent electrical hazards. Next, relieve the fuel system pressure using the Schrader valve on the fuel rail. Locate and remove the fuel tank straps, taking care to support the tank as you lower it. Disconnect the electrical connector and fuel lines from the pump assembly, noting their positions for reassembly. Once the tank is accessible, remove the retaining ring or lock ring holding the pump module in place, then carefully lift the assembly out of the tank.
When installing the new fuel pump, ensure the assembly is correctly aligned and secured. Reinstall the lock ring or retaining clip, making sure it engages fully to prevent leaks. Reattach the fuel lines and electrical connector, double-checking their orientation. Carefully place the tank back into position, reattach the straps, and lower the Blazer. Reconnect the battery and check for leaks by starting the engine and inspecting the tank area. A properly installed pump should restore fuel delivery, resolving issues like hard starts or stalling.
While the process is straightforward, several cautions are essential. Avoid working on the fuel system near open flames or sparks, as gasoline vapors are highly flammable. If the tank is difficult to remove, inspect for rust or debris on the straps and use penetrating oil if necessary. Always replace the fuel pump with a high-quality unit to ensure longevity and performance. For those uncomfortable with the task, consulting a professional mechanic is a prudent choice, as improper installation can lead to costly repairs or safety hazards.
In conclusion, replacing the fuel pump on a 1998 Chevy Blazer is a task that requires patience, precision, and attention to safety. By following these steps and taking necessary precautions, you can successfully restore your vehicle’s fuel system. While the process may seem daunting, the satisfaction of completing the repair and the savings compared to professional labor make it a worthwhile endeavor for DIY enthusiasts. Always prioritize safety and accuracy to ensure a reliable and efficient outcome.
Chevy Colorado Fuel Pump Lifespan: What to Expect and Maintenance Tips
You may want to see also
Frequently asked questions
The fuel pump on a 1998 Chevy Blazer is located inside the fuel tank, which is situated under the vehicle, typically near the rear passenger side.
To access the fuel pump, you’ll need to safely raise the vehicle, remove the fuel tank’s protective shield, disconnect the fuel lines and electrical connections, and then lower the tank to access the pump assembly.
Yes, always relieve the fuel system pressure, disconnect the battery, and work in a well-ventilated area to avoid fire hazards. Use proper safety equipment, such as gloves and safety goggles, when handling fuel.
